EBTOOLS Universal Thumb Throttle Speed Control Instruction Manual

1. Konec produktuview

The EBTOOLS Universal Thumb Throttle Speed Control is designed for electric scooters and e-bikes, providing a convenient and precise method for speed regulation. This device is compatible with handlebars featuring a 22mm (7/8 inch) diameter. It features a durable construction and a simple three-wire connection for easy integration into your vehicle's electrical system.

Image 1.1: The EBTOOLS Universal Thumb Throttle, showing the main unit, coiled cable, and three wire connectors (red, black, green).

2. Bezpečnostní informace

Please read and understand all safety instructions before installation and operation. Failure to follow these instructions may result in property damage, injury, or death.

• Always disconnect the vehicle's power source before performing any installation or maintenance.
• Ujistěte se, že všechna elektrická připojení jsou bezpečná a řádně izolovaná, aby se zabránilo zkratu.
• Verify that the throttle operates smoothly and returns to the idle position when released.
• Do not modify the throttle or its wiring. Use only as intended.
• Wear appropriate safety gear when operating electric scooters or e-bikes.
• Pokud si nejste jisti některými kroky instalace, poraďte se s kvalifikovaným technikem.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• 1 x EBTOOLS Universal Thumb Throttle Speed Control

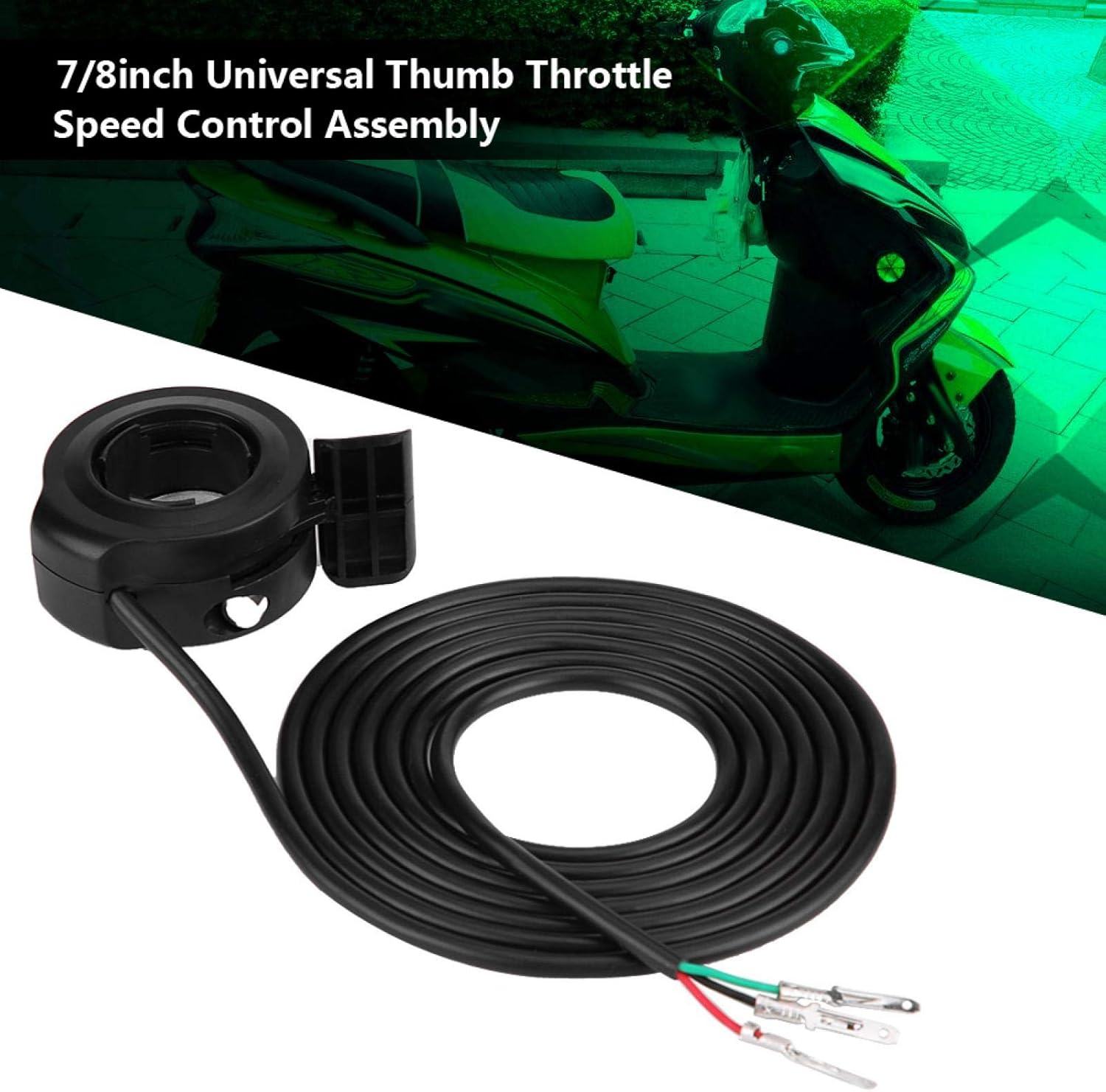

Image 3.1: The throttle unit, highlighting its universal compatibility for 7/8 inch handlebars, with an electric scooter visible in the background.

4. Vlastnosti produktu

• Univerzální kompatibilita: Designed for 22mm (7/8 inch) diameter handlebars.
• Odolná konstrukce: Vyrobeno z vysoce kvalitního ABS materiálu pro dlouhou životnost.
• Snadná instalace: Simple three-wire setup.
• Přesné řízení rychlosti: Ergonomic thumb lever for smooth acceleration.
• Široká aplikace: Suitable for various electric scooters, e-bikes, and similar vehicles.

5. Nastavení a instalace

Follow these steps to install the thumb throttle:

1. Příprava řídítek: Ensure the handlebar is clean and free from obstructions where the throttle will be mounted. The throttle is designed for 22mm (7/8 inch) handlebars.
2. Namontujte škrticí klapku: Slide the throttle unit onto the desired position on the handlebar. Secure it firmly using any provided fasteners or by tightening the integrated clamp.


Image 5.1: Visual guide demonstrating the placement and mounting of the thumb throttle on a scooter's handlebar.

3. Připojte kabeláž: The throttle uses a standard three-wire connection.
   • Červený drát: Connect to the positive (+) power supply.
   • Černý drát: Connect to the negative (-) ground.
   • Zelený drát: Connect to the signal input of your controller.
   Ensure these connections are made correctly to avoid damage to the throttle or the vehicle's electrical system. Refer to your vehicle's wiring diagram if necessary.

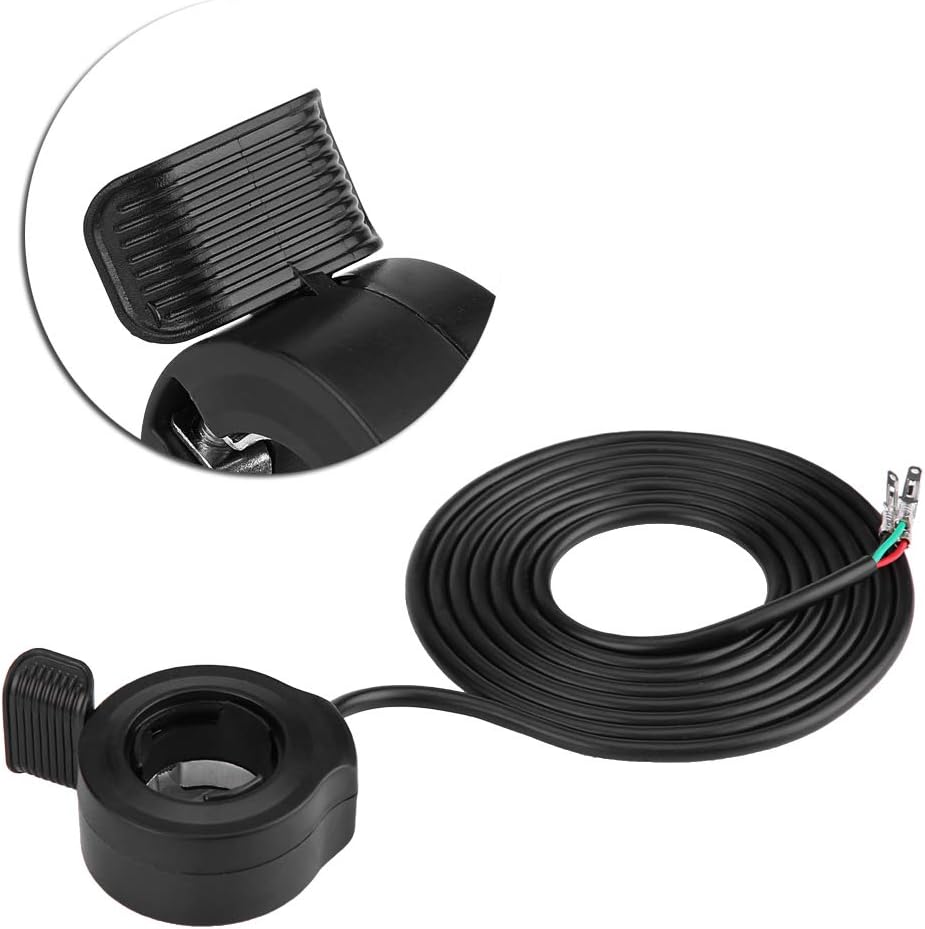

Obrázek 5.2: Detailní view of the thumb lever mechanism and the three color-coded wires (red, black, green) for electrical connection.
4. Zabezpečená připojení: After connecting, ensure all wires are properly insulated and secured to prevent accidental disconnections or damage from vibration.
5. Test funkčnosti: Before riding, perform a static test to ensure the throttle responds correctly and smoothly.

6. Návod k obsluze

To operate the EBTOOLS Thumb Throttle:

• Turn on your electric scooter or e-bike's power.
• Gently press the thumb lever forward to engage the motor and increase speed.
• Release the thumb lever to reduce speed or return to idle. The throttle is designed to return to its neutral position automatically.
• Always operate your vehicle responsibly and in accordance with local traffic laws.

7. Údržba

Regular maintenance helps ensure the longevity and proper function of your thumb throttle:

• Čištění: Wipe the throttle unit with a soft, damp tkanina. Vyhněte se používání agresivních chemikálií nebo abrazivních čisticích prostředků.
• Inspekce: Periodically check the wiring for any signs of wear, fraying, or damage. Ensure all connections remain secure.
• Pohyb páky: Ensure the thumb lever moves freely and smoothly without sticking. If it feels stiff, check for debris or damage.
• Ochrana životního prostředí: While durable, avoid prolonged exposure to extreme weather conditions (heavy rain, direct sunlight, extreme temperatures) to extend the product's lifespan.

8. Řešení problémů

If you encounter issues with your EBTOOLS Thumb Throttle, refer to the following common problems and solutions:

• Plyn nereaguje:
  • Check all wire connections (red, black, green) to ensure they are correctly and securely attached.
  • Verify that the vehicle's power supply is on and functioning.
  • Inspect the wiring for any breaks or damage.
• Přerušovaný provoz:
  • Ensure connections are tight and not loose.
  • Check for any moisture or debris inside the throttle unit.
• Throttle Lever Sticking:
  • Clean around the lever mechanism to remove any dirt or grit.
  • Ensure the throttle is not overtightened on the handlebar, which could impede movement.

Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu nebo kvalifikovaného technika.

9. Specifikace

Image 9.1: Dimensional drawing of the thumb throttle, indicating measurements such as 4.8cm/1.9", 2.2cm/7/8", 4.3cm/1.7", 2.3cm/0.9", and 6.3cm/2.5".

10. Záruka a podpora

For warranty information or technical support, please refer to the documentation provided with your purchase or contact the EBTOOLS customer service directly. Keep your purchase receipt as proof of purchase.
