Zavedení
Děkujeme, že jste si vybrali Camp Chef Versatop FTG250 Portable Flat Top Grill and Griddle. This versatile outdoor cooking system is designed for portability and efficient performance, making it ideal for camping, RV trips, and backyard use. It features a durable, pre-seasoned flat top griddle and a powerful 15,000 BTU burner, ensuring a consistent cooking experience. Please read this manual thoroughly before assembly, operation, or maintenance to ensure safe and proper use of your appliance.
Důležité bezpečnostní informace
VAROVÁNÍ: Pouze k venkovnímu použití. V blízkosti tohoto ani jiného spotřebiče neskladujte ani nepoužívejte benzín ani jiné hořlavé páry a kapaliny. Láhev s propan-butanovým plynem, která není připojena k použití, nesmí být skladována v blízkosti tohoto ani jiného spotřebiče.
CALIFORNIA PROPOSITION 65 VAROVÁNÍ: Tento produkt vás může vystavit chemikáliím včetně oxidu uhelnatého, o kterém je ve státě Kalifornie známo, že způsobuje vrozené vady nebo jiné reprodukční poškození. Pro více informací přejděte na www.P65Warnings.ca.gov.
- Always operate the appliance on a level, stable surface.
- Udržujte děti a domácí zvířata v dostatečné vzdálenosti od horkého spotřebiče.
- Nikdy nenechávejte spotřebič během používání bez dozoru.
- Při provozu zajistěte dostatečné větrání.
- Do not modify the appliance. Any modification may be dangerous and will void the warranty.
- Read all lighting instructions before lighting. If ignition does not occur in 5 seconds, turn the burner control(s) off, wait 5 minutes, and repeat the lighting procedure.
Co je v krabici
Vaše Camp Chef Versatop FTG250 package includes the following components:
- Camp Chef Versatop FTG250 Grill Base
- Flat Top Griddle (Pre-seasoned)
- Grease Management Tray
- Adjustable Leg Levelers
- Propane Regulator and Hose (for 1-lb propane canisters)
Pokyny pro nastavení
- Rozbalení: Opatrně vyjměte všechny součásti z obalu. Zkontrolujte, zda nejsou poškozené.
- Umístění: Place the grill base on a stable, non-combustible surface outdoors. Ensure there is adequate clearance from walls and other combustible materials.
- Vyrovnávače nohou: Adjust the leg levelers on the bottom of the grill base to ensure the unit is stable and level.
- Umístění mřížky: Carefully place the flat top griddle onto the grill base. Ensure it sits securely.
- Nádoba na tuk: Slide the grease management tray into its designated slot on the front of the grill base.
- Připojení propanu: Attach the propane regulator and hose to a 1-lb propane canister. Then, connect the other end of the hose to the gas inlet on the side of the grill base. Ensure all connections are tight to prevent leaks.
Image: Adjustable Heat Control Knob. The red knob allows for precise temperature adjustments.
Návod k obsluze
- Zapalování: Turn the propane canister valve fully open. Push and turn the heat control knob to the 'HIGH' position. The matchless ignition system will light the burner. If the burner does not light within 5 seconds, turn the knob to 'OFF', wait 5 minutes, and repeat the process.
- Ovládání tepla: The grill features a 15,000 BTU burner with an adjustable heat control knob, offering Low, Medium, and High settings. Adjust the knob to achieve your desired cooking temperature.
- Předehřev: Allow the griddle to pre-heat for 5-10 minutes to ensure even heat distribution across the cooking surface. The griddle is pre-seasoned for immediate use.
- Vaření: Place food directly on the pre-heated griddle surface. The large cooking area is suitable for various meals.
- Kompatibilita příslušenství: The Versatop FTG250 is compatible with Camp Chef 14-inch (Blue Label) accessories, such as the BB30L and PZ30, allowing for expanded cooking options.
- Vypnout: When finished cooking, turn the heat control knob to 'OFF' and close the valve on the propane canister.
Image: Handy Flat Top Freedom. The compact design allows for easy outdoor cooking.
Údržba a čištění
Správná údržba zajistí dlouhou životnost a výkon vaší grilovací desky.
- Řízení tuků: The integrated grease management system includes a removable tray. After each use, allow the griddle to cool, then remove and empty the grease tray. Clean the tray with warm, soapy water.
- Griddle Cleaning: While the griddle is still warm (but not hot), scrape off any food residue using a griddle scraper. Wipe the surface clean with a paper towel. For stubborn residue, a small amount of water can be used to deglaze the surface, then scrape and wipe clean.
- Opětovné dochucení: If the griddle surface loses its non-stick properties or shows signs of rust, it may need to be re-seasoned. Apply a thin layer of cooking oil (e.g., flaxseed, grapeseed) to the entire cooking surface and heat the griddle until the oil smokes, then let it cool. Repeat this process several times.
- Skladování: Ensure the griddle is clean and dry before storing. Store in a cool, dry place. The compact design allows for easy storage and transport.
Image: Grease Management. The griddle features a convenient grease drain for easy clean-up.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Griddle top warps during heating | This griddle uses thinner sheet steel for portability, which can cause temporary warping at higher temperatures. | This is often normal for thinner griddle tops and typically flattens as it cools. For minor warping, some users have found success by adding a small spacer to one corner to level it when hot. Avoid excessively high heat settings if warping is a concern. |
| Zapalovač nefunguje | Gas flow issue, igniter electrode dirty or misaligned, or faulty igniter. | Ensure propane tank is full and connected correctly. Check for gas flow. Clean the igniter electrode. If the issue persists, contact customer support. |
| Nerovnoměrné vytápění | Grill not level, burner ports clogged, or wind interference. | Ensure the grill is level using the adjustable leg levelers. Clean burner ports if necessary. Shield the grill from strong winds. |
Specifikace
- Název modelu: FTG250
- Značka: Camp Šéfkuchař
- Rozměry produktu: 18"H x 17"Š x 8"V
- Hmotnost položky: 24 libry
- Materiál: Legovaná ocel
- Speciální funkce: Přenosný
- BTU hořáku: 15,000 XNUMX BTU
- Typ paliva: Propane (1-lb canisters, not included)

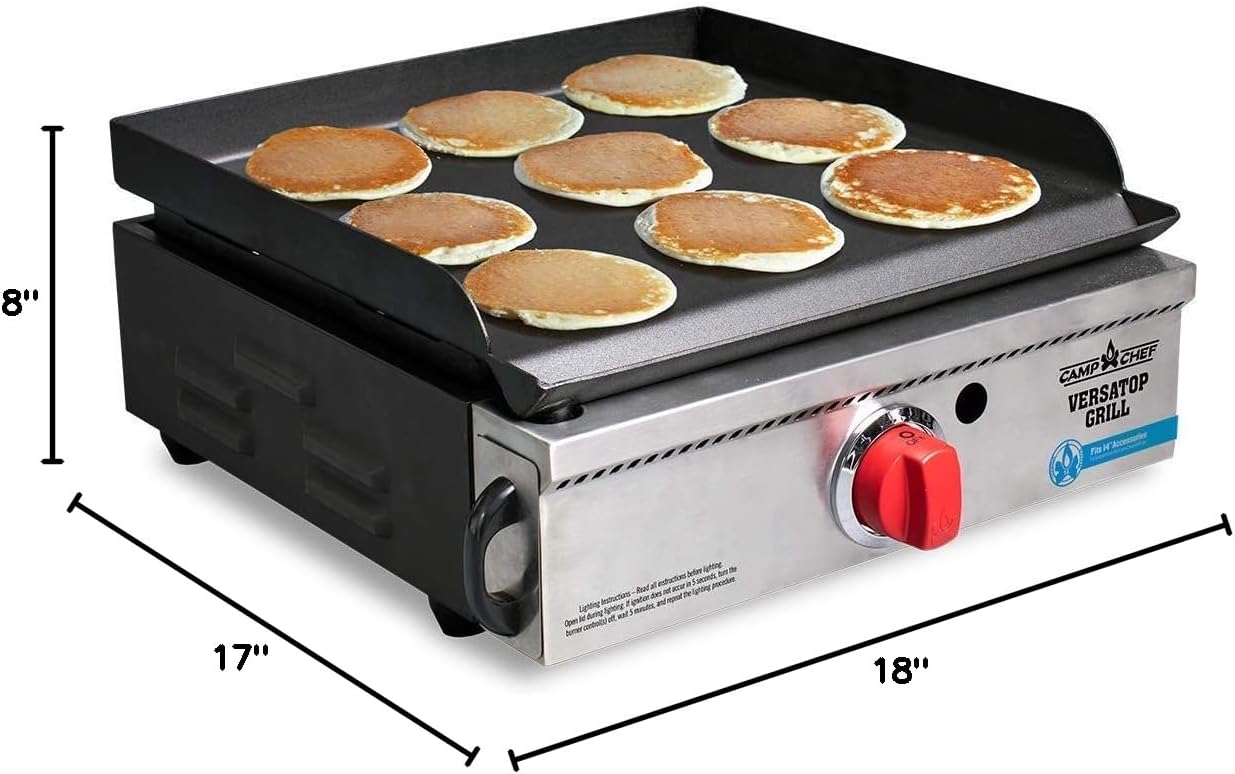

Image: Product Dimensions. The compact size makes it easy to transport and set up.
Záruka a podpora
Vaše Camp Chef Versatop FTG250 comes with a manufacturer's limited warranty. For specific details regarding warranty coverage, please refer to the documentation included with your product or visit the official Camp Šéfkuchař webmísto.
For technical assistance, troubleshooting, or to inquire about replacement parts, please contact Camp Chef Customer Support:
- Webmísto: www.campchef.com
- Telefon: Refer to the Camp Šéfkuchař webstránky s aktuálními kontaktními čísly.
