LMP USB Keyboard for Mac with Numeric Keypad - User Manual

1. Úvod

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your LMP USB Keyboard with Numeric Keypad. Designed for macOS, this keyboard offers a fluid and precise typing experience, featuring an Italian ISO layout with 110 keys, an integrated numeric keypad, and two USB-A ports for connecting peripherals. Its space gray aluminum design ensures durability and complements Apple devices. Please read this manual thoroughly to ensure proper use and longevity of your product.

2. Konec produktuview

2.1 Klíčové vlastnosti

• Wired USB keyboard with 110 ISO keys for Mac.
• Two integrated USB 2.0 ports for low-power peripherals.
• Durable aluminum top cover.
• Laser-etched keys for long-lasting legibility.
• Compatible with all Macs featuring a USB port and macOS 10.5 or higher.

2.2 Obsah balení

• LMP USB Keyboard with Numeric Keypad
• Integrovaný kabel USB

2.3 Schéma produktu

Below are images illustrating the LMP USB Keyboard from various angles, highlighting its design and features.

Obrázek 2.3.1: Shora dolů view of the LMP USB Keyboard, showcasing its full layout including the numeric keypad and function keys.

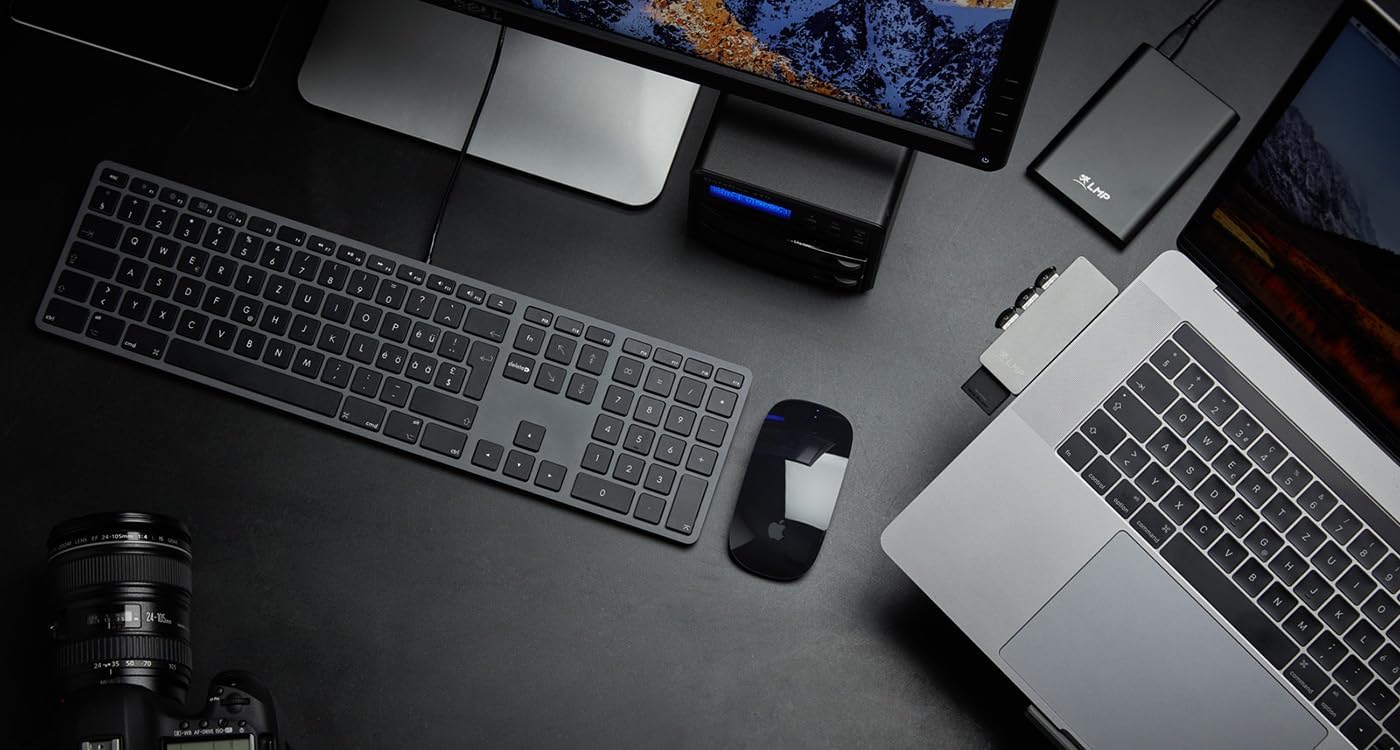

Figure 2.3.2: The keyboard shown in a typical Mac workstation environment, illustrating its compact design and seamless integration.

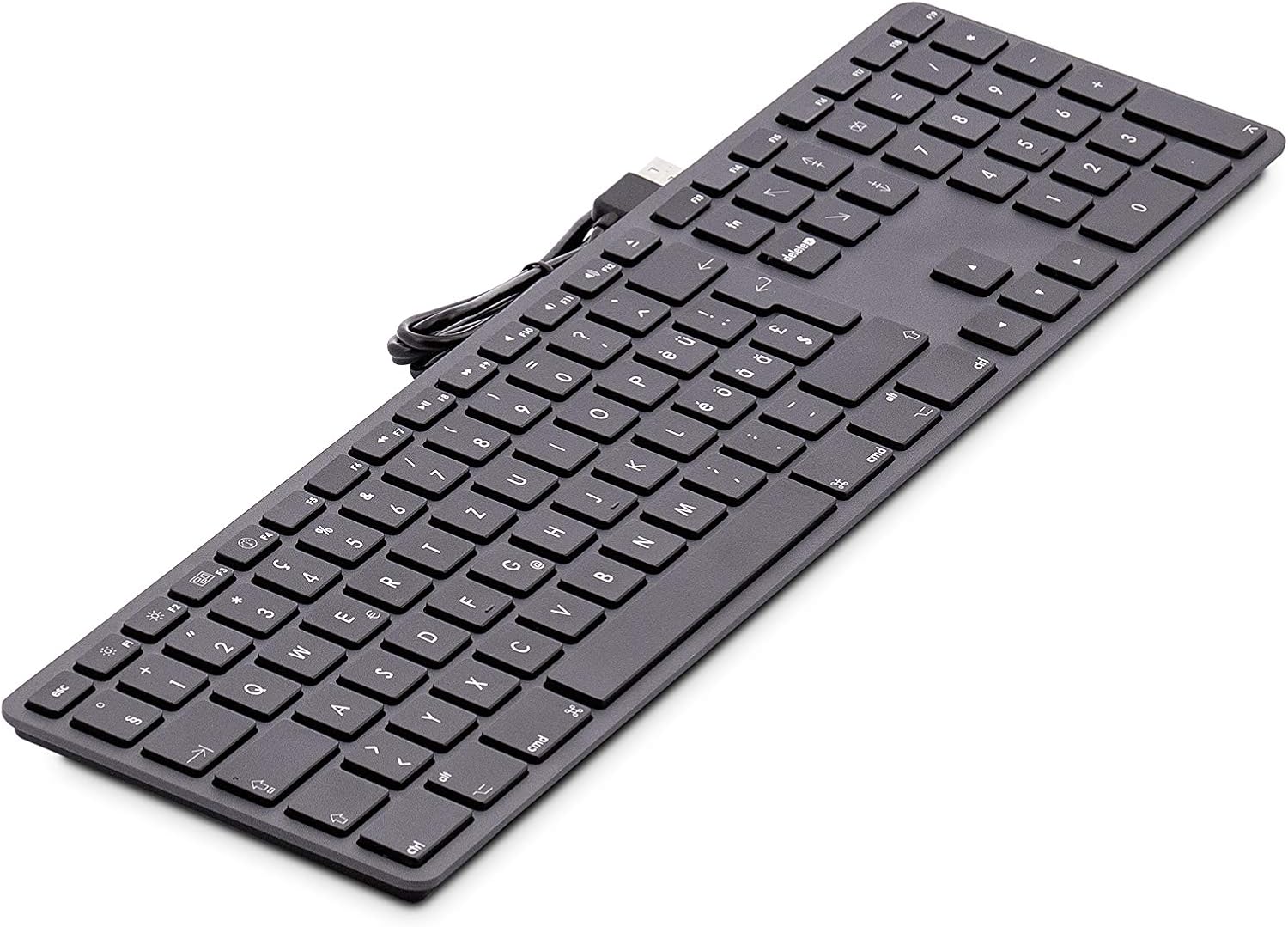

Figure 2.3.3: An angled perspective of the keyboard, emphasizing its sleek aluminum construction and keycap design.

Obrázek 2.3.4: A view from the rear, illustrating the integrated USB cable connection point.

3. Nastavení

The LMP USB Keyboard is designed for simple plug-and-play operation, requiring no additional drivers for macOS.

3.1 Systémové požadavky

• Mac computer with an available USB-A port.
• macOS 10.5 (Leopard) or later.

3.2 Připojení klávesnice

1. Locate an available USB-A port on your Mac computer or a compatible USB hub.
2. Insert the USB connector of the keyboard cable firmly into the USB-A port.
3. Your Mac should automatically detect the keyboard. Follow any on-screen prompts for initial keyboard setup, if they appear.

No software installation is required. The keyboard is ready for use immediately after connection.

4. Návod k obsluze

4.1 Základy psaní

The keyboard functions as a standard QWERTY (Italian ISO) keyboard. Simply begin typing in any application.

4.2 Function Keys (F1-F19)

The top row of keys (F1-F19) provides quick access to various macOS functions. These typically include:

• Ovládání jasu: F1 (decrease), F2 (increase)
• Řízení mise: F3
• Launchpad: F4
• Ovládání médií: F7 (previous), F8 (play/pause), F9 (next)
• Ovládání hlasitosti: F10 (mute), F11 (decrease), F12 (increase)
• Additional keys may include eject, screen lock, etc., depending on your macOS version and settings.

To use the standard F-key functions (e.g., F5 for refresh in a browser), you may need to hold down the Fn key located on the keyboard, or adjust your keyboard settings in macOS System Settings/Preferences.

4.3 Numerická klávesnice

The dedicated numeric keypad on the right side of the keyboard allows for efficient data entry, calculations, and navigation. It functions identically to a standard numeric keypad.

4.4 2.0 USB porty

The keyboard features two integrated USB 2.0 ports. These ports are suitable for connecting low-power USB devices such as:

• USB mice
• USB flash disky
• Small USB accessories

Poznámka: These ports are not designed for high-power devices like external hard drives that require significant power, or for charging devices. For optimal performance, connect high-power devices directly to your Mac's USB ports.

5. Údržba a péče

Proper care will ensure the longevity and optimal performance of your LMP USB Keyboard.

5.1 Čištění

• Odpojit: Always disconnect the keyboard from your Mac before cleaning.
• Čištění povrchu: Použijte měkký hadřík, který nepouští vlákna dampened with water or a mild, non-abrasive cleaning solution. Avoid harsh chemicals, aerosols, or solvents.
• Klávesnice: For dust and debris between keys, use compressed air. Hold the can upright and spray in short bursts.
• Vyhněte se vlhkosti: Nedovolte, aby se do žádných otvorů dostala vlhkost.

5.2 Skladování

When not in use, store the keyboard in a clean, dry environment away from extreme temperatures, direct sunlight, and excessive dust.

6. Řešení problémů

If you encounter issues with your LMP USB Keyboard, refer to the following common problems and solutions.

6.1 Klávesnice nereaguje

• Zkontrolujte připojení: Ensure the USB cable is securely plugged into a USB port on your Mac. Try a different USB port.
• Restart Mac: Sometimes a simple restart of your computer can resolve connectivity issues.
• Test on Another Mac: If possible, test the keyboard on another Mac to determine if the issue is with the keyboard or your computer.
• USB Hub: If using a USB hub, try connecting the keyboard directly to your Mac. Ensure the USB hub is powered if it's a passive hub with many devices.

6.2 Specific Keys Not Working

• Čisté klíče: Check for any debris or foreign objects lodged under the non-functioning keys. Use compressed air to clear them.
• Rušení softwaru: Ensure no third-party keyboard utilities or accessibility settings are interfering with key input. Resetting keyboard preferences in macOS System Settings/Preferences might help.

6.3 Peripherals Connected to Keyboard USB Ports Not Working

• Požadavky na napájení: Ensure the connected peripheral is a low-power device. High-power devices (e.g., external hard drives) may not function correctly when connected through the keyboard's USB ports.
• Přímé připojení: Try connecting the peripheral directly to your Mac's USB port to confirm it functions independently.

If the problem persists after trying these solutions, please contact LMP customer support for further assistance.

7. Specifikace

8. Záruka a podpora

LMP products are manufactured to high-quality standards. For information regarding warranty coverage and technical support, please refer to the warranty card included with your product or visit the official LMP webUschovejte si doklad o koupi pro případ reklamace.

LMP is a Swiss company with over 20 years of experience, specializing in high-quality accessories for Apple products, focusing on innovation and design.
