1. Úvod
Thank you for choosing the Scheppach HC06 Oil-Free Air Compressor. This compact and mobile air compressor is designed for various applications around the home, workshop, and garage. Its oil-free design ensures low maintenance and a long service life. With a powerful 1200 W motor, a 6-liter tank, and a maximum working pressure of 8 bar, it provides reliable performance for tasks such as tire inflation, operating pneumatic tools, and more.
2. Bezpečnostní pokyny
Always read and understand all safety warnings, instructions, illustrations, and specifications provided with this air compressor before operation. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
- Elektrická bezpečnost: Ensure the power supply matches the specifications on the compressor's rating plate. Do not operate the compressor in wet conditions or near flammable liquids or gases.
- Bezpečnost při tlaku: Never exceed the maximum operating pressure of the compressor or the connected tools. Always depressurize the tank before performing maintenance or disconnecting hoses.
- Osobní ochranné prostředky: Always wear appropriate eye and hearing protection when operating the compressor.
- Stabilita: Během provozu zajistěte, aby byl kompresor umístěn na stabilním a rovném povrchu, aby se zabránilo jeho převrácení.
- Děti a přihlížející: Udržujte děti a přihlížející mimo provozní oblast.
3. Konec produktuview
The Scheppach HC06 compressor is designed for ease of use and portability. Below are key components and features:
Figure 3.1: Scheppach HC06 Oil-Free Air Compressor with included accessories.
This image displays the main unit of the Scheppach HC06 compressor along with its comprehensive 6-piece accessory set, which includes an air hose, various nozzles, a tire inflator, and a blow gun, ready for immediate use.

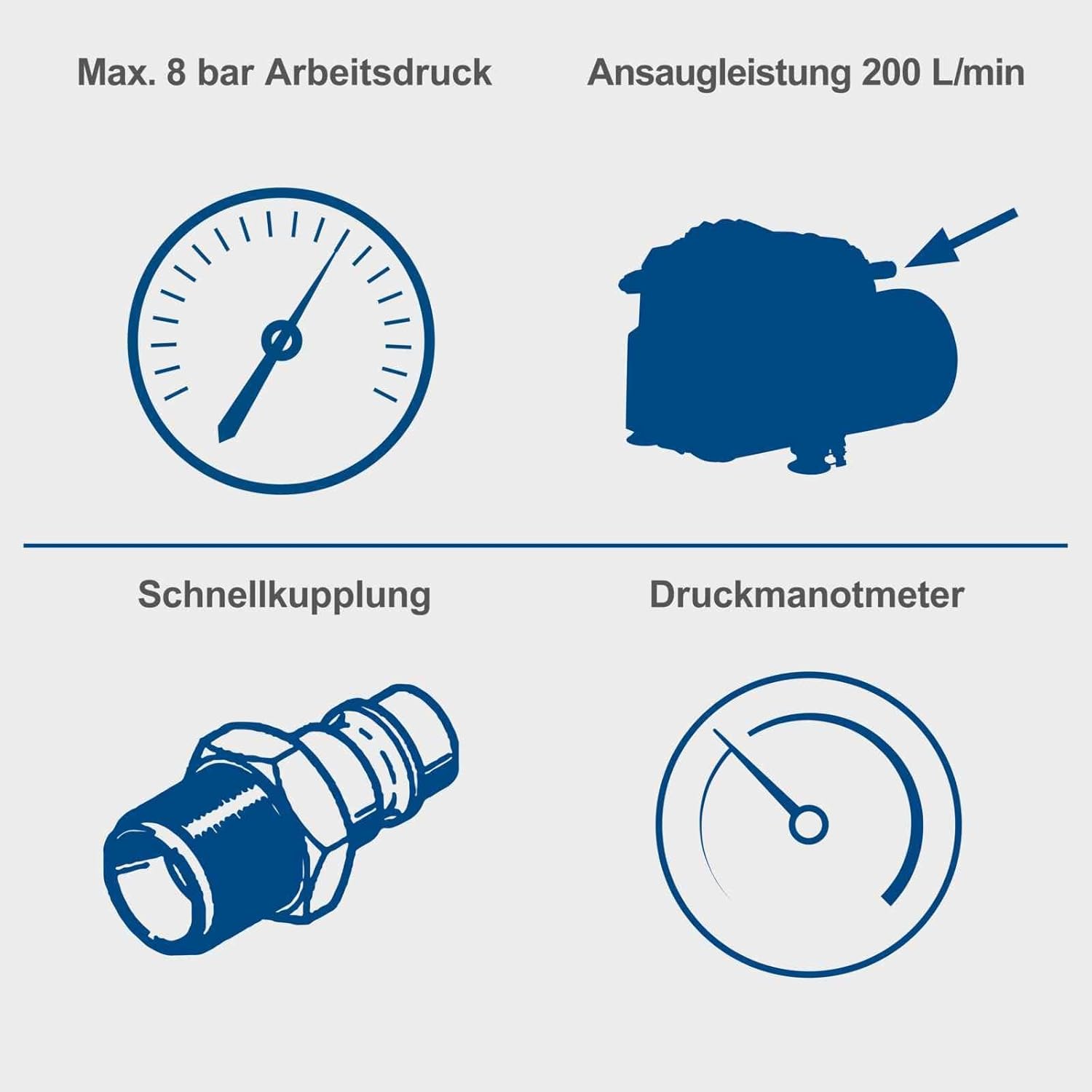

Figure 3.2: Key technical specifications and features.
This infographic highlights the compressor's maximum working pressure of 8 bar, an impressive suction capacity of 200 L/min, the convenience of a quick coupling for tool changes, and an integrated pressure manometer for accurate readings.
Figure 3.3: Core features of the HC06 compressor.
This visual emphasizes the compressor's oil-free design, eliminating the need for oil changes, its compact 6-liter tank volume, its highly portable nature, and its low-maintenance requirements, making it user-friendly.
Figure 3.4: Quick coupling mechanism.
Detailní view of the quick coupling system, which allows for rapid and effortless attachment and detachment of various pneumatic tools and accessories.
4. Nastavení
Before first use, ensure the compressor is placed on a firm, level surface. The rubber feet provide stability and reduce vibration. Connect the air hose to the quick coupling on the compressor. Attach the desired accessory (e.g., tire inflator, blow gun) to the other end of the air hose.
Figure 4.1: Compact storage of the HC06.
This image illustrates how the Scheppach HC06 compressor's compact dimensions allow it to be stored efficiently in small spaces, such as a workshop cabinet or shelf.
5. Provoz
To operate the compressor:
- Zapojte napájecí kabel do vhodné elektrické zásuvky.
- Turn on the power switch. The compressor will begin to fill the tank until it reaches the maximum pressure.
- Adjust the working pressure using the pressure regulator knob, if necessary. Monitor the pressure gauge for the desired setting.
- Once the tank is full, the compressor will automatically shut off. It will restart when the pressure drops below a certain threshold.
- After use, turn off the power switch and unplug the compressor. Depressurize the tank by opening the drain valve or using an air tool until the pressure gauge reads zero.
The HC06 is suitable for a variety of applications:
Obrázek 5.1: Aplikace examples.
This graphic demonstrates the versatility of the HC06, showing its suitability for inflating tires, powering paint spray guns, driving pneumatic ratchets, and for nailing or stapling tasks.
Figure 5.2: Tire inflation in progress.
A practical demonstration of the compressor in use, with a person inflating a car tire, highlighting the ease of use and the utility of the included accessories for common tasks.
Figure 5.3: Portability of the HC06.
This image shows an individual effortlessly carrying the Scheppach HC06 compressor, emphasizing its lightweight design and integrated handle, which make it highly portable for various job sites or locations.
6. Údržba
The Scheppach HC06 is an oil-free compressor, significantly reducing maintenance requirements. Regular maintenance includes:
- Odvodnění nádrže: Although oil-free, condensation can still accumulate in the tank. Drain the tank regularly (e.g., after each use) by opening the drain valve at the bottom to prevent corrosion.
- Čištění: Keep the compressor clean and free of dust and debris. Use a dry cloth to wipe down surfaces. Do not use harsh chemicals.
- Vzduchový filtr: Check the air filter periodically and clean or replace it if it appears dirty or clogged to ensure optimal performance.
Figure 6.1: Benefits of low maintenance.
This diagram illustrates that the low-maintenance design of the Scheppach HC06 contributes to an extended operational lifespan, potentially increasing its runtime by up to 80% compared to traditional compressors.
7. Řešení problémů
If you encounter issues with your Scheppach HC06 compressor, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Kompresor se nespustí | No power supply; Thermal overload protection activated | Check power connection; Allow compressor to cool down |
| Kompresor běží nepřetržitě nebo často | Air leak in system; Drain valve open | Check all connections for leaks; Close drain valve completely |
| Nízký výstupní tlak vzduchu | Pressure regulator set too low; Clogged air filter | Adjust pressure regulator; Clean or replace air filter |
| Neobvyklý hluk během provozu | Loose components; Internal issue | Check for loose screws/parts; If noise persists, contact customer support |
If the problem persists after attempting these solutions, please contact Scheppach customer support for further assistance.
8. Specifikace
| Specifikace | Hodnota |
|---|---|
| Číslo modelu | SC-HC06 |
| Výrobce | Scheppach |
| Moc | 1200 Wattů |
| svtage | 230 voltů |
| Objem nádrže | 6 litrů |
| Max. Pracovní tlak | 8 bar |
| Sací kapacita | 192 l/min |
| Úroveň hluku | 97 dB |
| Materiál | Ocel a plast |
| Rozměry produktu | 45 x 50 x 20 cm |
| Hmotnost položky | 9.7 kg |
| Hose Length (included) | 5 metrů |
9. Záruka a podpora
Scheppach products are manufactured with high-quality materials and undergo strict quality control. For information regarding warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Scheppach webwebu. S technickou podporou, náhradními díly nebo servisními dotazy se prosím obraťte přímo na zákaznický servis společnosti Scheppach.
You can find more information and products at the official Značkový obchod Scheppach.
