1. Konec produktuview
The Scheppach HBS261 band saw is a versatile and robust machine designed for precise woodworking tasks. It is engineered to handle both softwood and hardwood with ease, offering two distinct cutting speeds to optimize performance for different materials. Its sturdy all-steel construction ensures durability and stability during operation. Key features include a large, tiltable cast iron table, a powerful induction motor for quiet and efficient work, and a precise parallel guide system.
Figure 1.1: The Scheppach HBS261 Band Saw, showcasing its main components and a performance rating.
2. Bezpečnostní pokyny
Always prioritize safety when operating power tools. Read and understand all instructions before use. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Osobní ochranné prostředky: Vždy používejte ochranné brýle, ochranu sluchu a protiprachovou masku. Vyhněte se volnému oblečení, šperkům a dlouhým vlasům, které by se mohly zachytit o pohyblivé části.
- Bezpečnost pracovního prostoru: Keep the work area clean and well-lit. Do not operate the machine in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away.
- Elektrická bezpečnost: Ujistěte se, že napájecí zdroj odpovídá objtage specified on the machine. Do not abuse the power cord. Never carry the machine by the cord or yank it to disconnect from the outlet.
- Provoz stroje: Do not force the tool. Use the correct tool for your application. Ensure the blade is properly installed and tensioned before starting. Never reach into the blade area while the machine is running.
- Údržba: Před prováděním jakýchkoli úprav, výměnou příslušenství nebo před uložením nářadí odpojte zástrčku od zdroje napájení.
3. Součásti zahrnuty
The Scheppach HBS261 band saw comes with the following components:
- Pásová pila
- Sawing Table
- Saw Blade (pre-installed or separate)
- Opěrná deska
- Rail with Graduation (for measurements)
- Push Stick
- Rail for Parallel Guide
- Longitudinal Stop (Parallel Guide)
- Imbusový klíč (3x)
- Šroubovák
- Open-end Wrench (2x)
- Table Extension with Parallel Guide Holding Rail
- Upevňovací materiál
- Originální návod k obsluze
- Additional Saw Blade
4. Nastavení
Before operating the band saw, ensure it is properly assembled and secured.
- Rozbalení: Opatrně vyjměte všechny součásti z obalu. Zkontrolujte, zda během přepravy nedošlo k poškození.
- Shromáždění: Follow the detailed instructions in the included original operating manual for assembling the sawing table, parallel guide, and any other detachable parts. Ensure all fastening materials are used correctly and tightened securely.
- Blade Installation/Tensioning: If the blade is not pre-installed, carefully install it according to the manual. Proper blade tension is crucial for accurate cuts and blade longevity. Refer to the manual for specific tensioning procedures.
- Podpěra obrobku: Attach the table extension if needed for larger workpieces. Ensure it is stable and level with the main table.
- Připojení napájení: Connect the band saw to a suitable power outlet (220-240V, 50Hz). Ensure the power switch is in the 'OFF' position before plugging in.
5. Návod k obsluze
The HBS261 band saw offers precise cutting capabilities for various woodworking projects.
5.1. Adjusting Cutting Speed
The machine features two cutting speeds (660 m/min and 960 m/min) to optimize performance for different materials. Refer to the original manual for instructions on how to switch between these speeds, typically involving belt adjustments.
Figure 5.1: Illustration of the two available saw blade speeds and the powerful 550 Watt motor.
5.2. Parallel Cuts
For precise straight cuts, utilize the long parallel guide. It can be easily locked into position using the quick-release lever.
Figure 5.2: The double-sided parallel stop ensures precise saw cuts and can be easily locked with the quick-release fastener.
5.3. Angle Cuts
The solid cast iron table can be continuously swiveled from 0° to 45° to perform accurate angle cuts. Use the angle guide for consistent results.
Figure 5.3: Angle cuts are easy and quick to implement thanks to the continuously swiveling saw table, adjustable from 0° to 45°.
5.4. Processing Different Materials
The HBS261 is designed to optimally process both softwood and hardwood. The ball-bearing guides ensure smooth running of the saw blade, contributing to clean cuts.
Figure 5.4: Ball-bearing guides enable smooth running of the saw blade, ensuring clean cuts.

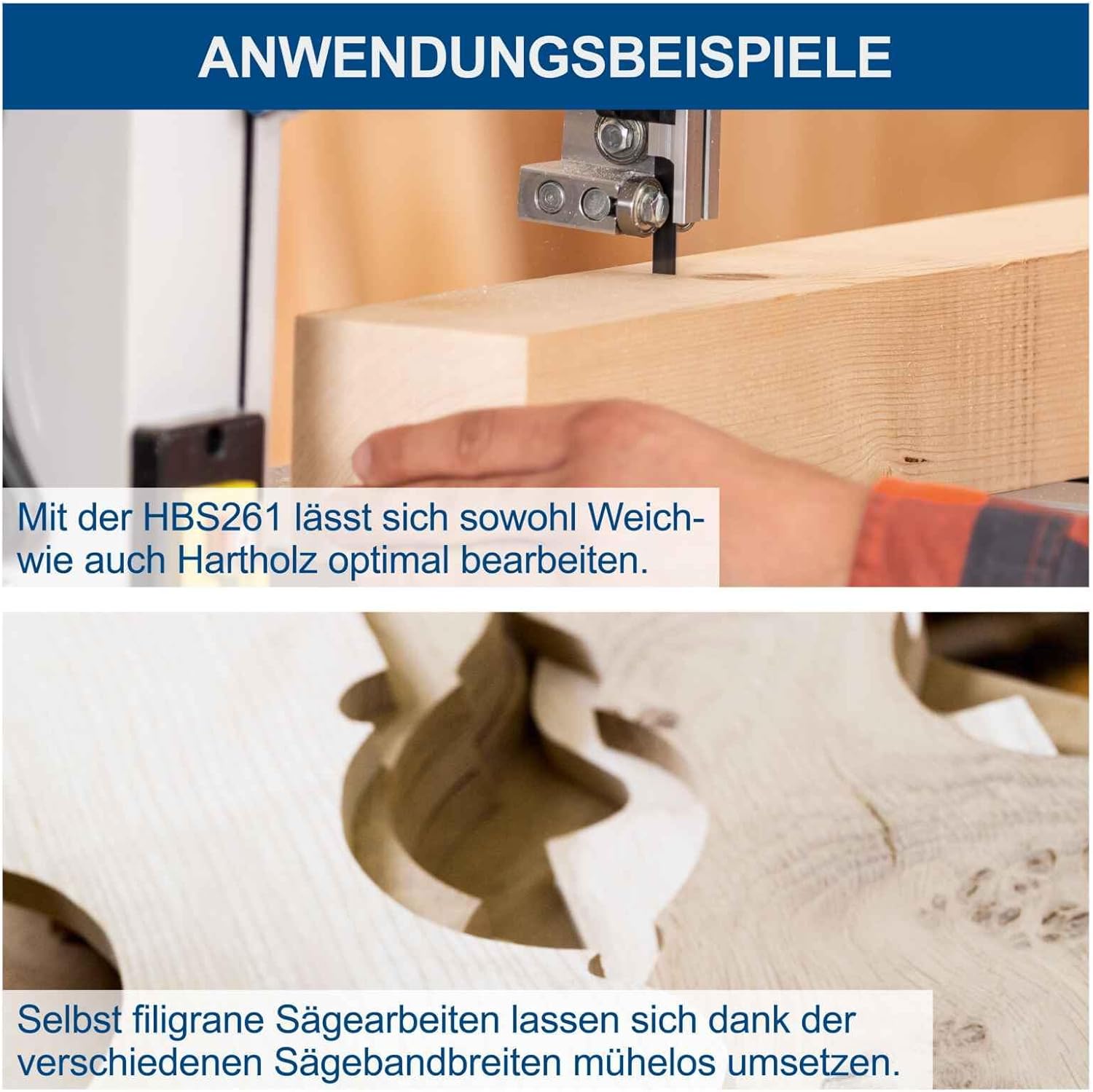

Figure 5.5: The HBS261 can optimally process both softwood and hardwood. Even delicate sawing work can be effortlessly carried out thanks to the different saw blade widths.
5.5. Aplikace
The HBS261 band saw is suitable for various cutting applications, including:
- Rip Cuts (Aufrennen)
- Angle Cuts (Winkelschnitt)
- Curve Cuts (Kurvenschnitt)
Obrázek 5.6: Přamples of cutting applications: rip cuts, angle cuts, and curve cuts.
6. Údržba
Pravidelná údržba zajišťuje dlouhou životnost a optimální výkon vaší pásové pily.
- Čištění: After each use, disconnect the power and clean the machine, especially the table and blade area, from sawdust and debris using a brush or vacuum cleaner.
- Kontrola čepele: Regularly inspect the saw blade for sharpness, damage, or wear. Replace dull or damaged blades promptly.
- Mazání: Refer to the original manual for any specific lubrication points and recommended lubricants.
- Úpravy: Periodically check and adjust blade guides, tension, and table alignment as per the manual's instructions.
- Skladování: Store the band saw in a dry, clean, and secure location, out of reach of children.
7. Řešení problémů
This section provides general guidance for common issues. For detailed troubleshooting, consult the original operating manual.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Stroj se nespustí | No power supply; Power switch off; Thermal overload | Check power connection; Turn on switch; Allow motor to cool down |
| Čepel se potuluje nebo řeže nepřesně | Incorrect blade tension; Worn blade; Improper guide adjustment | Adjust blade tension; Replace blade; Adjust blade guides |
| Nadměrné vibrace nebo hluk | Uvolněné součásti; Poškozený nůž; Nevyvážená kola | Check and tighten all fasteners; Replace blade; Consult service for wheel balance |
| Přehřátí motoru | Overloading; Insufficient ventilation | Reduce cutting pressure; Ensure clear ventilation openings |
8. Specifikace
Detailed technical specifications for the Scheppach HBS261 Band Saw:
| Specifikace | Hodnota |
|---|---|
| Výrobce | Scheppach |
| Číslo modelu položky | HBS261 |
| Rozměry produktu (D x Š x V) | 59 x 44 x 85 cm |
| Hmotnost položky | 22 kg |
| Barva | Modrý |
| Zdroj napájení | Elektrický kabel |
| svtage | 230 voltů |
| Moc | 550 wattů |
| Délka čepele | 1790 milimetrů |
| Materiál čepele | Legovaná ocel |
| Cutting Speeds | 660/960 m/min |
| Max. Výška řezu | 120 mm |
| Max. Šířka řezu | 245 mm |
| Rozsah náklonu stolu | 0° až 45° |
| Osvědčení | CE |
Figure 8.1: Key dimensions of the Scheppach HBS261 Band Saw.
9. Záruka a podpora
For warranty information, technical support, or to order replacement parts, please refer to the contact details provided in your original product packaging or visit the official Scheppach webUschovejte si účtenku jako doklad o koupi pro případ reklamace.
