Scosche LPGM35 Link+ Factory Stereo Replacement Interface Adapter User Manual

1. Úvod

The Scosche LPGM35 Link+ Factory Stereo Replacement Interface Adapter is designed to facilitate the installation of an aftermarket stereo in compatible 2004-2021 GM vehicles. This interface ensures the retention of important factory features such as steering wheel controls and OEM amplifier functionality, providing a seamless integration with your new audio system.

2. Bezpečnostní informace

Always disconnect the vehicle's negative battery terminal before beginning any electrical installation to prevent short circuits and potential damage. Ensure all connections are secure and properly insulated. If you are unsure about any step, consult a professional installer.

VAROVÁNÍ: Tento produkt může obsahovat chemikálie, o kterých je ve státě Kalifornie známo, že způsobují rakovinu a vrozené vady nebo jiné reprodukční poškození. Více informací naleznete na www.P65Warnings.ca.gov.

3. Obsah balení

• LPGM35 Interface Module
• Vehicle-specific wiring harnesses
• Steering Wheel Control connections

4. Kompatibilita

The Scosche LPGM35 interface is vehicle-specific. Refer to the fit guide below and any special notes to verify compatibility with your vehicle's make, model, and year.

Image: Detailed fit guide for the Scosche LPGM35 interface, listing compatible Buick, Chevrolet, GMC, Hummer, Pontiac, Saturn, and Suzuki models and years from 2004 to 2021.

Důležité poznámky:

• OnStar function will be disabled as this product is not designed for OnStar systems.
• Not compatible with Digital “Premium Bose” Systems (RPO codes: Y91/Y92/Z75).
• Steering wheel controls are not retained on some factory navigation equipped vehicles.

5. Pokyny k instalaci

Follow these steps carefully for proper installation. For a visual guide, refer to the official installation video below.

Video: Scosche Interface Installation Guide

This video demonstrates the general process of installing a Scosche interface, including wiring connections and integration with an aftermarket stereo.

1. Odpojit baterii: Before starting, disconnect the negative battery terminal of your vehicle.
2. Odstranění továrního rádia: Carefully remove the factory radio from your vehicle's dashboard. Refer to your vehicle's service manual for specific instructions.
3. Příprava zapojení: Connect the provided vehicle-specific wiring harness to the Scosche LPGM35 interface module. Then, connect the harness included with your new aftermarket stereo to the interface module. Use splice connectors to ensure secure connections, matching wire colors as per the EIA standard.

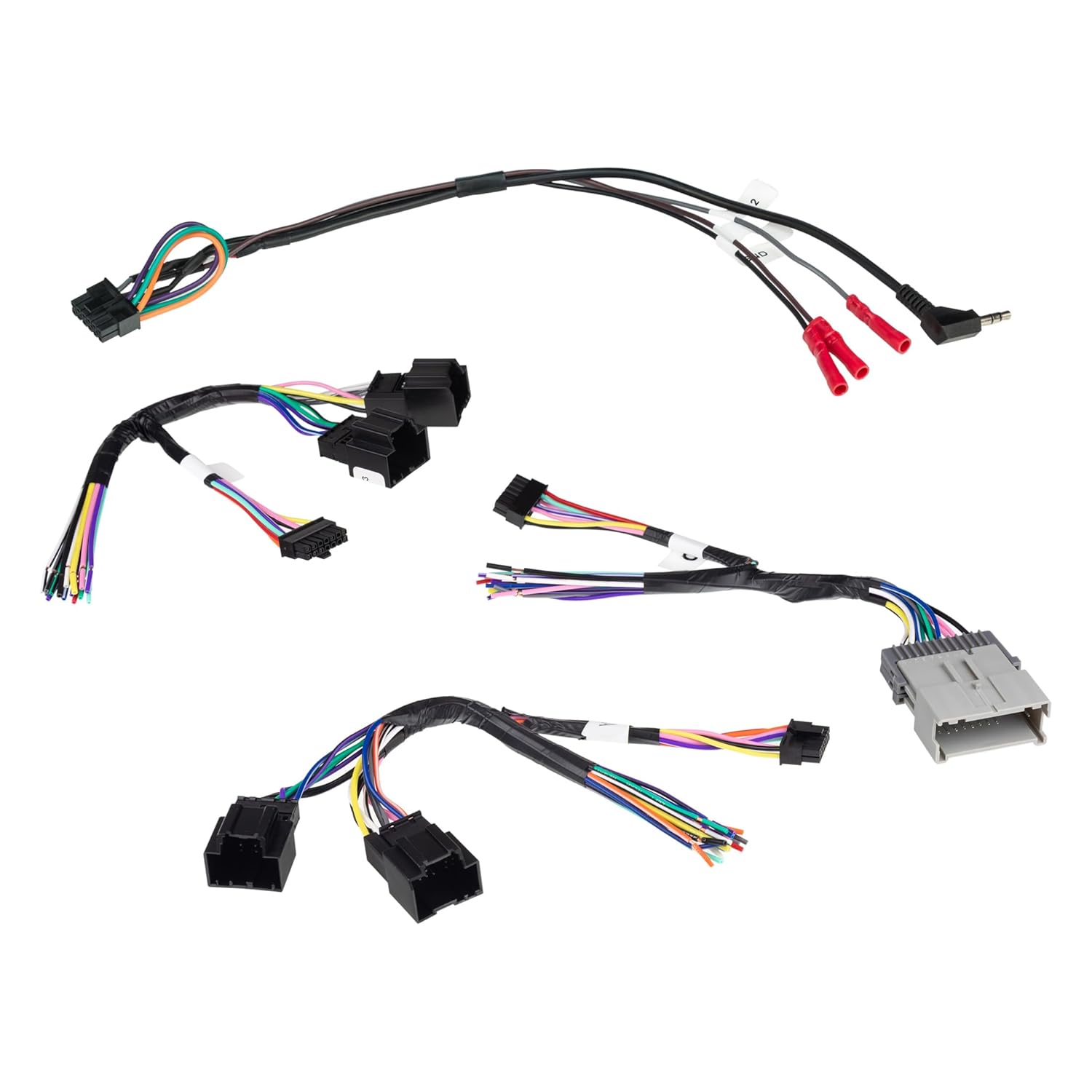

Image: An assortment of wiring harnesses and the Scosche LPGM35 interface module, illustrating the components involved in the installation.

4. Make Specific Connections: Some wires may not connect directly to the vehicle harness. These include the amplifier turn-on wire, parking sense wire, and Steering Wheel Control connections. Ensure these are properly connected according to your aftermarket stereo's instructions and the vehicle's requirements.
5. Připojení k vozidlu: Plug the vehicle harness into the vehicle's factory wiring and the radio harness into your new aftermarket radio.
6. Instalace nového stereo systému: Secure the new stereo into the dashboard opening.
7. Znovu připojte baterii: Znovu připojte záporný pól baterie.
8. Testovací funkce: Turn on the vehicle and the new radio to check all functions, including audio, steering wheel controls, and chimes.

6. Wiring Diagram (EIA Standard)

The color codes used on this car stereo interface harness conform to the E.I.A. (Electronics Industry Association) standard. These colors may differ from the wiring codes found on your stereo. Always refer to your stereo owner's manual for specific wiring details before making any connections.

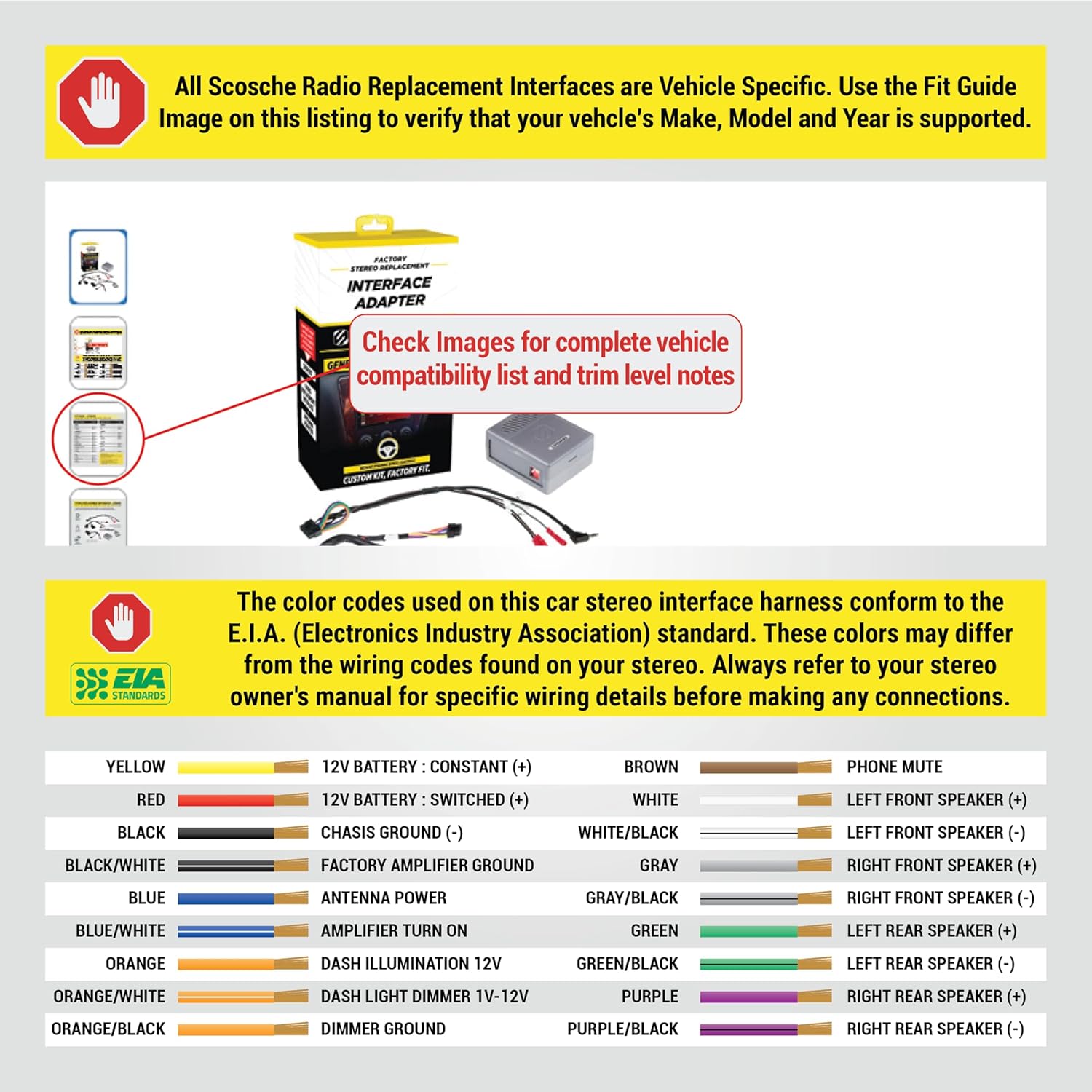

Image: A diagram illustrating the EIA standard wiring color codes for car stereo installation, detailing connections for power, ground, amplifier, illumination, and speaker channels.

7. Provoz

Ovládání na volantu:

The LPGM35 interface is designed to retain the functionality of your vehicle's factory steering wheel controls with your new aftermarket stereo. This allows you to safely operate your radio while driving. Note that some factory navigation-equipped vehicles may not retain steering wheel controls.

Safety and Warning Chimes:

This interface also ensures the retention of all safety and warning chimes that are part of your vehicle's factory system.

8. Řešení problémů

• Bez napájení pro stereo: Check the 12V constant (YELLOW) and 12V switched (RED) connections. Ensure the vehicle's battery is properly reconnected.
• Žádný zvuk: Verify all speaker wire connections (WHITE, GRAY, GREEN, PURPLE and their black-striped counterparts). Ensure the amplifier turn-on wire (BLUE/WHITE) is correctly connected if your vehicle has a factory ampživější.
• Ovládání na volantu nefunguje: Confirm that the steering wheel control connections are correctly made to the interface module and your aftermarket stereo. Refer to your stereo's manual for specific input requirements. Check the compatibility notes for your specific vehicle model.
• No Chimes: Ensure all connections to the interface module are secure.
• Obecné problémy: Double-check all wiring connections for proper color matching and secure crimps. Ensure the LPGM35 module is correctly connected.

9. Specifikace

• Rozměry balení: 11 x 6.63 x 2.38 palce
• Hmotnost položky: 6.4 unce
• Materiál: Akrylonitril-butadien-styren
• Typ konektoru: ISO, RCA

10. Záruka a podpora

The Scosche LPGM35 Link+ Factory Stereo Replacement Interface Adapter is backed by Scosche's Limited Lifetime Warranty and Lifetime Tech Support. For assistance, please contact Scosche customer service.

Výrobce: Scosche

Webmísto: www.scosche.com
