The Craftmade Echelon 54-inch ceiling fan is designed for both aesthetic appeal and efficient air circulation. This model features a powerful DC motor, an integrated dimmable LED light source, and three plywood blades, all controlled by an included remote. It is suitable for indoor locations.
Image: The Craftmade Echelon 54-inch ceiling fan, showcasing its brushed polished nickel finish, three black plywood blades, and the integrated LED light kit.
Důležité bezpečnostní pokyny
Před nákupem si prosím ověřte místní zákony a elektrotechnické předpisy.asing and installing this product. Always ensure the power supply is disconnected at the circuit breaker before attempting any installation, maintenance, or repair. Installation should be performed by a qualified electrician to ensure safety and compliance with local regulations. Do not attempt to modify the fan or its components. Use only replacement parts specified by the manufacturer.
Vlastnosti produktu
- Integrated LED Light Kit: Features a 22 Watt LED light kit (3000K, 631 Lumens, 90 CRI) for efficient illumination.
- Optimální rozměry: Diameter of 54 inches; overall height of 14.98 inches (from ceiling to bottom of fan light, includes 6-inch downrod).
- Efektivní proudění vzduchu: Equipped with 3 flat black plywood blades with a 15-degree blade pitch, providing a CFM of 4307.
- Pohodlné ovládání: Includes a 6-fan speed hand-held remote control for easy operation.
- Energeticky úsporný design: Contemporary ceiling fan with an energy-saving DC motor and a brushed polished nickel finish. UL approved for indoor locations.
Image: A detailed table outlining key specifications of the Craftmade Echelon 54-inch ceiling fan, including mounting type, control, blade count, light kit details, dimmability, airflow, and motor size.
Image: The Energy Guide label for the ceiling fan, indicating an estimated yearly energy cost of $7 and an airflow of 4,307 Cubic Feet Per Minute, based on typical usage.
Nastavení a instalace
Assembly of the Craftmade Echelon ceiling fan is required. The product includes the motor, blades, a hardware pack, and a comprehensive installation guide to assist with the setup process. For optimal safety and performance, professional installation by a certified electrician is highly recommended.

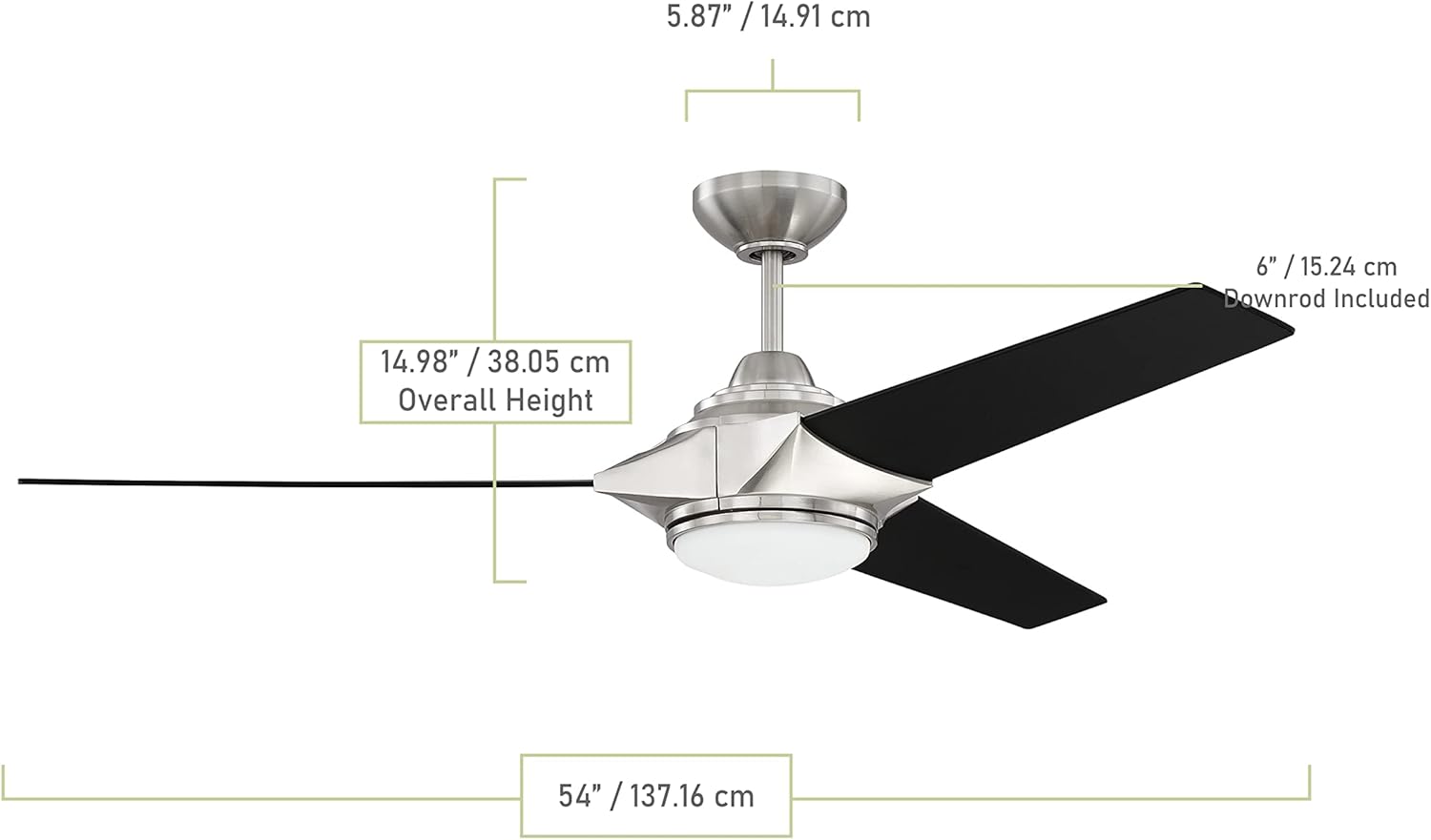

Image: A technical diagram illustrating the key dimensions of the ceiling fan, including the overall height from the ceiling to the bottom of the light kit (14.98 inches) and the 54-inch blade span.
Obsluha stropního ventilátoru
The Craftmade Echelon ceiling fan is operated using the included hand-held remote control. This remote allows you to adjust the fan speed through 6 different settings and control the integrated dimmable LED light kit. Refer to the detailed installation guide for specific instructions on pairing the remote and utilizing all its functions.
Péče a údržba
To maintain the appearance and performance of your Craftmade Echelon ceiling fan, regular cleaning is recommended. The manufacturer specifies 'Hand Wash' for care instructions. Before cleaning, always ensure the fan is turned off and the power supply is disconnected. Use a soft, damp cloth to wipe down the fan blades and motor housing. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
Průvodce řešením problémů
If your Craftmade Echelon ceiling fan is not operating as expected, consider the following general troubleshooting steps:
- Bez napájení: Check the circuit breaker to ensure power is supplied to the fan. Verify all electrical connections are secure.
- Dálkové ovládání nefunguje: Ensure the remote control batteries are fresh and correctly inserted. Try re-pairing the remote with the fan according to the installation guide.
- Vibrace ventilátoru: Check that all blade screws are tightened and the mounting hardware is securely fastened to the ceiling. Ensure blades are balanced.
- Světlo nefunguje: Verify the LED light kit is properly connected. If the light is dimmable, ensure the dimmer setting is not at its lowest.
For persistent issues or complex problems, it is advisable to contact a qualified electrician or Craftmade customer support.
Technické specifikace
| Specifikace | Detail |
|---|---|
| Průměr | 54 palce |
| Hmotnost položky | 17.82 libry |
| Specifický návod k použití | Obecný účel |
| Materiál | Silicon Steel/Plywood/Glass, Aluminum, Copper |
| Dokončit typy | Brushed, Polished Nickel |
| Pokyny pro péči | Ruční mytí |
| Certifikace | cULus |
| Montáž Vyžadována | Ano |
| Počet kusů | 1 |
| Jsou vyžadovány baterie | Ano (pro dálkové ovládání) |
| Zahrnuté komponenty | Motor, Blades, Hardware Pack, Installation Guide |
| Barva | Brushed Polished Nickel |
| Design elektrického ventilátoru | Stropní ventilátor |
| Zdroj napájení | Elektrický kabel |
| Styl | Moderní |
| Speciální funkce | Wall or Remote Control |
| Doporučená použití | Air Circulation, Cooling, Ventilating |
| Typ montáže | Stropní držák |
| Typ ovladače | Dálkové ovládání |
Záruka a zákaznická podpora
All Craftmade products purchased come with a 30-day replacement parts policy to ensure a fully working item. Additionally, all products are covered under a 1-Year warranty when purchased on Amazon. The warranty period commences on the original shipping date of the product. This warranty covers all items and conditions specified in the original manufacturer's warranty. Please note that the warranty specifically excludes loss and theft, water damage, customer abuse, and finish deterioration due to UV or coastal exposure.
For further assistance, technical support, or warranty claims, please contact Craftmade customer service. Refer to the contact information provided in your product packaging or on the official Craftmade webmísto.
