U.S. Solid 1" Motorized Ball Valve (Model USS-MSV00055) Instruction Manual

1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of your U.S. Solid 1" Motorized Ball Valve, Model USS-MSV00055. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

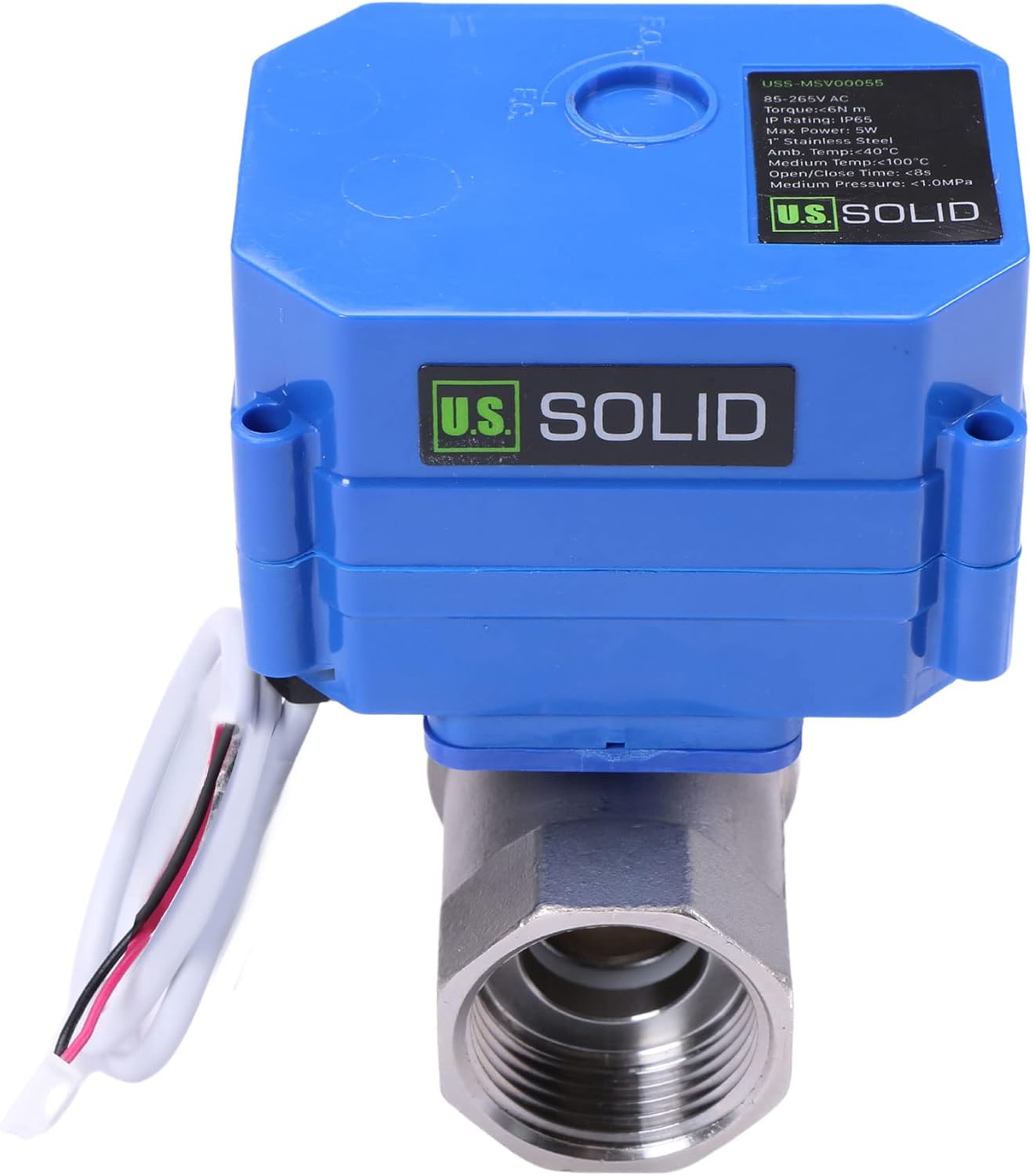

Figure 1: U.S. Solid 1" Motorized Ball Valve, Model USS-MSV00055.

2. Bezpečnostní informace

Vždy dodržujte následující bezpečnostní opatření, abyste předešli zranění nebo poškození produktu:

• Před instalací, údržbou nebo řešením problémů se ujistěte, že je odpojeno napájení.
• Instalaci by měl provádět kvalifikovaný personál obeznámený s elektrickými a instalatérskými systémy.
• Ověřte svtage and current ratings match your power supply to avoid electrical hazards.
• Do not exceed the maximum operating pressure of 10 Bars.
• This valve is designed for specific applications. Do not use it for purposes other than its intended use.
• Během instalace a údržby používejte vhodné osobní ochranné prostředky (OOP).

3. Vlastnosti produktu

The U.S. Solid 1" Motorized Ball Valve offers the following key features:

• NPT Threading: 1" NSF Certified 304SS threading, manufactured and measured according to National Pipe Thread standards. Full port design.
• Wide Voltage Rozsah: Operates effectively over an 85-265V AC range.
• Rychlý provoz: Opens or closes the valve in 6-8 seconds.
• Energeticky účinný: No power is expended once fully open or fully closed.
• 2-Wire Auto Return Setup: Simple two-wire connection. The valve largely de-energizes after opening and returns to a fully closed position if power is removed.
• Solenoid Valve Alternative: Automatically cuts off power once fully open or fully closed, reducing the likelihood of overheating. Ideal for applications requiring the valve to be open for extended periods.
• Spolehlivý: Designed for a lifespan of 80,000-100,000 cycles.

4. Specifikace

Detailed dimensions and port types are available in Figure 2.

Figure 2: Dimensional drawing and table for various U.S. Solid motorized ball valves, including 1" Stainless Steel Full Port.

5. Nastavení a instalace

5.1 Mechanická instalace

The valve features NPT threading for secure connection to your piping system. Ensure proper sealing during installation.

• Apply Teflon tape to the male pipe threads to ensure a watertight seal.
• Screw the valve firmly into the pipe.
• Ensure the valve is installed in a location that allows for easy access for wiring and future maintenance.

Figure 3: Applying Teflon tape for a watertight seal.

Figure 4: Illustration of NPT threading and valve types (Full Port, Standard Port, Normally Closed, Normally Open).

5.2 Electrical Wiring (2-Wire Auto Return)

This U.S. Solid motorized ball valve features a 2-wire auto-return setup. This means the valve will open when power is applied and remain open. When power is removed, the valve will automatically close.

• Connect the two wires from the valve to your power source (85-265V AC).
• A switch can be used to control the power supply to the valve.
• When the circuit is closed (switch is ON), the valve will open and remain open. Power consumption is nominal once open.
• When the circuit is open (switch is OFF or power is lost), the valve will close. Once closed, power consumption is zero.

Figure 5: Basic wiring diagram for 2-wire auto-return setup.

Figure 6: Detailed 2-wire auto-return wiring diagrams for both DC and AC power sources.

Ukázkové video s zapojením:

6. Provoz

The operation of the 2-wire auto-return motorized ball valve is straightforward:

1. Otevření ventilu: Apply power (85-265V AC) to the two wires. The internal motor will rotate the ball to the open position. Once fully open, the power to the motor is cut off, and the valve remains open without continuous power consumption.
2. Zavření ventilu: Remove power from the two wires. The valve will automatically return to its fully closed position. Once fully closed, the power to the motor is cut off, and the valve remains closed without continuous power consumption.

This "normally closed" behavior (closes when power is removed) is a key safety feature, ensuring the valve defaults to a closed state in case of power failure.

7. Údržba

To ensure the longevity and reliable performance of your motorized ball valve, consider the following maintenance guidelines:

• Pravidelná kontrola: Periodically inspect the valve for any signs of leaks, corrosion, or physical damage. Check the wiring for secure connections and insulation integrity.
• Čištění: Keep the exterior of the valve and actuator clean. Avoid using harsh chemicals that could damage the stainless steel or plastic components.
• Provozní kontrola: Occasionally cycle the valve (open and close) to ensure smooth operation.
• Podmínky prostředí: Ensure the valve operates within its specified temperature and pressure ranges. Protect it from extreme environmental conditions if not rated for them.

8. Řešení problémů

If you encounter issues with your motorized ball valve, refer to the following common troubleshooting steps:

• Ventil se neotevírá/nezavírá:
  • Check the power supply: Ensure the valve is receiving the correct voltage (85-265V AC) and that the power source is active.
  • Inspect wiring: Verify all electrical connections are secure and correctly wired according to the 2-wire auto-return diagram (Figure 5, Figure 6).
  • Check for obstructions: Ensure there are no physical obstructions preventing the ball from rotating inside the valve.
• Únik:
  • Check pipe connections: Ensure NPT threads are properly sealed with Teflon tape and tightened securely.
  • Inspect valve body: Look for any cracks or damage to the stainless steel body.
• Neobvyklý hluk:
  • During operation, a slight motor sound is normal. Excessive or grinding noises may indicate an internal issue. Disconnect power and contact support if persistent.

If problems persist after following these steps, please contact U.S. Solid customer support.

9. Záruka a podpora

U.S. Solid products are designed for reliability and performance. For warranty information and technical support, please refer to the official U.S. Solid webnebo kontaktujte jejich oddělení zákaznických služeb.

Pro více informací navštivte U.S. Solid Brand Store.
