Návod k obsluze dálkového ovladače pro otvírač garáží BENINCA to.GO 2 A
Model: to.GO 2 A
Značka: BENINCA
Zavedení
This manual provides comprehensive instructions for the setup, operation, and maintenance of your BENINCA to.GO 2 A Garage Opener Remote Control. Please read this manual thoroughly before using the device to ensure proper function and safety.
Konec produktuview
The BENINCA to.GO 2 A is a 2-button remote control designed for garage door openers, utilizing ARC 128-bit encoding for enhanced security and reliability. This remote operates on a frequency of 433.92 MHz.
Obrázek 1: Přední strana view of the BENINCA to.GO 2 A remote control, showing two white buttons and the BENINCA logo.
Mezi klíčové vlastnosti patří:
- ARC 128-bit Encoding: Advanced Rolling Code (ARC) technology provides a unique and inimitable transmission code, significantly enhancing security compared to older 64-bit systems.
- Dvě tlačítka: Allows control of two distinct functions or devices.
- Provozní frekvence: 433.92 MHz.
- Odolný design: Constructed from plastic or alloy metal for longevity.
Figure 2: Image illustrating the TO.GO2A model with ARC encoding and 433.92 MHz frequency.
Obrázek 3: Přesview of various BENINCA TO.GO remote control models and their encoding types, highlighting the ARC 128-bit system.
Nastavení a programování
The BENINCA to.GO 2 A remote control typically requires programming to your specific garage door opener or receiver. The programming process varies depending on the receiver model. Refer to your garage door opener's manual for specific instructions on how to pair a new remote control.
General Programming Steps (Consult your receiver's manual for exact procedure):
- Příjemce přístupu: Locate the programming button or learn button on your garage door opener's motor unit or external receiver.
- Aktivace režimu učení: Press and release the programming button. An indicator light on the receiver will typically illuminate or flash, indicating it is in learning mode.
- Přenosový signál: Within a few seconds, press and hold the desired button on your new BENINCA to.GO 2 A remote control.
- Potvrdit spárování: The indicator light on the receiver may flash, change color, or turn off to confirm successful pairing. Release the remote button.
- Testovací provoz: Test the remote control to ensure it operates your garage door correctly.
Important Notes on ARC Encoding:
The ARC 128-bit encoding provides enhanced security. If you are replacing an older remote or adding a new one to an existing installation, ensure your receiver is compatible with ARC encoding. Some older installations may require a specific procedure or a compatible receiver to utilize ARC remotes.
For detailed information on ARC compatibility and programming, refer to the official BENINCA documentation or website. The image below provides some general guidance on ARC devices and frequently asked questions.

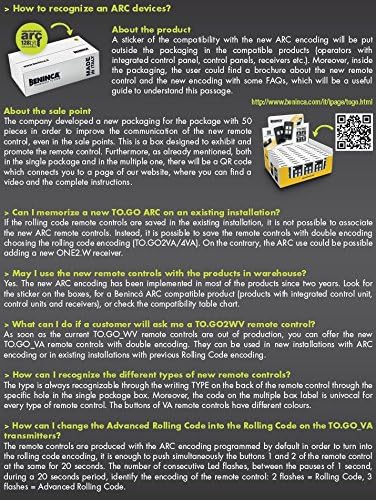

Figure 4: Information on how to recognize ARC devices and answers to frequently asked questions regarding ARC compatibility and programming.
Changing from Advanced Rolling Code to Rolling Code (if applicable):
Some BENINCA transmitters, including the TO.GO_VA series, allow switching between Advanced Rolling Code (ARC) and standard Rolling Code. To change the encoding, simultaneously press and hold buttons 1 and 2 of the remote control for 20 seconds. The remote's LED will flash. 2 flashes indicate Rolling Code, 3 flashes indicate Advanced Rolling Code. This feature may not be available on all models.
Návod k obsluze
Once programmed, operating your BENINCA to.GO 2 A remote control is straightforward:
- Otevírání/zavírání: Press the programmed button once to activate your garage door opener. The door will begin to open or close.
- Zastavení: Press the same button again while the door is in motion to stop it.
- Rozsah: The remote offers a good operating range. For optimal performance, ensure there are no significant obstructions between the remote and the receiver.
Videoukázka:
Následující video poskytuje obecný přehledview of the BENINCA TO.GO series, showcasing its versatility and design. While not a specific programming guide, it illustrates the product line.
Video 1: "TO GO Everywhere" - A short video showcasing the BENINCA TO.GO remote control series and its applications.
Údržba
The BENINCA to.GO 2 A remote control requires minimal maintenance.
- Výměna baterie: If the remote's range decreases or the LED indicator does not light up when a button is pressed, the battery may need replacement. Consult the remote's internal compartment for battery type (typically a coin cell battery) and replacement instructions.
- Čištění: Dálkový ovladač otírejte měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani jej neponořujte do vody.
- Skladování: Dálkový ovladač skladujte na suchém místě, mimo dosah extrémních teplot a přímého slunečního záření.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Dálkové ovládání nefunguje. | Baterie je vybitá nebo téměř vybitá. | Vyměňte baterii. |
| Remote not programmed. | Remote has not been paired with the receiver. | Follow the programming steps in the "Setup and Programming" section. |
| Omezený rozsah. | Slabá baterie nebo rušení. | Replace battery. Check for sources of radio interference near the receiver. |
| Dálkové ovládání funguje přerušovaně. | Weak battery, interference, or receiver issue. | Replace battery. Reprogram the remote. Consult your garage door opener's manual. |
Specifikace
- Model: to.GO 2 A
- Značka: BENINCA
- Kódování: ARC 128-bit
- Frekvence: 433.92 MHz
- tlačítka: 2
- Barva: Černý
- Materiál: Plastic or Alloy Metal
- Provozní režim: Automatický
- UPC: 712038744701
- ASIN: B07CV1QL2T
- Datum první dostupnosti: 3. května 2018
Záruka a podpora
For warranty information and technical support, please refer to the official BENINCA website or contact your authorized BENINCA dealer. Keep your purchase receipt as proof of purchase for warranty claims.
Výrobce: BENINCA
Webmísto: www.beninca.com
