1. Konec produktuview
This Atlanta radio-controlled alarm clock (Model 1856-19) is designed for precise timekeeping and quiet operation. It features automatic time synchronization, a silent "No Tick" function, luminous hands for visibility in the dark, and a convenient snooze function.

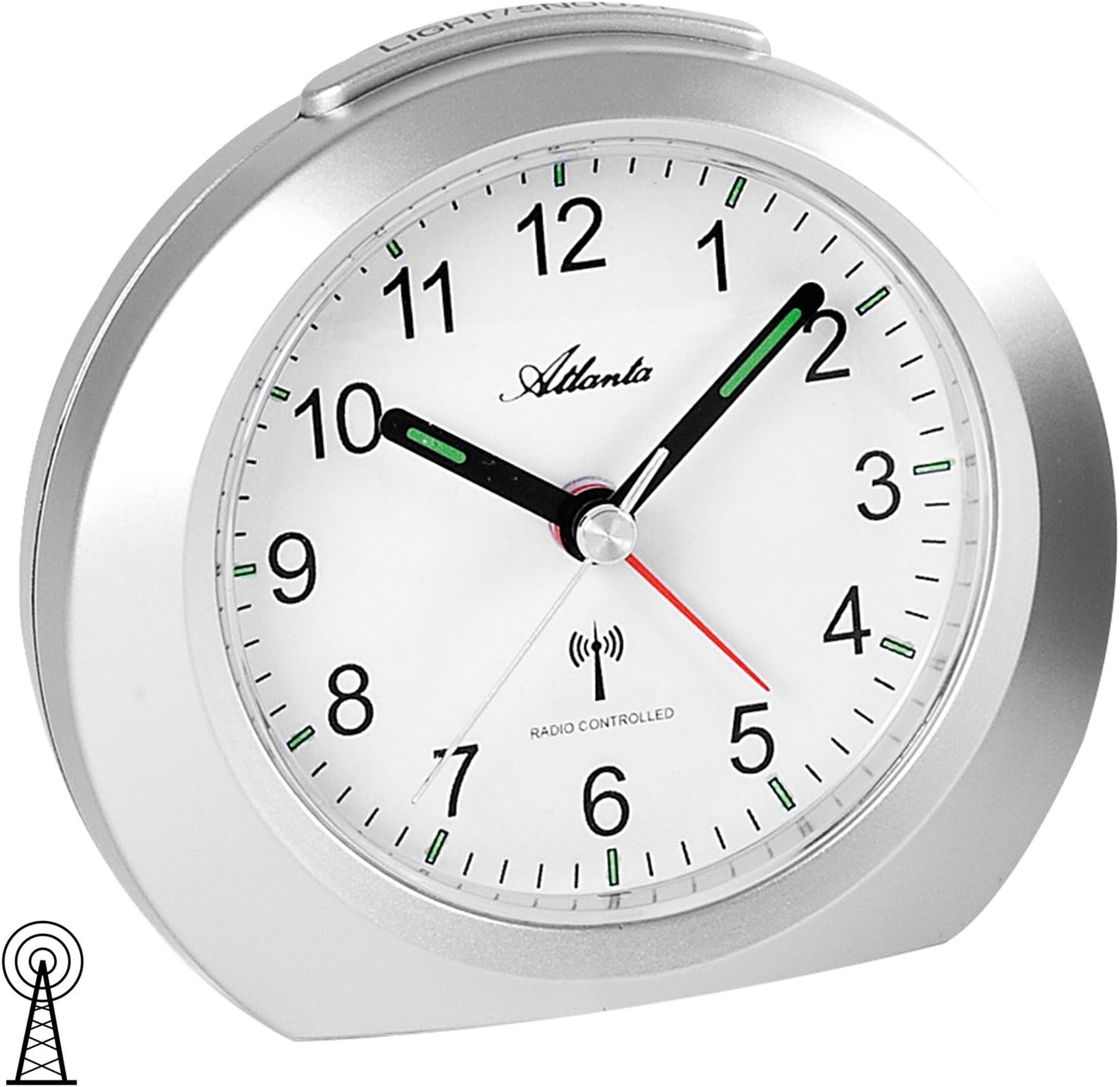

Obrázek 1: Přední strana view of the Atlanta Radio-Controlled Alarm Clock, Model 1856-19, in silver finish.
Klíčové vlastnosti:
- No Tick Function: The second hand stops at the '12' position when the alarm is activated, ensuring silent operation at night.
- Automatické nastavení času: Synchronizes automatically with the DCF-77 radio signal for accurate time and automatic Daylight Saving Time (DST) adjustments.
- Luminous Hands & Dial Illumination: Features luminous hands and a dial illumination button for easy readability in low light conditions.
- Funkce odložení: Pauses the alarm for approximately 5 minutes.
- Crescendo Alarm: The alarm sound starts quietly and gradually increases in volume and intensity.
- Stabilní design: Equipped with a stable base for secure placement.
- Provoz na baterie: Requires 1 AA / LR6 battery (not included).
2. Nastavení a uvedení do provozu
2.1 Instalace baterie
- Najděte krytku přihrádky na baterie na zadní straně budíku.
- Odstraňte kryt.
- Insert one (1) AA / LR6 battery, ensuring the correct polarity (+/-) as indicated inside the compartment.
- Bezpečně nasaďte kryt prostoru pro baterie.
2.2 Automatické nastavení času
Upon battery insertion, the alarm clock will automatically begin the time synchronization process.
- The clock hands will first perform a full rotation and then stop precisely at the '12' position.
- The alarm clock will then enter reception mode to synchronize with the DCF-77 time signal.
- Důležité: This initial synchronization can take up to 20 minutes. During this period, the hands may not move. Do not interrupt this process, as it will restart if disturbed. Patience is required for successful initial setup.
- Once synchronized, the hands will automatically move to display the correct time.
3. Návod k obsluze
3.1 Nastavení alarmu
- Na zadní straně hodin najděte knoflík pro nastavení budíku.
- Otáčením knoflíku nastavte požadovaný čas buzení.
- To activate the alarm, slide the alarm switch (located on the right side of the casing) to the "ON" position.
- When the alarm is activated, the second hand will move to the '12' position after approximately 2 minutes and stop, enabling the "No Tick" silent function.
3.2 Funkce odložení
When the alarm sounds, press the large button located on the top of the alarm clock. This will pause the alarm for approximately 5 minutes. The alarm will sound again after this period.
3.3 Podsvícení ciferníku
To temporarily illuminate the dial, press the same large button on the top of the alarm clock. Release the button to turn off the illumination.
3.4 Automatic Daylight Saving Time (DST) Adjustment
The alarm clock automatically adjusts for Daylight Saving Time (summer/winter time) changes. This adjustment occurs unnoticed overnight between 2 AM and 3 AM.
4. Péče a údržba
- Budík čistěte měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Nevystavujte hodiny extrémním teplotám, přímému slunečnímu záření nebo vysoké vlhkosti.
- Replace the battery annually or when the clock's functions (e.g., alarm, illumination) become weak. Always use a fresh AA / LR6 battery.
- Do not attempt to disassemble the alarm clock, as this may void any potential warranty and cause damage.
5. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Clock hands do not move after battery insertion. | Initial radio signal reception in progress. | Allow up to 20 minutes for the clock to receive the DCF-77 signal and set the time automatically. Ensure the clock is placed away from electronic interference. |
| Hodiny ukazují nesprávný čas. | Špatný příjem rádiového signálu nebo rušení. | Move the alarm clock to a different location, preferably near a window, and away from electronic devices (TVs, computers, mobile phones). Remove and reinsert the battery to initiate a new synchronization attempt. |
| Alarm is too quiet or does not sound. | Low battery or alarm not activated. | Replace the battery with a fresh AA / LR6 battery. Ensure the alarm switch is in the "ON" position. |
| Snooze or light function not working. | Slabá baterie. | Replace the battery with a fresh AA / LR6 battery. |
6. Specifikace
- Značka: Atlanta
- Číslo modelu: 1856-19
- Barva: Stříbro
- Materiál: Plast
- Typ displeje: Analogový
- Zdroj napájení: Battery Powered (1 x AA / LR6, not included)
- Speciální vlastnosti: Crescendo Alarm, Snooze Function (5 minutes), Radio-Controlled Time Setting, Silent Operation (No Tick), Luminous Hands, Dial Illumination
- Rozměry (D x Š x V): 11 x 10 x 6 cm (přibližně 4.3 x 3.9 x 2.4 palce)
- Hmotnost položky: 155 g (přibližně 5.5 oz)
- Vnitřní/venkovní použití: Krytý
