Zavedení
This manual provides detailed instructions for the safe and effective use, setup, operation, and maintenance of your Streamlight ProTac HPL USB Flashlight, Model 88076. Please read this manual thoroughly before operating the device and retain it for future reference.
Bezpečnostní informace
VAROVÁNÍ:
- Do not look directly into the LED light. The intense beam can cause temporary vision impairment or eye damage.
- Use only approved batteries. Incorrect battery types or improper installation can lead to fire, explosion, or personal injury.
- Udržujte baterie mimo dosah dětí.
- Tento produkt obsahuje chemikálie, o kterých je ve státě Kalifornie známo, že způsobují rakovinu a vrozené vady nebo jiná poškození reprodukce.
- The flashlight may become hot during prolonged use, especially on high settings. Handle with care.
Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- Streamlight ProTac HPL USB Flashlight (Model 88076)
- Nabíjecí kabel USB
- Pouzdro
- Two CR123A Lithium Batteries (included)
- Removable Pocket Clip
Nastavení
1. Instalace baterie
The ProTac HPL USB can operate with either two CR123A lithium batteries or one Streamlight 18650 USB rechargeable battery (P/N 74175).
- Odšroubujte zadní krytku svítilny otáčením proti směru hodinových ručiček.
- Insert the batteries with the positive (+) end facing towards the head of the flashlight. Ensure correct polarity.
- Zašroubujte zadní víčko zpět ve směru hodinových ručiček, dokud není zajištěno.
Obrázek: Rozložený view showing battery compartment and other components.
2. Charging the 18650 USB Battery (if applicable)
If using the Streamlight 18650 USB rechargeable battery, it can be charged directly via a USB port.
- Slide the collar of the flashlight head back to expose the micro-USB charging port.
- Connect the supplied USB charging cord to the flashlight's micro-USB port and to a powered USB source (e.g., computer, wall adapter).
- The charging indicator light on the battery will show charging status (typically red for charging, green for charged).
- Once charging is complete, disconnect the USB cord and slide the collar forward to protect the port.
Image: Flashlight head with the collar slid back, revealing the USB charging port.
3. Attaching the Pocket Clip
The flashlight comes with a removable pocket clip for secure carrying. Slide the clip onto the body of the flashlight in the desired orientation.
Návod k obsluze
The ProTac HPL USB features a multi-function, push-button tail switch for one-handed operation and TEN-TAP programming to select different operating modes.
1. Basic Operation (Factory Default: High/Strobe/Low)
- Okamžitě zapnuto: Lehce stiskněte zadní spínač. Uvolněním vypnete.
- Trvale zapnuto: Press the tail switch until it clicks. Press again to turn off.
- Accessing Modes: From momentary or constant on, quickly tap the switch to cycle through modes (High → Strobe → Low). Pause for more than 0.2 seconds to select the current mode.

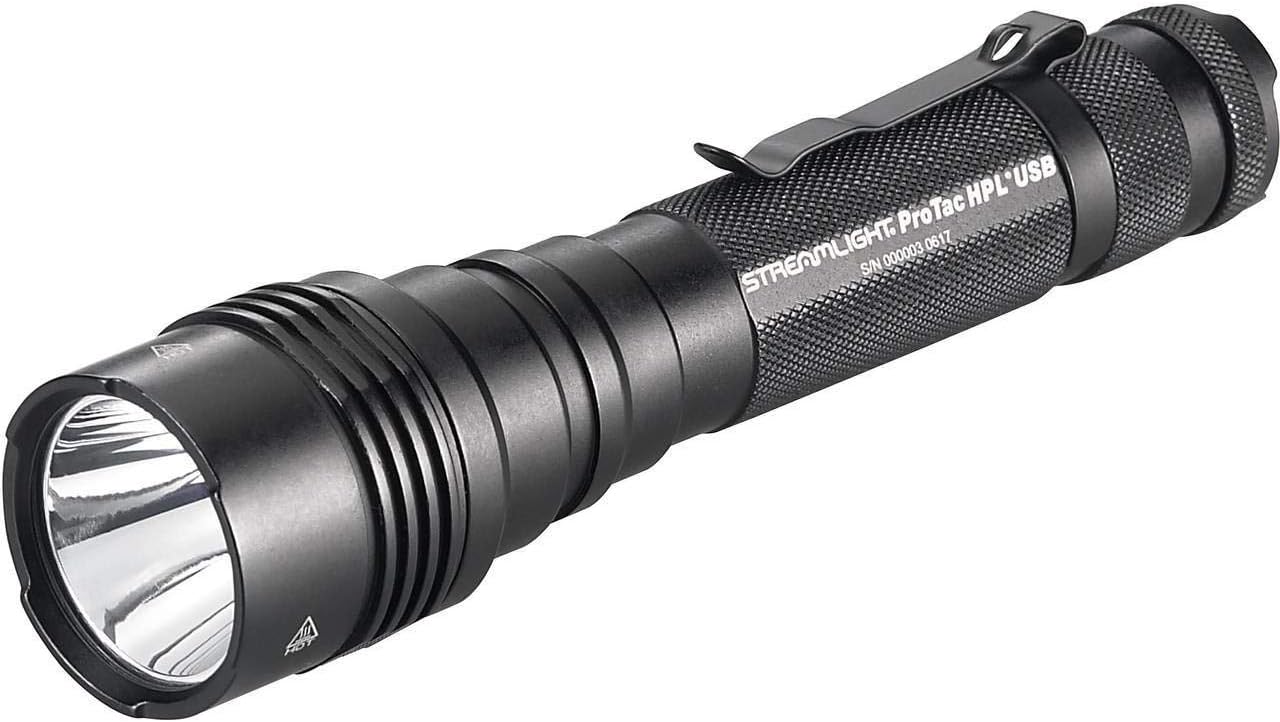

Obrázek: Plný view of the Streamlight ProTac HPL USB Flashlight.
2. TEN-TAP Programming
The TEN-TAP programming allows users to select one of three different operating programs:
- Program 1 (výchozí nastavení z výroby): High / Strobe / Low
- Program 2: Pouze vysoká
- Program 3: Nízká / Střední / Vysoká
Chcete-li změnit program:
- Ensure the flashlight is OFF.
- Tap the tail switch rapidly 9 times (within 0.4 seconds per tap).
- On the 10th tap, hold the switch down. The light will cycle through the available programs.
- Release the switch when the desired program is indicated by the number of flashes (1 flash for Program 1, 2 flashes for Program 2, 3 flashes for Program 3).
Údržba
- Čištění: Clean the lens with a soft, clean cloth. For the body, use a damp cloth and mild soap if necessary. Avoid abrasive cleaners.
- O-kroužky: Periodically inspect the O-rings for wear and tear. Apply a thin coat of silicone grease to maintain water resistance. Replace damaged O-rings promptly.
- Péče o baterie: Remove batteries from the flashlight if it will not be used for an extended period to prevent leakage. Store batteries in a cool, dry place.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světlo se nerozsvítí. | Vybité nebo nesprávně nainstalované baterie. | Replace batteries or ensure correct polarity. Charge 18650 battery if applicable. |
| Světlo je tlumené nebo bliká. | Low battery charge or loose connections. | Replace or recharge batteries. Ensure tail cap and head are fully tightened. |
| Nabíjení přes USB nefunguje. | USB port not fully exposed, faulty cable, or power source issue. | Ensure collar is fully slid back. Try a different USB cable or power source. |
Specifikace
- Model: 88076
- Světelný zdroj: LED
- Jas: Up to 1000 Lumens (High)
- Zdroj napájení: 2 x CR123A Lithium Batteries or 1 x Streamlight 18650 USB Rechargeable Battery
- Materiál: Durable, anodized machined aircraft aluminum construction
- Voděodolnost: Vodě odolný
- Rozměry položky (DxŠxV): 1 x 1 x 1 palce
- Hmotnost položky: 0.27 libry
- Speciální vlastnosti: Multi-function push-button tail switch, TEN-TAP programming, USB rechargeable (with 18650 battery), Removable pocket clip, Anti-roll head, O-ring sealed glass lens.
Informace o záruce
Streamlight warrants its products to be free of defects for a lifetime of use, with the exception of batteries and bulbs, abuse and normal wear. For full warranty details and service, please visit the official Streamlight webnebo kontaktujte jejich zákaznickou podporu.
Note: This is a general statement. Always refer to the manufacturer's official warranty policy for specific terms and conditions.
Zákaznická podpora
For technical assistance, parts, or service, please contact Streamlight customer support directly. You can typically find contact information on the official Streamlight webmísto:
Při kontaktování podpory si prosím připravte číslo modelu produktu (88076) a datum zakoupení.
