1. Konec produktuview
The Cooler Depot G1.2BM2F is a commercial-grade 2-door glass merchandiser refrigerator designed for displaying and cooling beverages and food items. It features a durable construction with coated steel exterior and aluminum interior, self-closing double-pane glass doors, and a bottom-mounted compressor for efficient operation.
Obrázek 1: Přední strana view of the Cooler Depot G1.2BM2F Commercial 2-Door Glass Merchandiser Refrigerator.
- Značka: Chladič Depot
- Model: G1.2BM2F
- Kapacita: 45 kubických stop
- Rozměry (D x H x V): 53" x 32" x 81" (including casters)
- Hmotnost položky: 440 libry
- svtage: 115 voltů
- Wattage: 900 wattů
- Chladivo: R134a
- Osvědčení: ETL, NSF certified
2. Vlastnosti
- Odolná konstrukce: Features a coated steel metal exterior and door frame, with an interior aluminum liner and stainless steel floor for enhanced sturdiness and longevity. Designed to withstand heavy-duty restaurant tasks.
- Self-Closing Glass Doors: Equipped with two double-pane glass doors that are self-closing for convenience and energy efficiency.
- Nastavitelné police: Includes 8 PVC coated shelves that are easy to slide in and out, clean, and maintain, increasing practical usage.
- Účinný chladicí systém: Utilizes a bottom-mounted high-quality compressor that circulates environmentally friendly R134a refrigerant.
- Digitální ovládání teploty: Temperature is controlled by a digital display and knob, allowing easy adjustment from 0 to 5°C (32 to 41°F).
- LED osvětlení: Integrated LED lights help keep track of inventory easily and enhance product visibility.
- Mobilita: Fitted with 4 lockable castor wheels for easy movement and positioning.
- Zabezpečení: Includes a door lock feature for securing contents.
3. Nastavení a instalace
This unit is designed for straightforward setup. Ensure the refrigerator is placed on a level surface. The included lockable castor wheels allow for easy positioning. Once positioned, lock the wheels to prevent movement.
The unit operates on a standard 115 Volt electrical connection. Simply plug it into a compatible wall outlet, and it will begin operation. No complex wiring or plumbing is required for basic functionality.
Obrázek 2: Zadní view of the refrigerator, highlighting the power connection area.
4. Návod k obsluze
4.1 Zapnutí/vypnutí
Locate the control panel at the bottom front of the unit. The red switch controls the main power for the entire unit. Flip it to the 'ON' position to power on the refrigerator.
4.2 Nastavení teploty
The digital thermostat display and knob allow for temperature adjustment. The temperature can be set between 0 to 5°C (32 to 41°F). Refer to the specific instructions on the control panel for detailed adjustment procedures.
4.3 Vnitřní osvětlení
The green switch on the control panel operates the internal LED lights. Turn this switch on or off as needed to illuminate the interior of the refrigerator.
Figure 3: Control panel with power switch, light switch, and digital temperature display.
4.4 Instalace a seřízení police
The refrigerator comes with 8 PVC coated shelves. These shelves can be easily inserted into the side rails and adjusted to different heights to accommodate various product sizes. Ensure shelves are securely seated before placing items on them.

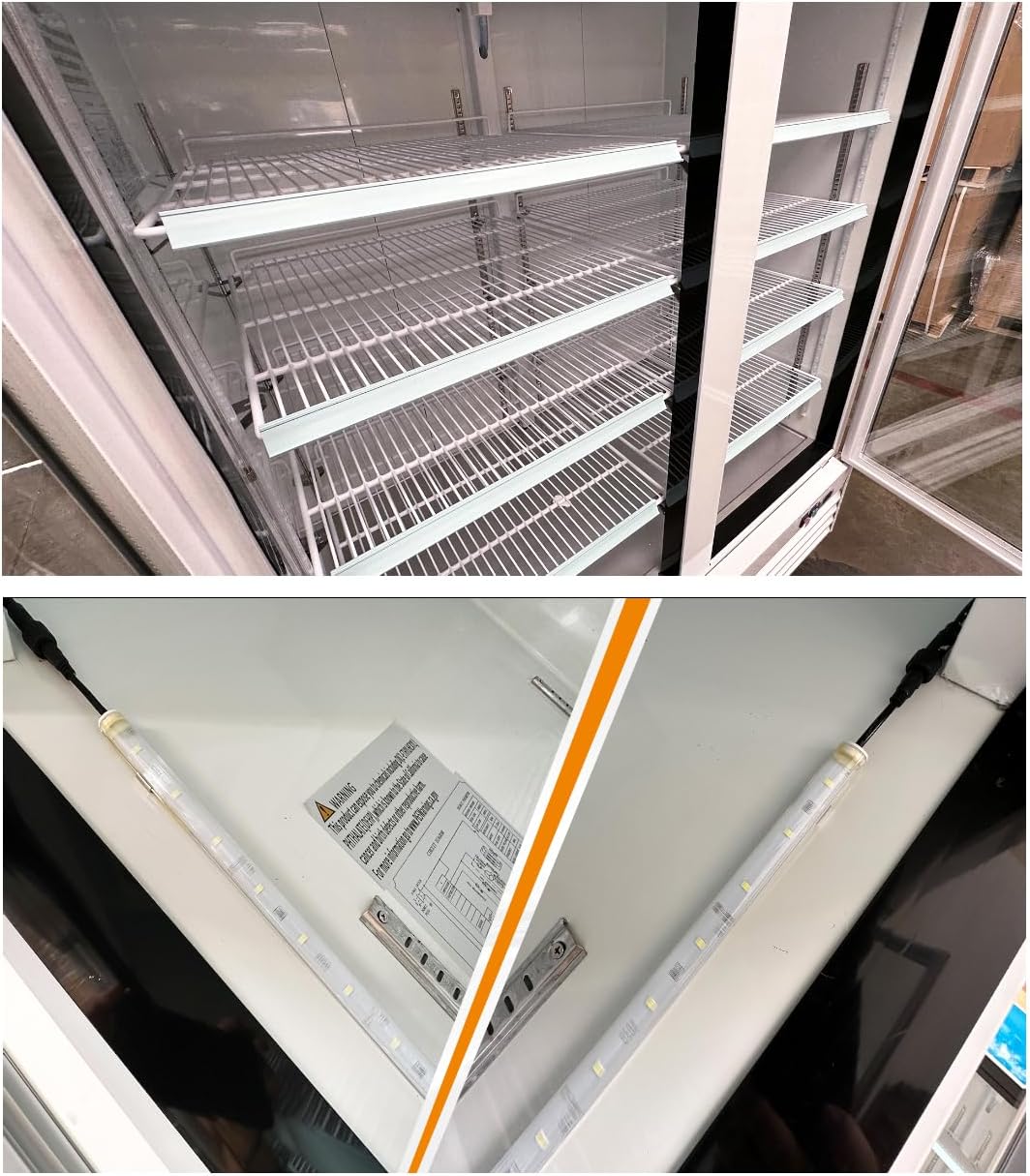

Obrázek 4: Interiér view displaying the adjustable shelves and LED lighting strips.
5. Údržba
5.1 Čištění
The unit's interior aluminum liner and stainless steel floor are designed for easy cleaning. Regularly wipe down surfaces with a mild detergent and water. The PVC coated shelves are also easy to clean and maintain.
5.2 Condenser Coil Access
The bottom-mounted design allows for easily accessible condenser coil cleaning. Regular cleaning of the condenser coil is crucial for maintaining optimal performance and energy efficiency. Refer to the detailed manual for specific cleaning procedures.
Figure 5: Top interior view with air circulation fans and bottom interior view with stainless steel floor and drain.
6. Řešení problémů
For any operational issues or error codes displayed on the digital thermostat, consult the comprehensive manual provided with the unit. For complex issues or repairs, it is recommended to contact qualified service personnel or Cooler Depot customer support.
7. Specifikace
| Atribut | Hodnota |
|---|---|
| Název značky | Chladič Depot |
| Informace o modelu | G1.2BM2F |
| Hmotnost položky | 440 libry |
| Rozměry produktu (D x Š x V) | 53 x 32 x 80 palce |
| Kapacita | 45 kubických stop |
| Typ instalace | Pracovní deska |
| Form Factor | Bok po boku |
| Speciální funkce | Zámek dveří |
| Barva | Sklo průhledné |
| svtage | 115 voltů |
| Wattage | 900 wattů |
| Regály/Police | 8 |
| Odmrazovací systém | Automatický |
| Panty dveří | Přední |
| Typ materiálu dveří | Ocel |
| Typ police | Sklo |
| Osvědčení | NSF |
| Typ materiálu | Sklo |
| Počet Dveří | 2 |
Figure 6: Technical specifications and dimensions diagram.
Figure 7: Electrical circuit diagram and detailed technical parameters.
8. Oficiální video produktu
Video 1: Podrobný přehledview of the Cooler Depot G1.2BM2F Commercial 2-Door Glass Merchandiser Refrigerator, demonstrating its features and dimensions.
9. Záruka a podpora
This product comes with a comprehensive warranty:
- 3letá záruka na díly
- Záruka na kompresor 6 let
- 1-year labor warranty
For functional failures within 1 month of purchase, a free return can be applied for. Please retain the original pallet and packaging materials, as they will be required for any returns.
For support or inquiries, please contact Cooler Depot USA. Their contact information can typically be found on their official webwebu nebo prostřednictvím vaší nákupní dokumentace.
