1. Úvod
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Renogy SunPower Flexible Solar Panel 100W (Model: SPR-OS-FLEX-100). Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
The Renogy SunPower Flexible Solar Panel utilizes high-efficiency Gen II back contact cells, offering a lightweight and flexible design suitable for various applications. Its construction with durable polymer materials allows for easy transport and installation, with the ability to flex up to 30 degrees.
Image 1.1: Renogy SunPower Flexible Solar Panel 100W (flat view). This image displays the solar panel in its flat, unmounted state, highlighting its compact design and the arrangement of its solar cells.
2. Bezpečnostní informace
Během instalace a provozu dodržujte následující bezpečnostní opatření:
- Do not attempt to disassemble, modify, or repair the solar panel. Unauthorized modifications can void the warranty and pose safety risks.
- Handle the solar panel with care. Avoid dropping or subjecting it to severe impact.
- Ujistěte se, že všechna elektrická připojení jsou bezpečná a řádně izolovaná, abyste zabránili úrazu elektrickým proudem.
- Během instalace používejte vhodné osobní ochranné prostředky (OOP), jako jsou rukavice a ochrana očí.
- Do not walk on the solar panel. While flexible, excessive pressure can cause damage to the cells.
- Avoid mounting the panel on flammable surfaces without adequate ventilation, as panels can generate heat during operation.
- Udržujte děti a neoprávněné osoby mimo oblast instalace.
3. Součásti zahrnuty
The package for the Renogy SunPower Flexible Solar Panel 100W includes:
- 1x Renogy SunPower Flexible Solar Panel 100W (SPR-OS-FLEX-100)
- Solar Cables/Connectors (pre-attached)
A charge controller is not provided and must be purchased separately. It is recommended to use an MPPT (Maximum Power Point Tracking) charge controller for optimal performance.
4. Nastavení a instalace
The Renogy SunPower Flexible Solar Panel is designed for versatile installation. Follow these steps for proper setup:
4.1. Výběr lokality
- Choose a location that receives maximum direct sunlight throughout the day, free from shadows.
- Ensure the mounting surface is clean, dry, and structurally sound to support the panel.
4.2. Možnosti montáže
The panel can be installed using adhesives or the integrated stainless steel grommets:
- Lepicí montáž: For a permanent installation, use a marine-grade or outdoor-rated adhesive suitable for the panel's backing material and your mounting surface. Apply adhesive evenly to the back of the panel and firmly press it onto the surface. Allow adequate curing time as per adhesive manufacturer instructions.
- Montáž průchodky: The panel features stainless steel grommets along its edges. These can be used with screws, bolts, or zip ties to secure the panel to a surface. Ensure fasteners are appropriate for the mounting material and do not overtighten to avoid damaging the panel.

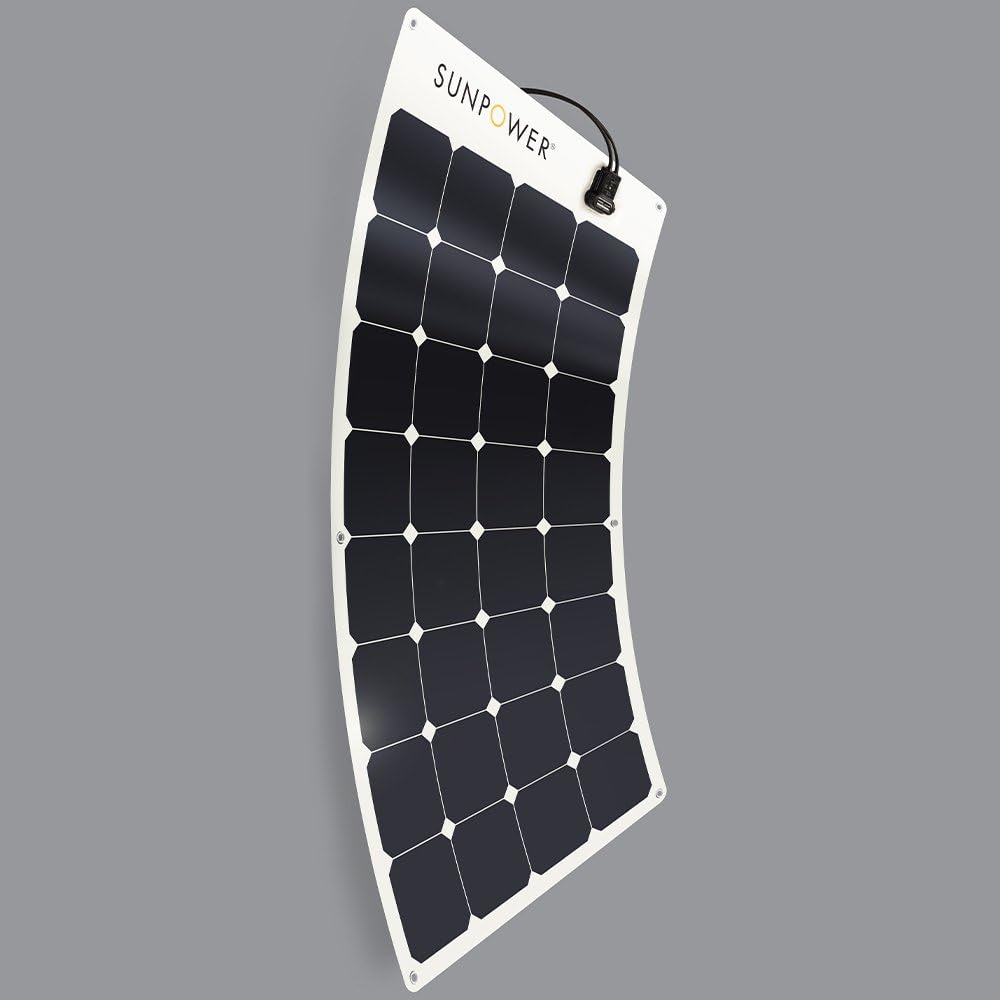

Image 4.1: Renogy SunPower Flexible Solar Panel 100W (flexible view). This image demonstrates the panel's flexibility, showing it curved to fit various surfaces, highlighting its adaptability for different installation environments.
4.3. Elektrické připojení
- Connect the panel's standard quick-connect cables to your charge controller. Ensure correct polarity (positive to positive, negative to negative).
- Connect the charge controller to your battery bank.
- Konkrétní schémata zapojení a nastavení naleznete v manuálu k vašemu regulátoru nabíjení.
- It is recommended to install an inline fuse between the solar panel and the charge controller, and between the charge controller and the battery, as per electrical safety standards.
5. Provoz
Once installed and connected, the Renogy SunPower Flexible Solar Panel will begin converting sunlight into electrical energy. The charge controller will regulate this energy to safely charge your battery bank.
- Sledování: Use your charge controller's display or associated app (if available) to monitor the panel's output, battery charge status, and system performance.
- Optimální výkon: The panel performs best under direct, unobstructed sunlight. Shading on even a small portion of the panel can significantly reduce output.
6. Údržba
Regular maintenance ensures the longevity and efficiency of your solar panel:
- Čištění: Clean the panel surface periodically to remove dust, dirt, leaves, and other debris that can reduce efficiency. Use a soft cloth and mild, non-abrasive cleaning solution with water. Avoid harsh chemicals or abrasive materials.
- Inspekce: Regularly inspect the panel for any physical damage, such as cracks, delamination, or discoloration. Check all electrical connections for corrosion or loose wiring.
- Větrání: Ensure adequate airflow around and under the panel, especially if mounted with adhesives, to prevent excessive heat buildup which can affect performance.
7. Řešení problémů
Pokud váš solární panel nefunguje podle očekávání, zvažte následující běžné problémy:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Nízký nebo žádný výstupní výkon |
|
|
| Baterie se nenabíjí |
|
|
| Přehřívání panelu |
|
|
If problems persist, contact Renogy customer support or a qualified technician.
8. Specifikace
8.1. Typical Electrical Data (at STC: 25° C, 1000 W/m² and AM 1.5)
Image 8.1: Typical Electrical Data. This table provides key electrical specifications for the SPR-E-Flex-110 and SPR-E-Flex-100 models, including Nominal Power, Rated Voltage, Rated Current, Open Circuit Voltage, Short Circuit Current, and various temperature coefficients.
| Parametr | Value (SPR-OS-FLEX-100) |
|---|---|
| Jmenovitý výkon (Pnom) | 100 W |
| Tolerance napájení | +/-3 % |
| Jmenovitý objemtage (Vmpp) | 17.5 V |
| Jmenovitý proud (Impp) | 5.8 A |
| Open Circuit Voltage (Voc) | 21 V |
| Zkratový proud (Isc) | 6.2 A |
| Teplotní koeficient výkonu | -0.35%/° C |
| svtage Teplotní koeficient | -58.9 mV/° C |
| Aktuální teplotní koeficient | 2.6 mA/° C |
| Max. System Voltage | 45 V |
| Sériové hodnocení pojistek | 15 A |
8.2. Mechanical Data
Image 8.2: Mechanical Data. This table details the physical characteristics of the solar panel, including Solar Cells type, Junction Box model, Weight, Panel Dimensions, Connector type, and Cable specifications.
| Parametr | Hodnota |
|---|---|
| Solární články | 32 Prime monocrystalline SunPower IBC cells |
| Spojovací skříňka | TE 1-21-2152049-1 |
| Hmotnost | 4.4 lb (2 kg) |
| Rozměry panelu | 45.9"L x 22.4"W x 0.8"H (1165 x 569 x 20 mm, with jbox) |
| Konektory | PV4-S |
| Kabely | 4 mm², 12 AWG, 450 mm long |
| Ovladač nabíjení | Žádná poskytnuta |
| Materiál | Monokrystalický křemík |
9. Záruka a podpora
Renogy products are designed for durability and performance. While specific warranty terms may vary, Renogy typically offers a warranty period for its solar panels, often ranging from 2 to 5 years for materials and workmanship. Please refer to the official Renogy website or your purchase documentation for the most accurate and up-to-date warranty information.
For technical support, troubleshooting assistance, or warranty claims, please contact Renogy customer service through their official channels. Provide your product model number (SPR-OS-FLEX-100) and proof of purchase when seeking support.
You can visit the official Renogy store for more information: Renogy Store
