Grandeur 848563 Hardware Arc One-Piece Dummy Handleset User Manual

Model: 848563

Zavedení

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Grandeur 848563 Hardware Arc One-Piece Dummy Handleset. Designed for durability and aesthetic appeal, this handleset features a vintage brass finish and is intended for non-functional applications on doors, typically on the inactive leaf of a double entry door.

Please read these instructions carefully before beginning installation to ensure proper setup and long-lasting performance.

Nastavení a instalace

1. Než začnete

2. Požadované nástroje

3. Kroky instalace

  1. Připravte dveře: Use the included drilling template to mark the precise locations for mounting holes on your door.
  2. Vrtací otvory: Carefully drill pilot holes at the marked locations. Ensure holes are straight and clean.
  3. Install Exterior Handleset: Position the exterior one-piece dummy handleset trim with grip onto the door, aligning it with the drilled holes.
  4. Install Interior Trim: Place the interior dummy tall plate trim on the inside of the door, aligning it with the exterior handleset.
  5. Zabezpečené komponenty: Insert the provided screws through the interior trim and into the exterior handleset. Tighten screws firmly but do not overtighten, which could damage the door or handleset.
  6. Závěrečná kontrola: Ensure the handleset is securely mounted and sits flush against the door surface.
Grandeur 848563 Hardware Arc One-Piece Dummy Handleset in Vintage mosaz

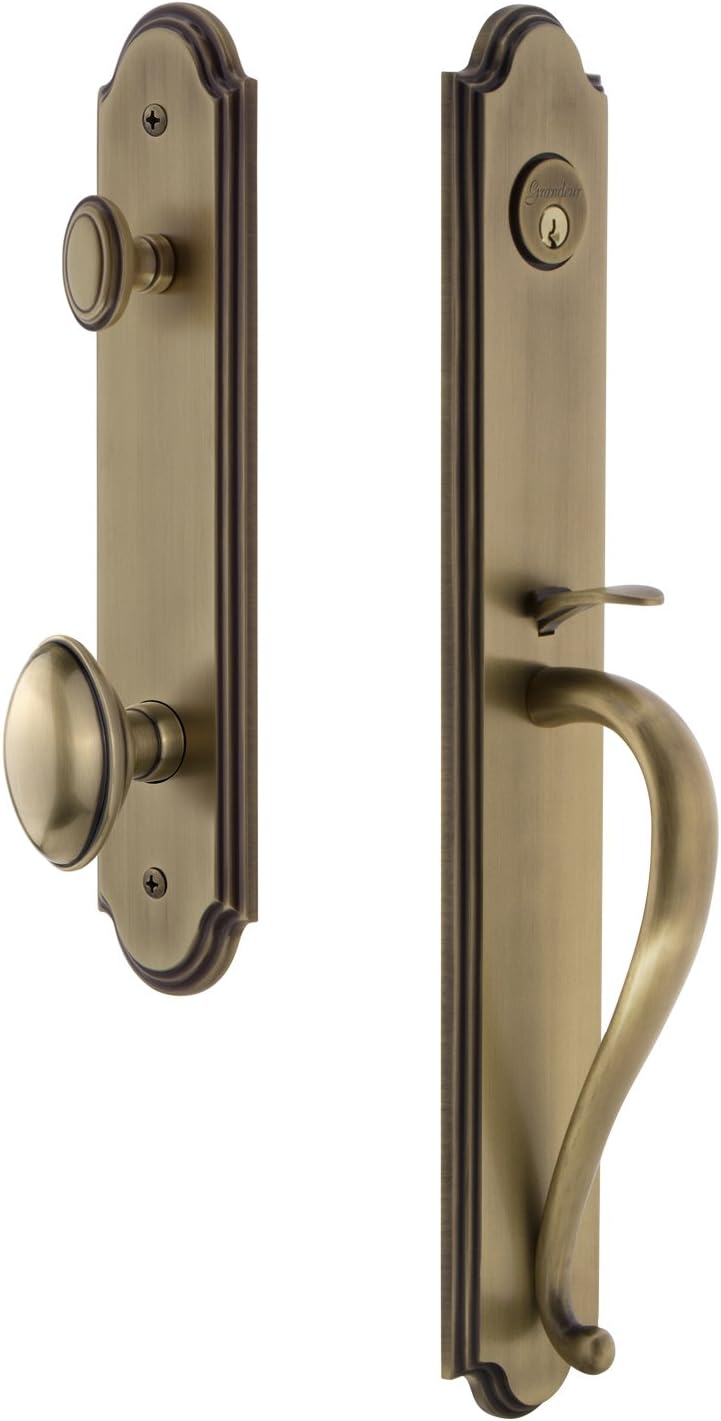

Figure 1: Grandeur 848563 Hardware Arc One-Piece Dummy Handleset, showing the exterior handleset with S-grip and the interior knob and plate.

Návod k obsluze

The Grandeur 848563 is a dummy handleset, meaning it does not have any internal locking mechanism or operational latch. Its primary function is to provide a fixed pull handle and a decorative knob for the inactive leaf of a double door or for purely aesthetic purposes.

Údržba

Proper care will help maintain the beauty and longevity of your Grandeur handleset.

Odstraňování problémů

This section addresses common issues you might encounter with your dummy handleset.

ProblémMožná příčinaŘešení
Handleset feels loose or wobbly.Upevňovací šrouby jsou uvolněné.Gently tighten all visible mounting screws with a Phillips head screwdriver. Do not overtighten.
Povrchová úprava se jeví matná nebo zbarvená.Accumulation of dirt or residue; exposure to harsh chemicals.Očistěte rukojeť měkkým hadříkemamp cloth. Avoid using abrasive cleaners or polishes. Ensure it is not exposed to corrosive substances.
Handleset does not sit flush against the door.Improper installation or uneven drilling.Recheck screw alignment and tightness. If the issue persists, re-evaluate the drilled holes for accuracy.

Specifikace

AtributDetail
Číslo modelu848563
ZnačkaMajestátnost
TypOne-Piece Dummy Handleset
DokončitVintage mosaz
MateriálMasivní kovaná mosaz
Rozměry (D x Š x V)1.27 x 7.62 x 48.26 cm (0.5 x 3 x 19 palce)
Hmotnost položky3.18 kg (7 lb)
PoužíváníOutside (typically non-functional side of double entry door)
Speciální funkceEasy to Install, No locking or internal mechanism
Zahrnuté komponentyExterior one piece dummy handleset trim with grip, interior dummy tall plate trim, and screws

Informace o záruce

This Grandeur handleset comes with a Doživotní záruka. For specific terms and conditions of the warranty, please refer to the documentation provided with your purchase or contact Grandeur customer support.

Zákaznická podpora

If you have any questions, require assistance with installation, or need to report a defect, please contact Grandeur customer support. Refer to the contact information provided on the product packaging or the official Grandeur webweb s nejaktuálnějšími informacemi o podpoře.
