TecTake Lightweight Portable Massage Table User Manual

1. Úvod

This manual provides detailed instructions for the safe and effective use of your TecTake Lightweight Portable Massage Table. Please read this manual thoroughly before initial use and retain it for future reference.

Konec produktuview

The TecTake Lightweight Portable Massage Table is a comfortable, two-section padded folding spa bed designed for various professional and personal uses, including massage therapy, physiotherapy, and beauty treatments. It features an adjustable backrest, removable headrest, and armrests for customized comfort, and a robust yet lightweight aluminium frame for portability.

Obsah balení

• 1 x Massage Table
• 1 x Removable Headrest
• 2 x Removable Armrests
• 1 x přepravní taška

2. Bezpečnostní informace

Please observe the following safety guidelines to ensure safe operation and prevent injury or damage to the product:

• The massage table is designed to hold a maximum load of approximately 230 kg (507 lbs). Do not exceed this weight limit.
• Ensure all non-slip plastic feet are securely placed on a stable, level surface before use to prevent movement or tipping.
• Always remove the removable pad for hygienic cleaning.
• Keep hands and fingers clear of moving parts when folding or unfolding the table.
• Do not allow children to play on or around the massage table.
• Inspect the table regularly for any signs of wear, damage, or loose components. Do not use if damaged.

3. Pokyny k nastavení

Follow these steps to set up your TecTake Portable Massage Table:

3.1 Rozložení stolu

1. Place the folded massage table on a flat surface.
2. Release any latches or buckles securing the table in its folded position.
3. Gently open the table like a suitcase, allowing the legs to unfold outwards.
4. Ensure all leg supports are fully extended and locked into place for stability.

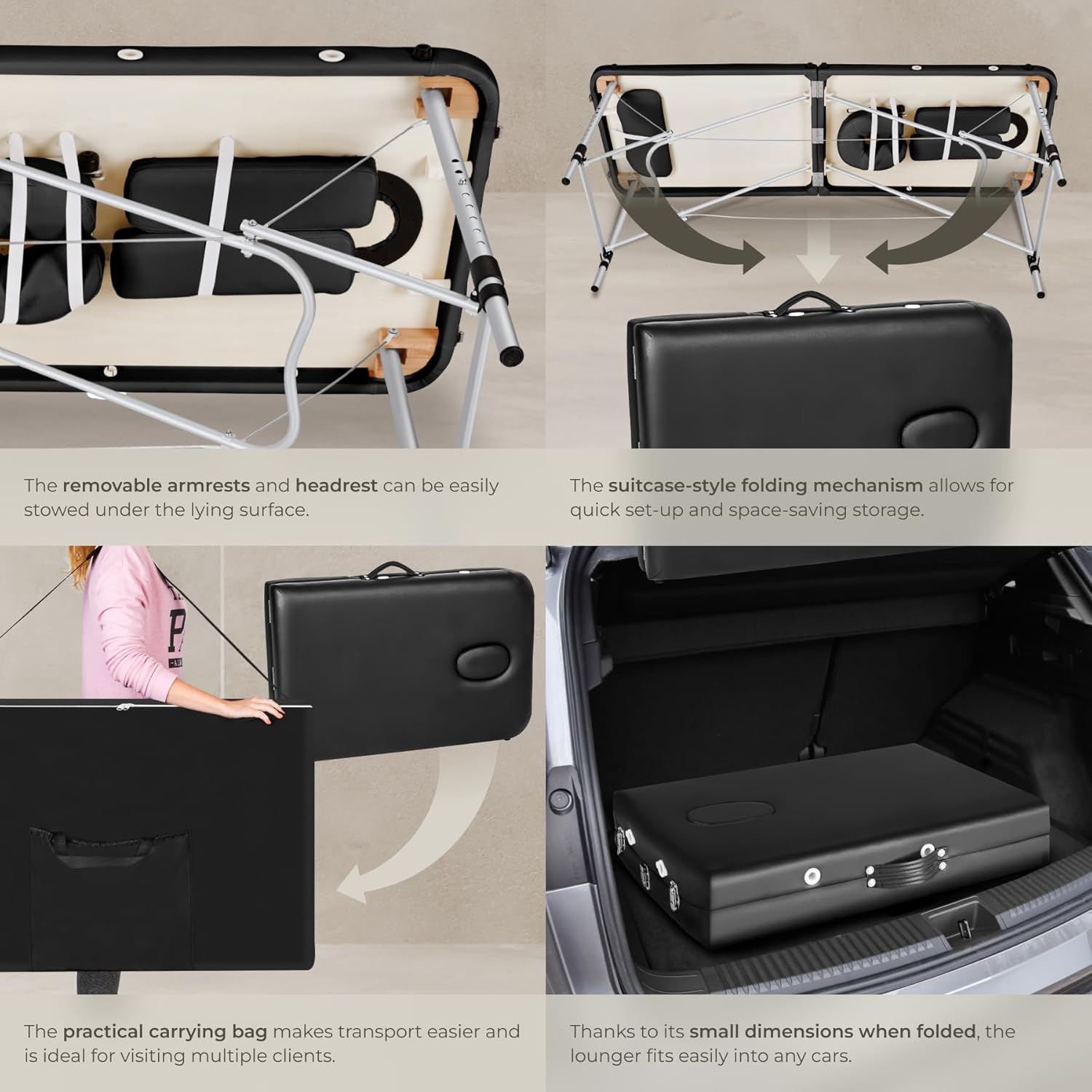

Figure 3.1: Unfolding the massage table. The suitcase-style folding mechanism allows for quick setup and space-saving storage.

3.2 Připevnění příslušenství

• Opěrka hlavy: Insert the headrest support bars into the designated slots at one end of the table. Adjust the angle and height as needed.
• Područky: Slide the armrest bars into the slots located on the sides of the table. Ensure they are securely in place.
• Face Cushion: Place the removable face cushion into the face hole on the table.

Figure 3.2: Attaching and adjusting the headrest, armrests, and face cushion for customized comfort.

3.3 Adjusting Table Height

The table features an 8-step height adjustment mechanism. To adjust the height:

1. Locate the adjustment knobs or pins on each leg.
2. Press the pins or loosen the knobs to release the leg extension.
3. Carefully raise or lower the table to the desired height.
4. Ensure the pins snap securely into place or the knobs are tightened on all legs before use.

Figure 3.3: Adjusting the table height to find the perfect ergonomic position.

4. Návod k obsluze

Once set up, your TecTake massage table is ready for use. Here are some operational tips:

• Pozicování klienta: Guide the client to lie down carefully on the table. Ensure they are centered and comfortable.
• Nastavení opěrky zad: The table features an adjustable backrest. Lift or lower the backrest section to the desired angle for client comfort or specific treatment needs.
• Armrest and Headrest Use: Utilize the removable and adjustable armrests and headrest to provide optimal support and comfort for the client during treatments.
• Rozložení hmotnosti: Always ensure weight is evenly distributed on the table and within the specified load capacity of 230 kg.

5. Údržba

Proper maintenance will extend the life of your massage table and ensure hygienic use:

• Čištění: The table features oil and water-resistant surfaces. Wipe the surfaces with a dry cloth after each use. For deeper cleaning, remove the pad and use a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the vinyl.
• Skladování: When not in use, fold the table into its compact, suitcase-style form and store it in the included transport bag. Store in a dry, cool place away from direct sunlight and extreme temperatures.
• Inspekce: Regularly check all bolts, screws, and moving parts to ensure they are secure. Tighten any loose fasteners. Inspect the vinyl upholstery for tears or cracks and the frame for any signs of damage or bending.

Figure 5.1: The practical carrying bag makes transport easier and the small dimensions when folded allow it to fit easily into cars.

6. Řešení problémů

Tato část se zabývá běžnými problémy, se kterými se můžete setkat:

• Table is unstable: Ensure all legs are fully extended and locked into their height adjustment positions. Check that the table is placed on a flat, level surface. Verify that all frame connections are secure.
• Obtížnost skládání/rozkládání: Ensure no accessories are obstructing the folding mechanism. Apply gentle, even pressure. Do not force the mechanism.
• Vrzavé zvuky: This may indicate loose connections. Inspect and tighten all bolts and screws. A small amount of silicone spray on pivot points may help, but avoid contact with upholstery.

If you encounter issues not listed here or if problems persist, please contact TecTake customer support for assistance.

7. Specifikace

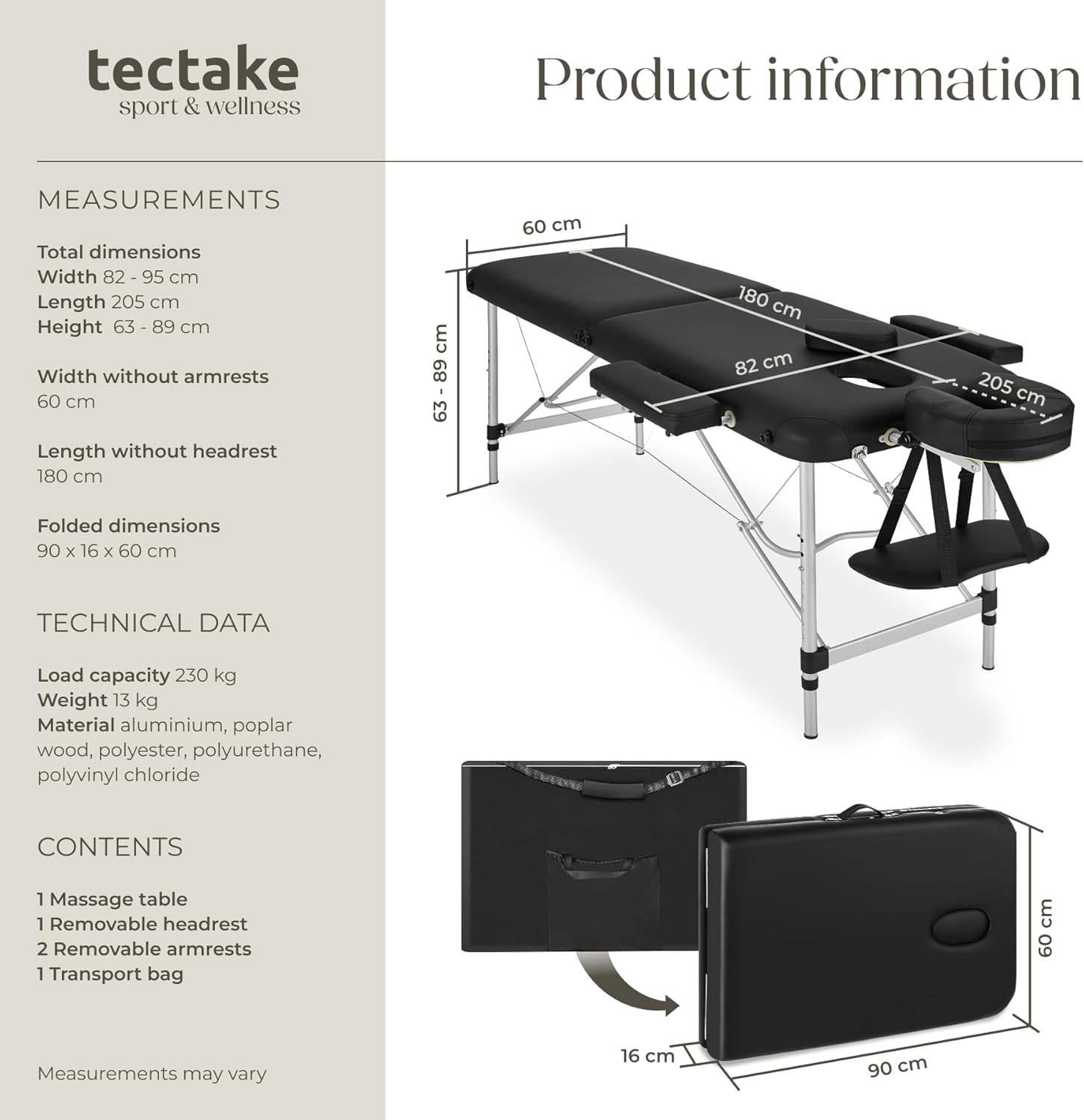

Obrázek 7.1: Podrobné rozměry produktu a technické specifikace.

8. Záruka a podpora

For warranty information or technical support, please contact TecTake customer service. Details can typically be found on the product packaging or the official TecTake webmísto.

Pro další pomoc můžete navštívit Obchod TecTake na Amazonu.
