Mastercool 56200 Raptor Leak Detector with UV Light

Zavedení

The Mastercool 56200 Raptor Leak Detector is an advanced tool designed for efficient and accurate refrigerant leak detection. It combines electronic refrigerant sensing with ultraviolet (UV) leak dye detection, offering maximum flexibility for professionals in identifying leaks in various systems. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your device.

Klíčové vlastnosti

• Dual Detection System: Combines corona discharge refrigerant detection with built-in UV/blue light for dye-based leak confirmation.
• Vysoká citlivost: Detects leaks as small as 1/10 oz/year with 3 adjustable sensitivity levels and a reset function.
• LED + Audio Alert System: Features a visual leak level bar and a variable-frequency audible tone for simple leak pinpointing.
• Electronic Keypad Control: Allows adjustment of sensitivity, resetting levels, muting audio, and checking battery status via an intuitive interface.
• Flexibilní sonda: Equipped with a 16-inch flexible probe for easy access to tight or hidden areas in HVAC and automotive systems.
• Vyměnitelné komponenty: Includes a replaceable sensor tip (#55100-SEN) and UV LED bulb (#53515-B), both field-replaceable.
• Professional Kit: Comes with a molded carrying case, UV safety glasses, 2 "C" batteries, and replaceable components.
• Built for Technicians: Backed by Mastercool’s U.S.-based support and professional-grade standards.

Co je v krabici

Your Mastercool 56200 Raptor Leak Detector package includes:

• Mastercool 56200 Raptor Leak Detector unit
• 2 "C" batteries
• Replacement sensor tip
• UV safety glasses
• Molded carrying case

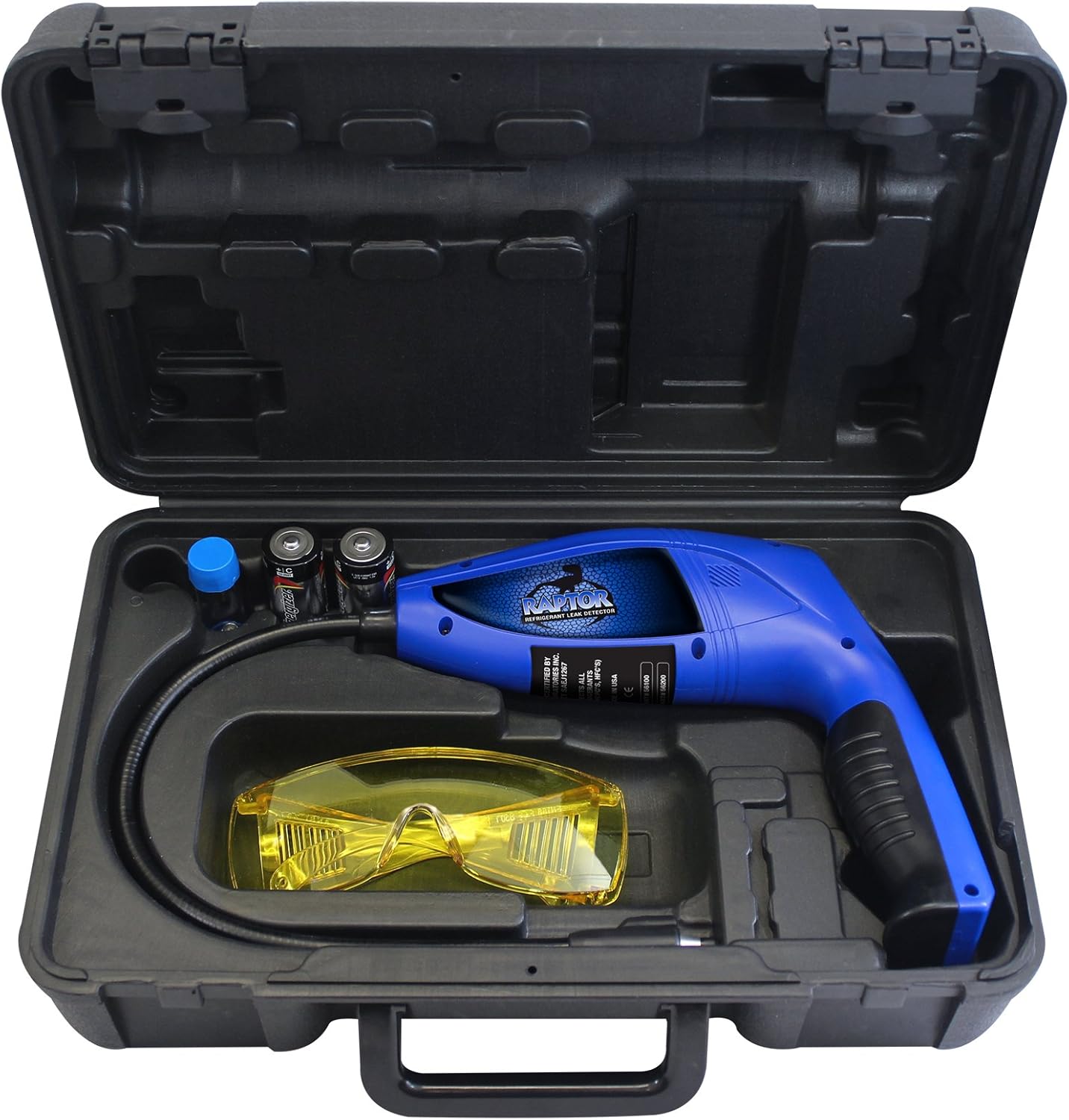

Image: The Mastercool 56200 Raptor Leak Detector, along with its included accessories such as batteries, UV safety glasses, and a replacement sensor tip, neatly organized within its durable molded carrying case.

Nastavení

1. Instalace baterie:

   Locate the battery compartment on the handle of the leak detector. Insert the two "C" batteries, ensuring correct polarity as indicated inside the compartment. Close the battery cover securely.
2. Počáteční zapnutí:

   Press the power button on the keypad. The unit will perform a self-test, and the LED indicators will illuminate briefly. Allow the unit to warm up for approximately 30 seconds before use.

3. Kontrola senzoru:

   Ensure the sensor tip is securely attached to the flexible probe. The sensor is a critical component for accurate detection.

Návod k obsluze

Image: The Mastercool 56200 Raptor Leak Detector, showcasing its ergonomic design and the UV light emitting from the probe tip, ready for leak detection.

1. Zapnutí/vypnutí:

   Stiskněte tlačítko Moc button to turn the unit on or off. The unit will automatically warm up upon activation.

2. Nastavení citlivosti:

   Použijte Up a Dolů arrow buttons to cycle through the 6 sensitivity levels. Higher sensitivity levels are for detecting smaller leaks, while lower levels help pinpoint larger leaks.



   Image: A visual representation highlighting the 1/10 oz/year sensitivity of the Mastercool 56200, capable of detecting even minute leaks with its 6 adjustable sensitivity levels, powered by reliable corona discharge sensor technology for CFC, HCFC, and HFC gases.

3. Resetovací funkce:

   Stiskněte tlačítko Resetovat button to zero the reference point. This is useful when moving from a contaminated area to a clean one, or to re-establish a baseline for detection.

4. Režim ztlumení:

   Stiskněte tlačítko Ztlumit button to silence the audible alarm. The visual LED bar will continue to indicate leak levels.
5. UV Light Activation:

   Stiskněte tlačítko UV světlo button to activate the built-in UV/blue light. This is used in conjunction with UV dye to visually confirm leaks.



   Obrázek: Detailní záběr view of the flexible probe tip, clearly showing the integrated UV/blue LED light, which is essential for visual leak detection using fluorescent dyes.

6. Leak Detection Process:

   Slowly move the flexible probe around suspected leak areas. The unit will emit an audible alarm and the LED bar will illuminate, increasing in frequency and number of LEDs as a leak is detected and its concentration increases.



   Image: The Mastercool 56200 Raptor Leak Detector being used to inspect for leaks under the hood of a vehicle, demonstrating its application in automotive systems.



   Image: The Mastercool 56200 Raptor Leak Detector being utilized to check for refrigerant leaks on an outdoor HVAC unit, illustrating its versatility in various air conditioning systems.

Údržba

• Sensor Tip Replacement:

  The sensor tip (part #55100-SEN) is a consumable item and should be replaced periodically, especially if detection accuracy diminishes. Refer to the diagram below for location. Carefully unscrew the old sensor and screw in the new one.

• UV LED Bulb Replacement:

  If the UV light weakens or fails, the UV LED bulb (part #53515-B) can be replaced. Consult the product diagram for its location on the probe tip. Follow instructions for careful removal and installation.

• Výměna baterie:

  Replace the "C" batteries when the low battery indicator illuminates or when the unit's performance degrades. Always use fresh, high-quality batteries.
• Čištění:

  Otřete jednotku čistým, damp cloth. Do not use abrasive cleaners or immerse the unit in water. Keep the sensor tip clean and free of debris.

• Skladování:

  Store the leak detector in its carrying case in a cool, dry place when not in use. For extended storage, it is recommended to remove the batteries to prevent leakage.

Image: A detailed diagram of the Mastercool 56200, pointing out key components such as the flexible 16-inch probe, the ultra-bright UV/blue LED light, and the keypad controls for sensitivity adjustment, reset, and mute functions.

Image: An annotated diagram of the Mastercool 56200, clearly indicating the location of the replaceable sensor tip (part #55100-SEN) and the replaceable UV LED bulb (part #53515-B) on the probe, along with the LED and audio alert system and keypad controls.

Odstraňování problémů

Specifikace

Bezpečnostní informace

Please read and understand all safety warnings before operating the Mastercool 56200 Raptor Leak Detector.

• Always wear appropriate personal protective equipment, including the provided UV safety glasses, when using the UV light feature.
• Do not point the UV light directly into eyes or at skin.
• Ensure proper ventilation when working with refrigerants.
• Keep the device away from open flames or high heat sources.
• Do not attempt to modify or disassemble the unit beyond the described maintenance procedures.
• Dispose of batteries and old sensor tips according to local regulations.
• Tento výrobek vás může vystavit chemikáliím, včetně olova, o kterém je ve státě Kalifornie známo, že způsobuje rakovinu a vrozené vady nebo jiné reprodukční poškození. Více informací naleznete na www.P65Warnings.ca.gov.

Záruka a podpora

The Mastercool 56200 Raptor Leak Detector is backed by Mastercool's commitment to quality and professional-grade standards. For technical assistance, warranty claims, or replacement parts, please contact Mastercool's U.S.-based support team.

For more information, visit the official Mastercool webwebu nebo se podívejte na kontaktní údaje uvedené na obalu produktu.

Mastercool is a leading provider of professional quality air conditioning service tools and equipment, with over four decades of experience in the automotive and HVAC/R industries.
