RIGID D-Series PRO Diffused FM LED Light Instruction Manual

1. Úvod

Thank you for choosing the RIGID D-Series PRO Diffused FM LED Light. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new lighting product. Please read this manual thoroughly before installation and keep it for future reference.

The RIGID D-Series PRO Diffused FM LED Light is engineered for durability and high performance, offering enhanced light output and versatility for various applications. Its compact design and advanced LED technology ensure reliable and efficient lighting.

2. Konec produktuview

The D-Series PRO is a professional-grade compact lighting solution designed for a wide range of uses. Featuring advanced LED technology, it delivers increased light output compared to previous models. Its 3" x 3" footprint allows for flexible mounting options, including surface, flush, or heavy-duty installations. The diffused optics provide a broad, smooth light pattern, ideal for area lighting or backup applications. The unit incorporates new branding and blacked-out circuit boards for a refined aesthetic, while maintaining RIGID's renowned build quality for dependable performance.

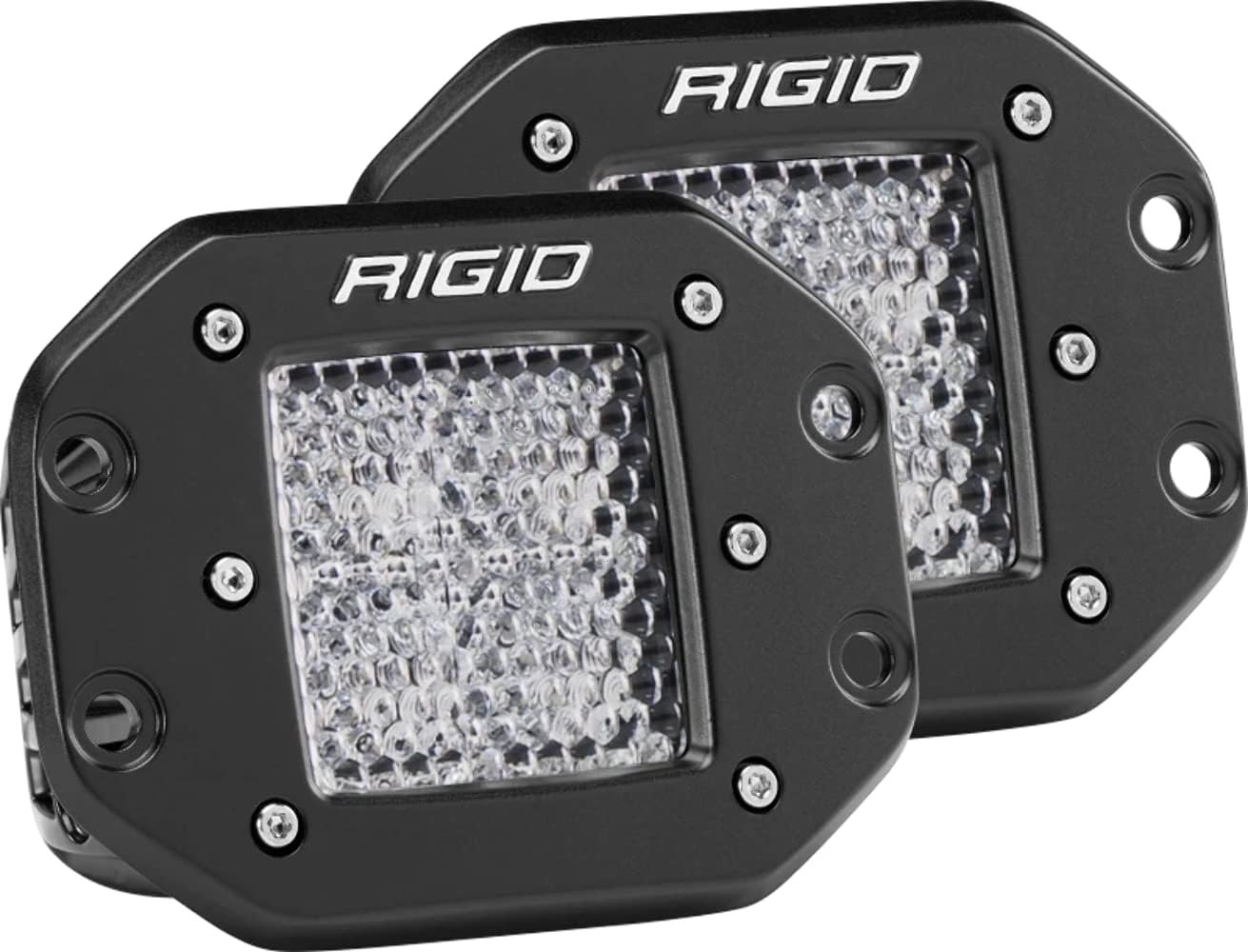

Image 1: A pair of RIGID D-Series PRO Diffused LED lights, showcasing their compact, square design and clear lenses. These lights are designed for flush mounting.

3. Vlastnosti

• Univerzální fit: Designed for broad compatibility across various vehicles and applications.
• Durable Polycarbonate Lens: Provides robust protection against impacts and environmental elements.
• Okamžité zapnutí/vypnutí: No warm-up period required, providing immediate illumination.
• Enhanced Light Output: Utilizes advanced LED technology for superior brightness.
• Kompaktní design: Measuring 3" x 3", allowing for versatile mounting.

4. Co je v krabici

The package for the RIGID D-Series PRO Diffused FM LED Light (Model 212513) typically includes:

• D-Series PRO Diffused FM LED Light (Quantity: 2)

Note: Additional wiring harnesses, switches, or mounting hardware may be sold separately or as part of a complete kit. Please check your specific product packaging for exact contents.

5. Bezpečnostní informace

Během instalace a provozu vždy upřednostňujte bezpečnost. Nedodržení těchto pokynů může vést ke zranění, poškození produktu nebo vozidla.

• Odpojit napájení: Před zahájením jakýchkoli elektrických prací vždy odpojte baterii vozidla.
• Profesionální instalace: If you are not experienced with automotive electrical systems, seek professional installation.
• Správné zapojení: Ensure all wiring is correctly routed, secured, and protected from heat, sharp edges, and moving parts. Use appropriate gauge wire and fuses.
• Zabezpečení montáže: Verify that the lights are securely mounted to prevent detachment during vehicle operation.
• Odvod tepla: Do not obstruct the cooling fins of the light, as this can lead to overheating and reduced performance or lifespan.
• Ochrana očí: Avoid looking directly into the light when it is illuminated, as it can cause temporary vision impairment.

6. Nastavení a instalace

This section outlines general steps for installing your RIGID D-Series PRO Diffused FM LED Light. Specific vehicle applications may require additional steps or specialized tools.

6.1. Kontrolní seznam před instalací

• Ensure all components listed in 'What's in the Box' are present.
• Gather necessary tools (e.g., wrenches, wire strippers, crimpers, drill, measuring tape).
• Identify a suitable mounting location that provides adequate clearance and does not obstruct vehicle functions or airflow.
• Confirm the vehicle's electrical system can support the power draw of the lights.

6.2. Montážní pokyny

1. Označte montážní body: Carefully position the light in the desired location. Use the provided template or the light itself to mark the drilling points for flush mounting.
2. Vrtací otvory: Using appropriate drill bits, create the necessary holes for mounting screws and wiring. Ensure holes are deburred to prevent wire damage.
3. Bezpečné světlo: Insert the light into the opening and secure it using the provided hardware. Ensure a tight fit to prevent vibration.

Obrázek 2: Podrobný view of a single RIGID D-Series PRO Diffused LED light, highlighting its robust housing and clear lens. This image shows the front face of the light, ready for flush installation.

6.3. Pokyny pro zapojení

1. Odpojit baterii: Odpojte záporný pól baterie vašeho vozidla.
2. Zapojení trasy: Route the wiring harness from the light to the desired power source and switch location, avoiding hot or moving parts. Use zip ties or clips to secure the wiring.
3. Připojte napájení: Connect the positive wire from the light to a fused 12V power source (e.g., battery, accessory circuit) via a relay and switch (not included, but recommended for proper operation and protection).
4. Připojte uzemnění: Connect the negative (ground) wire from the light to a clean, unpainted metal surface on the vehicle chassis or directly to the negative battery terminal.
5. Test připojení: Before reconnecting the battery, double-check all connections for proper polarity and security.
6. Znovu připojte baterii: Reconnect the negative battery terminal and test the lights.

7. Návod k obsluze

Once properly installed and wired, operating your RIGID D-Series PRO Diffused FM LED Light is straightforward.

• Zapnutí/vypnutí: Activate the light by toggling the connected switch. The light will illuminate instantly.
• Vzor paprsku: The diffused optics provide a wide, smooth beam pattern suitable for illuminating a broad area.

Caution: Do not operate the lights in a manner that violates local, state, or federal laws. Ensure lights are aimed correctly to avoid blinding other drivers.

8. Údržba

Regular maintenance will help ensure the longevity and optimal performance of your RIGID D-Series PRO Diffused FM LED Light.

• Čištění: Clean the lens and housing periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the lens or finish.
• Inspekce: Regularly inspect mounting hardware and wiring for signs of wear, corrosion, or looseness. Tighten any loose fasteners.
• Kontrola zapojení: Ujistěte se, že všechna elektrická připojení zůstanou bezpečná a bez koroze.
• Stav objektivu: Check the polycarbonate lens for cracks or damage. While durable, severe impacts can cause damage.

9. Řešení problémů

If you encounter issues with your RIGID D-Series PRO Diffused FM LED Light, refer to the following troubleshooting guide:

If the problem persists after attempting these solutions, please contact RIGID customer support.

10. Specifikace

Key technical specifications for the RIGID D-Series PRO Diffused FM LED Light (Model 212513):

Image 3: An illustration of the RIGID D-Series PRO Diffused LED light, potentially showing its dimensions or a different angle of the product.

11. Záruka a podpora

For warranty information, product registration, or technical support, please refer to the official RIGID webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si doklad o koupi pro případ reklamace.

RIGID Industries Contact Information:

• Návštěva www.rigidindustries.com pro nejnovější zdroje podpory a kontaktní údaje.
