Zavedení
Thank you for choosing the Uncaged Ergonomics Dual Motor Electric Standing Desk Frame. This premium adjustable desk frame is designed to enhance your workspace by allowing seamless transitions between sitting and standing positions, promoting a healthier and more productive work environment. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your desk frame.
Image: The Uncaged Ergonomics Dual Motor Electric Standing Desk Frame with its control panel, showcasing the robust design and intuitive interface.
Bezpečnostní informace
Před montáží a použitím si pečlivě přečtěte všechny bezpečnostní pokyny, abyste předešli zranění nebo poškození výrobku.
- Hmotnostní limit: Do not exceed the maximum weight capacity of 113 kg (250 lbs) on the desk frame. Overloading can cause damage and pose a safety risk.
- Antikolizní technologie: The desk frame is equipped with anti-collision technology. This feature helps prevent the desk from lowering onto an object by stopping movement if an obstruction is detected. However, always ensure the path is clear during height adjustments.
- Elektrická bezpečnost:
- Ujistěte se, že je napájecí kabel správně připojen k uzemněné zásuvce.
- Do not operate the desk with a damaged power cord or plug.
- Udržujte kapaliny v dostatečné vzdálenosti od elektrických součástí.
- Před čištěním nebo údržbou odpojte napájení.
- Děti a domácí mazlíčci: Během provozu držte děti a domácí zvířata v dostatečné vzdálenosti od stolu, abyste předešli nehodám.
- Shromáždění: Ensure all components are securely fastened according to the assembly instructions. Loose parts can lead to instability.
Image: Illustration of the anti-collision safety feature, showing how the desk stops if an obstruction is detected during movement.
Obsah balení
Před zahájením montáže se prosím ujistěte, že jsou všechny součásti přítomny a nepoškozené. Pokud některé součásti chybí nebo jsou poškozené, kontaktujte zákaznickou podporu.
- 1 x Electric Desk Frame (includes legs, crossbar, and feet)
- 1 x Control Panel with LED Display
- 1 x Power Adapter and Cable
- Montážní materiál (šrouby, vruty, podložky)
- Allen Wrench (for assembly)
- Stahovací pásky pro vedení kabelů
- Rubber Spacers (for tabletop mounting)
- Uživatelská příručka (tento dokument)
Návod k montáži (Instalace)
Follow these steps to assemble your Uncaged Ergonomics Electric Standing Desk Frame. It is recommended to have a second person assist with assembly, especially when handling larger components or the tabletop.
- Rozbalte komponenty: Carefully remove all parts from the packaging. The packaging is designed to protect the components during transit.
- Připevněte nohy k nohám: Securely attach the feet to the bottom of each desk leg using the provided screws.
- Připojení příčníku: Connect the adjustable crossbar between the two desk legs. Ensure the crossbar is extended to the desired width for your tabletop.
- Montáž ovládací skříně: Attach the control box to the designated area on the frame, typically under the crossbar, using the provided hardware.
- Connect Motors and Control Panel: Plug the motor cables from each leg into the control box. Connect the control panel cable to the control box.
- Prepare Tabletop: Place your chosen tabletop upside down on a soft, protected surface. Position the assembled desk frame onto the tabletop, ensuring it is centered and aligned.
- Montáž na desku stolu: Use the provided screws and rubber spacers to securely attach the desk frame to the tabletop. Pre-drilling pilot holes in the tabletop may be necessary depending on its material.
- Správa kabelů: Use the included cable ties to neatly route and secure all cables, preventing them from dangling or getting caught during height adjustments.
- Zapnutí: Carefully flip the desk upright. Plug the power cable into the control box and then into a grounded electrical outlet.
Obrázek: Detailní záběr view of an assembly step, showing the use of an Allen wrench to secure a component of the desk frame.
Návod k obsluze
The control panel allows for easy and precise height adjustments, along with convenient memory settings.
Konec ovládacího paneluview
Image: The desk's control panel featuring an LED display for height readings and buttons for manual adjustment and memory presets.
- Tlačítka nahoru/dolů (▲ / ▼): Press and hold the Up or Down arrow buttons to manually adjust the desk height. Release the button to stop at the desired height. The LED display will show the current height.
- Memory Settings (1, 2, 3, 4): The desk frame features four programmable memory presets for quick height adjustments.
- Nastavte stůl do požadované výšky pomocí tlačítek Nahoru/Dolů.
- Press the "M" button. The LED display will show "S-".
- Within 3 seconds, press the desired memory button (1, 2, 3, or 4). The display will show "S-1", "S-2", etc., indicating the height has been saved.
- Pro vyvolání uložené výšky jednoduše stiskněte odpovídající tlačítko paměti (1, 2, 3 nebo 4). Stůl se automaticky přesune do uložené polohy.
- Funkce proti kolizi: During height adjustment, if the desk encounters an obstruction, it will automatically stop and reverse slightly to prevent damage.
Image: A user comfortably working at the desk in a standing position, demonstrating the ergonomic benefits of height adjustability.
Vlastnosti
The Uncaged Ergonomics Electric Standing Desk Frame is engineered with advanced features for superior performance and user experience.
- Duální motorový systém: Equipped with two powerful motors for fast, smooth, and quiet height adjustments. Each motor is located in a leg, ensuring synchronized movement and stability.
- Wide Height Adjustment Range: Seamlessly adjust the desk height from 66 cm (26.1 inches) to 131 cm (51.6 inches), accommodating a wide range of user heights and preferences.
- Adjustable Width Frame: The frame's width can be adjusted from 107 cm (42.3 inches) to 152 cm (71 inches), allowing compatibility with various tabletop sizes.
- 3-Stage Lifting Columns: Tři stage leg design provides a greater height range and increased stability, even at maximum extension.
- Antikolizní technologie: Advanced sensors detect obstructions during movement, automatically stopping and reversing the desk to prevent damage.
- 4 předvoleb paměti: Save your preferred sitting and standing heights for quick, one-touch adjustments.
- LED Height Display: The integrated LED display on the control panel shows the precise current height of the desk.
- Robustní konstrukce: Made from high-strength, powder-coated steel for exceptional durability and a sleek finish.

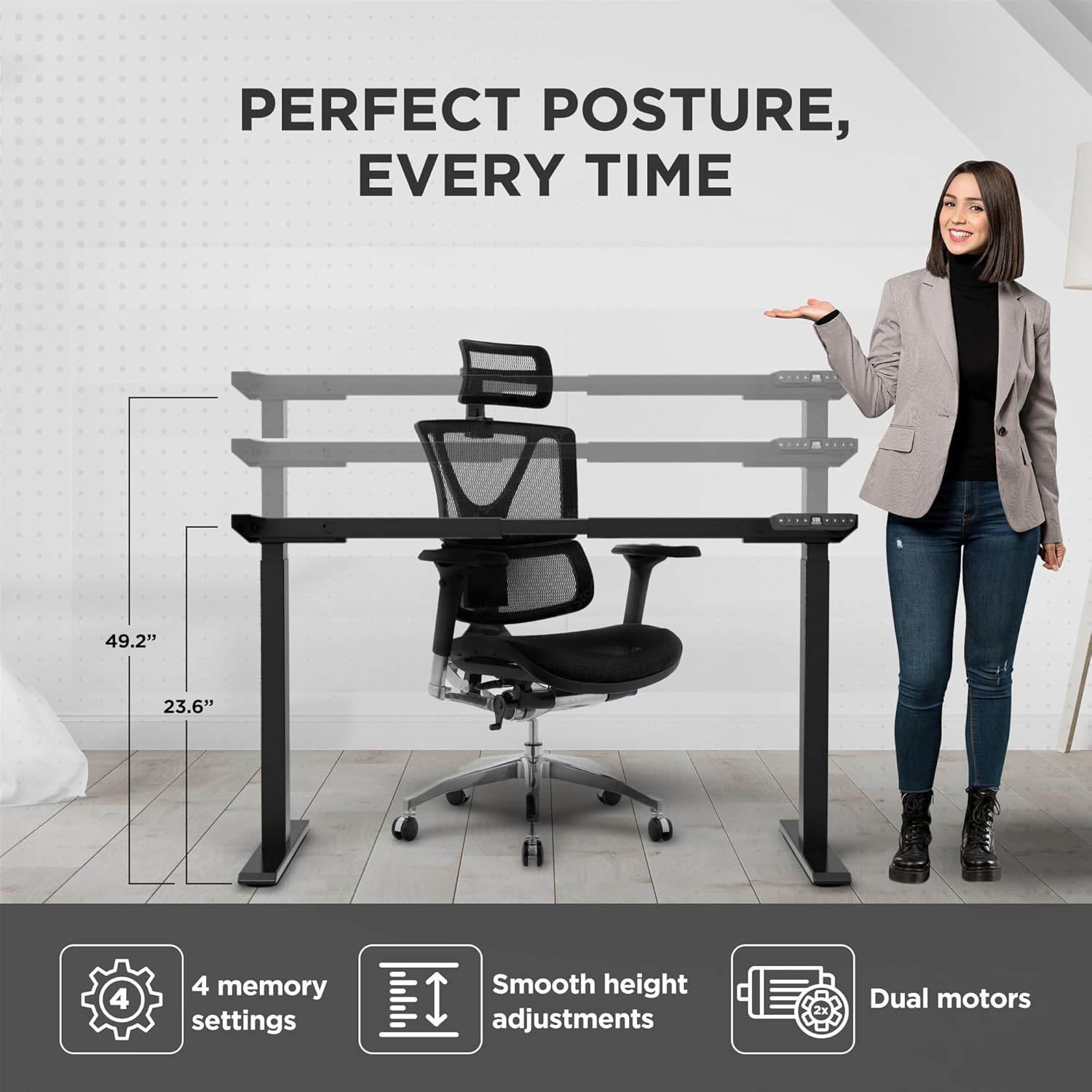

Image: Visual representation of the desk frame's adjustable height and key features, including 4 memory settings, smooth adjustments, and dual motors.
Image: Two individuals, one standing and one sitting, illustrating the wide range of height adjustability offered by the desk frame.
Specifikace
| Číslo modelu | RUb |
| Značka | Ergonomie bez klece |
| Barva | Černý |
| Rozsah nastavení výšky | 66 - 131 cm (26.1 - 51.6 palce) |
| Width Adjustment Range | 107 - 152 cm (42.3 - 71 palce) |
| Maximální nosnost | 113 kg (250 lb) |
| Materiál | High-strength Steel |
| Dokončit | Lakovaná práškovou barvou |
| Motory | Duální motory |
| Noha Stages | 3-Stage |
| Předvolby paměti | 4 |
| Speciální funkce | Anti-collision technology, LED height display |
| Rozměry produktu (smontovaný) | 69.85 x 152.4 x 131.06 cm (27.5 x 60 x 51.6 palce) |
| Hmotnost položky | 22.68 kg (50 lb) |
Image: The desk frame illustrating its compatibility with various tabletop sizes, ranging from 42.3 to 71 inches in width.
Údržba
Regular maintenance will help ensure the long-term performance and appearance of your desk frame.
- Čištění: Rám stolu otřete měkkým hadříkemamp hadříkem. Nepoužívejte agresivní chemikálie nebo abrazivní čisticí prostředky, protože by mohly poškodit povrchovou úpravu.
- Zkontrolujte připojení: Pravidelně kontrolujte všechny šrouby a vruty, zda jsou pevně utažené. V případě potřeby je dotáhněte.
- Správa kabelů: Ensure cables remain neatly organized and are not pinched or tangled, which could affect movement or cause damage.
- Péče o motor: The dual motors are designed for durability and require no special lubrication. Avoid exposing them to excessive dust or moisture.
Odstraňování problémů
If you encounter any issues with your desk frame, refer to the common problems and solutions below. If the problem persists, please contact customer support.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Stůl se nehýbe ani nereaguje na ovládací prvky. | Power cable disconnected; control box not properly connected; system error. |
|
| Stůl se pohybuje nerovnoměrně nebo vydává neobvyklé zvuky. | Nerovnoměrné zatížení; uvolněné spoje; ucpání. |
|
| Memory settings are not saving or recalling correctly. | Incorrect saving procedure; temporary system glitch. |
|
| Anti-collision feature triggers too often or not at all. | Sensitivity setting; physical obstruction. |
|
Záruka a podpora
Uncaged Ergonomics is committed to providing high-quality products built for durability and longevity. Our desk frames are designed to meet commercial-grade standards, reflecting over a decade of proven experience in manufacturing ergonomic solutions.
While specific warranty details may vary by region or purchase point, Uncaged Ergonomics stands behind the quality of its products. For any questions, technical assistance, or support needs, please contact Uncaged Ergonomics customer service. Our team is dedicated to ensuring your satisfaction and assisting with any issues you may encounter.
Please visit the official Uncaged Ergonomics website or refer to your purchase documentation for the most up-to-date warranty information and contact details.
Image: The desk frame illuminated, emphasizing its robust construction and the brand's commitment to building products that are "Built to Last" since 2010.
