1. Úvod
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Balboa Water Group VS100 FloThru Heater, model G7414. This 4.0kW, 230V heater is designed for use in hot tub and spa systems. Please read this manual thoroughly before installation or use to ensure proper function and to prevent potential hazards.
2. Bezpečnostní informace
VAROVÁNÍ: Improper installation, operation, or maintenance can lead to serious injury, death, or property damage. All electrical work must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Always disconnect power to the spa or hot tub before attempting any service or installation.
- Ujistěte se, že je ohřívač řádně uzemněn.
- Do not operate the heater if the water flow is restricted or if the heater is not fully submerged in water.
- Ověřte, že svtage a wattage ratings of the heater match your spa system's requirements. This heater is rated for 230V and 4.0kW.
- Keep all flammable materials away from the heater.
- Regularly inspect the heater for signs of damage, corrosion, or leaks.
3. Konec produktuview
The Balboa Water Group VS100 FloThru Heater (G7414) is a stainless steel, inline heater designed for efficient water heating in spa applications. It features a flow-through design, ensuring water circulates directly over the heating element.
Obrázek 3.1: Shora dolů view of the Balboa VS100 FloThru Heater. This image shows the cylindrical stainless steel heater tube, the clear plastic electrical enclosure on top, and the attached wiring harnesses for power and sensors. The white union nuts on either end are visible, ready for plumbing connection.
Obrázek 3.2: Úhlové view of the Balboa VS100 FloThru Heater. This perspective highlights the main heater body, the transparent cover of the electrical box, and the various wires extending from the unit, including the main power cable and sensor wires. The plumbing connections are clearly visible at both ends.
Obrázek 3.3: Přední view of the Balboa VS100 FloThru Heater. This image provides a clear view of the "Heater" label on the electrical enclosure and the "BALBOA WATER GROUP" branding. The stainless steel body shows specifications like "240V 4000W" and a date code. Sensor wires are visible on both sides of the electrical box.

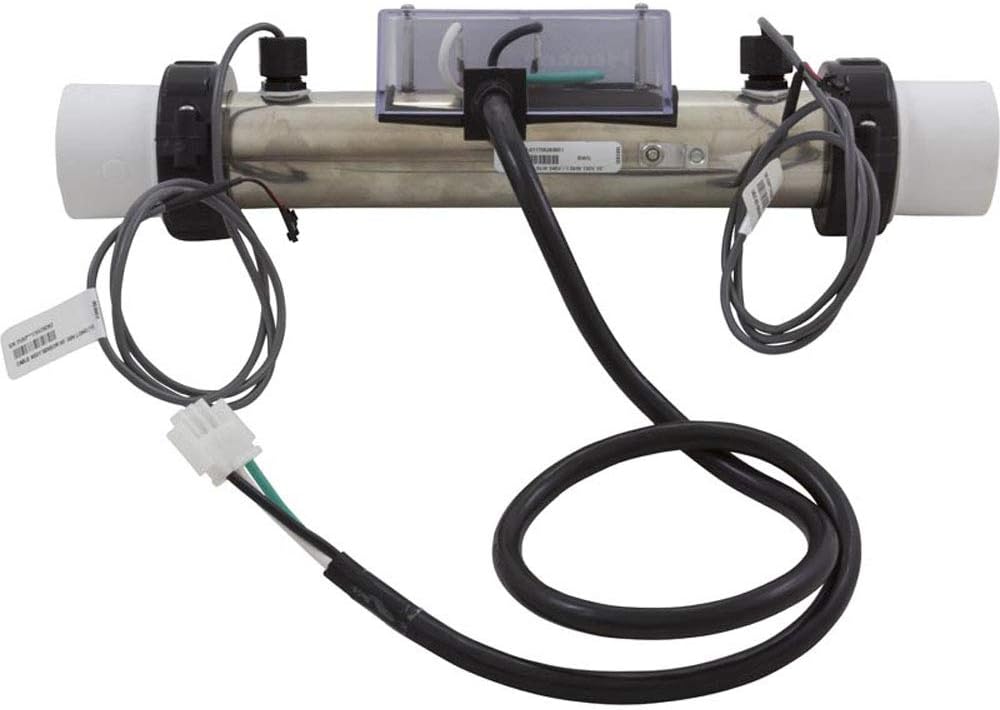

Obrázek 3.4: Zadní view of the Balboa VS100 FloThru Heater. This view shows the main power cable entering the electrical enclosure from the side, along with the sensor wires. The overall compact design of the heater unit is evident, with the plumbing connections ready for installation into a spa system.
4. Nastavení a instalace
Installation should only be performed by a qualified service technician or electrician. Ensure all power to the spa is disconnected before beginning.
- Odpojení napájení: Turn off the main power breaker to the spa or hot tub at the service panel. Verify power is off using a voltage tester.
- Odtokové lázně: Drain the spa water to below the level of the heater.
- Demontáž starého ohřívače (pokud je k dispozici): Disconnect plumbing unions and electrical connections from the existing heater. Carefully remove the old unit.
- Instalace nového ohřívače:
- Ensure new O-rings are properly seated in the plumbing unions.
- Connect the new Balboa VS100 FloThru Heater into the plumbing lines, tightening the union nuts securely by hand, then with a wrench for a snug fit (do not overtighten).
- Connect the heater's electrical wires to the spa pack's heater terminals according to the spa pack manufacturer's wiring diagram. This typically involves two hot wires (L1, L2) and a ground wire.
- Connect the temperature sensor wires to the designated sensor ports on the spa pack.
- Refill Spa: Refill the spa with water, ensuring the heater is completely submerged and there are no air pockets in the plumbing system.
- Zkontrolujte netěsnosti: Inspect all plumbing connections for leaks before restoring power.
- Obnovit napájení: Once all connections are secure and leak-free, restore power to the spa at the main breaker.
5. Návod k obsluze
The Balboa VS100 FloThru Heater operates in conjunction with your spa's control system. Once installed and powered, the heater will activate automatically when the spa's control system detects that the water temperature is below the set point and there is adequate water flow.
- Nastavení teploty: Adjust the desired water temperature using your spa's main control panel. The heater will work to maintain this temperature.
- Požadavek na průtok: The heater requires sufficient water flow to operate. Ensure your spa pump is running and filters are clean to maintain proper flow.
- Kontrolky: Refer to your spa's control panel manual for specific heater indicator lights or messages.
6. Údržba
Pravidelná údržba zajistí dlouhou životnost a účinnost vašeho ohřívače.
- Chemie vody: Maintain proper spa water chemistry (pH, alkalinity, calcium hardness) as recommended by your spa manufacturer. Imbalanced water can lead to scale buildup or corrosion, damaging the heating element.
- Kontrola průtoku: Periodically check for obstructions in the plumbing or dirty filters that could restrict water flow through the heater. Reduced flow can cause the heater to trip safety sensors or fail prematurely.
- Vizuální kontrola: With power disconnected, visually inspect the heater and its connections for any signs of leaks, corrosion, or damaged wiring.
- Zima: If winterizing your spa, ensure the heater is completely drained to prevent freezing damage.
7. Řešení problémů
Before attempting any troubleshooting, ensure power is disconnected. If you are unsure about any step, contact a qualified technician.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Topení netopí | No power to spa; Low water flow; Tripped high-limit sensor; Faulty heating element. | Check breaker; Clean filters, check pump; Reset high-limit (if accessible and safe); Test heating element continuity (qualified technician only). |
| Error code on spa panel | Flow error; High-limit error; Sensor error. | Refer to your spa control system manual for specific error code meanings and solutions. |
| Water leaking from heater unions | Loose union nuts; Damaged O-rings. | Tighten union nuts; Replace O-rings. |
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | Skupina Balboa Water |
| Číslo modelu | G7414 |
| Číslo dílu | 58203-01 |
| svtage | 230 voltů |
| Wattage / Tepelný výkon | 4000 Watts (4.0kW) |
| Rozměry produktu | 1.5"W x 10"H (Heater tube dimensions) |
| Hmotnost položky | 2.4 libry |
| UPC | 712971241626 |
| Styl | Indoor Installation (typically within spa cabinet) |
9. Záruka a podpora
For specific warranty information, please refer to the documentation provided with your original spa system or contact Balboa Water Group directly. Keep your purchase receipt as proof of purchase.
For technical support or replacement parts, please contact your authorized Balboa Water Group dealer or visit the official Balboa Water Group webmísto.
- Skupina Balboa Water Webmísto: www.balboawatergroup.com
- Služby zákazníkům: Viz webstránky pro kontaktní údaje.
