Uživatelská příručka k síťovému adaptéru ASUS XG-C100C 10G

1. Úvod

This user manual provides detailed instructions for the installation, configuration, and troubleshooting of your ASUS XG-C100C 10G Network Adapter. This high-performance PCI-E x4 card is designed to deliver hyper-fast 10Gbps networking speeds, significantly enhancing data transfer capabilities for demanding tasks. It features a single RJ-45 port and built-in Quality-of-Service (QoS) technology to prioritize network traffic.

Obsah balení

• ASUS XG-C100C 10G Network Adapter
• Low-profile bracket (for small form factor PCs)
• CD s ovladači (nebo odkaz pro stažení ovladačů)
• Rychlý průvodce

Figure 1: ASUS XG-C100C 10G Network Adapter, showing the red heatsink and RJ-45 port.

2. Klíčové vlastnosti

• Hyper-fast 10Gbps Networking: Delivers up to 10X-faster data-transfer speeds for bandwidth-demanding tasks.
• Široká kompatibilita: Full compatibility with current network standards, including 10/5/2.5/1Gbps and 100Mbps, ensuring seamless backward compatibility.
• Wide OS Support: Compatible with Windows 10/8.1/8/7 and Linux Kernel 4.4/4.2/3.6/3.2 for flexible operating system integration.
• Easy Upgrade: RJ45 port allows for easy upgrade of your desktop to 10Gbps networking using standard copper network cables.
• Built-in QoS: Prioritize your data with Quality-of-Service technology, allowing you to manage bandwidth and supported data packets for a smooth online experience.

3. Specifikace

4. Nastavení a instalace

4.1 Instalace hardwaru

1. Vypnutí a odpojení: Completely shut down your computer and disconnect the power cord from the wall outlet.
2. Otevřete počítačovou skříň: Pro přístup k základní desce sejměte boční panel skříně počítače.
3. Vyhledejte slot PCI-E: Identify an available PCI-E x4, x8, or x16 slot on your motherboard.
4. Odstraňte kryt slotu: Remove the corresponding metal slot cover from the back of your computer case.
5. Insert Network Adapter: Carefully align the ASUS XG-C100C network adapter with the PCI-E slot and firmly press it down until it is securely seated. Ensure the bracket is aligned with the opening in the case.
6. Bezpečný adaptér: Secure the adapter to the case using the screw or retention clip.
7. Zavřít případ: Nasaďte zpět boční panel skříně počítače a znovu připojte napájecí kabel.

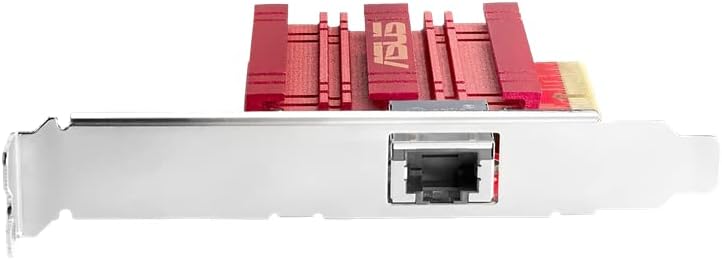

Obrázek 2: Zadní view of the ASUS XG-C100C, illustrating the RJ-45 port and the PCI-E connector for proper slot insertion.

4.2 Instalace ovladače

After hardware installation, you need to install the appropriate drivers for the network adapter to function correctly.

1. Boot Computer: Zapněte počítač.
2. Nainstalujte ovladače:
   • Z CD: Insert the provided driver CD into your optical drive and follow the on-screen instructions.
   • Download from ASUS Webmísto: If your computer lacks an optical drive or for the latest drivers, visit the official ASUS support webweb (www.asus.com/support/). Hledat "XG-C100C" and download the latest drivers compatible with your operating system.
3. Spusťte instalační program: Execute the downloaded driver installer and follow the prompts to complete the installation.
4. Restartujte počítač: Po dokončení instalace ovladače restartujte počítač, aby se všechny změny projevily.

Once drivers are installed, connect an Ethernet cable from your network device (router/switch) to the RJ-45 port on the ASUS XG-C100C adapter.

5. Operating the Network Adapter

5.1 Základní síťové připojení

After successful driver installation and connecting the Ethernet cable, your computer should automatically detect the network adapter and establish a network connection. You can verify the connection status through your operating system's network settings.

• Windows: Go to 'Network and Sharing Center' or 'Network & Internet settings' to view adapter status.
• Linux: Používejte příkazy jako ip a or network manager GUI to check interface status.

5.2 Quality-of-Service (QoS)

The ASUS XG-C100C features built-in QoS technology. This allows you to prioritize network traffic for specific applications or services, ensuring smoother performance for critical tasks like online gaming, video streaming, or large file převody.

QoS settings are typically managed through the network adapter's driver utility or your operating system's advanced network settings. Refer to the driver software documentation or your OS help for specific instructions on configuring QoS.

6. Údržba

The ASUS XG-C100C network adapter is designed for reliable, long-term operation with minimal maintenance. Follow these general guidelines:

• Udržujte ovladače aktualizované: Pravidelně kontrolujte podporu ASUS webweb s nejnovějšími aktualizacemi ovladačů pro zajištění optimálního výkonu a kompatibility.
• Zajistěte správné proudění vzduchu: Make sure your computer case has adequate ventilation to prevent overheating of internal components, including the network adapter.
• Čistý prach: Periodically clean dust from inside your computer case, especially around the network adapter's heatsink, using compressed air. Ensure the computer is powered off and unplugged before cleaning.

7. Řešení problémů

If you encounter issues with your ASUS XG-C100C network adapter, try the following troubleshooting steps:

7.1 Žádné síťové připojení

• Zkontrolujte kabel: Ensure the Ethernet cable is securely connected to both the adapter and your network device (router/switch). Try a different cable.
• Ověření ovladačů: Confirm that the correct drivers are installed and updated. Check Device Manager (Windows) or network interface status (Linux) for any error indicators.
• Re-seat Adapter: Power off your computer, unplug it, open the case, and carefully re-seat the network adapter in its PCI-E slot.
• Router/Switch Status: Check if your router or network switch is functioning correctly and providing an active network signal.

7.2 Pomalé rychlosti sítě

• Check Cable Category: Ensure you are using a Cat6 or higher Ethernet cable for 10Gbps speeds. Older cables (e.g., Cat5e) may limit performance.
• Network Device Capability: Verify that your router or switch supports 10Gbps networking on the connected port.
• Nastavení ovladače: Check the adapter's advanced driver settings for duplex mode (should be Full Duplex) and speed settings (should be Auto Negotiation or 10Gbps).
• QoS Configuration: If QoS is enabled, ensure it is configured correctly and not inadvertently limiting bandwidth for your primary applications.
• Systémové zdroje: Ensure your computer's CPU, RAM, and storage are not bottlenecks for high-speed data transfer.

7.3 Adapter Not Detected

• Check PCI-E Slot: Ensure the adapter is fully seated in a compatible PCI-E x4 (or higher) slot.
• Nastavení BIOSu/UEFI: Check your motherboard's BIOS/UEFI settings to ensure the PCI-E slot is enabled and functioning correctly.
• Zkuste jiný slot: If available, try installing the adapter in a different PCI-E slot.
• Napájení: Ensure your power supply unit (PSU) provides sufficient power to all components.

8. Záruka a podpora

Podrobné informace o záruce naleznete v záruční kartě dodané s vaším produktem nebo na oficiálních webových stránkách společnosti ASUS. webweb. Společnost ASUS poskytuje technickou podporu a zdroje pro své produkty.

Kontaktování podpory

If you require further assistance or have questions not covered in this manual, please visit the ASUS support webmísto:

www.asus.com/support/

You can find FAQs, driver downloads, and contact information for technical support in your region.
