FIBARO KeyFob FGKF-601 Z-Wave Scene Controller User Manual

1. Úvod

The FIBARO KeyFob is a compact, ergonomic, hand-controlled device designed for remote management of devices connected to a central controller within a Z-Wave network. It allows for control through predefined scenes or direct device interaction. The KeyFob simplifies smart home control, enabling activation of up to 30 different actions, such as "good morning" or "good night" scenes, with ease.

Image 1: FIBARO KeyFob device. This image shows the compact, white, teardrop-shaped KeyFob with its six distinct buttons, designed for easy handling and control.

2. Klíčové vlastnosti

• Scene and Device Control: Activates scenes or individual devices within your Z-Wave network.
• Více akcí: Six touch-intuitive buttons support up to 30 different actions, including single, double, triple clicks, and holding a button down. Additional sequences can be programmed.
• Přizpůsobitelné scény: Easily configure actions like turning off lights, locking doors, or arming alarms with a single click.
• Zabezpečení: Features a customizable personal PIN code to prevent unauthorized use.
• Certifikace Z-Wave Plus: Ensures compatibility and reliable performance within Z-Wave Plus networks (ZC10-16125351).

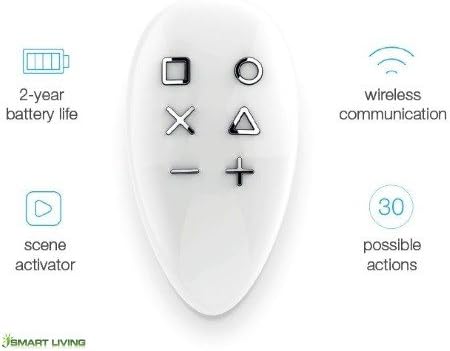

Image 2: KeyFob features overview. This graphic highlights key features such as 2-year battery life, wireless communication, scene activation, and 30 possible actions, illustrating the device's capabilities.

3. Nastavení a instalace

3.1 Obsah balení

• Klíčenka FIBARO
• Klíčenka
• CR2450 3.0V Battery (included)
• Uživatelská příručka (tento dokument)

3.2 Instalace baterie

The KeyFob is powered by one CR2450 3.0V battery, which is typically included. If replacement is needed, carefully open the device as described in the maintenance section and insert a new CR2450 battery, ensuring correct polarity.

3.3 Adding to a Z-Wave Network (Inclusion)

1. Ensure your Z-Wave gateway (e.g., FIBARO Home Center 2, Home Center Lite) is in inclusion mode. Refer to your gateway's manual for specific instructions.
2. Bring the KeyFob within direct range of your Z-Wave gateway.
3. Press any button on the KeyFob three times quickly. The KeyFob's LED indicator will confirm successful inclusion.
4. Once included, the KeyFob will appear in your Z-Wave controller's device list.

Note: For optimal performance, ensure the KeyFob is within range of your Z-Wave network during inclusion and operation.

Image 3: KeyFob controlling smart devices. This image illustrates the KeyFob's central role in a smart home, showing it wirelessly connected to various devices like smart plugs, lights, and automated blinds.

4. Operating the KeyFob

4.1 Funkce tlačítek

The KeyFob features six distinct buttons, each capable of triggering multiple actions based on the press type:

• Jedno kliknutí: Activates a primary action.
• Dvojklik: Activates a secondary action.
• Trojité kliknutí: Activates a tertiary action.
• Držet: Activates a continuous action or a specific scene.

These combinations allow for up to 30 unique actions to be programmed. Refer to your Z-Wave gateway's configuration interface to assign specific scenes or device controls to each button combination.

4.2 Scene Activation Examples

• "Good Morning" Scene: A single click on a designated button could open blinds, turn on lights to 50%, and start a coffee machine.
• "Good Night" Scene: A double click could turn off all lights, lock doors, and arm the security system.
• "Movie Time" Scene: Holding a button could dim lights, close curtains, and start your home theater system.

4.3 Automatic Key Lock Function

The KeyFob includes an automatic key lock function to prevent accidental presses. This feature can be configured via your Z-Wave gateway. When locked, a specific button sequence (e.g., holding two buttons simultaneously) may be required to unlock the device before use.

4.4 Status Monitoring via FIBARO App

When connected to a FIBARO Home Center gateway, the status of devices controlled by the KeyFob can be monitored through the FIBARO mobile application. This provides real-time feedback on your smart home environment.

5. Údržba

5.1 Výměna baterie

The KeyFob uses a CR2450 3.0V battery. When the battery level is low, the device's LED indicator may flash differently or the Z-Wave gateway may report a low battery status. To replace the battery:

1. Carefully separate the two halves of the KeyFob casing.
2. Vyjměte starou baterii CR2450.
3. Vložte novou baterii CR2450 3.0V a ujistěte se, že kladná (+) strana směřuje nahoru.
4. Zarovnejte casing halves and gently press them together until they click securely.

Použité baterie zlikvidujte v souladu s místními předpisy.

5.2 Čištění

Clean the KeyFob with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the device's surface or internal components.

6. Řešení problémů

7. Specifikace

Image 4: KeyFob dimensions diagram. This diagram provides precise measurements of the KeyFob, including its length, width, and thickness, in both millimeters and inches.

8. Informace o záruce

The FIBARO KeyFob FGKF-601 comes with a 1letá záruka výrobce from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

9. Podpora a kontakt

For further assistance, technical support, or to access the latest documentation, please visit the official FIBARO webnebo kontaktujte jejich oddělení zákaznických služeb. Kontaktní informace a další zdroje naleznete na FIBARO Store on Amazon or the main FIBARO support portal.
