Power Acoustik PD-623B 2-DIN Source Unit User Manual

1. Úvod

The Power Acoustik PD-623B is a 6.2-inch double-DIN in-dash DVD receiver equipped with Bluetooth functionality. This source unit supports DVD and USB video playback, features a 6.2-inch LCD display, and includes Bluetooth 4.0 for hands-free calling and wireless MP3 audio streaming. It also provides a 3.5 mm auxiliary input and supports ID3 MP3 tag reading for track and artist information.

Klíčové vlastnosti:

• 800 x 480 resolution display
• Built-in front panel Bluetooth microphone
• Bluetooth 4.0 for hands-free calling and A2DP wireless MP3 audio playback
• Playback from DVD/CD of MP3/MP4 and other video formats
• Playback from 64GB USB of MP3/MP4 and other video formats

2. Co je v krabici

Před zahájením instalace ověřte, zda jsou všechny položky přítomny.

• Zdrojová jednotka Power Acoustik PD-623B
• Dálkové ovládání
• Kabelový svazek
• Montážní hardware
• Uživatelská příručka

Image 2.1: The Power Acoustik PD-623B 2-DIN Source Unit shown with its included remote control.

3. Nastavení a instalace

3.1. Schéma zapojení

Refer to the detailed wiring diagram provided in the separate installation guide for proper connection of power, ground, speakers, and other accessories. Incorrect wiring can damage the unit or vehicle electrical system.

3.2. Počáteční zapnutí

1. After completing all wiring connections, ensure the vehicle's ignition is off.
2. Connect the unit's main power harness.
3. Turn the vehicle's ignition to the ACC or ON position.
4. Stisknutím tlačítka napájení na jednotce nebo dálkovém ovladači zapněte zařízení.
5. The unit's display should illuminate, and the initial setup screen may appear.

4. Návod k obsluze

4.1. Obecné ovládací prvky

The unit features a touchscreen interface and physical buttons for common functions. The remote control provides additional access to features.

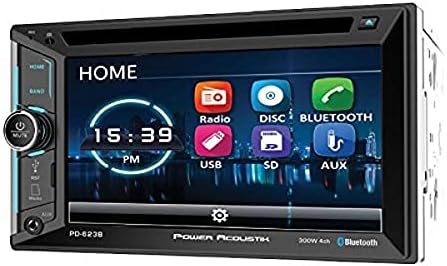

Image 4.1: Front panel of the PD-623B showing the display and control buttons.

• Tlačítko napájení/ztlumení: Press to turn the unit on/off. Briefly press to mute/unmute audio.
• Knoflík hlasitosti: Otočením upravíte hlasitost zvuku.
• Tlačítko Domů: Návrat na hlavní obrazovku nabídky.
• Tlačítko SRC (Zdroj): Cycles through available audio/video sources (Radio, Disc, USB, SD, AUX, Bluetooth).
• Tlačítko VYSUNOUT: Ejects a disc from the DVD slot.

4.2. Funkce dálkového ovládání

The included remote control allows for convenient operation of the unit from a distance.

Image 4.2: The remote control for the PD-623B unit, showing all buttons.

• MOC: Zapíná nebo vypíná jednotku.
• EJECT: Vysune disk.
• SRC: Vybírá vstupní zdroj.
• DOMOV: Vstup do hlavní nabídky.
• VOL +/-: Upravuje hlasitost.
• ZTLUMIT: Ztlumí nebo zapne zvuk.
• KAPELA: Changes radio bands (FM1, FM2, FM3, AM1, AM2).
• JÍDELNÍ LÍSTEK: Accesses disc menu during DVD playback.
• ZALOŽIT: Enters system setup menu.
• Numerická klávesnice (0-9): Direct track selection or radio station input.

4.3. Provoz rádia

1. Select 'Radio' from the main menu or press the SRC button until Radio is selected.
2. Press the BAND button to cycle through FM1, FM2, FM3, AM1, and AM2.
3. Use the seek buttons (◀◀ / ►►) to automatically search for the next strong station.
4. Touch and hold a preset button on the screen to save the current station.

4.4. Přehrávání DVD/CD

1. Insert a DVD or CD into the disc slot. The unit will automatically switch to Disc mode.
2. Use the on-screen controls or remote control for playback functions (Play, Pause, Stop, Skip, Fast Forward/Rewind).
3. For DVDs, use the MENU button on the remote to access the disc's main menu.

4.5. Přehrávání z USB

1. Vložte USB disk do USB portu.
2. Select 'USB' from the main menu or by pressing the SRC button.
3. Prohlížet files and folders on the USB drive using the touchscreen.
4. The unit supports MP3/MP4 and other video formats up to 64GB.

4.6. Připojení Bluetooth

1. Párování: On your mobile device, search for Bluetooth devices and select 'PD-623B'. Enter '0000' if a PIN is required.
2. Hands-free volání: Once paired, you can make and receive calls directly through the unit. Use the touchscreen or remote to answer/end calls.
3. Streamování zvuku (A2DP): Play music from your paired device wirelessly. Use the unit's controls to play, pause, and skip tracks.

4.7. Pomocný vstup

Connect an external audio device to the 3.5mm AUX input. Select 'AUX' as the source to play audio from the connected device.

5. Údržba

5.1. Čištění jednotky

• Use a soft, dry cloth to clean the unit's display and exterior.
• Pro odolné nečistoty, dampen the cloth lightly with water. Do not use harsh chemicals or abrasive cleaners.
• Avoid spraying liquid directly onto the unit.

5.2. Péče o ploténky

• Disky držte za okraje, abyste zabránili ulpívání otisků prstů.
• Keep discs in their cases when not in use.
• Disky čistěte měkkým hadříkem, který nepouští vlákna, a otírejte je od středu směrem ven.

6. Řešení problémů

Review the following common issues and their solutions before contacting support.

7. Specifikace

Technical specifications for the Power Acoustik PD-623B unit.

8. Záruka a podpora

8.1. Záruka na produkt

This Power Acoustik product is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Power Acoustik website for detailed warranty terms and conditions, including duration and coverage specifics. Keep your proof of purchase for warranty claims.

8.2. Zákaznická podpora

For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Power Acoustik customer support. Contact information can typically be found on the manufacturer's webmístě nebo na obalu produktu.

Online podpora: Visit the official Power Acoustik webweb s častými dotazy, registrací produktů a zdroji podpory.

Telefonická podpora: Refer to the contact section of the Power Acoustik website for current phone numbers and operating hours.
