SPM Nina 01.NINA01.BLK.FWH Slush Machine User Manual

1. Důležité bezpečnostní pokyny

Please read all instructions carefully before operating the SPM Nina Slush Machine. Retain this manual for future reference.

• Elektrická bezpečnost: Ujistěte se, že je spotřebič připojen k uzemněné zásuvce se správným napětím.tage (230V, 50Hz). Do not operate with a damaged cord or plug. Keep the power cord away from hot surfaces.
• Umístění: Place the machine on a stable, level, and dry surface. Ensure adequate ventilation around the unit; do not block air vents. Maintain a minimum distance of 10 cm from walls or other objects.
• Čištění: Always unplug the machine before cleaning. Do not immerse the main unit in water. Use a damp hadřík na vnější čištění.
• Operace: Do not operate the machine without liquid in the reservoir. Avoid placing hands or objects into the moving parts during operation.
• Děti: This appliance is not intended for use by children. Keep children away from the machine during operation and cleaning.
• Údržba: Any servicing other than cleaning should be performed by authorized service personnel.

2. Konec produktuview

The SPM Nina Slush Machine is a compact and elegant appliance designed for preparing slush and shakes. It features a 1.5-liter insulated reservoir and an intuitive LED control panel.

Klíčové vlastnosti:

• 1.5-liter insulated reservoir
• Minimal dimensions for space-saving placement
• LED control panel for easy operation
• Elegant design suitable for various settings
• Quick cleaning and handling

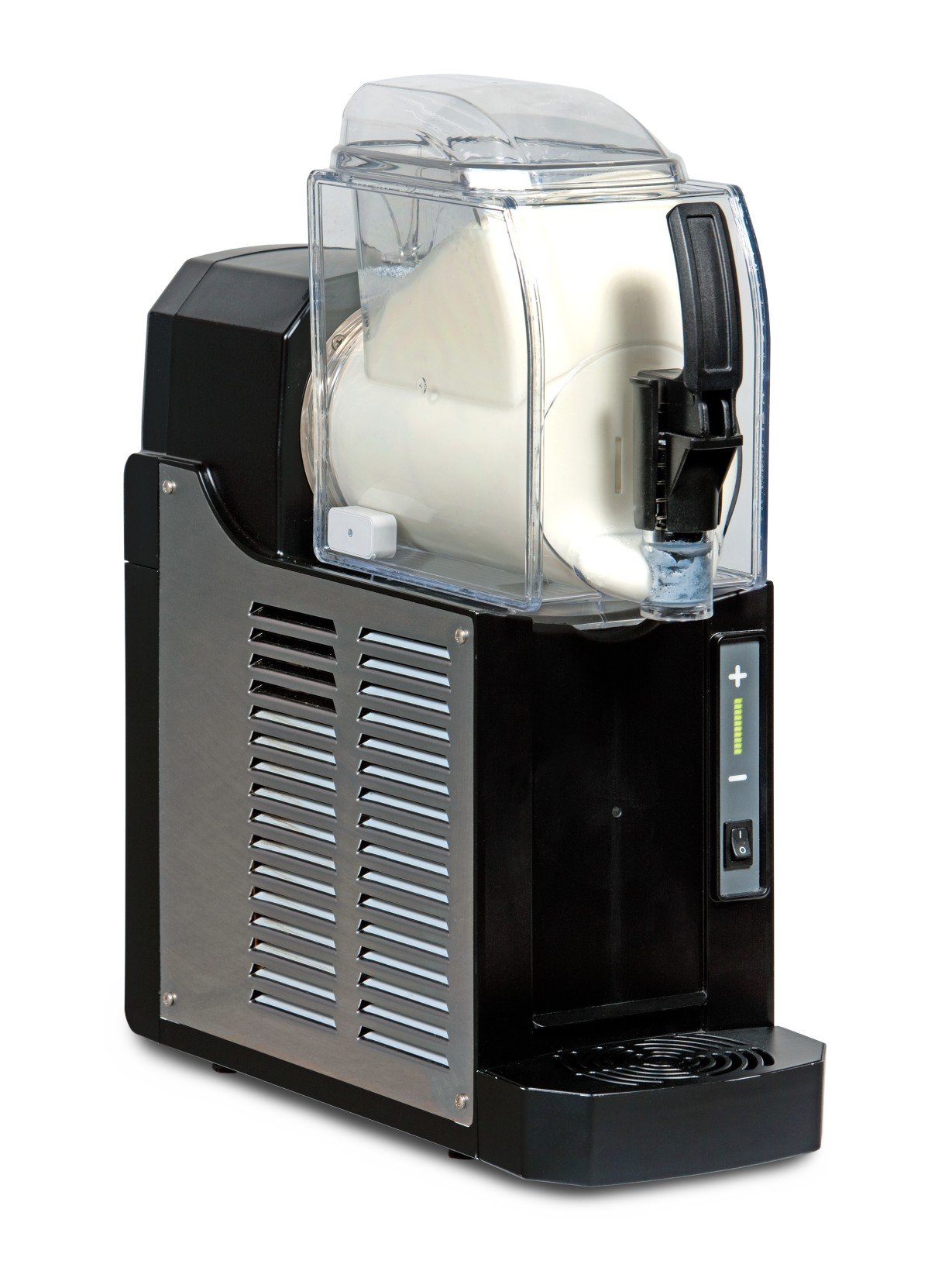

Obrázek 2.1: Přední view of the SPM Nina Slush Machine, showing the clear 1.5-liter reservoir filled with slush, the dispenser tap, and the LED control panel on the base.

3. Součásti

Familiarize yourself with the main components of your slush machine:

1. Nádrž: The transparent container where the slush mixture is prepared and stored.
2. Víčko: Covers the reservoir to maintain temperature and hygiene.
3. Dispenser Tap: Located at the front of the reservoir for dispensing the finished slush.
4. Ovládací panel: LED display and buttons for operating the machine, including power and consistency settings.
5. Základní jednotka: Contains the compressor and motor. Features ventilation grilles on the sides.
6. Odkapávač: Collects any drips from the dispenser tap, located at the front base.

Obrázek 3.1: Strana view of the SPM Nina Slush Machine, highlighting the ventilation grilles on the base unit and the power switch.

4. Nastavení

4.1 Vybalení

• Opatrně vyjměte stroj z obalu.
• Odstraňte veškerý balicí materiál, včetně ochranných fólií nebo pásek.
• Inspect the machine for any signs of damage. If damaged, do not operate and contact customer support.

4.2 Umístění

• Place the machine on a clean, dry, stable, and level surface capable of supporting its weight (approx. 15 kg).
• Ensure there is at least 10 cm of clear space around all sides of the machine for proper ventilation. Do not place it near heat sources or in direct sunlight.

4.3 Počáteční čištění

• Before first use, clean the reservoir, lid, and dispenser tap thoroughly with warm, soapy water. Rinse well and dry completely.
• Otřete vnější povrch základní jednotky čisticím prostředkem.amp tkanina. Nepoužívejte abrazivní čisticí prostředky.

5. Provoz

5.1 Příprava směsi na břečku

• Use a high-quality slush concentrate. Follow the manufacturer's instructions for the correct concentrate-to-water ratio. Incorrect ratios can affect freezing performance and potentially damage the machine.
• Prepare the mixture in a separate container before pouring it into the machine.

5.2 Naplnění nádrže

• Ujistěte se, že je stroj odpojený.
• Carefully pour the prepared slush mixture into the reservoir. Do not overfill; leave some space at the top to allow for expansion as it freezes.
• Securely place the lid back on the reservoir.

5.3 Spuštění stroje

• Zapojte stroj do uzemněné elektrické zásuvky.
• Turn on the main power switch, usually located on the side or front panel.
• Use the LED control panel to select the desired operating mode (e.g., slush, chill). The machine will begin the freezing process. This typically takes 30-60 minutes depending on ambient temperature and mixture.

5.4 Dávkování břečky

• Once the slush has reached the desired consistency, place a cup under the dispenser tap.
• Pull the dispenser tap handle towards you to release the slush.
• Push the handle back to close the tap and stop dispensing.

5.5 Vypnutí

• When finished, turn off the main power switch.
• Odpojte stroj od elektrické zásuvky.

6. Čištění a údržba

Regular cleaning and maintenance ensure optimal performance and longevity of your slush machine.

6.1 Denní čištění

• After each use, empty any remaining mixture from the reservoir.
• Fill the reservoir with warm water and a small amount of mild detergent. Run the machine in 'chill' mode for a few minutes to circulate the cleaning solution.
• Dispense the cleaning solution through the tap.
• Rinse the reservoir thoroughly with clean water, dispensing it through the tap until no soap residue remains.
• Otřete vnější část stroje reklamouamp hadříkem. Vyčistěte odkapávací misku.

6.2 Hloubkové čištění (týdně/každé dva týdny)

• Odpojte stroj.
• Carefully remove the reservoir and lid. Disassemble the dispenser tap components according to the diagram (if provided in a full manual).
• Wash all removable parts (reservoir, lid, tap components) in warm, soapy water. Use a brush for hard-to-reach areas. Rinse thoroughly and allow to air dry completely.
• Clean the evaporator barrel inside the machine with a soft brush and mild cleaning solution, then rinse with clean water.
• Smontujte zpět všechny díly a ujistěte se, že jsou správně upevněny.

6.3 Skladování

• Ensure the machine is clean and dry before storing.
• Skladujte na chladném a suchém místě, mimo dosah přímého slunečního záření a extrémních teplot.

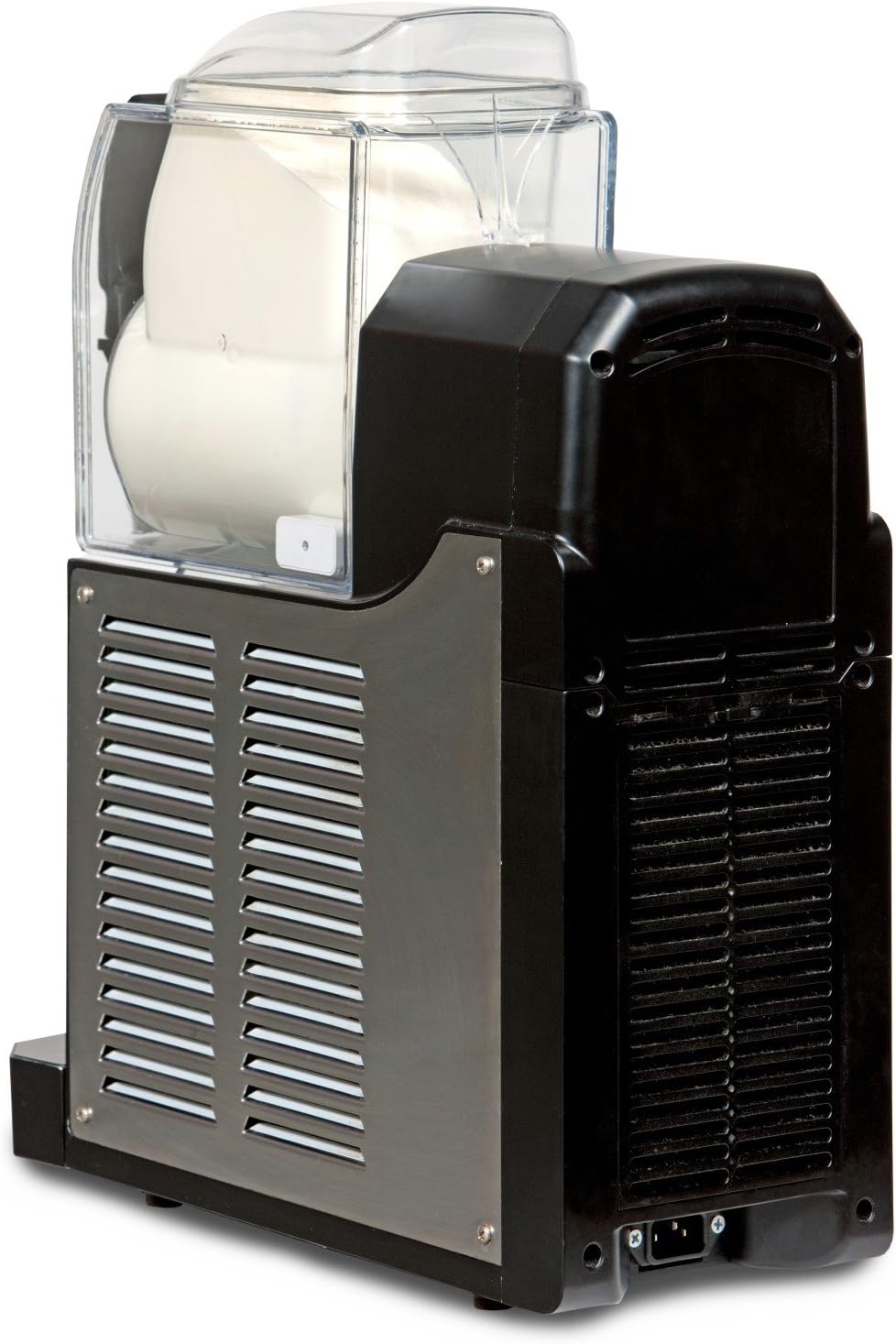

Obrázek 6.1: Zadní view of the SPM Nina Slush Machine, illustrating the power input and additional ventilation grilles for proper airflow.

7. Řešení problémů

V této části naleznete běžné problémy a jejich řešení. Pokud problém přetrvává, kontaktujte zákaznickou podporu.

8. Specifikace

Technical specifications for the SPM Nina 01.NINA01.BLK.FWH Slush Machine:
