Zavedení
Welcome to the user manual for your new Zanussi ZWY 61223 Ki Top-Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before using the washing machine and keep it for future reference.

Obrázek 1: Přední strana view of the Zanussi ZWY 61223 Ki Top-Load Washing Machine. This image shows the appliance's overall white exterior and the control panel located on the top.
Nastavení a instalace
Vybalování
- Opatrně odstraňte veškerý obalový materiál.
- Check the appliance for any transport damage. Report any damage immediately to your retailer.
- Ujistěte se, že je k dispozici veškeré příslušenství.
Umístění
The washing machine should be placed on a firm, level surface to minimize vibration and noise during operation. Ensure adequate space around the appliance for ventilation and access.
- Rozměry: 60 cm (Depth) x 40 cm (Width) x 89 cm (Height).
- Hmotnost: Přibližně 58 kg.
- Hladina hluku: 54 dB (washing), 76 dB (spinning).
Elektrické a vodovodní přípojky
Connect the appliance to a suitable power outlet and water supply according to local regulations.
- svtage: 230 V
- Zatížení připojení: 2200 W
- Ochrana zařízení: 10 A
- Ensure the water inlet and drain hoses are securely connected.

Obrázek 2: Zadní view of the washing machine, showing the water inlet and drain hoses, and the power cable connection points.

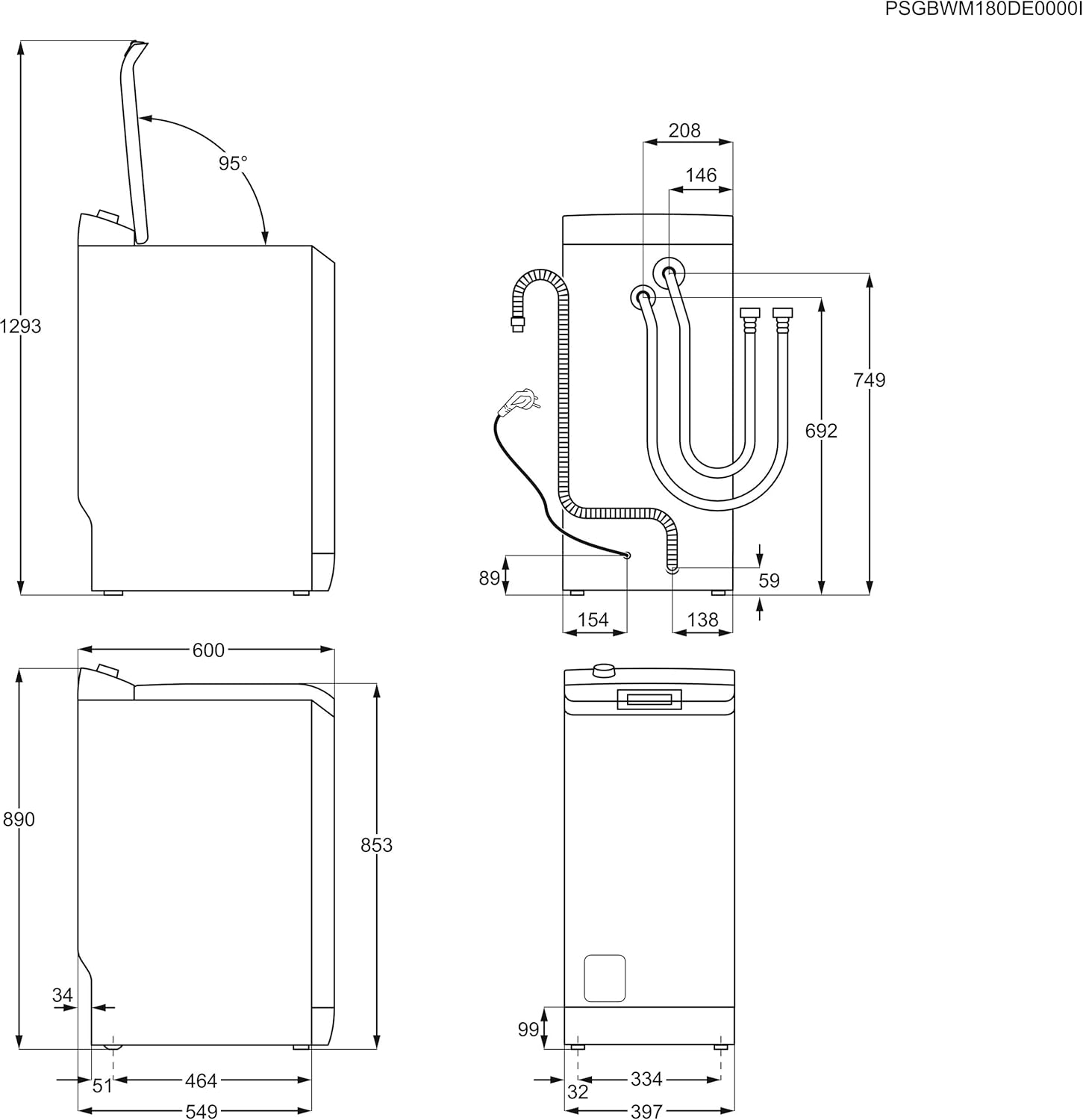

Figure 3: Technical drawing illustrating the precise dimensions and clearances required for installation of the Zanussi ZWY 61223 Ki washing machine.
Návod k obsluze
Konec ovládacího paneluview
The control panel allows you to select programs, adjust settings, and start/pause cycles.

Obrázek 4: Detailní view of the Zanussi ZWY 61223 Ki control panel, showing the program selector knob, temperature buttons, spin speed buttons, and start/pause button.
Mycí programy
Select the appropriate program based on the fabric type and soil level.
- Standardní programy:
- Cotton/Colored
- Bavlna Eco
- Snadná péče
- Delikatesy
- Vlna/hedvábí
- Ruční mytí
- Tmavé oblečení
- Smíchejte 20°
- Speciální programy:
- Extra máchání
- Čerpací
- Spin/Pump
- Snadné žehlení
- Refresh 20 min.
- Džíny
- Mini 30 min.
Funkce a možnosti
- Odložený start: Set a delayed start time for 3, 6, or 9 hours.
- Detergent Container Function: For optimal detergent dispensing.
- Kwash-Option: Washes up to 50% faster.
- Power Jet Technology: Enhances washing performance.
- Airflow Technology: Aids in drying or ventilation.
- Max. rychlost odstřeďování: 1200 XNUMX ot./min.
- Kapacita: 6 kg.
Údržba a péče
Pravidelná údržba zajistí dlouhou životnost a optimální výkon vaší pračky.
Čištění exteriéru
Vnější povrchy otřete měkkým, damp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
Zásobník na prací prostředky
Clean the detergent dispenser regularly to prevent residue buildup. Remove the drawer and rinse it under running water.
Čištění bubnu
Periodically run a hot wash cycle with no laundry and a descaling agent or washing machine cleaner to remove detergent residues and prevent odors.
Čištění filtru
Refer to the appliance's specific instructions for cleaning the drain pump filter, typically located at the bottom front of the machine. This should be done periodically to prevent blockages.
Odstraňování problémů
Než se obrátíte na zákaznický servis, přečtěte si prosím následující běžné problémy a jejich řešení.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Stroj se nespustí | No power supply; door not closed properly; program not selected. | Check power plug and fuse; ensure door is securely latched; select a program and press Start/Pause. |
| Voda se nenaplňuje | Zavřený vodovodní kohoutek; přehnutá přívodní hadice; příliš nízký tlak vody. | Open water tap; straighten hose; check water supply. |
| Machine not draining/spinning | Drain hose kinked or blocked; pump filter clogged; unbalanced load. | Check and clear drain hose; clean pump filter; redistribute laundry in the drum. |
| Nadměrné vibrace/hluk | Machine not level; transport bolts not removed; unbalanced load. | Adjust leveling feet; ensure transport bolts are removed (refer to installation guide); redistribute laundry. |
Specifikace
| Funkce | Detail |
|---|---|
| Značka | Zanussi |
| Číslo modelu | 913105708 |
| Typ | Top-Load Washing Machine |
| Kapacita | 6 kg |
| Max. Rychlost otacek | 1200 ot./min |
| Třída energetické účinnosti | A++ (Spectrum A+++ to D) |
| Roční spotřeba energie | 167 kWh (220 standard programs, cotton 60°C) |
| Roční spotřeba vody | 8990 L (220 standard programs, cotton 60°C) |
| Hladina hluku (praní) | 54 dB(A) re 1 PW |
| Hladina hluku (odstředění) | 76 dB(A) re 1 PW |
| Residual Moisture | 53% (Cotton 60°C full load) |
| Rozměry (Š x H x V) | 40 cm x 60 cm x 89 cm |
| Hmotnost | 58 kg |
| svtage | 230 V |
| Připojení zatížení | 2200 W |
| Water Safety System | Ano |
| První dostupný termín | 9. listopadu 2016 |
Záruka a podpora
For information regarding product warranty and return policies, please refer to the terms provided by your retailer or the official Zanussi webmísto.
If you encounter issues not covered in the troubleshooting section or require professional assistance, please contact Zanussi customer support or your authorized service center.
Poznámka: The product description mentions a link for the energy label: Energy Label Information.
