Steinel HG 2620 E Návod k obsluze horkovzdušné pistole

1. Konec produktuview

The Steinel HG 2620 E is a flagship hot air tool designed for professional and industrial applications. It features a powerful 2300 W motor and offers precise digital temperature adjustment via a joystick, ranging from 50 to 700 °C (120 to 1300 °F). Airflow can be controlled from 150 to 500 l/min (2-3 CFM). The unit includes an LCD display for easy monitoring and a residual heat indicator for safety. Its brushless motor is rated for over 10,000 hours of use, and an integrated fine dust filter makes it suitable for demanding construction site environments.

Klíčové vlastnosti:

• Powerful Brushless Motor - Rated for 10,000+ Hours of Use
• Rugged and Ideal for construction site applications
• Digital temperature adjustment from 50 – 700 °C (120 – 1300 °F)
• Airflow control from 150 – 500 l/min (2-3 CFM)
• LCD display and residual heat indicator
• Integrated fine dust filter
• Ergonomic "In-Line" design with single-hand toggle operation

Produkt Views:

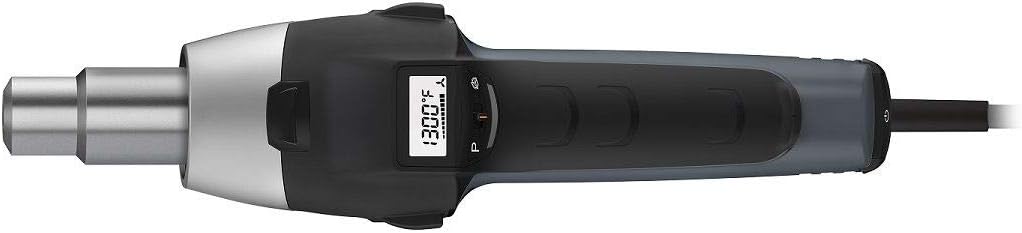

Obrázek 1: Shora dolů view of the Steinel HG 2620 E Heat Gun, highlighting its ergonomic design, digital display, and robust nozzle.

Obrázek 2: Úhlové view of the Steinel HG 2620 E Heat Gun, providing a perspective of its handle and air intake vents.

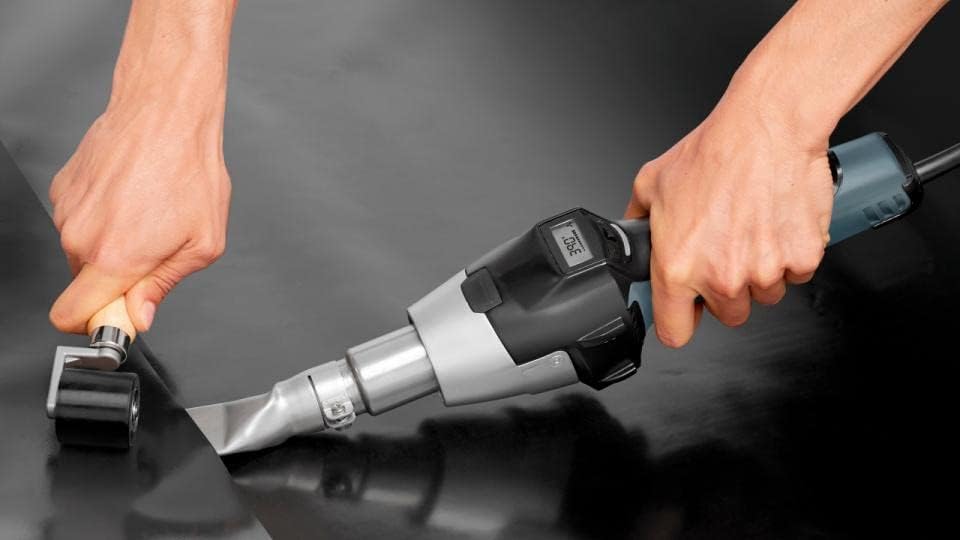

Figure 3: The Steinel HG 2620 E Heat Gun in use, demonstrating its application for heating materials, accompanied by a roller tool for smoothing.

2. Bezpečnostní informace

Always read and understand all safety warnings and instructions before operating the heat gun. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Nebezpečí vysoké teploty: The nozzle and emitted air can reach extremely high temperatures (up to 700 °C / 1300 °F). Avoid direct contact with skin and flammable materials. Allow the tool to cool completely before storing.
• Elektrická bezpečnost: Ensure the power source matches the tool's requirements (120 Volts, 14.8 Amps). Use a grounded outlet. Do not operate in wet conditions or expose to rain.
• Větrání: Use the heat gun in a well-ventilated area. Heating certain materials can produce toxic fumes.
• Osobní ochranné prostředky (OOP): Wear appropriate safety glasses and gloves when operating the heat gun.
• Zajištění obrobku: Always secure the workpiece to prevent movement during heating.
• Děti a přihlížející: Při práci s nářadím držte děti a přihlížející mimo dosah.
• Indikátor zbytkového tepla: Pay attention to the residual heat indicator. The tool remains hot for a period after being switched off.

3. Nastavení

3.1 Vybalení a kontrola

• Carefully remove the HG 2620 E Heat Gun from its packaging.
• Inspect the tool for any signs of damage that may have occurred during shipping. Do not operate if damaged.
• Verify that all included components are present: (1) HG2620E Industrial Heat Gun in Folding Box.

3.2 Požadavky na napájení

The Steinel HG 2620 E Heat Gun operates on standard household electrical power. Ensure your power supply meets the following specifications:

• svtage: 120 voltů
• Wattage: 1750 wattů
• AmpKapacita erage: 14.8 Amps
• Formát zástrčky: B - US style with ground plug.

Always plug the tool into a properly grounded electrical outlet. Do not use adapters or extension cords that are not rated for the tool's power requirements.

4. Návod k obsluze

4.1 Zapnutí/vypnutí

1. Plug the heat gun into a suitable grounded power outlet.
2. To power on, use the toggle switch located on the handle. The LCD display will illuminate.
3. To power off, switch the toggle to the OFF position. The residual heat indicator will remain active until the tool has cooled down sufficiently.

4.2 Nastavení teploty

The HG 2620 E features digital temperature adjustment via a joystick control, allowing precise setting of the desired heat output.

• Use the joystick to navigate the menu on the LCD display.
• Adjust the temperature within the range of 50 – 700 °C (120 – 1300 °F).
• The LCD display will show the current temperature setting and actual temperature as it heats up.

4.3 Regulace proudění vzduchu

The airflow can be adjusted to suit different applications, from 150 to 500 l/min (2-3 CFM).

• Refer to the LCD display and joystick controls to modify the airflow setting.
• Higher airflow is generally used for faster heating or larger areas, while lower airflow provides more concentrated heat.

4.4 Tipy pro aplikaci

• Always test the heat gun on a scrap piece of material before applying to the actual workpiece to determine the optimal temperature and airflow settings.
• Maintain a safe distance between the nozzle and the workpiece to prevent scorching or damage.
• Move the heat gun in a steady, even motion to ensure uniform heating.

5. Údržba

Regular maintenance ensures the longevity and optimal performance of your Steinel HG 2620 E Heat Gun.

5.1 Čištění

• Before cleaning, ensure the heat gun is unplugged and has completely cooled down, indicated by the residual heat indicator turning off.
• Otřete vnější část nástroje čistým hadříkemamp tkanina. Nepoužívejte agresivní chemikálie nebo abrazivní čisticí prostředky.
• The HG 2620 E features an integrated fine dust filter. Periodically inspect and clean the filter to maintain optimal airflow and prevent overheating. Refer to the manufacturer's specific instructions for filter cleaning/replacement if available.
• Udržujte otvory pro přívod a odvod vzduchu bez překážek.

5.2 Skladování

• Store the heat gun in a dry, secure location, out of reach of children.
• Chraňte napájecí kabel před poškozením během skladování.

6. Řešení problémů

If you encounter issues with your Steinel HG 2620 E Heat Gun, refer to the following common troubleshooting steps:

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Steinel customer support or a qualified service technician.

7. Specifikace

8. Záruka a podpora

For detailed warranty information, please refer to the documentation included with your product or visit the official Steinel webZáruční podmínky se obvykle vztahují na výrobní vady po stanovenou dobu od data nákupu.

For technical support, service, or to inquire about replacement parts, please contact Steinel customer service. Contact information can usually be found on the manufacturer's webmístě nebo na obalu produktu.

Výrobce: Steinel

Model: HG2620E
