Renkforce PIR Motion Detector 160° Relay (Built-in)

1. Úvod

Thank you for choosing the Renkforce PIR Motion Detector. This device is designed for built-in wall installation and automatically switches lighting or other connected devices based on detected motion. Its passive infrared (PIR) sensor reacts to temperature fluctuations caused by moving bodies, making it ideal for automating lighting in hallways, entrances, or rooms.

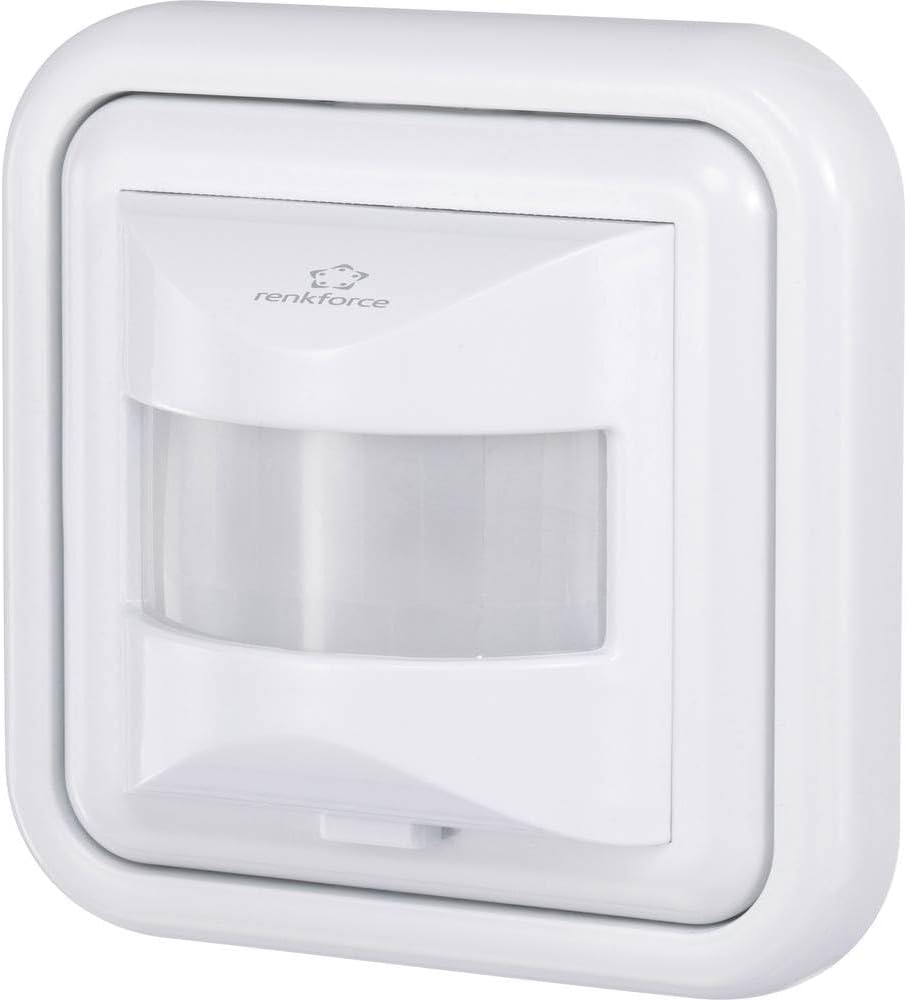

Figure 1: Renkforce PIR Motion Detector (Front View)

2. Bezpečnostní informace

Please read these safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or damage to the device.

• Elektrická instalace: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes and regulations. Ensure the main power supply is disconnected before any installation or maintenance work.
• svtage: The device operates on 230 Volts AC. Do not connect it to any other voltage zásobování.
• Ochrana IP20: This device has an IP20 protection rating, meaning it is protected against solid objects larger than 12.5 mm (e.g., fingers). It offers no protection against water or moisture. Install the device only in dry, indoor environments. Avoid areas with high humidity, direct water exposure, or extreme temperatures.
• Zamýšlené použití: Use the device only for its intended purpose as a motion detector for lighting or other compatible electrical loads. Do not modify the device.
• Čištění: Disconnect power before cleaning. Clean only with a dry, soft cloth. Do not use liquid or abrasive cleaners.
• Děti: Udržujte zařízení mimo dosah dětí.

3. Obsah balení

• Renkforce PIR Motion Detector (1 unit)

Please check that all components are present and undamaged. If any parts are missing or damaged, contact your retailer.

4. Vlastnosti produktu

• Built-in Passive Infrared (PIR) sensor for motion detection.
• Úhel detekce: 160 stupňů.
• Maximum detection range: Up to 9 meters.
• Designed for built-in wall mounting.
• Operates on 230 Volts AC.
• Protection class: IP20 (for indoor, dry environments only).
• Compatible with security systems and smart home hubs.
• Compact design in white color.

5. Nastavení a instalace

The Renkforce PIR Motion Detector is designed for built-in installation within a wall. Due to the electrical nature of this product, installation should only be carried out by a qualified electrician.

1. Odpojení napájení: Before starting any installation work, ensure the main power supply to the circuit where the detector will be installed is completely disconnected at the fuse box or circuit breaker. Verify with a voltage tester.
2. Výběr místa: Choose a suitable location on the wall where the detector can cover the desired area without obstruction. Avoid placing it near heat sources (e.g., radiators, direct sunlight) or air conditioning vents, as these can cause false triggers. Consider the detection angle (160°) and range (up to 9 meters).
3. Příprava otvoru ve zdi: Create an appropriate opening in the wall for the built-in installation, matching the dimensions of the device. The product dimensions are approximately 80 x 80 x 62 mm (L x W x H).
4. Zapojení: Connect the electrical wires to the terminals on the back of the motion detector according to the wiring diagram provided with the product (if applicable, typically printed on the device or in a separate leaflet). Ensure all connections are secure and properly insulated.
5. Montáž: Carefully insert the motion detector into the prepared wall opening and secure it using the appropriate mounting mechanisms (e.g., screws, clamps) until it is flush with the wall surface.
6. Obnovení napájení: Once the installation is complete and all connections are secure, restore power to the circuit.

Figure 2: Detector Side View and Dimensions for Installation

6. Návod k obsluze

The Renkforce PIR Motion Detector operates automatically once installed and powered.

• Automatická detekce: The sensor continuously monitors its detection area for movement by sensing changes in infrared radiation (body heat).
• Load Activation: When motion is detected within its 160° field of view and up to 9 meters range, the detector will activate the connected electrical load (e.g., turn on lights).
• Deaktivace: After the detected motion ceases and a pre-set time delay (if adjustable, typically internal and not externally controllable on this model) has elapsed, the detector will deactivate the load (e.g., turn off lights).
• No External Override: Please note that this model typically does not feature an external override switch for continuous ON/OFF operation. Its primary function is automatic motion-activated control.

7. Údržba

The Renkforce PIR Motion Detector requires minimal maintenance.

• Čištění: Periodically clean the sensor lens and the outer casing with a soft, dry, lint-free cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the device or impair sensor performance.
• Žádné díly opravitelné uživatelem: The device contains no user-serviceable parts. Do not attempt to open or repair the unit yourself. Any unauthorized tamptím dojde ke ztrátě záruky.

8. Řešení problémů

If you experience issues with your Renkforce PIR Motion Detector, please refer to the following common troubleshooting steps:

• Device Not Activating / No Output:
  • Check if the main power supply to the circuit is active.
  • Verify all electrical connections are secure and correctly wired according to the installation instructions.
  • Ensure there are no obstructions blocking the sensor's field of view.
  • Confirm that the ambient temperature is not too close to body temperature, which can reduce detection sensitivity.
• Flickering Light / Unstable Operation:
  • This can sometimes occur with certain types of LED lamps when used with motion detectors not specifically designed for them. Try a different type of lamp (e.g., incandescent, or a different brand/model of LED known to be compatible with motion sensors).
  • Check for loose wiring connections, which can cause intermittent power.
  • Ensure the connected load's wattage is within the detector's specified limits.
• False Triggers / Constant Activation:
  • Check for heat sources (e.g., heating vents, direct sunlight, pets) within the detection area that might be causing false activations.
  • Ensure the sensor lens is clean and free from dust or debris.
  • Strong air currents or drafts can sometimes cause false triggers; ensure the installation location is stable.

If the problem persists after following these steps, please contact Renkforce customer support or your retailer.

9. Specifikace

10. Záruka a podpora

Renkforce provides a warranty for a minimum period of 2 roky od data nákupu. Tato záruka se vztahuje na vady materiálu a zpracování při běžném používání.

For warranty claims, technical support, or further assistance, please contact your retailer or the Renkforce customer service department. Keep your proof of purchase for warranty validation.
