Uživatelská příručka k rádiem řízenému digitálnímu budíku ADE CK2112

1. Úvod

Děkuji za nákupasing the ADE CK2112 Radio-Controlled Digital Alarm Clock. This compact and versatile device features a clear LCD display, real bamboo casing, and provides time, date, day of the week, and indoor temperature. It is designed for ease of use with automatic time setting via DCF signal and dual alarm functions. Please read this manual carefully to ensure proper operation and maintenance of your new alarm clock.

2. Klíčové vlastnosti

• Compact wireless alarm clock with clear LCD display (5.2 x 5.2 cm).
• Displays time, ambient temperature, date, and day of the week.
• White backlight activated by button press.
• Real bamboo casing with high-quality white ABS plastic.
• Dimensions: 8.2 x 8.2 x 3.4 cm; Weight: 0.15 kg.
• DCF radio-controlled time signal for automatic time setting.
• Automatic summer/winter time adjustment.
• Manually adjustable time.
• Dual alarm with adjustable settings and snooze function.
• Integrated calendar.
• Built-in thermometer for indoor temperature display in °C or °F (-10 to 50 °C).

3. Obsah balení

Zkontrolujte prosím balení, zda neobsahuje následující položky:

• ADE CK2112 Digital Alarm Clock
• 2 x 1.5 V AA baterie
• Uživatelská příručka (tento dokument)

Image: ADE CK2112 Alarm Clock with its packaging, showing the clock, batteries, and manual icon.

4. Nastavení

4.1 Instalace baterie

1. Najděte přihrádku na baterie na zadní straně budíku.
2. Otevřete kryt bateriového prostoru.
3. Insert two (2) 1.5V AA batteries, ensuring correct polarity (+/-).
4. Bezpečně zavřete kryt bateriového prostoru.

4.2 Initial Time Synchronization (DCF Signal)

Upon battery installation, the clock will automatically attempt to synchronize with the DCF radio signal. This process may take a few minutes. Ensure the clock is placed in an area with good signal reception, away from electronic interference.

• The radio signal icon will flash during synchronization.
• Once synchronized, the icon will become steady, and the time will be set automatically.
• The clock will also automatically adjust for Daylight Saving Time (summer/winter time).

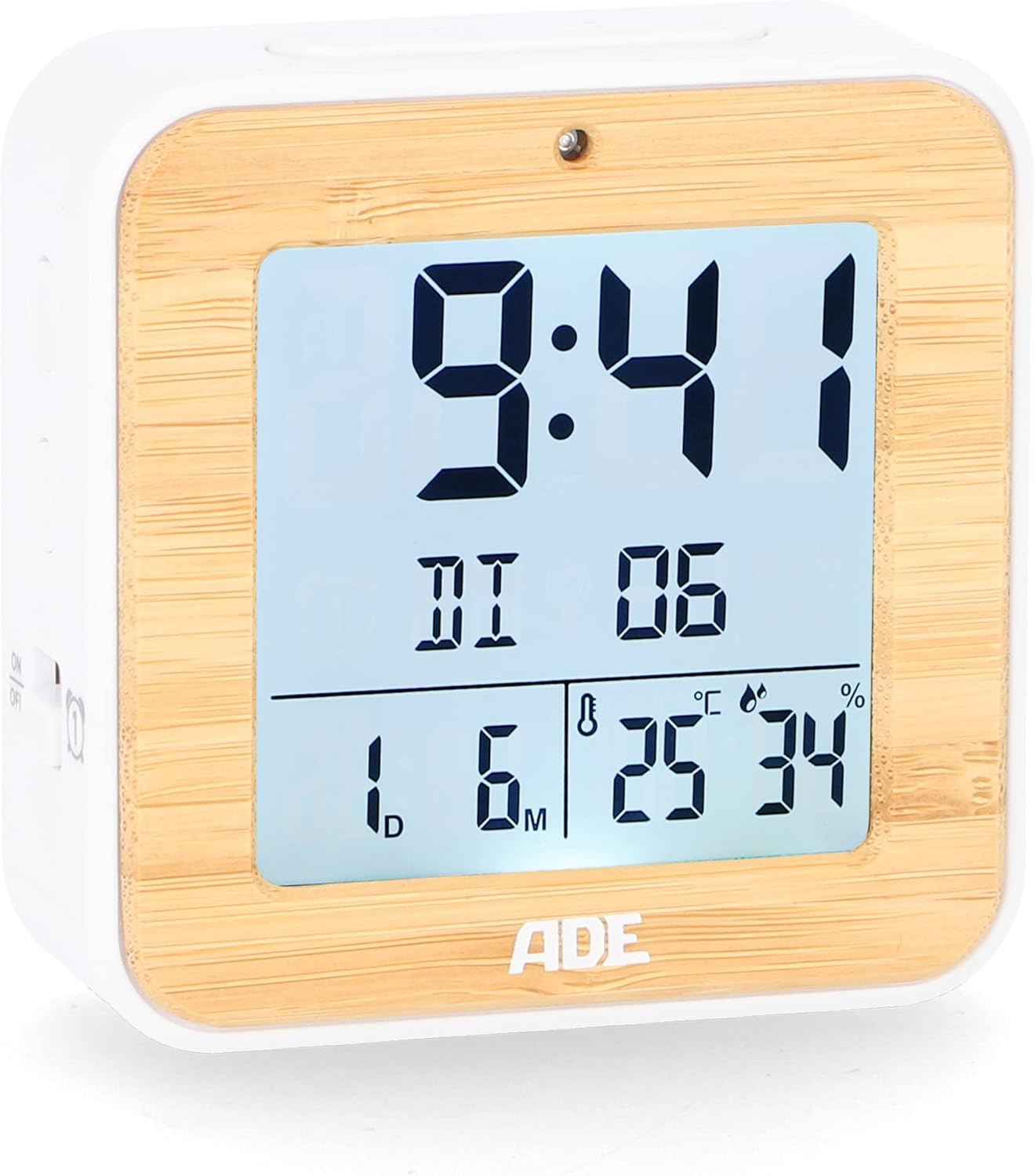

Obrázek: Přední strana view of the ADE CK2112 Digital Alarm Clock, showing the clear LCD display with time, date, and temperature.

5. Návod k obsluze

5.1 Ruční nastavení času

If the DCF signal is not available or you prefer to set the time manually:

1. Press and hold the "SET" button (location usually on the back or side).
2. Use the "+" or "-" buttons to adjust the hour, then press "SET" to confirm.
3. Opakujte pro minuty, rok, měsíc a den.

5.2 Nastavení alarmů (Alarm 1 a Alarm 2)

Hodiny mají dva nezávislé budíky.

1. Press the "ALARM 1" or "ALARM 2" button (usually on the side). The alarm time will flash.
2. Use the "+" or "-" buttons to set the desired alarm hour, then press the respective alarm button to confirm.
3. Opakujte několik minut.
4. To activate/deactivate an alarm, slide the corresponding ON/OFF switch (e.g., "ON/OFF 1" or "ON/OFF 2") on the side of the clock. An alarm icon will appear on the display when active.

Obrázek: Boční view of the ADE CK2112 Digital Alarm Clock, highlighting the ON/OFF switches for Alarm 1 and Alarm 2.

5.3 Funkce odložení

When the alarm sounds, press the "SNOOZE/LIGHT" button (usually on top) to temporarily silence the alarm. The alarm will sound again after approximately 5-10 minutes (check specific model for exact duration).

5.4 Backlight Activation

Press the "SNOOZE/LIGHT" button to activate the white backlight for a few seconds, improving visibility in low light conditions.

Image: Illustration showing the automatic backlight via light sensor and manual backlight activation by button press.

5.5 Zobrazení teploty

The clock displays the indoor temperature. You can switch between Celsius (°C) and Fahrenheit (°F) by pressing a dedicated button (often labeled "°C/°F" or integrated with another setting button).

Image: Close-up of the ADE CK2112 display, indicating the sections for time, alarm, date, humidity, and temperature.

6. Údržba

6.1 Čištění

Hodiny otřete měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani neponořujte zařízení do vody.

6.2 Výměna baterie

When the display dims or the clock stops functioning, replace the batteries. Always use new 1.5V AA batteries and dispose of old batteries responsibly according to local regulations.

7. Řešení problémů

8. Specifikace

• Model: CK2112
• Značka: ADE
• Typ displeje: Digitální LCD
• Rozměry (D x Š x V): 8.2 x 3.81 x 3.5 cm (přibližně 3.23 x 1.5 x 1.38 palce)
• Hmotnost: 110 gramů (přibližně 0.24 libry)
• Materiál: Bamboo, ABS Plastic
• Zdroj napájení: 2 x 1.5V AA Batteries (included)
• Rozsah teplot: -10 až 50 °C (14 až 122 °F)
• Synchronizace času: DCF Radio Controlled
• Funkce alarmu: Dual Alarm, Snooze

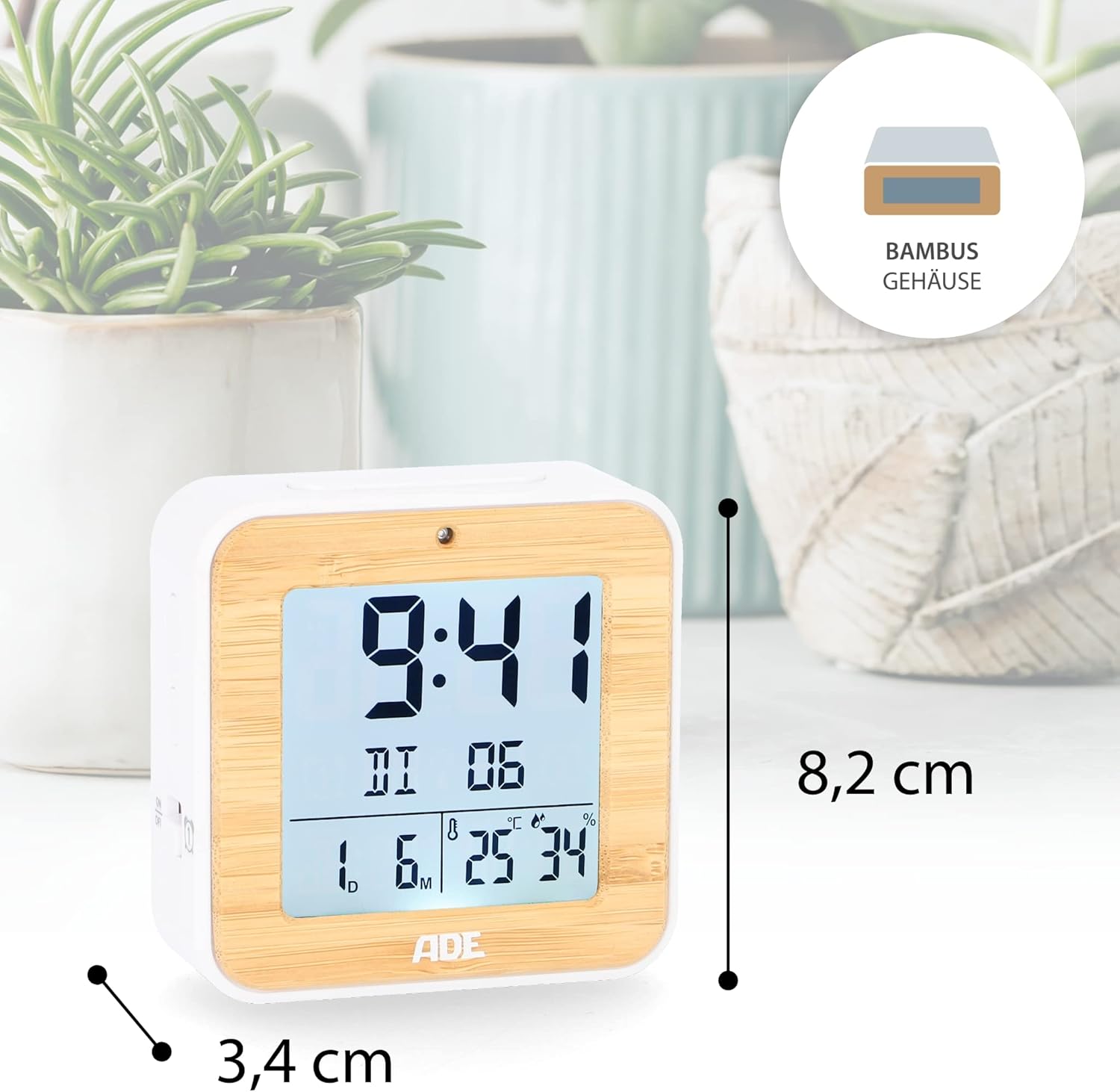

Image: The ADE CK2112 Digital Alarm Clock with its dimensions (8.2 cm height, 3.4 cm depth) clearly marked.

9. Záruka a podpora

For warranty information and customer support, please refer to the contact details provided by your retailer or visit the official ADE webwebu. Uschovejte si účtenku jako doklad o koupi.
