Zavedení
The ACDelco ARM303-4A-340 is a heavy-duty digital torque wrench designed for high-precision torque and angle measurements. This tool is engineered for professionals requiring exceptional accuracy and reliability in automotive, motorcycle, and industrial applications. It features a clear LCD display, multiple measurement units, and an advanced alert system to ensure precise fastening.
Image: The ACDelco ARM303-4A-340 Digital Torque Wrench, showcasinjeho robustní konstrukce a digitální displej.
Bezpečnostní informace
Always observe the following safety precautions when operating the digital torque wrench:
- Read and understand this entire manual before using the tool.
- Wear appropriate personal protective equipment, including eye protection, when operating the wrench.
- Nepřekračujte maximální utahovací moment klíče (250.7 ft-lbs).
- Ensure the wrench is clean and free from oil or grease before use to maintain a secure grip.
- Do not use the wrench as a pry bar or hammer.
- Pokud klíč nepoužíváte, uložte jej do ochranného pouzdra, abyste zabránili jeho poškození.
- Keep batteries out of reach of children and dispose of them properly.
Vlastnosti produktu
The ARM303-4A-340 digital torque wrench incorporates several advanced features for precision and ease of use:
- Static Torque Measurement: Provides accurate readings for applied torque.
- Více jednotek měření: LCD display shows measurements in Kg-cm, N-m, in-lbs., and ft-lbs.
- Bi-directional Operation: Operates in both clockwise and counterclockwise directions.
- Wide Torque Range: Measures from 12.5 to 250.7 ft-lbs.
- Vysoká přesnost: Pre-set accuracy of +/- 1.5% for clockwise and +/- 2.5% for counterclockwise measurements.
- 72-Tooth Ratchet Head: Precision-geared for smooth operation and durability.
- Audible & Visual Alert System: Buzzer and LED flash notifications alert the user when the desired torque is reached.
- Motional Alerting Vibration: Provides tactile feedback upon reaching target torque.
- Ergonomický design: Features an anti-slip industrial-grade grip for comfort and control.
Obrázek: Podrobný view highlighting the quick release mechanism, visual LED alerts, audible buzzer, motional alerting vibration, and the LCD backlit display of the ARM303-4A digital torque wrench.
Obsah balení
Po otevření balení ověřte, zda jsou v něm obsaženy všechny následující položky:
- ACDelco ARM303-4A-340 Digital Torque Wrench
- Uživatelská příručka
- Durable Hard-Shell Case
- Certificate of Calibration (ISO 6789 Standards)

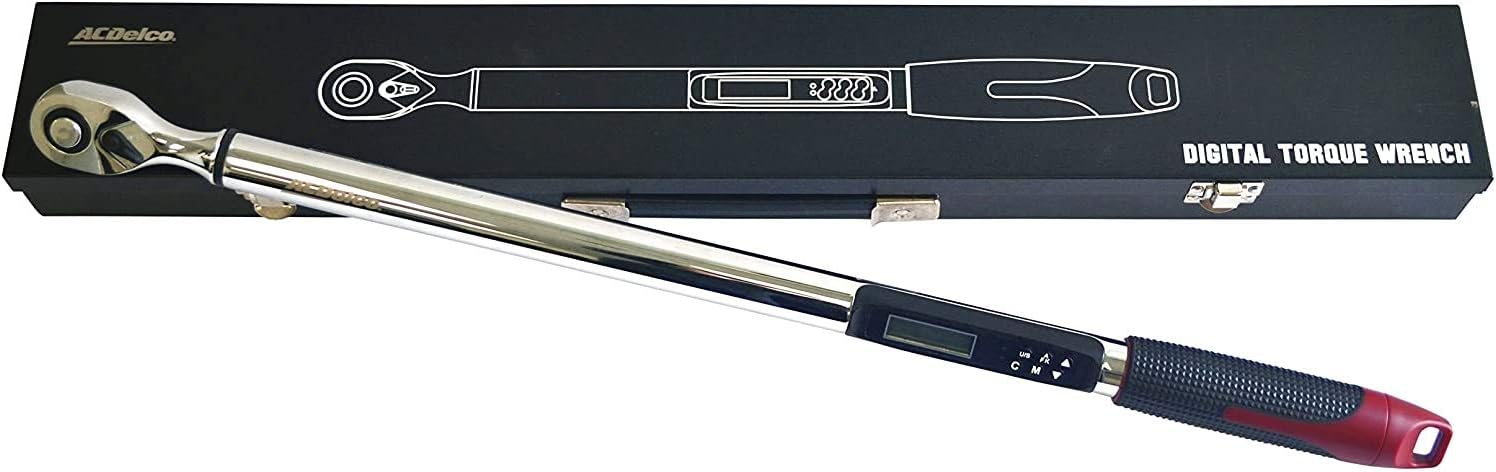

Image: The ARM303-4A-340 digital torque wrench neatly stored within its robust hard-shell case, as received in the package.
Nastavení
Instalace baterie
The ARM303-4A-340 requires 2 AA batteries (not included) for operation.
- Vyhledejte kryt přihrádky na baterie, obvykle na spodní straně rukojeti.
- Open the cover by twisting or sliding it according to the markings.
- Vložte 2 baterie typu AA a dbejte na správnou polaritu (+ a -) vyznačenou uvnitř přihrádky.
- Bezpečně zavřete kryt bateriového prostoru.
Počáteční zapnutí
Press the power button (usually marked 'ON/OFF') to turn on the wrench. The LCD display will illuminate and perform a self-test before showing the current measurement mode.
Návod k obsluze
Zapnutí/vypnutí
Stiskněte tlačítko ON/OFF button to power the wrench on or off. The wrench features an auto-shutoff function after approximately 3 minutes of inactivity to conserve battery life.
Výběr jednotky
Stiskněte tlačítko NÁS (Unit/Setting) button to cycle through the available measurement units: ft-lbs, in-lbs, N-m, and Kg-cm. Select the desired unit before setting the target torque.
Nastavení točivého momentu
To set the target torque value:
- Ensure the wrench is in the desired measurement unit.
- Stiskněte tlačítko M (Mode) button to enter the torque setting mode.
- Použijte Up a Dolů arrow buttons to adjust the target torque value.
- Stiskněte tlačítko M button again to confirm the setting and return to measurement mode.
Measurement Modes (Peak Hold / Track)
The wrench typically offers two measurement modes:
- Režim stopy: Displays the real-time torque being applied.
- Režim Peak Hold: Displays the maximum torque value reached during the application.
Cycle between these modes using the appropriate button (refer to the specific button labels on your device, often combined with the 'M' button).
Měření úhlu
For applications requiring torque-plus-angle (TTY) specifications:
- Set the desired torque value first.
- Stiskněte tlačítko A-F-K button (or similar) until the angle degree symbol appears on the display.
- Použijte Up a Dolů arrow buttons to set the target angle.
- Apply torque until the set torque value is reached, then continue rotating until the set angle is achieved. The wrench will provide alerts for both thresholds.
Použití krouticího momentu
Attach the appropriate socket to the 1/2" drive head. Place the socket onto the fastener. Apply steady, smooth force to the wrench handle. The LCD display will show the real-time torque. When the set target torque is reached, the wrench will emit an audible beep, flash its LED lights, and vibrate.
Image: A user demonstrating the application of the ACDelco ARM303-4A-340 Digital Torque Wrench on a car wheel lug nut, ensuring proper fastening.
Údržba
Čištění
Wipe the wrench clean with a soft, dry cloth after each use. Do not use abrasive cleaners or solvents, as they may damage the finish or electronic components.
Skladování
Store the digital torque wrench in its original hard-shell case in a dry, temperature-controlled environment. Remove batteries if the wrench will not be used for an extended period to prevent leakage.
Kalibrace
The ACDelco ARM303-4A-340 is calibrated to ISO 6789 standards and includes a Certificate of Calibration. For continued accuracy, periodic re-calibration by a certified service center is recommended, especially after heavy use or if the wrench has been dropped.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Klíč se nezapne. | Vybité nebo nesprávně vložené baterie. | Vyměňte baterie za nové baterie typu AA a dbejte na správnou polaritu. |
| Nepřesné údaje o točivém momentu. | Improper technique; wrench needs re-calibration. | Apply steady, smooth force. Ensure proper grip. Consider professional re-calibration. |
| Displej nefunguje nebo bliká. | Low battery; internal connection issue. | Vyměňte baterie. Pokud problém přetrvává, kontaktujte zákaznickou podporu. |
| Battery gets stuck in compartment. | Possible internal obstruction (e.g., screw too long). | Carefully inspect the battery compartment for any obstructions. If unable to resolve, contact customer support. |
| Wrench shuts off too quickly. | Auto-shutoff feature activated. | The wrench is designed to shut off after approximately 3 minutes of inactivity. Power on again to resume use. |
Specifikace
| Číslo modelu | ARM303-4A-340 |
| Velikost hlavy | 1/2 palce |
| Rozsah točivého momentu | 12.5 až 250.7 ft-lb |
| Jednotky měření | ft-lbs, in-lbs, N-m, Kg-cm |
| Accuracy (Pre-set) | CW +/- 1.5%, CCW +/- 2.5% |
| Ráčna | 72-tooth, Fixed Ratchet |
| Zdroj napájení | 2 AA baterie (nejsou součástí balení) |
| Hmotnost nástroje | 6.6 lb (3.00 kg) |
| Délka položky | 66.7 centimetrů |
| Materiál | Legovaná ocel |
| Dokončit | Leštěný |
Záruka a podpora
Informace o záruce
The ACDelco ARM303-4A-340 Digital Torque Wrench comes with a 1 rok omezená zárukaTato záruka se vztahuje na vady materiálu a zpracování při běžném používání. Uschovejte si prosím doklad o koupi pro případ uplatnění záruky.
Zákaznická podpora
For technical assistance, warranty service, or to inquire about re-calibration services, please contact ACDelco Tools customer support. Refer to the contact information provided on the product packaging or the official ACDelco Tools webweb s nejaktuálnějšími informacemi o podpoře.
