Návod k obsluze difuzéru do auta InnoGear (model UD50)

1. Úvod

Thank you for choosing the InnoGear Car Diffuser, Model UD50. This device combines diffusion, humidification, and optional LED lighting to enhance your environment. Utilizing advanced ultrasonic technology, it produces a fine mist for aromatherapy or humidification. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting.

Image: The InnoGear Car Diffuser in black, emitting a pink glow.

2. Vlastnosti produktu

• Funkce 3 v 1: Diffusion, humidification, and optional LED light.
• Ultrazvuková technologie: Produces a smooth, fine mist without nozzle blockage.
• USB rozhraní: Conveniently powered via USB (cable included, adapter not included).
• Snadná obsluha: Top-mounted buttons for mist and light control.
• Design s horní výplní: Simple water refilling by unscrewing the cap.
• Kompaktní a přenosné: Designed to fit most car cup holders, suitable for travel, home, or office.
• Automatické vypnutí: Powers off automatically when water runs out for safety.

Image: Visual representation of the diffuser's three functions: aromatherapy, humidification, and ambient light.

3. Bezpečnostní informace

• The product is made of high-quality material ensuring safety.
• Features an automatic shut-off function when water runs out to prevent dry burning and ensure safety.
• Do not overfill the diffuser beyond the MAX line. Overfilling may prevent proper operation.
• Use a power adapter with at least 5V/1A to power the diffuser.
• Avoid using essential oils that are too thick or corrosive, as this may damage the unit.
• Uchovávejte mimo dosah dětí a domácích zvířat.

4. Pokyny k nastavení

1. Unbox the InnoGear car diffuser.
2. Clean all removable parts with warm, soapy water before first use.
3. Odšroubujte horní víčko.
4. Fill the diffuser with water up to the 50ml MAX line. Do not exceed this line.
5. Add 1-3 drops of your preferred essential oil (optional).
6. Securely replace the top cap.
7. Connect the diffuser to a power source using the provided USB cable (e.g., laptop, power bank, car charger, or a 5V 1A USB adapter).
8. Place the diffuser in your car's cup holder or on a stable surface.

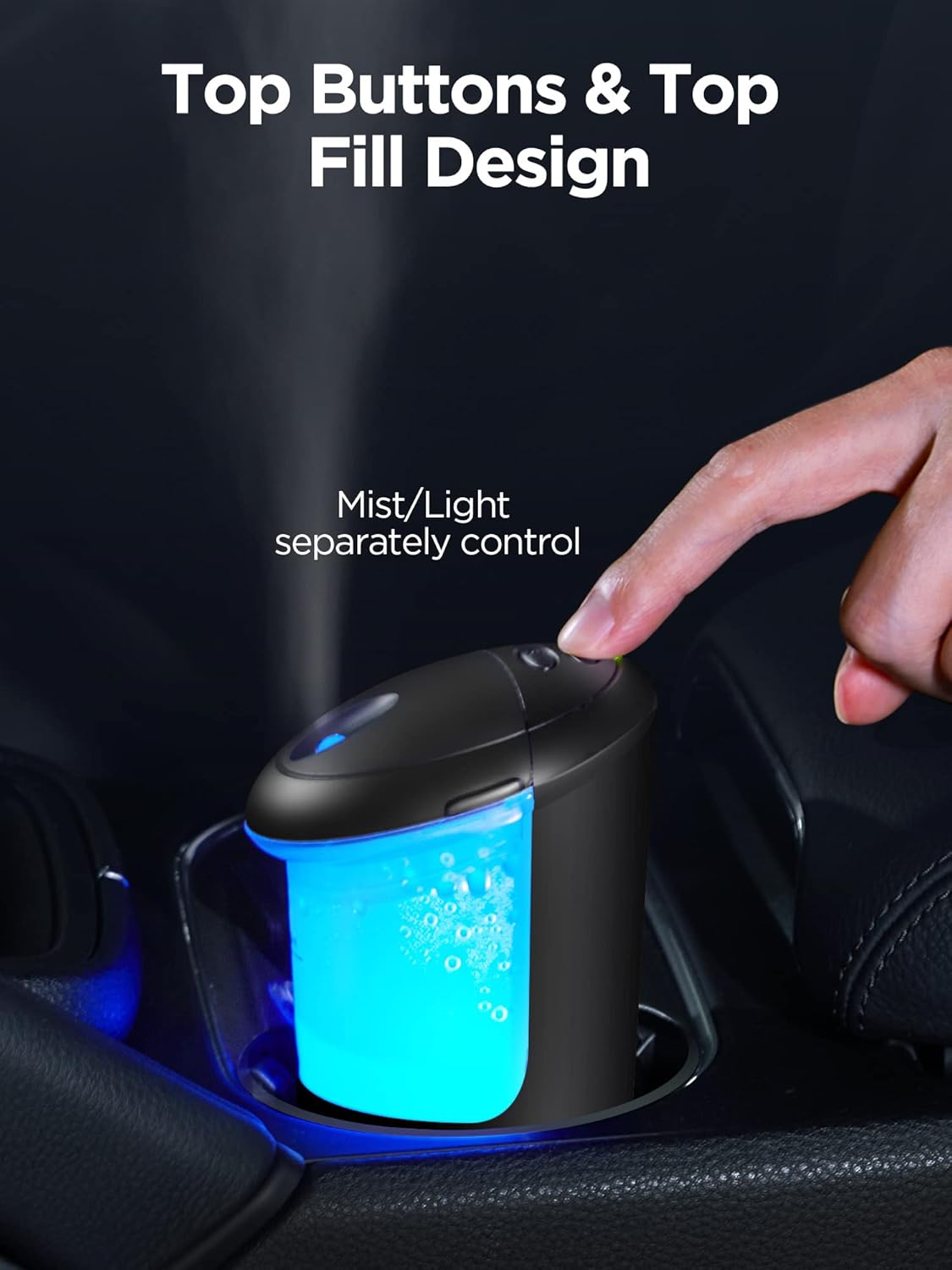

Image: A hand demonstrating how to press the top-mounted buttons for mist and light control.

5. Návod k obsluze

The InnoGear Car Diffuser features two top-mounted buttons for controlling mist and light functions independently.

Ovládání mlhy (tlačítko napájení):

• 1. stisk: LED indicator turns on, and the diffuser operates in continuous misting mode.
• 2. stisk: LED indicator remains on, and the diffuser switches to intermittent misting mode (mist and pause every 30 seconds).
• 3. tisk: Vypne funkci mlhy.

Ovládání světla (tlačítko světla):

• 1. stisk: Turns on the light, and it cycles through various colors.
• 2. stisk: The light stays on a fixed color.
• 3. tisk: Turns off the light function.

Image: The diffuser emitting mist, demonstrating the continuous and intermittent mist modes.

6. Údržba

Regular cleaning ensures optimal performance and longevity of your diffuser.

• Frekvence: Clean the diffuser every 1 to 2 weeks, or whenever you change essential oils.
• Postup čištění:
  1. Odpojte difuzér a vylijte zbývající vodu.
  2. Wipe the interior of the water tank with a soft cloth or sponge.
  3. For thorough cleaning, use warm, soapy water to clean removable parts.
  4. Rinse thoroughly and allow all parts to air dry completely before reassembling.
  5. To remove mineral buildup, use a small amount of white vinegar with distilled water and run the diffuser for a short period, then rinse.
• Skladování: When not in use for an extended period, ensure the diffuser is clean and dry before storing it in a cool, dry place.

7. Řešení problémů

8. Specifikace

Image: Dimensions of the InnoGear Car Diffuser.

9. Záruka a podpora

For warranty information or technical support, please refer to the product packaging or contact InnoGear customer service directly. Contact details are typically available on the official InnoGear webwebu nebo prostřednictvím vaší nákupní platformy.
