Návod k obsluze k autu Amewi 22186 Eagle 3 4WD 1:12 Dune Buggy

1. Úvod a produktview

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Amewi 22186 Eagle 3 4WD 1:12 Dune Buggy. Please read this manual thoroughly before operating the vehicle.

The Amewi 22186 Eagle 3 4WD 1:12 Dune Buggy is a ready-to-run (RTR) remote-controlled vehicle. It features a 1500 mAh Li-ion battery, a slipper clutch, and a rigid rear axle. Constructed with high-quality components, including a robust MDF chassis and aluminum shock absorbers, it is designed for durability. The vehicle is equipped with grippy, abrasion-resistant rubber tires and a responsive 2.4 GHz remote control, which can be switched between right-hand and left-hand operation. A powerful 380 electric motor and permanent 4-wheel drive ensure excellent performance across various terrains, from parks to tracks and jumps.

Image 1.1: The Amewi 22186 Eagle 3 4WD 1:12 Dune Buggy in red and black livery.

Image 1.2: The Amewi 22186 Eagle 3 4WD 1:12 Dune Buggy in green and black livery.

2. Bezpečnostní informace

Operating remote-controlled vehicles requires caution to prevent injury or damage. Please adhere to the following safety guidelines:

• Dohled dospělých: This product is recommended for users aged 14 and above. Younger users should always be supervised by an adult.
• Provozní prostředí: Operate the vehicle in open, clear areas away from people, pets, and obstacles. Avoid public roads, crowded places, and areas with water or excessive moisture.
• Bezpečnost baterie:
  • Vždy používejte dodanou nabíječku a baterii.
  • Nepřebíjejte ani nezkratujte baterie.
  • Nevystavujte baterie extrémním teplotám nebo přímému slunečnímu záření.
  • If batteries swell, leak, or become hot, discontinue use immediately.
  • Zlikvidujte baterie v souladu s místními předpisy.
• Pohyblivé části: Keep fingers, hair, and loose clothing away from rotating wheels and other moving parts to prevent entanglement or injury.
• Kontrola vozidla: Before each use, inspect the vehicle for any loose parts, damage, or obstructions. Do not operate if damaged.
• Chemikálie: Avoid contact with any lubricants or cleaning agents. If contact occurs, wash thoroughly with water.
• Modifikace: Do not modify the vehicle or its components. Unauthorized modifications can lead to malfunction and void the warranty.

3. Obsah balení

Po otevření balení se prosím ujistěte, že jsou přítomny všechny následující položky:

• Amewi 22186 Dune Buggy RC Vehicle
• 2.4 GHz bezdrátové dálkové ovládání
• 1500 mAh 7.4V Li-ion Battery (pre-installed or separate)
• 220V nabíjecí zástrčka
• Montážní klíč
• Spare Pinions
• Illustrated User Manual (this document)

Poznámka: The remote control requires 4 x 1.5V AA batteries, which are not included and must be purchased separately.

4. Nastavení

4.1 Instalace baterií dálkového ovladače

1. Locate the battery compartment on the back of the 2.4 GHz remote control.
2. Otevřete kryt bateriového prostoru.
3. Vložte 4 x 1.5V AA baterie a dbejte na správnou polaritu (+/-).
4. Bezpečně zavřete kryt bateriového prostoru.

Image 4.1: The 2.4 GHz wireless remote control for the Dune Buggy.

4.2 Vehicle Battery Charging and Installation

1. Connect the 1500 mAh 7.4V Li-ion battery to the provided 220V charging plug.
2. Zapojte nabíječku do standardní zásuvky.
3. Allow the battery to charge fully. Refer to the charger's indicator lights for charging status. Do not leave charging unattended.
4. Once charged, disconnect the battery from the charger.
5. Open the battery compartment on the vehicle (typically located on the underside or within the chassis).
6. Carefully insert the charged Li-ion battery and connect it to the vehicle's power connector, ensuring a secure fit.
7. Zavřete přihrádku na baterie.

Obrázek 4.2: Spodní strana view of the Dune Buggy chassis, showing internal components and battery placement area.

4.3 Počáteční kontroly

• Ensure all wheels are securely attached.
• Check that the steering mechanism moves freely without obstruction.
• Verify that the shock absorbers are properly seated.

5. Návod k obsluze

5.1 Zapnutí a párování

1. Turn on the remote control first. The indicator light should illuminate.
2. Next, turn on the power switch on the vehicle.
3. The remote control and vehicle should automatically pair. If not, refer to the remote control's specific pairing instructions (usually involves turning both off, then remote on, then vehicle on).

5.2 Základní ovládací prvky

• Spoušť plynu: Pull the trigger towards you to accelerate forward. Push the trigger away from you to brake or reverse.
• Volant: Rotate the steering wheel left or right to control the vehicle's direction.
• Obložení řízení: Use the steering trim dial on the remote control to adjust the steering if the vehicle does not drive straight when the steering wheel is centered.
• Škrtící klapka: Use the throttle trim dial to adjust the neutral position of the throttle if the vehicle moves slightly forward or backward when the trigger is released.

5.3 Tipy pro řízení

• Start with slow speeds to familiarize yourself with the controls.
• The 4WD system provides excellent traction. Experiment with different terrains, but avoid deep water or mud.
• Practice smooth steering and throttle inputs for better control.
• Be mindful of battery life. Performance will decrease as the battery drains.

Image 5.1: The Dune Buggy demonstrating its off-road capability on a sandy surface.

Image 5.2: The Dune Buggy in red and black, kicking up dust during operation.

6. Údržba

Regular maintenance will extend the lifespan and performance of your Dune Buggy.

6.1 Čištění

• After each use, especially in dusty or dirty conditions, clean the vehicle.
• Use a soft brush or compressed air to remove dirt and debris from the chassis, wheels, and suspension components.
• Otřete tělo reklamouamp tkanina. Vyhněte se používání agresivních chemikálií nebo nadměrného množství vody.

6.2 Péče o baterii

• Vždy odpojte baterii od vozidla, pokud ji nepoužíváte.
• Store batteries in a cool, dry place, away from direct sunlight and heat.
• For long-term storage, charge the Li-ion battery to approximately 50% capacity.

6.3 Kontrola součásti

• Pravidelně kontrolujte utažení šroubů a spojovacího materiálu.
• Inspect tires for wear and tear.
• Examine the shock absorbers and suspension arms for damage or bending.
• Check the gears for debris or excessive wear. Spare pinions are included for replacement if needed.

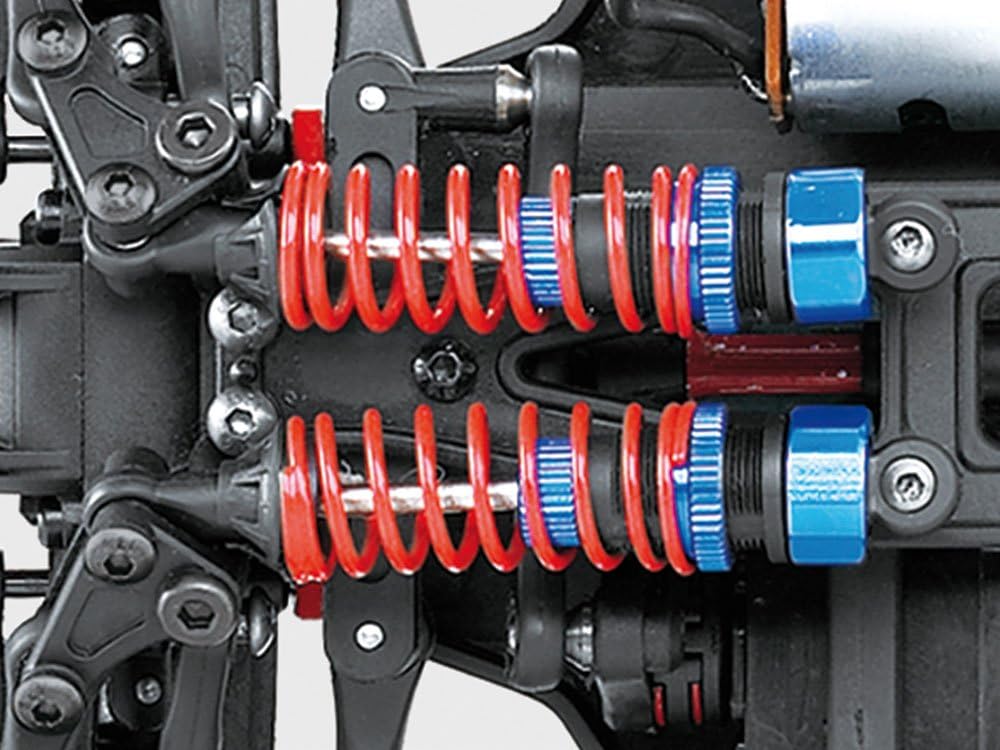

Obrázek 6.1: Detail view of the rear aluminum shock absorbers with red springs and blue adjusters.

Obrázek 6.2: Detailní view of the steering linkage and front suspension components.

Obrázek 6.3: Boční strana view of the vehicle's suspension system, highlighting the shock absorber.

Image 6.4: Close-up of the electric motor and gearbox assembly.

7. Řešení problémů

If you encounter issues with your Amewi Dune Buggy, refer to the following common troubleshooting steps:

• Vozidlo nereaguje:
  • Ensure both the remote control and vehicle are powered on.
  • Check if the remote control batteries are correctly installed and have sufficient charge.
  • Verify the vehicle's Li-ion battery is charged and properly connected.
  • Re-pair the remote control and vehicle if necessary (refer to Section 5.1).
• Poor Performance / Reduced Speed:
  • The vehicle's battery may be low. Recharge it fully.
  • Check for debris in the drivetrain or wheels that might be causing resistance.
  • Ensure all moving parts are clean and lubricated if necessary.
• Vehicle Pulls to One Side:
  • Adjust the steering trim on the remote control (refer to Section 5.2).
  • Inspect the steering linkage for any damage or obstructions.
• Neobvyklé zvuky:
  • Turn off the vehicle immediately.
  • Inspect the gears, motor, and other moving parts for foreign objects or damage.

If the problem persists after attempting these steps, please contact Amewi customer support or your retailer for further assistance.

8. Specifikace

9. Záruka a podpora

Výrobky Amewi jsou vyráběny podle vysoce kvalitních standardů. Informace o záruce naleznete v obchodních podmínkách poskytnutých v místě nákupu nebo navštivte oficiální stránky Amewi. webmísto.

If you require technical assistance, have questions about operation, or need to inquire about spare parts, please contact your retailer or Amewi customer support directly. Keep your proof of purchase handy when contacting support.

Poznámka: Availability of spare parts information is currently unavailable through general product data. Please consult your retailer or Amewi directly for spare parts inquiries.
