COAST HL8R 800 Lumen Rechargeable PURE BEAM® Focusing LED Headlamp Uživatelská příručka

1. Přesview

The COAST HL8R Headlamp is designed for versatility and high performance, offering both rechargeable and alkaline battery options. It features the PURE BEAM® focusing system and TWIST FOCUS™ technology, allowing seamless transitions between an ultra-wide flood beam and a long-reaching spot beam with a transition halo. The light output is easily adjustable with a control dial, making it suitable for various lighting needs. Built with durable, impact-resistant, and weather-resistant materials, the HL8R is a reliable lighting solution.

Klíčové vlastnosti

• Nabíjecí: Compatible with the included Lithium-Ion battery pack or 4 x AA alkaline batteries.
• Brightest: Delivers 800 lumens with a beam distance of up to 214 meters.
• Dlouhotrvající: Provides up to 4 hours and 15 minutes of runtime on high mode.
• PURE BEAM Focusing Optic: Seamlessly shifts between a super wide flood beam and a spot mode with a transition halo.
• TWIST FOCUS System: Easily adjust the beam by twisting the head of the light.
• Odolná konstrukce: Impact resistant and water resistant body.

Figure 1: The COAST HL8R Headlamp, showcasing its design and adjustable straps.

2. Nastavení

Instalace baterie

The HL8R headlamp offers dual power options: a rechargeable Lithium-Ion battery pack or a 4 x AA alkaline battery pack. Both are included for your convenience.

1. To install the battery pack, locate the battery compartment at the rear of the headlamp.
2. Open the compartment and insert either the rechargeable Lithium-Ion battery pack or the 4 x AA alkaline battery pack, ensuring correct polarity as indicated inside the compartment.
3. Bezpečně uzavřete přihrádku na baterie.

Figure 2: The HL8R headlamp with its external battery pack connected via a coiled cord.

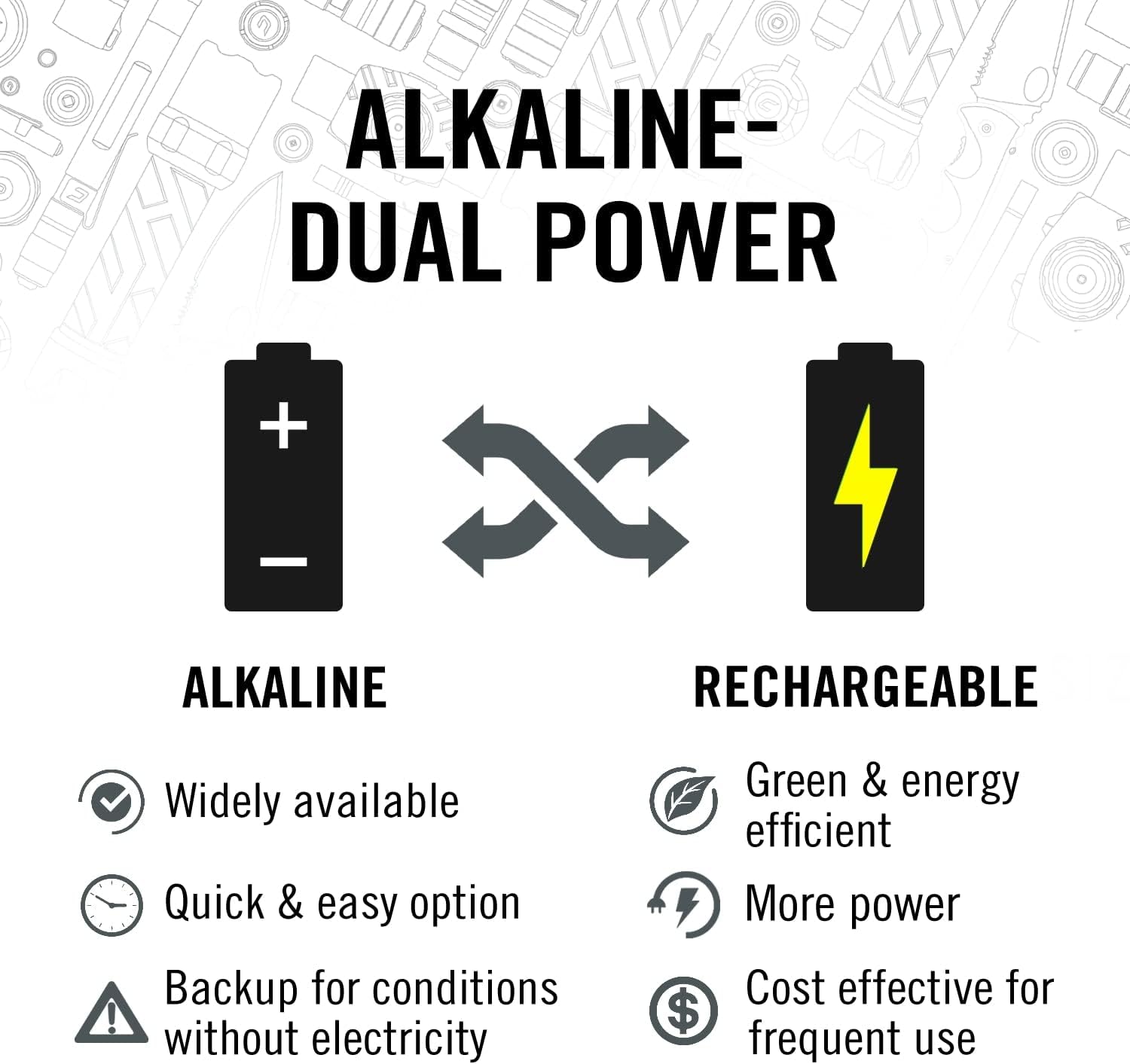

Figure 3: Diagram illustrating the dual power capability, allowing use of both alkaline and rechargeable batteries.

Adjusting the Headlamp

The HL8R features adjustable straps for a comfortable and secure fit. It also includes hard hat clips for compatibility with safety helmets.

• Adjust the elastic straps to fit snugly around your head or over a hard hat.
• Use the included hard hat clips to secure the headlamp firmly to your hard hat, preventing slippage during use.

Figure 4: The HL8R headlamp shown mounted on a hard hat, demonstrating its compatibility and secure fit.

3. Provoz

Zapnutí/vypnutí a úprava jasu

The HL8R headlamp is equipped with a light control dial for easy operation.

1. K otočení hlavyamp on or off, rotate the light control dial located on the side of the front light unit.
2. Continue rotating the dial to cycle through different brightness levels: high output, medium output, and low output. This allows you to adapt the light to your specific needs and conserve battery life.

Obrázek 5: Detail view of the variable light control dial, which allows for easy adjustment of light output.

Focusing the Beam (PURE BEAM® & TWIST FOCUS™)

The PURE BEAM® focusing system with TWIST FOCUS™ technology allows you to quickly switch between a broad flood beam and a concentrated spot beam.

1. To adjust the beam, simply twist the head of the light unit.
2. Twist in one direction for an ultra-wide flood beam, ideal for illuminating a large area.
3. Twist in the opposite direction for a long-reaching spot beam, perfect for focusing on distant objects. The system maintains a transition halo for full viewing even in spot mode.

Figure 6: The twist focusing lens, demonstrating how to adjust the beam from flood to spot.

Figure 7: Comparison of the Bulls-Eye Spot Beam and the Ultra View Flood Beam, illustrating the versatility of the focusing system.

Brightness and Distance

The HL8R provides significant illumination, reaching up to 214 meters with 800 lumens on high mode.

Figure 8: Visual representation of the headlamp's 800 lumen output and 214-meter beam distance, as per FL1 standard.

4. Údržba

Čištění a péče

• Otřete hlavuamp tělo s měkkým, damp hadříkem k odstranění nečistot a nečistot.
• Avoid using abrasive cleaners or solvents, as these can damage the finish and internal components.
• Ensure the lens is clean for optimal light output.

Péče o baterie

• For the rechargeable battery pack, use the provided Micro USB cable for charging. The pack can be charged on or off the headlamp.
• If using alkaline batteries, replace all four batteries simultaneously when they are depleted. Do not mix old and new batteries or different battery types.
• Vyjměte baterie, pokud je hlavaamp nebude používán delší dobu, aby se zabránilo úniku.

Voděodolnost

The HL8R headlamp is designed to be water resistant. While it can withstand splashes and light rain, it is not intended for submersion in water.

Obrázek 9: Hlavičkaamp on a wet surface, highlighting its durable and water-resistant construction.

5. Řešení problémů

• Světlo se nerozsvítí: Check if the battery pack is properly installed and charged. Ensure the light control dial is rotated to an 'on' position.
• Výstup tlumeného světla: This typically indicates low battery power. Recharge the Lithium-Ion battery pack or replace the alkaline batteries.
• Beam Not Focusing Properly: Ensure the twist focus mechanism is clean and free of debris. Twist the head of the light fully in both directions to check for smooth operation.
• Přerušovaný provoz: Check all connections, especially the coiled cord connecting the light unit to the battery pack, to ensure they are secure.

6. Specifikace

Zahrnuté komponenty

• Vedoucíamp
• Sada alkalických baterií
• Dobíjecí baterie
• Popruh
• Hard Hat Clips
• Z-Cord Headband
• 3' Battery Extension Cord
• 4 x AA baterie
• Micro USB nabíjecí kabel

Figure 10: All components included with the COAST HL8R Headlamp.

7. Záruka a podpora

Informace o záruce

The COAST HL8R Headlamp is backed by COAST's lifetime warranty against defects in materials and workmanship. This warranty ensures long-term reliability and customer satisfaction.

Další zdroje

For further assistance or detailed information, you may refer to the official user manual PDF available online:

• Uživatelská příručka (PDF)
