NETGEAR Powerline 1000 Adapter Kit (PL1000-100PES) User Manual

1. Konec produktuview

The NETGEAR Powerline 1000 Adapter Kit (PL1000-100PES) provides a simple solution to extend your internet network using your home's existing electrical wiring. This kit includes two Powerline 1000 adapters, enabling you to connect devices like smart TVs, gaming consoles, and computers to the internet in areas where Wi-Fi signals may be weak or unreliable.

Obrázek: Přední strana view of the NETGEAR Powerline 1000 Adapter.

2. Nastavení

2.1 Obsah balení

Ověřte, zda váš balíček obsahuje následující položky:

• Two (2) NETGEAR Powerline 1000 Adapters (PL1000)
• Two (2) Ethernet cables
• Stručný průvodce (není součástí této příručky)

2.2 kroky instalace

Pro nastavení sítě Powerline postupujte takto:

1. Připojení prvního adaptéru: Plug one Powerline adapter directly into an electrical outlet near your internet router or modem. Do not use a power strip or extension cord, as this can degrade performance.
2. Připojení k routeru/modemu: Use one of the provided Ethernet cables to connect the Powerline adapter to an available LAN port on your router or modem.
3. Připojení druhého adaptéru: Plug the second Powerline adapter directly into an electrical outlet in the room where you want to extend your network.
4. Připojte své zařízení: Use the second Ethernet cable to connect your network-enabled device (e.g., computer, smart TV, gaming console) to the second Powerline adapter.
5. Ověřit připojení: Počkejte, až se LED dioda Powerline na obou adaptérech rozsvítí trvale zeleně, což signalizuje úspěšné připojení.

Image: A NETGEAR Powerline 1000 Adapter plugged into a wall outlet, ready for connection.

Image: Diagram illustrating how two Powerline adapters connect to a router and an Ethernet-enabled device in different rooms, utilizing the home's electrical wiring.

3. Provoz

3.1 Vysvětlení LED indikátorů

The Powerline adapters feature LED indicators to show their status:

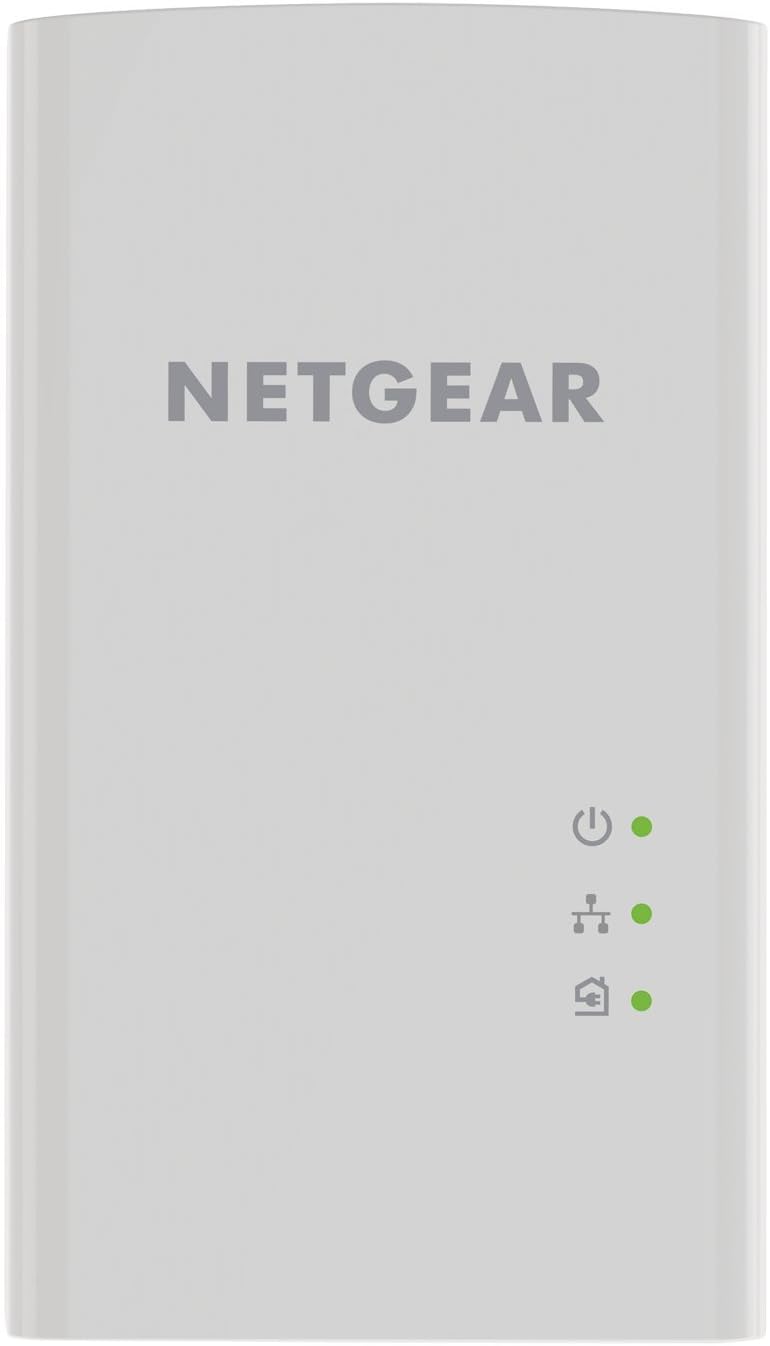

Obrázek: Přední strana view of the Powerline 1000 Adapter showing the Power, Powerline, and Ethernet LED indicators.

3.2 Pairing Powerline Adapters

Your Powerline adapters are typically pre-paired from the factory. If they do not connect automatically (Powerline LED is off or blinking), you may need to pair them manually:

1. Plug both Powerline adapters into electrical outlets in the same room.
2. Press the Security button (often labeled 'Pair' or 'Security') on the side or bottom of the first adapter for 2 seconds. The Powerline LED will start blinking.
3. Within two minutes, press the Security button on the second adapter for 2 seconds. Its Powerline LED will also start blinking.
4. After a short period, the Powerline LEDs on both adapters should turn solid green, indicating a successful secure connection.

4. Údržba

4.1 Péče a čištění

• Keep the adapters in a dry environment, away from excessive heat or moisture.
• Do not block the ventilation holes on the adapters.
• To clean, gently wipe the surface with a soft, dry cloth. Do not use liquid or aerosol cleaners.

4.2 Obnovení továrního nastavení

If you experience persistent issues or wish to clear all settings, you can perform a factory reset:

Obrázek: Spodní část view of the Powerline 1000 Adapter, highlighting the Ethernet port and the recessed Factory Reset button.

1. With the adapter plugged into an electrical outlet, use a paperclip or similar pointed object to press and hold the recessed Obnovení továrního nastavení tlačítko po dobu přibližně 10 sekund.
2. Release the button when the LEDs briefly flash. The adapter will restart with factory default settings.

5. Řešení problémů

5.1 Běžné problémy a řešení

• Žádné připojení k elektrické síti (LED dioda Powerline nesvítí):
  Ensure both adapters are plugged directly into wall outlets, not power strips. Try different outlets. Perform manual pairing as described in Section 3.2.
• Pomalá rychlost připojení:
  Avoid plugging adapters into outlets on different electrical circuits if possible. Remove any high-power electrical appliances (e.g., washing machines, refrigerators) from outlets near the adapters, as they can cause interference.
• Žádný přístup k internetu:
  Verify that your router/modem is working correctly and has an active internet connection. Ensure the Ethernet cable between the first adapter and the router is securely connected. Check the Ethernet LED on both adapters.
• Adaptér nereaguje:
  Unplug the adapter from the wall outlet, wait 10 seconds, and plug it back in. If the issue persists, perform a factory reset (Section 4.2).

6. Specifikace

6.1 Technické specifikace

7. Záruka a podpora

7.1 Informace o záruce

NETGEAR products typically come with a limited hardware warranty. For specific warranty terms and conditions applicable to your region and product, please refer to the warranty card included with your purchase or visit the official NETGEAR webmísto.

7.2 Zákaznická podpora

For further assistance, technical support, or to download the latest firmware and documentation, please visit the official NETGEAR support webwebu. Najdete zde podrobné nejčastější dotazy, průvodce řešením problémů a kontaktní informace na zákaznický servis.
