1. Úvod
ADJ Encore Profile 1000 WW is a modern 120W LED Ellipsoidal designed for professional lighting applications. It features a bright 120W COB LED source, offering variable strobe speed and dimming capabilities. This fixture includes adjustable zoom and focus, along with shutters for precise manual framing. Connectivity is provided via 3-pin and 5-pin DMX connections. Engineered for efficiency, this unit operates coolly while consuming 144W of power. It utilizes a High Powered Warm White (WW) COB LED source with a Color Temperature of 3200K and a high Color Rendering Index (CRI) of 98, ensuring excellent light quality.
2. Co je v krabici
Upon opening the packaging, please ensure all components are present and in good condition. The standard package for the ADJ Encore Profile 1000 WW includes:
- Encore Profile 1000 WW Fixture
- Napájecí kabel
- Uživatelská příručka (tento dokument)
3. Klíčové vlastnosti
- Professional Ellipsoidal with a 100W High Powered Warm White (WW) COB LED source.
- Multiple Operating Modes: Dimmer Mode, Color Fade Mode, Sound Active Mode, and DMX Controlled.
- Supports Stand Alone Setup or Master-Slave Setup for versatile control.
- Offers 3 DMX Channel Modes (1/2/3) for flexible integration into lighting systems.
- Includes 4 Gobos for projection effects.
- Features Five Dimmer Modes for precise light intensity control.
- Typical Throw Distance: 40 meters (with 12-degree beam angle) to 28 meters (with 30-degree beam angle).
- Electronic Strobing capability for dynamic effects.
- Equipped with a Wired Digital Communication Network for reliable control.
- Manual Zoom and Manual Focus for on-site beam shaping.
- Framing Shutters for precise light beam shaping and masking.
- Gobo Holder for custom gobo insertion.
4. Nastavení
4.1 Montáž
Encore Profile 1000 WW is designed for floor mounting. Ensure the fixture is placed on a stable, level surface. For elevated installations, use appropriate clamps and safety cables (not included) to secure the fixture to a truss or mounting bar. Always ensure the mounting surface can support the weight of the fixture (approximately 20 pounds).
4.2 Připojení napájení
Connect the provided power cable to the power input on the rear of the fixture. The unit operates on 240 Volts AC power. Ensure the power source matches the fixture's requirements before connecting.
4.3 DMX připojení (volitelné)
For DMX control, connect a DMX controller to the fixture's DMX IN port using a 3-pin or 5-pin DMX cable. If linking multiple fixtures, connect the DMX OUT of the first fixture to the DMX IN of the next, and so on. Ensure the last fixture in the chain has a DMX terminator connected to its DMX OUT port to prevent signal reflection.
5. Návod k obsluze
5.1 Ovládací panel
The fixture features a digital display and control buttons on its rear panel for mode selection and parameter adjustment. Use the MENU, UP, DOWN, and ENTER buttons to navigate and select settings.
5.2 Provozní režimy
- Režim stmívače: Upravte celkový jas světelného výstupu.
- Režim blednutí barev: Cycles through various color fades (if applicable for the color version, though this is WW). For the WW model, this might refer to dimming fades.
- Zvukově aktivní režim: The fixture reacts to sound, typically by strobing or dimming in response to audio input.
- Režim ovládání DMX: Allows external control of all fixture functions via a DMX controller. Select one of the 3 DMX Channel Modes (1, 2, or 3) to match your controller's setup.
5.3 Zoom and Focus Adjustment
Encore Profile 1000 WW features manual zoom and focus. Adjust the knobs on the fixture's body to achieve your desired beam angle and sharpness. There is no need to change lenses for different beam angles; simply adjust the integrated mechanism.
5.4 Gobo Installation
The fixture includes a gobo holder. To install a gobo, carefully open the gobo slot, insert your desired gobo, and secure it. The fixture comes with 4 standard gobos. This allows for projecting patterns or logos onto surfaces.
5.5 Framing Shutters
Use the integrated framing shutters to precisely shape the light beam. These shutters allow you to create sharp edges and mask off areas, providing greater control over the projected light.
6. Údržba
Regular maintenance is crucial for the longevity and optimal performance of your ADJ Encore Profile 1000 WW. Always disconnect the fixture from power before performing any maintenance.
6.1 Čištění
Periodically clean the exterior of the fixture, especially the lens, with a soft, lint-free cloth. For stubborn dirt, a mild glass cleaner can be used sparingly on the lens. Ensure no liquid enters the fixture's internal components. Keep ventilation openings clear of dust and debris to ensure proper airflow and cooling.
6.2 Skladování
When not in use, store the fixture in a dry, dust-free environment. If transporting, use a padded case to protect it from physical damage.
7. Řešení problémů
Pokud se s Encore Pro setkáte s problémyfile 1000 WW, please refer to the following common troubleshooting steps before contacting customer support:
- Bez napájení:
- Check that the power cable is securely connected to both the fixture and a working power outlet.
- Ověřte, zda zásuvka dodává správné napětí.tage (240 V).
- Inspect the fuse on the fixture's rear panel. Replace if blown (refer to specifications for fuse type).
- Žádný světelný výkon:
- Ensure the dimmer setting is not at 0% or minimum.
- If in DMX mode, check your DMX controller's output and channel assignments.
- Confirm the operating mode is correctly selected.
- Nesprávné ovládání DMX:
- Verify DMX cables are correctly connected (IN to OUT, and vice-versa).
- Check that the DMX address on the fixture matches the address set on your controller.
- Ensure the DMX channel mode selected on the fixture matches your DMX setup.
- Use a DMX terminator on the last fixture in the chain.
- Neobvyklý hluk nebo přehřátí:
- Ujistěte se, že ventilační otvory nejsou blokovány.
- Operate the fixture in a well-ventilated area.
- If the issue persists, discontinue use and contact qualified service personnel.
8. Specifikace
| Specifikace | Hodnota |
|---|---|
| Značka | ADJ |
| Číslo modelu | ENCORE PROFILE 1000 WW |
| Barva | Teplá bílá |
| Typ světelného zdroje | Light Emitting Diode (COB LED) |
| Světelný zdroj Wattage | 120 wattů |
| Jas | 5970 luxů |
| Teplota barev | 3200 tis |
| CRI | 98 |
| svtage | 240 voltů |
| Ampvymazat | 0.6 Amps |
| Spotřeba energie | 144W |
| Zdroj napájení | Elektrický kabel |
| Hmotnost položky | 20 libry |
| Rozměry produktu | 22 cm D x 14 cm Š x 14 cm V |
| Typ montáže | Montáž na podlahu |
| Režimy DMX kanálu | 1. 2. 3 |
| Gobos Included | 4 |
| Specifikace splněna | ETL |
| Země původu | Čína |
| UPC | 819730017932 |
9. Obrázky produktů

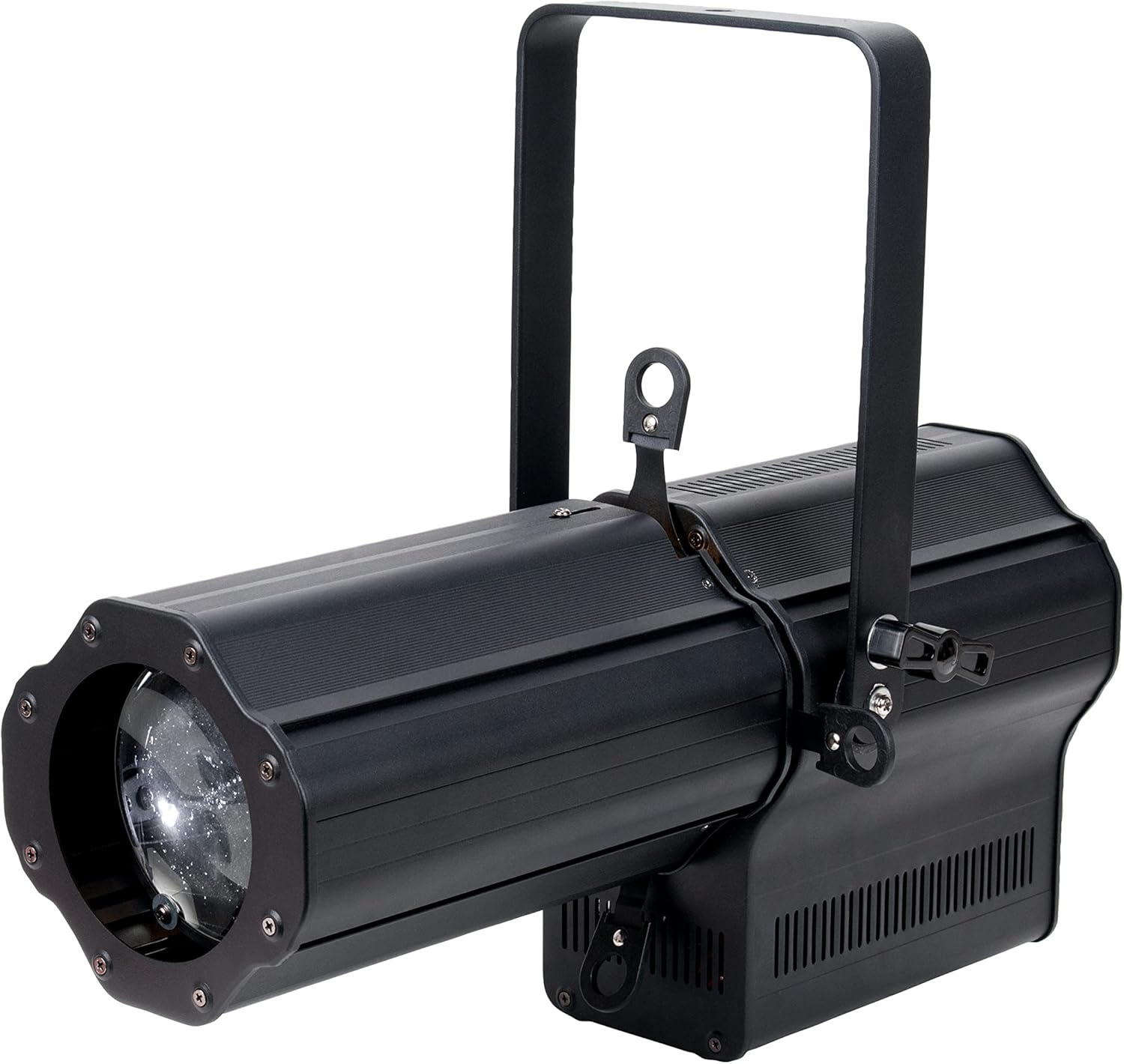

Přední view ADJ Encore Profile 1000 WW Ellipsoidal, showcasing its sleek black design and the lens assembly.

Rear panel of the Encore Profile 1000 WW, displaying the digital control screen, navigation buttons, DMX IN/OUT ports (3-pin and 5-pin), and power connections.

Bývalýample of the Encore Profile 1000 WW in use, projecting an intricate gobo pattern onto a wall in a large event space, demonstrating its pattern projection capabilities.

Encore Profile 1000 WW being used as a spotlight on a dark stage, highlighting its ability to create focused and intense beams for theatrical or performance settings.
10. Oficiální produktová videa
This video features Jose Heredia from ADJ at Infocomm 2016, providing an overview of the Encore Profile 1000 WW and its color variant. He highlights key features such as manual focus and zoom, framing shutters, gobo holders, and the cool operation of the LED light source.
