Návod k obsluze pneumatické karosářské pily M7 14.5 mm s nízkými vibracemi

1. Bezpečnostní informace

Always read and understand all safety warnings and instructions before operating this air body saw. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Keep this manual for future reference.

Obecná bezpečnostní pravidla

• Bezpečnost pracovního prostoru: Udržujte pracovní prostor čistý a dobře osvětlený. Nepořádek nebo tmavé prostory vedou k nehodám. Nepoužívejte elektrické nářadí ve výbušném prostředí, například v přítomnosti hořlavých kapalin, plynů nebo prachu.
• Osobní bezpečnost: Always wear appropriate personal protective equipment (PPE), including safety glasses or goggles, hearing protection, and gloves. Dress properly; avoid loose clothing or jewelry that can get caught in moving parts.
• Použití a péče o nářadí: Do not force the tool. Use the correct tool for your application. Disconnect the air supply before making any adjustments, changing accessories, or storing the tool. Ensure the tool is securely connected to a clean, dry air supply at the recommended pressure.
• Údržba: Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool repaired before use.

This product meets OSHA specifications for safety.

2. Konec produktuview

The M7 QD-321 Air Body Saw is a high-performance pneumatic tool designed for efficient cutting of various materials including metals, plastics, and sheet rock. Its low vibration design and ergonomic grip enhance user comfort and reduce fatigue during extended use.

Klíčové vlastnosti

• 14.5mm stroke length and 11000 SPM (Strokes Per Minute) for fast cutting.
• Efficient stroke rates increase work efficiency by 20%.
• Special air flow design reduces vibration by 30%.
• Streamlined design and ergonomic grip for reduced user fatigue.

Komponenty produktu

Obrázek 2.1: Strana view of the M7 QD-321 Air Body Saw, highlighting its compact design.

3. Nastavení

Vybalování

Carefully remove the M7 QD-321 Air Body Saw and all accessories from its packaging. Inspect the tool for any signs of damage that may have occurred during shipping. If any damage is found, do not operate the tool and contact your supplier immediately.

Connecting Air Supply

The M7 QD-321 requires a clean, dry, and regulated air supply. Ensure your air compressor is capable of providing the necessary air pressure and volume (refer to specifications). Use an air hose with an inner diameter of at least 3/8 inch (10 mm) for optimal performance.

1. Apply a few drops of pneumatic tool oil into the air inlet of the tool.
2. Attach a quick-connect fitting (not included) to the air inlet of the saw.
3. Connect the air hose from your compressor to the quick-connect fitting.
4. Set your air compressor regulator to the recommended operating pressure (typically 90 PSI / 6.2 Bar).

Obrázek 3.1: Detail view of the air inlet, where the air hose connects.

Instalace čepele

Always ensure the air supply is disconnected before installing or changing blades.

1. Vyhledejte čepel clamp mechanism at the front of the saw.
2. Loosen the blade retention screw or lever (if applicable) to open the clamp.
3. Insert the shank of the appropriate saw blade into the clamp, ensuring it is fully seated.
4. Tighten the blade retention screw or lever securely to hold the blade firmly in place.
5. Gently pull on the blade to confirm it is locked and will not come loose during operation.

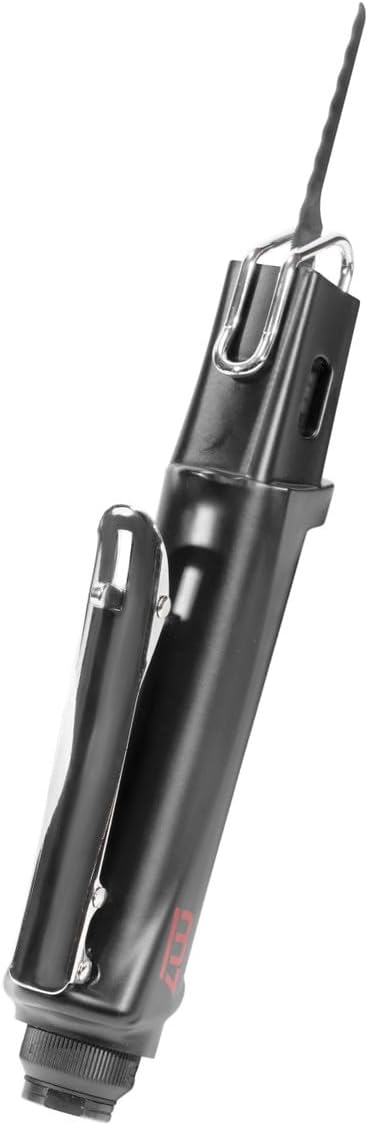

Obrázek 3.2: Úhlové view of the saw, illustrating the blade and front mechanism.

4. Provoz

The M7 QD-321 Air Body Saw is designed for precise cutting. Always wear safety glasses and hearing protection during operation.

Spuštění nástroje

1. Ensure the air supply is connected and regulated to the correct pressure.
2. Grip the tool firmly with both hands, maintaining a stable stance.
3. Depress the trigger to start the saw. The blade will begin reciprocating.

Postupy řezání

Before cutting, mark your desired cut line clearly on the material. Secure the workpiece to prevent movement during cutting.

• Počáteční střih: Place the blade gently against the material at the starting point of your cut. Apply light, consistent pressure.
• Řezný pohyb: Guide the saw along the marked line. Allow the saw to do the work; do not force it. Excessive pressure can reduce blade life and cutting efficiency.
• Materiálová kompatibilita: This saw is suitable for cutting metals, plastics, and sheet rock. Ensure the blade type is appropriate for the material being cut.

Nejlepší postupy

• Maintain a steady hand and consistent feed rate for cleaner cuts.
• Periodically check the blade for wear or damage and replace as needed.
• The special air flow design helps reduce vibration, contributing to more comfortable and precise operation.

5. Údržba

Regular maintenance ensures the longevity and optimal performance of your M7 QD-321 Air Body Saw.

Čištění

• After each use, disconnect the air supply and wipe down the tool with a clean, dry cloth.
• Remove any debris or dust from the blade area and ventilation ports using compressed air or a soft brush.

Mazání

Pneumatic tools require regular lubrication to maintain internal components.

• Apply 5-10 drops of pneumatic tool oil into the air inlet before each use, or at least once daily if used frequently.
• Run the tool for a few seconds after applying oil to distribute it throughout the motor.

Výměna čepele

Replace blades when they become dull, bent, or damaged to ensure efficient and safe cutting.

• Odpojte přívod vzduchu.
• Follow the blade installation steps in Section 3 in reverse to remove the old blade.
• Install a new, appropriate blade as described in Section 3.

Skladování

Store the tool in a clean, dry environment away from direct sunlight and extreme temperatures. Disconnect the air supply and ensure the tool is clean before storage.

6. Řešení problémů

This section provides solutions to common issues you might encounter with your M7 QD-321 Air Body Saw.

7. Specifikace

Detailed technical specifications for the M7 QD-321 Air Body Saw.

8. Záruka a podpora

M7 products are manufactured to high-quality standards. For specific warranty information regarding your QD-321 Air Body Saw, please refer to the warranty card included with your purchase or visit the official M7 webmísto.

For technical support, spare parts, or service inquiries, please contact your authorized M7 dealer or the manufacturer directly. You can find more information and contact details on the M7 Store on Amazon.
