Bestway 56432

Bestway Steel Pro Round Kids Pool with UV Canopy (Model 56432)

Návod k použití

Zavedení

This manual provides essential information for the safe assembly, operation, and maintenance of your Bestway Steel Pro Round Kids Pool with UV Canopy, Model 56432. Please read all instructions carefully before setting up and using the product. Retain this manual for future reference.

Bestway Steel Pro Round Kids Pool with UV Canopy, assembled and filled with water, with children playing inside.

Image: The Bestway Steel Pro Round Kids Pool, fully assembled with its UV canopy, showing children enjoying the water. The pool features a colorful fruit design on its exterior.

Důležité bezpečnostní informace

Obsah balení

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact Bestway customer service.

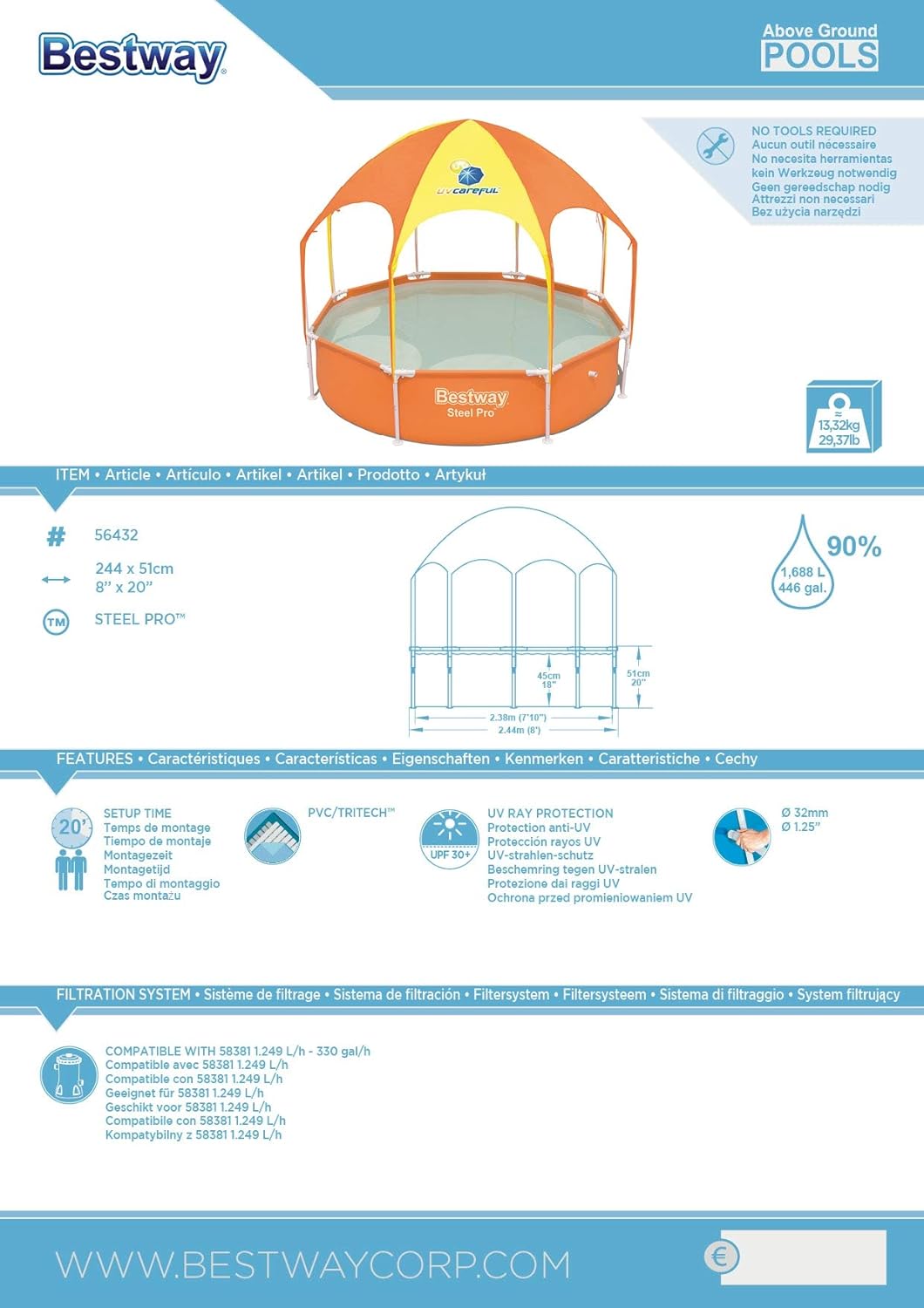

Bestway Steel Pro Pool packaging showing components and features.

Image: Product packaging displaying the pool, its components, and key features such as UV protection and easy setup.

Pokyny pro nastavení

Assembly is straightforward and requires no special tools. It is recommended that two adults perform the setup.

  1. Výběr webu: Choose a firm, level surface free of sharp objects, debris, and overhead obstructions. The area should be large enough to accommodate the pool (2.44m diameter) and provide safe access.
  2. Rozbalte komponenty: Carefully remove all parts from the packaging. Spread out the pool liner in the chosen area.
  3. Sestavte rám: Connect the steel poles according to the diagrams provided in the separate assembly guide (refer to the box for visual steps). Ensure all connections are secure.
    Close-up of the Bestway Steel Pro pool frame connection point.

    Image: Detail of the steel frame connection, showing how the horizontal and vertical poles interlock securely.

  4. Attach Pool Liner: Carefully thread the frame poles through the sleeves on the pool liner. Ensure the drain valve is positioned correctly for easy access.
  5. Instalace stříšky: Assemble the canopy frame and attach it to the main pool structure. The canopy provides UV protection.
    Bestway Steel Pro Pool packaging showing canopy setup steps.

    Image: Product packaging illustrating the step-by-step process for assembling and attaching the UV protection canopy to the pool frame.

  6. Connect Rain-effect Sprayer: Attach a standard garden hose to the rain-effect water connection located on the canopy.
  7. Závěrečná kontrola: Before filling, ensure all connections are tight and the pool structure is stable. Smooth out any wrinkles in the pool liner.

Návod k obsluze

  1. Naplnění bazénu: Begin filling the pool with water. As the water level rises, gently pull the outer edges of the liner to ensure it is evenly distributed and seated correctly within the frame. Fill to approximately 90% capacity (1,688 liters / 446 gallons), which is indicated by the fill line on the liner.
  2. Using the Integrated Sprayer: Once the pool is filled, turn on the water supply to the garden hose connected to the canopy. The integrated sprayer will create a gentle rain effect, adding to the fun.
    Children playing under the rain-effect sprayer of the Bestway Steel Pro pool canopy.

    Image: Children enjoying the integrated rain-effect sprayer feature of the pool's UV canopy, with water gently falling into the pool.

  3. UV ochrana: The canopy provides UPF 40+ UV protection, shielding users from direct sunlight.

Údržba

Odstraňování problémů

ProblémMožná příčinaŘešení
Z bazénu uniká voda.Small puncture in liner, loose drain valve cap.Locate the puncture and repair with a vinyl repair kit (not included). Ensure the drain valve cap is securely tightened.
Pool structure feels unstable.Uneven ground, frame not fully assembled.Ensure the pool is on a perfectly level surface. Recheck all frame connections to ensure they are securely locked.
Rain-effect sprayer not working.Hose not connected, water supply off, clogged nozzle.Verify garden hose is securely attached and water supply is on. Check sprayer nozzles for any blockages.

Specifikace

FunkceDetail
Číslo modelu56432
Rozměry (průměr x výška)2.44 m x 51 cm (8 ft x 20 in)
Vodní kapacita (90 %)1,688 litru (446 galonu)
Materiál (vložka)High-strength Polyvinyl Chloride (PVC)
Materiál rámuLegovaná ocel
TvarKolo
BarvaColorful Fruit Design
Funkce stříškyUV Protection (UPF 40+), Integrated Sprayer
Hmotnost produktu11.72 kg (25.84 lb)
Doporučený věkový rozsahDítě
Diagram showing the dimensions and water capacity of the Bestway Steel Pro pool.

Image: Technical diagram illustrating the pool's dimensions (2.44m diameter, 51cm height) and its 90% fill capacity of 1,688 liters (446 gallons).

Záruka a podpora

For warranty information, product support, or to order replacement parts, please refer to the warranty card included with your product or visit the official Bestway webUschovejte si doklad o koupi pro případ reklamace.

Výrobce: Bestway
