Zanussi Dishwasher Suction/Drain Body Instruction Manual

Zavedení

This manual provides essential instructions for the installation, operation, and maintenance of your Zanussi Dishwasher Suction/Drain Body. This component is designed for specific Zanussi and Electrolux dishwasher models to manage water suction and drainage effectively. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the part.

Konec produktuview

The Zanussi Dishwasher Suction/Drain Body is a complete unit designed for the suction and drainage system of compatible dishwashers. It features specific dimensions and connection types to ensure a secure fit and efficient water flow.

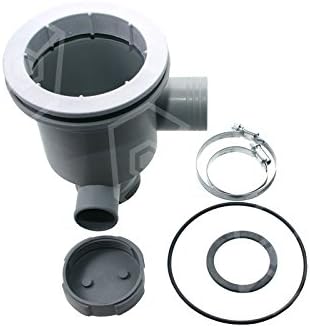

Obrázek 1: The Zanussi Dishwasher Suction/Drain Body, shown with its main housing, a threaded cap, a hose clamp, and various sealing gaskets. This image illustrates the complete assembly of the component.

Klíčové komponenty:

• Hlavní tělo: The primary housing for water intake/outflow.
• Závitové připojení: For secure attachment to the dishwasher's internal system.
• Připojení hadice: For attaching the drainage hose.
• Těsnicí těsnění: Essential for preventing leaks.
• Hadice Clamp: For securing the drainage hose.

Nastavení a instalace

Installation of the suction/drain body requires careful attention to ensure a watertight seal and proper function. It is recommended that installation be performed by a qualified technician if you are unfamiliar with dishwasher component replacement.

1. Příprava:
   • Disconnect the dishwasher from the main power supply.
   • Turn off the water supply to the dishwasher.
   • Drain any residual water from the dishwasher.
   • Access the area where the existing suction/drain body is located. This may involve tilting or moving the dishwasher.
2. Odstranění starého dílu:
   • Carefully disconnect the drainage hose and any threaded connections from the old suction/drain body.
   • Odstraňte všechny třamps or fasteners securing the old unit.
   • Extract the old suction/drain body.
3. Instalace nového dílu:
   • Ujistěte se, že montážní povrch je čistý a bez nečistot.
   • Position the new Zanussi Dishwasher Suction/Drain Body, ensuring all sealing gaskets are correctly seated.
   • Connect the threaded part (2" thread) securely.
   • Attach the drainage hose to the hose connection (35/47mm) and secure it with the provided hose clamp.
   • Verify all connections are tight and properly aligned.
4. Závěrečné kontroly:
   • Restore the water supply and check for any leaks around the newly installed component.
   • Znovu zapojte myčku do elektrické sítě.
   • Run a short test cycle to confirm proper drainage and operation.

Poznámka: The outer diameter of the body is 125mm. Ensure this matches the required space in your dishwasher model.

Provozní principy

This suction/drain body is a passive component within the dishwasher's hydraulic system. Its primary function is to facilitate the intake of water for washing cycles and the efficient drainage of wastewater. It acts as a critical junction for water flow, ensuring that water is directed correctly within the appliance.

Proper installation ensures that the dishwasher can fill and drain without obstruction, contributing to effective cleaning and preventing water accumulation.

Údržba

Regular inspection and occasional cleaning can extend the lifespan of the suction/drain body and prevent issues.

• Vizuální kontrola: Periodically check the visible parts of the suction/drain body and its connections for any signs of wear, cracks, or leaks.
• Připojení hadice: Ensure the drainage hose remains securely clamped and free from kinks or blockages.
• Čištění: If accessible, gently clean any debris or residue that may accumulate around the inlet/outlet ports. Avoid using harsh chemicals that could damage the plastic components or seals.
• Integrita těsnění: Over time, rubber gaskets can degrade. If leaks occur, inspect the gaskets and replace them if they appear brittle or damaged.

Odstraňování problémů

If you experience issues with your dishwasher related to water intake or drainage, consider the following:

• No Water Intake:
  • Check if the water supply to the dishwasher is fully open.
  • Inspect the inlet hose for kinks or blockages.
  • Ensure the suction body is correctly installed and not obstructed.
• Poor Drainage / Water Remaining:
  • Verify the drainage hose is not kinked or blocked.
  • Check the dishwasher's filter for food debris.
  • Inspect the suction/drain body for internal blockages.
• úniky:
  • Immediately turn off the water supply and power to the dishwasher.
  • Inspect all connections around the suction/drain body, especially the threaded and hose connections.
  • Ensure all gaskets are properly seated and not damaged. Tighten connections if loose.

If problems persist after performing these checks, it is advisable to contact a qualified appliance repair technician.

Specifikace

Záruka a podpora

For information regarding warranty coverage, please refer to the documentation provided at the time of purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.

If you require technical assistance or have questions not covered in this manual, please contact the manufacturer or the retailer from whom you purchased this product. Provide them with the model number and part number for efficient support.
