Vogel's WALL 2145 B TV Wall Mount Instruction Manual

1. Úvod

This manual provides comprehensive instructions for the safe and proper installation, operation, and maintenance of your Vogel's WALL 2145 B TV wall mount. Please read all instructions carefully before beginning installation to ensure optimal performance and safety.

1.1 Bezpečnostní informace

• Ujistěte se, že konstrukce stěny unese celkovou hmotnost držáku a televizoru. V případě nejistoty se poraďte s odborníkem.
• Use only the provided mounting hardware or suitable alternatives recommended by Vogel's.
• Nepřekračujte maximální nosnost 15 kg (33 liber).
• Před použitím se ujistěte, že jsou všechny šrouby pevně utaženy.
• Udržujte děti a domácí zvířata mimo dosah místa instalace.
• Always follow local building codes and regulations.

2. Vlastnosti produktu

The Vogel's WALL 2145 B TV wall mount is designed to provide a secure and flexible viewing experience for your television. Key features include:

• Bezpečná montáž na stěnu: Sturdy bracket safely secures TVs weighing up to 15 kg (33 lbs).
• Swivel and Tilt Functionality: Allows for smooth rotation up to 180 degrees and tilt up to 20 degrees to optimize viewúhly a snižují oslnění.
• Prodloužitelné rameno: Extends the TV up to 41 cm (16.1 inches) from the wall for flexible positioning.
• Univerzální kompatibilita: Compatible with flat screen TVs ranging from 19 to 40 inches (48-104 cm), supporting VESA mounting patterns up to 200x200 mm.
• Snadná instalace: Pre-assembled design with all required screws and a detailed manual for straightforward setup. An instruction video is also available from the manufacturer.

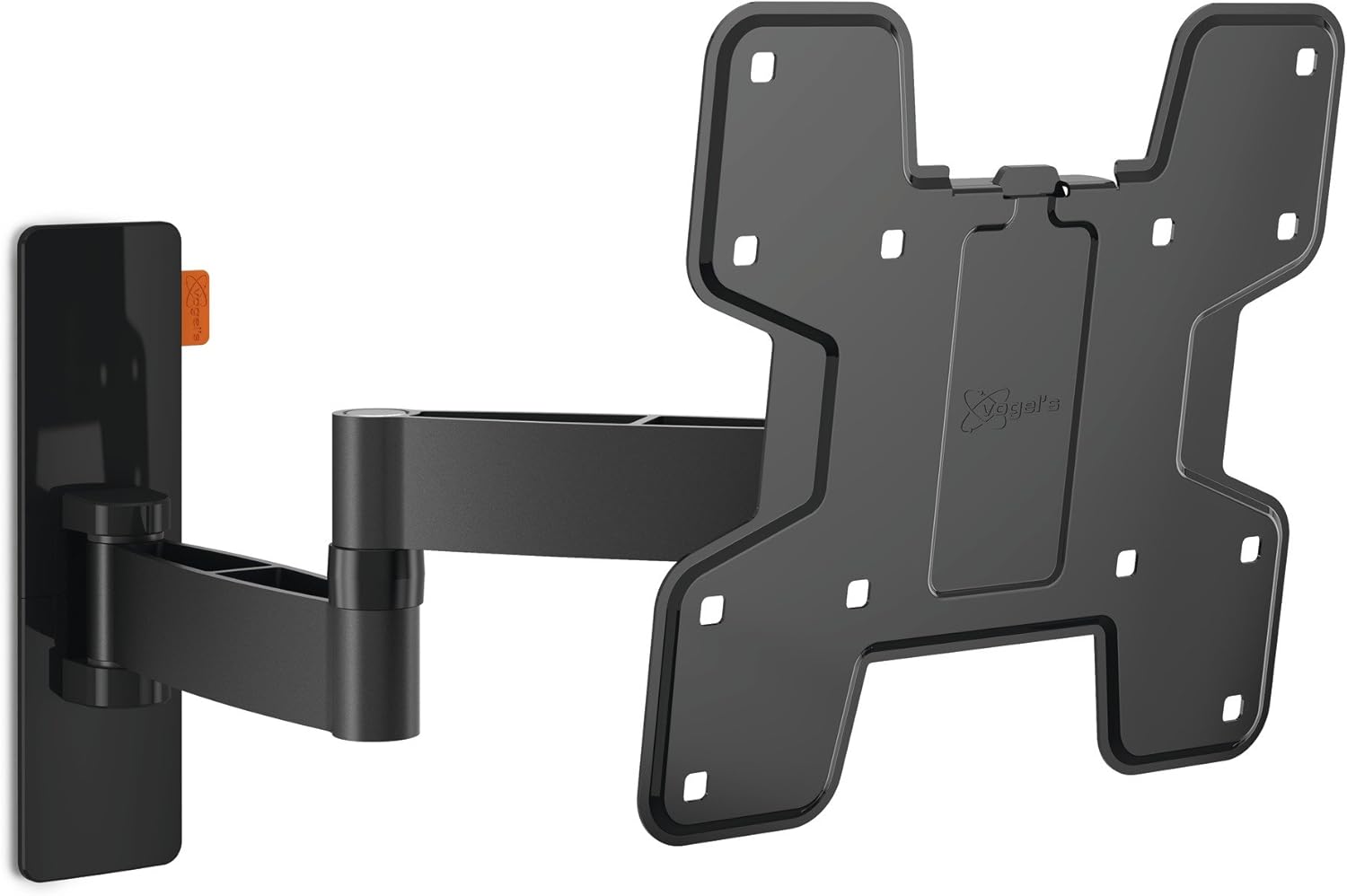

Image: The Vogel's WALL 2145 B TV wall mount, showcasing its articulated arm and TV mounting plate.

3. Obsah balení

Před zahájením instalace se prosím ujistěte, že jsou všechny komponenty přítomny:

• Vogel's WALL 2145 B Wall Mount Assembly (pre-assembled)
• TV Attachment Plate
• Mounting Hardware Kit (various screws, anchors, washers for wall and TV attachment)
• Instalační šablona (pokud je součástí dodávky)
• Uživatelská příručka

4. Nastavení a instalace

Follow these steps for a secure installation. It is recommended to have a second person assist during certain stages instalace.

4.1 Potřebné nástroje (není součástí balení)

• Vrtat
• Vrtáky vhodné pro materiál zdi a velikost hmoždinky
• Stud finder (for drywall installation)
• Úroveň
• Tužka
• Šroubovák s křížovou hlavou
• Socket wrench (if applicable)

4.2 kroky instalace

1. Určete místo montáže: Vyberte si vhodné místo na zdi s ohledem na viewing angles, power outlets, and cable management. Ensure the wall material is appropriate for mounting.
2. Locate Wall Studs (for wood stud walls): Use a stud finder to locate the center of two adjacent wooden studs. Mark these locations with a pencil. For concrete or brick walls, no studs are required, but ensure the wall is solid.
3. Označte vrtné body: Hold the wall plate of the mount against the wall at the desired height and position. Use a level to ensure it is perfectly horizontal. Mark the drilling points through the mounting holes on the wall plate. Refer to the dimension diagram for precise measurements.


   Image: Technical diagram showing the dimensions and VESA mounting hole patterns (Min 100/3.9 - Max 200/7.9 mm/inch) and wall extension (Min 70/2.7 - Max 410/16.1 mm/inch) of the WALL 2145 B mount.

4. Vrtací pilotní otvory: Drill pilot holes at the marked locations. The size of the drill bit will depend on the type of wall anchors being used (e.g., for wood studs, concrete anchors).
5. Připevnění nástěnné desky: Secure the wall plate to the wall using the appropriate screws and anchors from the hardware kit. Ensure it is firmly attached and level.
6. Připevnění držáků televizoru k televizoru: Carefully place your TV face down on a soft, clean surface. Attach the TV attachment plate to the back of your television using the screws that fit your TV's VESA mounting holes. Ensure the brackets are centered and securely fastened.


   Obrázek: Boční view of the Vogel's WALL 2145 B TV wall mount with a television attached, demonstrating its extension from the wall.

7. Mount TV onto Wall Mount: With assistance, carefully lift the television and hook the TV attachment plate onto the wall mount arm. Ensure the TV is securely seated on the mount.
8. Zabezpečená televize: Use the provided safety screws or locking mechanisms to secure the TV to the mount, preventing accidental dislodgement.

Image: The Vogel's WALL 2145 B TV wall mount installed in a living space, showcasing its integration with a television.

5. Ovládání držáku

The Vogel's WALL 2145 B mount offers flexible positioning for your TV:

• Otočný: Gently grasp the sides of your TV and pivot it left or right. The mount allows for a full 180-degree swivel range (90 degrees left and 90 degrees right from center), depending on TV size and wall clearance.
• Náklon: To adjust the vertical viewing angle, gently push the top or bottom of your TV forward or backward. The mount supports a tilt range of up to 20 degrees (typically +10 degrees up and -10 degrees down).
• Prodloužení/zatažení: Pull the TV gently away from the wall to extend the arm, or push it back towards the wall to retract. The arm extends up to 41 cm (16.1 inches) from the wall.

Televizor vždy pohybujte plynule a vyvarujte se náhlých trhnutí. Netlačte držák silou mimo jeho zamýšlený rozsah pohybu.

6. Údržba

Pravidelná údržba zajišťuje dlouhou životnost a bezpečný provoz vašeho nástěnného držáku televizoru:

• Čištění: Otřete držák měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla, protože by mohly poškodit povrchovou úpravu.
• Kontrola upevňovacích prvků: Pravidelně kontrolujte všechny šrouby a vruty, zda jsou pevně utažené. V případě potřeby je dotáhněte, ale nepřetahujte je.
• Kontrola pohybu: Occasionally test the swivel and tilt mechanisms to ensure they move smoothly. If movement becomes stiff, check for any obstructions or debris.

7. Řešení problémů

If you encounter issues with your Vogel's WALL 2145 B mount, refer to the following common problems and solutions:

If you continue to experience issues, please contact Vogel's customer support.

8. Specifikace

9. Záruka a podpora

Vogel's stands by the quality of its products.

9.1 Doživotní záruka

This Vogel's product comes with a Lifetime Guarantee, reflecting over 40 years of experience in designing and manufacturing high-quality mounts for home electronics. This warranty covers defects in materials and workmanship under normal use.

Image: Graphic seal indicating Vogel's Lifetime Guarantee, highlighting certified quality, strong & secure mounting, all materials included, and clear instructions.

9.2 Zákaznická podpora

For technical assistance, warranty claims, or further inquiries, please visit the official Vogel's website or contact their customer support department. Contact information can typically be found on the Vogel's webmísto nebo obal produktu.

Webmísto: www.vogels.com
