DuroMax XP10000EH Dual Fuel Portable Generator User Manual

1. Úvod

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your DuroMax XP10000EH Dual Fuel Portable Generator. The XP10000EH is designed to provide reliable power using either gasoline or liquid propane, making it versatile for various applications, including home backup, RV use, and jobsites. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.

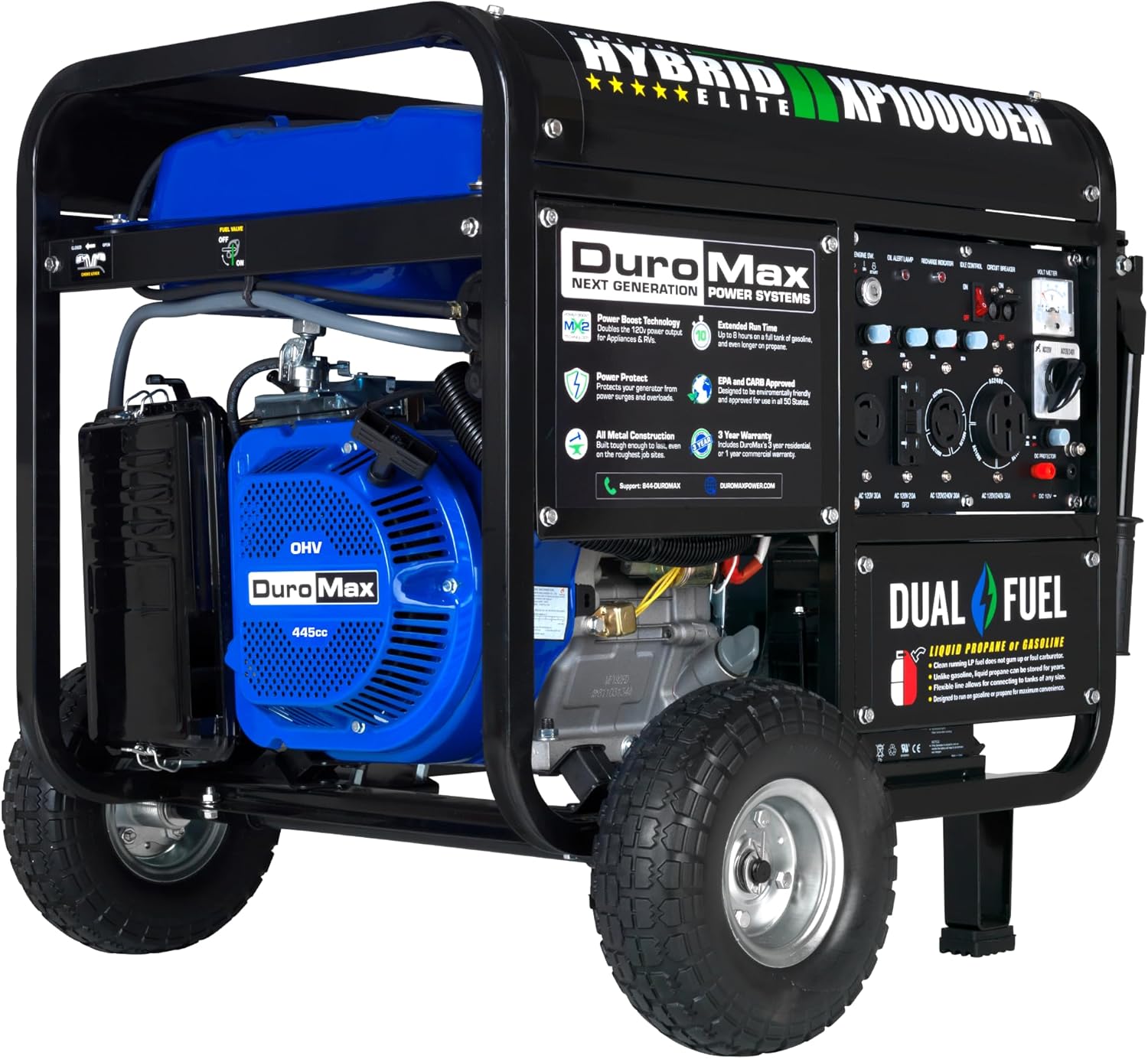

Image 1.1: The DuroMax XP10000EH Dual Fuel Portable Generator.

2. Bezpečnostní informace

Operating a generator can be hazardous if proper safety precautions are not followed. Always prioritize safety to prevent serious injury or death. This section outlines critical safety guidelines. Refer to the complete owner's manual for a comprehensive list of safety instructions.

2.1 Nebezpečí oxidu uhelnatého

• Generators produce carbon monoxide (CO), an odorless, colorless, and poisonous gas.
• NIKDY operate the generator indoors, in a garage, or in any enclosed or partially enclosed area.
• Always operate the generator outdoors in a well-ventilated area, far away from windows, doors, and vents.
• Nainstalujte si doma nebo v karavanu bateriové detektory oxidu uhelnatého.

2.2 Elektrická bezpečnost

• Do not operate the generator in wet conditions, such as rain or snow.
• Ujistěte se, že všechna elektrická připojení jsou bezpečná a řádně uzemněná.
• Používejte pouze schválené prodlužovací kabely, které jsou určeny pro venkovní použití a mají odpovídající ampvymazat.
• If connecting to a home's electrical system, use a transfer switch installed by a qualified electrician to prevent backfeeding into the utility grid.

2.3 Bezpečnost paliva

• Gasoline and propane are highly flammable. Handle with extreme care.
• Refuel gasoline only when the engine is off and cool.
• Palivo skladujte ve schválených nádobách v dobře větraném prostoru, mimo dosah zdrojů zapálení.
• Do not smoke near the generator or fuel.

3. Vybalení a montáž

Carefully remove the generator and all components from the packaging. Inspect for any shipping damage. The following components are typically included:

• XP10000EH Generator Unit
• Nálevka na olej
• Klíč na zapalovací svíčku
• Sada nářadí
• Wheel & Handle Kit
• DC Charging Cables
• Regulátor propanu
• Návod k obsluze

3.1 Upevnění koleček a rukojeti

Follow the instructions in the owner's manual to securely attach the wheels and handle kit. This will facilitate moving the generator.

4. Nastavení

Before starting the generator for the first time, perform the following setup steps:

4.1 Doplnění motorového oleje

The generator is shipped without engine oil. Add the recommended type and amount of oil before first use. Refer to the owner's manual for specific oil type (e.g., 10W-30) and capacity. Use the provided oil funnel to prevent spills.

4.2 Připojení baterie

For electric start models, connect the battery terminals according to the instructions in the owner's manual. Ensure correct polarity (positive to positive, negative to negative) to avoid damage.

4.3 Doplňování paliva do generátoru

The XP10000EH operates on either gasoline or liquid propane.

• Benzín: Naplňte palivovou nádrž čerstvým bezolovnatým benzínem (minimálně 87 oktanů). Nepřeplňujte.
• Kapalný propan: Connect a standard propane tank (not included) to the generator using the provided propane regulator and hose. Ensure all connections are tight and check for leaks.

Image 4.1: The XP10000EH supports both gasoline and propane fuel sources.

5. Návod k obsluze

Pro bezpečné spuštění a provoz generátoru postupujte podle těchto kroků.

5.1 Kontroly před spuštěním

• Ensure the generator is on a level surface outdoors, away from combustible materials.
• Zkontrolujte hladinu motorového oleje.
• Verify fuel level (gasoline) or propane tank connection.
• Ensure all circuit breakers on the control panel are in the 'OFF' position.

5.2 Starting the Generator (Electric Start)

1. Turn the fuel valve to the 'ON' position (for gasoline). If using propane, open the valve on the propane tank.
2. Set the choke lever to the 'CLOSED' or 'START' position (cold engine).
3. Insert the key into the ignition switch and turn it to the 'START' position. Hold until the engine starts, then release to 'RUN'.
4. Once the engine is running smoothly, gradually move the choke lever to the 'OPEN' or 'RUN' position.

5.3 Výběr paliva

The XP10000EH features a fuel selector switch on the control panel. Ensure the switch is set to the desired fuel type (Gasoline or Propane) before starting. Do not attempt to switch fuel types while the generator is running.

Image 5.1: The fully loaded power panel with various outlets and controls.

5.4 Připojení zátěží

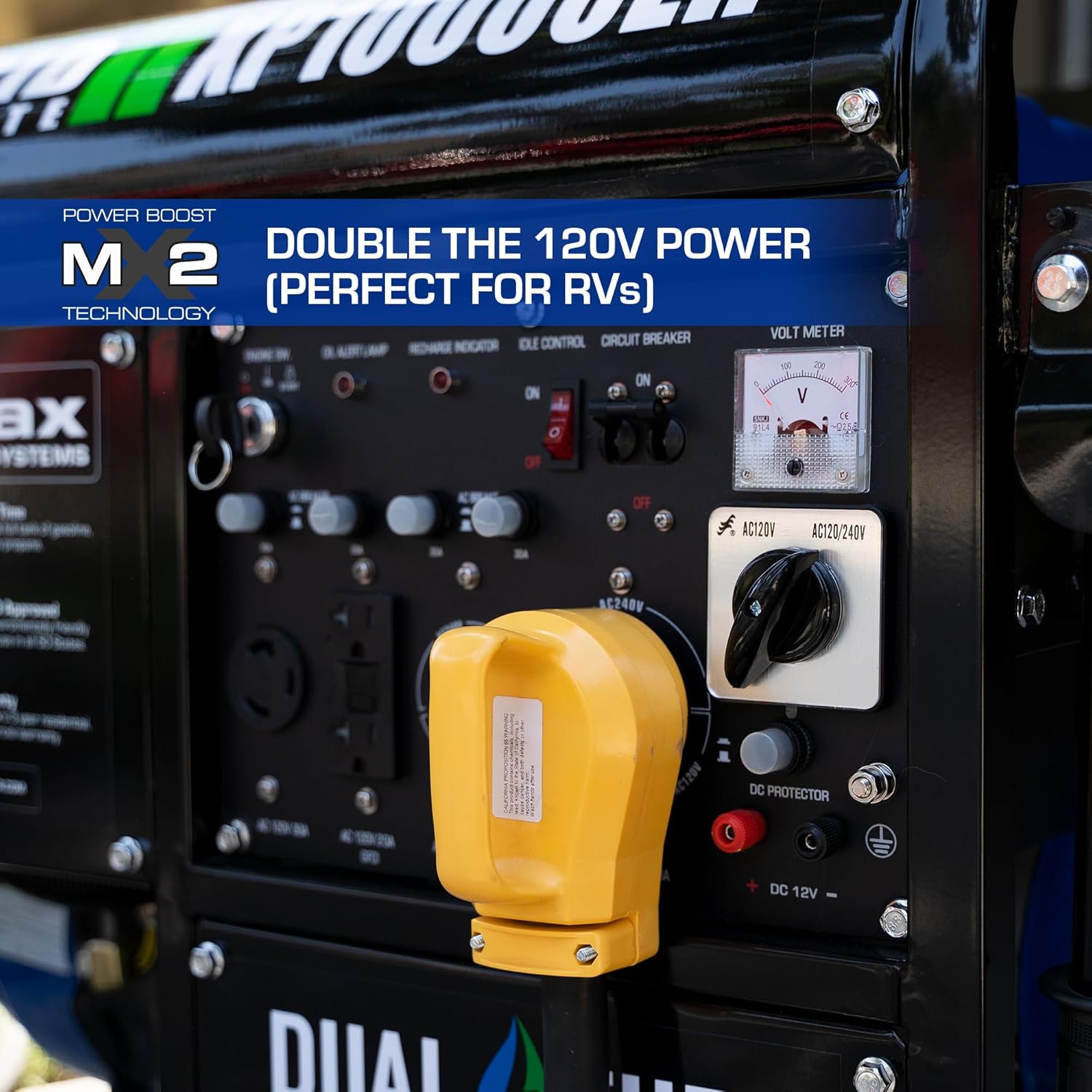

Once the generator is running and stable, you can connect your electrical devices. Flip the circuit breakers on the control panel to the 'ON' position. The XP10000EH includes a variety of outlets, including a transfer switch-ready 50 amp outlet and MX2 Power Boost technology for increased 120V power.

Image 5.2: The 50 Amp outlet for home power backup.

5.5 Zastavení generátoru

1. Odpojte všechny elektrické zátěže.
2. Turn all circuit breakers to the 'OFF' position.
3. Otočte klíček zapalování do polohy „VYPNUTO“.
4. Close the fuel valve (for gasoline) or the valve on the propane tank.

6. Údržba

Regular maintenance ensures the longevity and reliable performance of your generator. Always perform maintenance when the engine is off and cool.

• Motorový olej: Před každým použitím zkontrolujte hladinu oleje. Vyměňte olej po prvních 20 hodinách provozu, poté každých 100 hodin nebo ročně.
• Vzduchový filtr: Pravidelně kontrolujte a čistěte vzduchový filtr. Pokud je poškozený, vyměňte ho.
• Zapalovací svíčka: Zapalovací svíčku kontrolujte a čistěte jednou ročně nebo každých 100 hodin provozu. V případě potřeby ji vyměňte.
• Palivový filtr: Inspect and replace as needed.
• Generální úklid: Udržujte generátor čistý a bez nečistot.

6.1 Skladování

For extended storage, drain the gasoline fuel tank and carburetor, or add a fuel stabilizer. Disconnect the propane tank. Clean the generator and store it in a dry, well-ventilated area.

7. Řešení problémů

This section addresses common issues you might encounter. For more detailed troubleshooting, consult the full owner's manual.

8. Specifikace

Key technical specifications for the DuroMax XP10000EH Dual Fuel Portable Generator:

Image 8.1: Product dimensions for the XP10000EH generator.

9. Záruka a podpora

The DuroMax XP10000EH Dual Fuel Portable Generator comes with a 3letá omezená záruka. For warranty claims, technical assistance, or to purchase replacement parts, please refer to the contact information provided in your original owner's manual or visit the official DuroMax webmísto.
