QANBA Q2 PRO LED

QANBA Q2 PRO LED Arcade Joystick PS3/PC Instruction Manual

Model: Q2 PRO LED | Brand: QANBA

1. Úvod

This manual provides detailed instructions for the setup, operation, and maintenance of your QANBA Q2 PRO LED Arcade Joystick. Designed for an authentic arcade experience, this fightstick is compatible with PlayStation 3 (PS3) and PC platforms. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

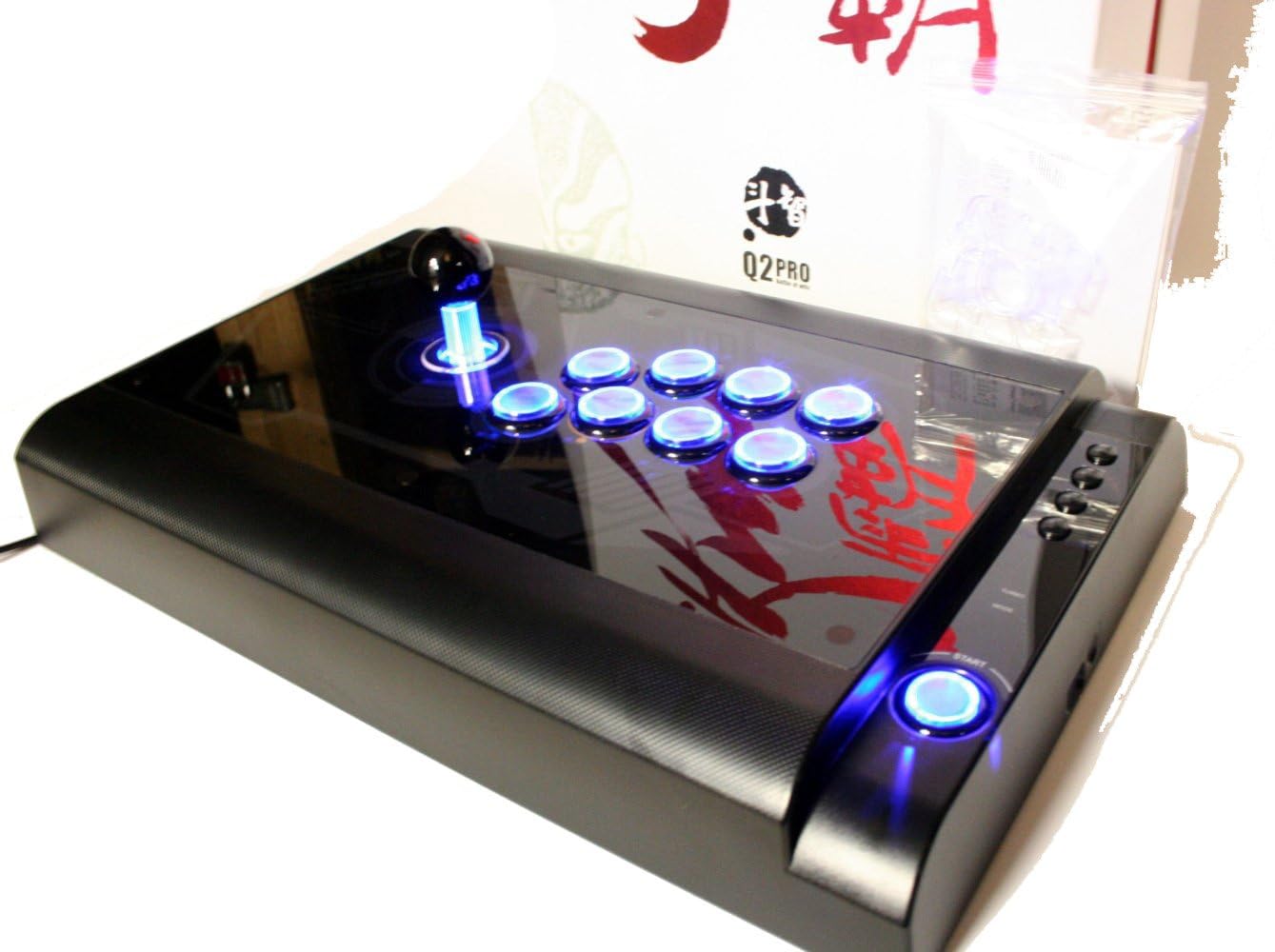

QANBA Q2 PRO LED Arcade Joystick with blue LEDs illuminated

Image 1.1: The QANBA Q2 PRO LED Arcade Joystick with its signature blue LED lighting activated.

2. Obsah balení

Ověřte, zda jsou v balení přítomny všechny níže uvedené položky:

  • QANBA Q2 PRO LED Arcade Joystick
  • USB Connection Cable (integrated or separate)
  • Návod k použití (tento dokument)
  • Spare parts (e.g., button caps, joystick restrictor gate - may vary by region/package)
QANBA Q2 PRO LED Arcade Joystick and its retail packaging

Image 2.1: The QANBA Q2 PRO LED Arcade Joystick alongside its product box.

3. Vlastnosti

The QANBA Q2 PRO LED Arcade Joystick offers several features designed to enhance your gaming experience:

  • LED osvětlení: Buttons and joystick feature vibrant blue LED lighting for visual appeal.
  • Kompatibilita s více platformami: Seamlessly switch between PlayStation 3 and PC.
  • Vysoce kvalitní komponenty: Equipped with durable arcade-grade joystick and buttons for precise input.
  • Ergonomický design: Comfortable layout for extended gaming sessions.
  • Robustní konstrukce: Built to withstand intense gameplay.
QANBA Q2 PRO LED Arcade Joystick with its retail box, showing illuminated buttons

Image 3.1: The QANBA Q2 PRO LED Arcade Joystick demonstrating its illuminated buttons and joystick.

4. Nastavení

4.1 Připojení k PlayStationu 3 (PS3)

  1. Ensure your PS3 console is powered off or in standby mode.
  2. Locate an available USB port on your PS3 console.
  3. Connect the USB cable from the QANBA Q2 PRO LED Arcade Joystick to the USB port on your PS3.
  4. Power on your PS3. The console should automatically detect the joystick.
  5. The joystick's LEDs will illuminate, indicating a successful connection.

4.2 Připojení k PC

  1. Ujistěte se, že je váš počítač zapnutý.
  2. Vyhledejte na počítači volný USB port.
  3. Connect the USB cable from the QANBA Q2 PRO LED Arcade Joystick to the USB port on your PC.
  4. Your operating system (e.g., Windows) will typically detect and install the necessary drivers automatically. This may take a few moments.
  5. Once drivers are installed, the joystick's LEDs will illuminate.
  6. You may need to configure the joystick within your game's control settings or through your operating system's game controller settings.

5. Návod k obsluze

The QANBA Q2 PRO LED Arcade Joystick features a standard arcade button layout and a responsive joystick for precise control.

5.1 Základní ovládací prvky

  • joystick: Used for directional input (Up, Down, Left, Right, and diagonals).
  • Akční tlačítka: Typically arranged in an 8-button layout, corresponding to game actions (e.g., punch, kick, jump).
  • Tlačítka Start/Vybrat: Located on the side or top panel, used for pausing games, navigating menus, etc.
  • PS Button (for PS3): Functions as the PlayStation button on a standard controller.
Detailní záběr view of the QANBA Q2 PRO LED Arcade Joystick's illuminated buttons and joystick

Obrázek 5.1: Podrobný view of the joystick and action buttons with their blue LED illumination.

5.2 LED Functionality

The blue LEDs on the joystick and buttons will automatically illuminate when the device is powered on and connected to a compatible system (PS3 or PC). There are no user-configurable settings for the LED lighting on this model.

5.3 Mode Switching (PS3/PC)

The QANBA Q2 PRO LED Arcade Joystick automatically detects the connected platform (PS3 or PC). No manual mode switching is required. Ensure the joystick is connected to the correct platform's USB port.

6. Údržba

Proper maintenance ensures the longevity and performance of your arcade joystick.

  • Čištění: Use a soft, dry cloth to wipe down the surface of the joystick. For stubborn marks, a slightly damp Lze použít hadřík s jemným mýdlem a ihned osušit. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
  • Skladování: Store the joystick in a cool, dry place away from direct sunlight and extreme temperatures. Protect it from dust when not in use.
  • Péče o kabely: Avoid sharp bends or kinks in the USB cable. Do not pull the cable forcefully when disconnecting.

7. Řešení problémů

If you encounter issues with your QANBA Q2 PRO LED Arcade Joystick, refer to the following common solutions:

ProblémMožné řešení
Joystick not recognized by PS3/PC.
  • Ensure the USB cable is securely connected to both the joystick and the console/PC.
  • Vyzkoušejte jiný port USB.
  • Restartujte konzoli/počítač.
  • On PC, check Device Manager for driver status.
Buttons or joystick not responding.
  • Verify the joystick is properly recognized (LEDs are on).
  • Test in a different game or application.
  • Ensure game control settings are configured correctly for the joystick.
LED diody nesvítí.
  • Confirm the joystick is powered on and connected to a host device.
  • Zkontrolujte připojení USB.

8. Specifikace

  • Model: Q2 PRO LED
  • Kompatibilita: PlayStation 3 (PS3), PC
  • Konektivita: USB
  • Vstup: 8-way joystick, 8 action buttons, Start/Select/PS buttons
  • Osvětlení: Blue LED illumination for joystick and buttons
  • Rozměry a hmotnost: Refer to product packaging for specific measurements.

9. Záruka a podpora

QANBA products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or replacement parts, please refer to the warranty card included with your product or visit the official QANBA webUschovejte si doklad o koupi pro případ reklamace.

Official QANBA Webmísto: www.qanba.com (Poznámka: Toto je zástupný symbol URL, please refer to actual product documentation for correct support links.)
