Jeremiah 1015C-BNK 5 Light Mini Chandelier User Manual

1. Úvod

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Jeremiah 1015C-BNK 5 Light Mini Chandelier. This elegant lighting fixture, part of the Craftmade family of brands, features clear crystal accents and a brushed nickel finish, designed to enhance various indoor spaces. Please read this manual thoroughly before beginning installation or use to ensure proper function and safety.

Figure 1: Jeremiah 1015C-BNK 5 Light Mini Chandelier. This image displays the complete chandelier with its five light sources, brushed nickel frame, and hanging clear crystal accents.

2. Bezpečnostní informace

Always follow basic safety precautions when installing or using electrical products to reduce the risk of fire, electric shock, and personal injury.

• VAROVÁNÍ: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please check your local laws before purchasintento produkt.
• Před instalací nebo servisem odpojte napájení v jističi nebo v pojistkové skříni.
• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with electrical wiring.
• Nepřekračujte maximální watttage specified for the light bulbs (60 watts per bulb, 120 volts total).
• Ujistěte se, že montážní plocha unese hmotnost svítidla.
• S krystalovými součástmi zacházejte opatrně, aby nedošlo k jejich rozbití.
• Uchovávejte obalové materiály mimo dosah dětí.

3. Obsah balení

Carefully unpack your chandelier and identify all components. Keep all packaging materials until you are sure all parts are present and in good condition. If any parts are missing or damaged, do not attempt to assemble or install the fixture.

• Chandelier Body (Model: 1015C-BNK)
• Montážní řetěz
• Stříška/stropní deska
• Montážní materiál (šrouby, matice atd.)
• Clear Crystal Accents (pre-attached or separate for assembly)
• Návod k použití

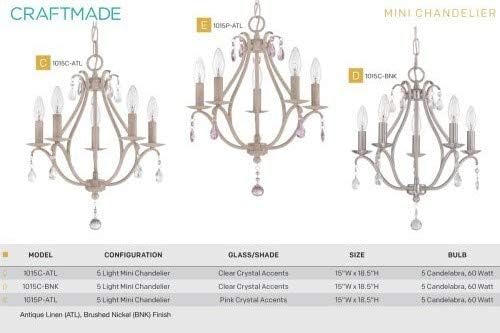

Obrázek 2: Konfigurace produktuview. This image illustrates various mini chandelier models, including the 1015C-BNK, highlighting its design and general appearance.

4. Nastavení a instalace

Installation should be performed by a qualified electrician or a knowledgeable individual following all local electrical and building codes.

4.1. Příprava

1. Vypněte napájení hlavním jističem nebo pojistkovou skříní.
2. Ensure the existing junction box is securely mounted and capable of supporting the fixture's weight (approximately 4 pounds).
3. Připravte si potřebné nářadí: šroubovák, odizolovací kleště, izolační pásku, žebřík, ochranné brýle.

4.2. Montáž svítidla

1. Připevněte montážní držák ke spojovací krabici pomocí dodaných šroubů.
2. Determine the desired hanging length for the chain. Adjust the chain by removing links if necessary.
3. Provlékněte elektrické dráty řetězem a stříškou.
4. Connect the fixture's ground wire to the house ground wire (usually bare copper or green) using a wire nut.
5. Connect the fixture's neutral wire (usually white) to the house neutral wire (white) using a wire nut.
6. Connect the fixture's hot wire (usually black) to the house hot wire (black) using a wire nut.
7. Opatrně zasuňte všechny vodiče do spojovací krabice.
8. Secure the canopy to the mounting bracket, ensuring it sits flush against the ceiling.

4.3. Attaching Crystal Accents and Bulbs

1. If not pre-attached, carefully hang the clear crystal accents onto the designated hooks on the chandelier frame. Refer to the product image for placement.
2. Install five candelabra-base (E12) bulbs, up to 60 watts each (not included). Do not overtighten.

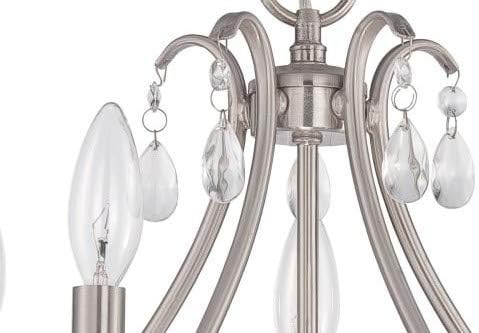

Figure 3: Detail of Light Socket and Crystal. This close-up shows the candelabra-style light socket and the attachment point for the clear crystal accents.

5. Provoz

Once installed, your Jeremiah 1015C-BNK Chandelier is ready for use.

• Zapnutí: Obnovte napájení na jističi.
• Řízení: This chandelier is designed to be controlled by a remote (if supplied with the fixture) or a standard wall switch.
• Směr osvětlení: The fixture provides up/down light, illuminating both the ceiling and the area below.

6. Údržba

Pravidelná údržba pomůže zachovat vzhled a funkčnost vašeho lustru.

• Čištění:
  • Always turn off the power and allow the fixture to cool before cleaning.
  • Wipe the brushed nickel finish with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
  • For crystal accents, gently wipe with a damp cloth and then dry with a soft, lint-free cloth to maintain their sparkle.
• Výměna žárovky:
  • Před výměnou se ujistěte, že je vypnuté napájení a žárovky jsou chladné.
  • Unscrew the old bulb and screw in a new candelabra-base (E12) bulb, not exceeding 60 watts.
• Inspekce: Pravidelně kontrolujte těsnost všech spojů a montážních prvků.

7. Řešení problémů

If your chandelier is not functioning as expected, consult the following common issues and solutions:

If the problem persists after trying these solutions, contact customer support or a qualified electrician.

8. Specifikace

9. Záruka a podpora

9.1. Informace o záruce

This product is covered by a manufacturer's warranty. Specific details regarding the warranty period and coverage are not provided in this manual. Please refer to the product packaging or contact Craftmade customer support for complete warranty information.

9.2. Zákaznická podpora

For technical assistance, missing parts, or warranty inquiries, please contact Craftmade customer support. You can find more information and contact details by visiting the official Craftmade store:

Visit the Craftmade Store on Amazon

When contacting support, please have your model number (1015C-BNK) and purchase information readily available.
