1. Konec produktuview
The COAST POLYSTEEL 600 is a robust LED flashlight designed for demanding environments. It features a durable stainless-steel core and a heat-welded polyethylene exterior, making it crushproof, drop-proof, stormproof, and dust resistant. This flashlight offers a powerful 1000 lumen output on high mode and incorporates the PURE BEAM optical system with TWIST FOCUS technology for seamless transitions between flood and spot beams.
Image 1.1: The COAST POLYSTEEL 600 LED Flashlight, showcasing its robust black design.
Image 1.2: Summary of key features for the Polysteel 600 Flashlight, including lumens, beam distance, runtime, and durability.
2. Klíčové vlastnosti
- PURE BEAM and TWIST FOCUS TECHNOLOGY: Seamlessly transition between an Ultra View Flood Beam for wide illumination and a BULLS-EYE Spot Beam for focused light.
- POLYSTEEL DESIGN: Constructed with a stainless-steel core and a heat-welded polyethylene exterior for exceptional durability.
- TRVANLIVOST: The PS600 flashlight is storm proof, crush proof, drop proof, and dust resistant, ensuring reliable performance in harsh conditions.
- VÝKON: Delivers up to 1000 lumens with a beam distance of 267 meters on high mode, and a runtime of up to 40 hours on low.

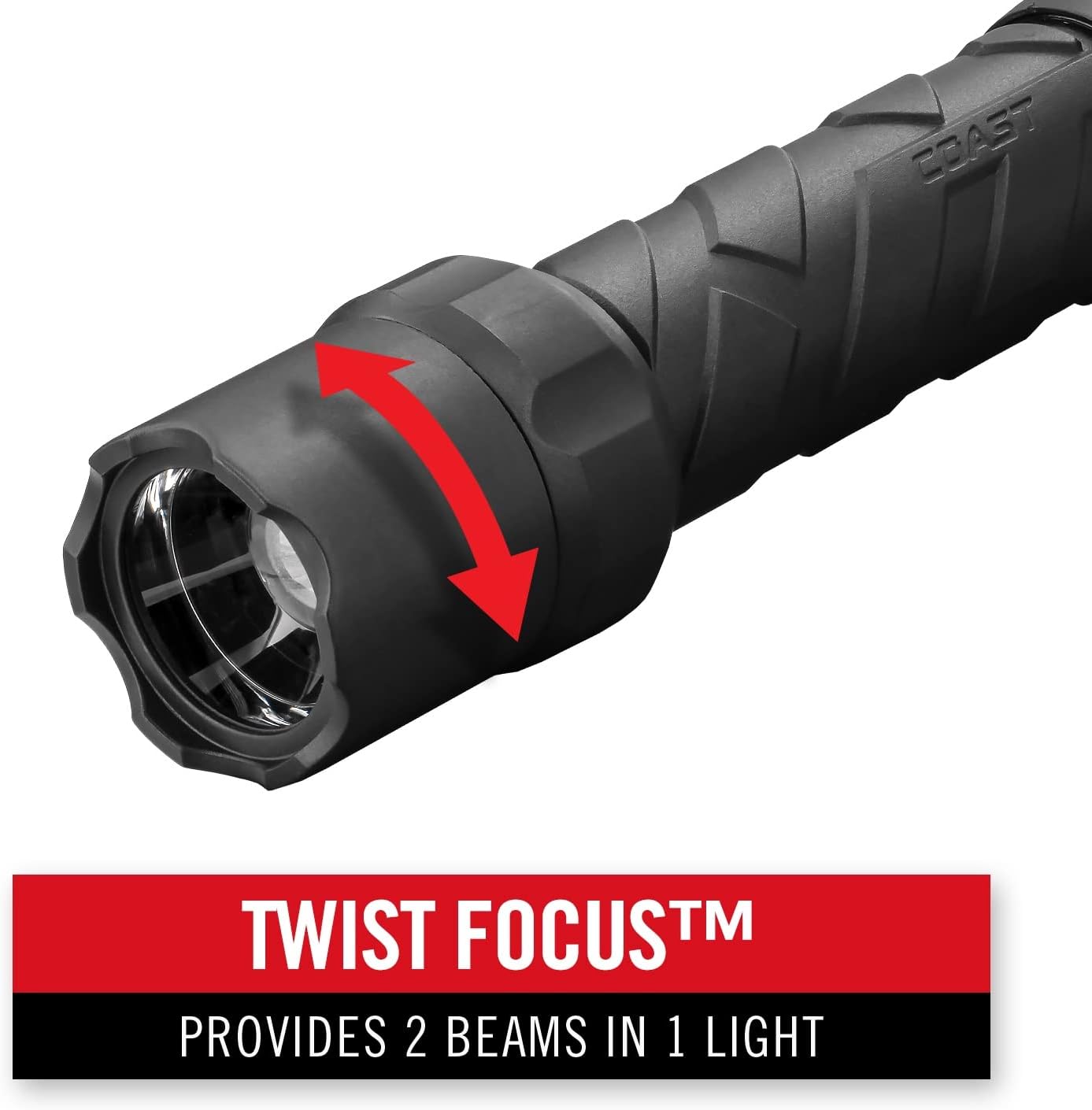

Image 2.1: Illustration of the Twist Focus mechanism, allowing adjustment between flood and spot beams.
Image 2.2: Comparison of the Bulls-Eye Spot Beam (top) and Ultra View Flood Beam (bottom) provided by the flashlight.
Image 2.3: The Polysteel 600 flashlight demonstrating its storm-proof capability in wet conditions.
Image 2.4: The flashlight being dropped, highlighting its drop-proof construction.

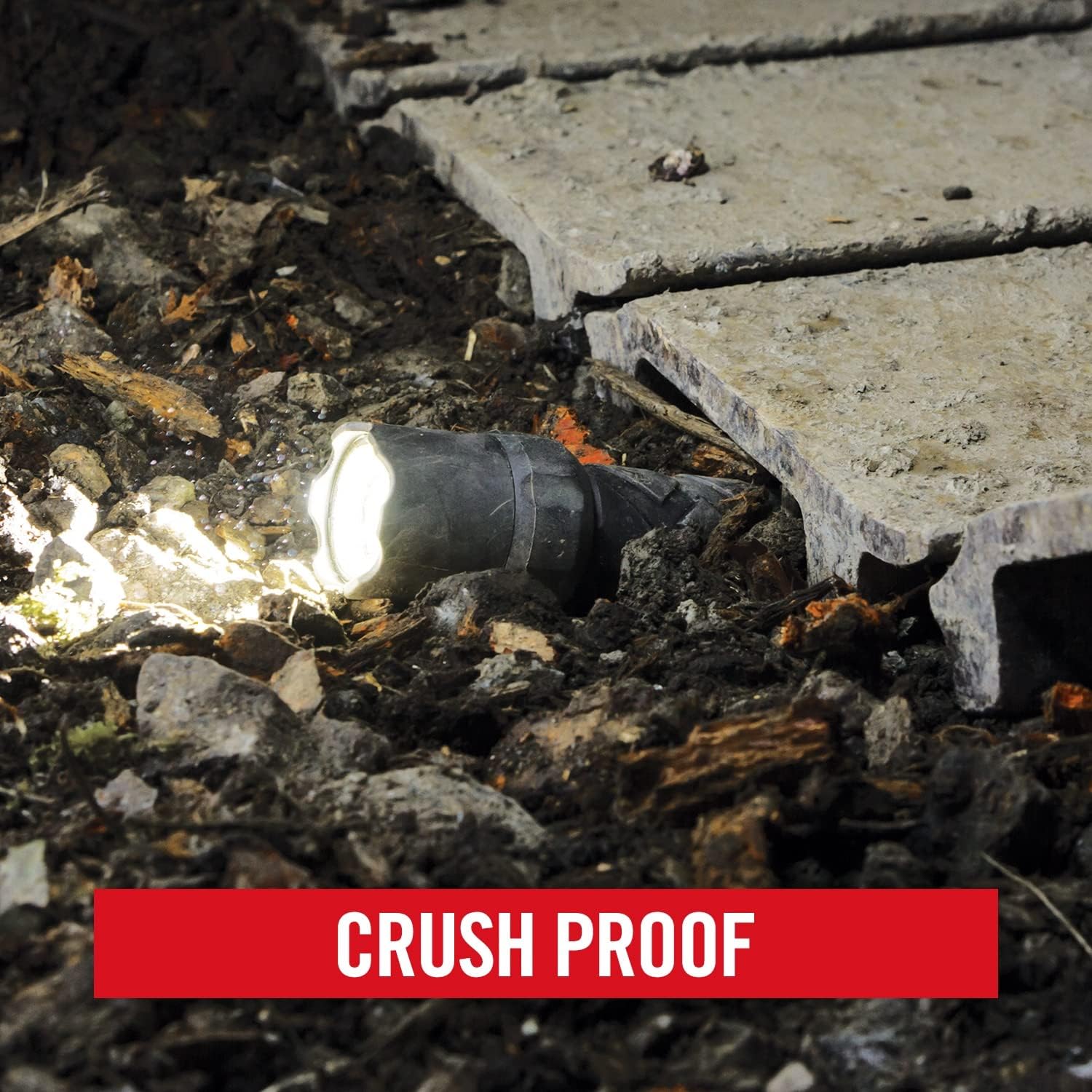

Image 2.5: The flashlight under pressure, illustrating its crush-proof design.
Image 2.6: Visual representation of the flashlight's maximum output of 1000 lumens and 267-meter beam distance.
3. Nastavení
3.1. Instalace baterie
The COAST POLYSTEEL 600 flashlight requires 4 AAA alkaline batteries (included). To install or replace batteries:
- Odšroubujte zadní krytku svítilny otáčením proti směru hodinových ručiček.
- Insert 4 AAA batteries into the battery compartment, ensuring correct polarity (+/-) as indicated inside the flashlight.
- Zašroubujte zadní víčko zpět ve směru hodinových ručiček, dokud nebude bezpečně utaženo.
Image 3.1: The Polysteel 600 flashlight shown with the included 4 AAA batteries.
4. Návod k obsluze
4.1. Zapnutí/vypnutí a výběr režimu
The flashlight features a Quick-Cycle™ Switch located on the tail cap for easy operation.
- Zapnutí / vypnutí: Press the tail cap switch completely until it clicks.
- Procházení režimů: With the flashlight on, lightly press the tail cap switch (without clicking) to cycle between High, Medium, and Low light modes. A full click will select the current mode.
Image 4.1: Close-up of the Quick-Cycle Switch on the tail cap, used for power and mode selection.
4.2. Adjusting the Beam (Twist Focus)
The PURE BEAM optical system with TWIST FOCUS technology allows you to adjust the beam from a wide flood to a focused spot.
- To switch between Ultra View Flood Beam and BULLS-EYE Spot Beam, simply twist the head of the flashlight.
- Twist in one direction for a wide, even floodlight, and in the opposite direction for a concentrated spot beam.
5. Údržba
- Čištění: Otřete tělo svítilny měkkým hadříkemamp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Péče o baterie: Remove batteries if the flashlight will not be used for an extended period to prevent leakage. Replace all batteries at the same time with new ones of the same type.
- O-kroužky: Periodically inspect the O-rings for wear and tear. A light application of silicone grease can help maintain their waterproof seal.
- Skladování: Uchovávejte svítilnu na chladném a suchém místě mimo přímé sluneční světlo a extrémní teploty.
6. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Svítilna se nezapne. |
|
|
| Světlo je tlumené nebo bliká. |
|
|
| Beam adjustment (Twist Focus) is stiff. |
|
|
7. Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | 20768 |
| Typ světelného zdroje | LED |
| Jas (vysoký) | 1000 Lumens (max) / 740 Lumens (ANSI/FL1) |
| Dosah paprsku (vysoký) | 267 Meters (max) / 266 Meters (ANSI/FL1) |
| Doba běhu (nízká) | Up to 40 hours (max) / 37 hours (ANSI/FL1) |
| Zdroj napájení | Napájení z baterie |
| Typ baterie | 4 x alkalické baterie AAA (součástí balení) |
| Materiál | Stainless Steel Core, Polyethylene Exterior |
| Barva | Černý |
| Rozměry produktu | 8.12"H x 1.87"Š x 1.87"V |
| Hmotnost položky | 11.2 unce (0.7 libry) |
| Úroveň odolnosti proti vodě | Waterproof (Storm Proof) |
| Speciální funkce | Durable, Crush Proof, Drop Proof, Dust Resistant, Pure Beam Twist Focus |
Image 7.1: FL1 Standard performance table detailing lumens, beam distance, and runtime for High, Medium, and Low modes.
8. Záruka a podpora
8.1. Informace o záruce
The COAST POLYSTEEL 600 Flashlight is backed by Coast’s lifetime warranty against defects in materials and workmanship. This warranty ensures long-term reliability and customer satisfaction.
Image 8.1: Coast's commitment to quality and lifetime guarantee.
8.2. Zákaznická podpora
For further assistance, technical support, or warranty claims, please visit the official Coast website or contact their customer service department. Refer to the product packaging or the official Coast webstránky s nejaktuálnějšími kontaktními informacemi.
An installation manual in PDF format is also available for download: Instalační manuál (PDF).
