Larson Electronics 110V LED Spotlight Instruction Manual

1. Konec produktuview

The Larson Electronics HL-85-10W1-110V is a rugged and effective 110V LED spotlight designed for powerful and easy-to-use illumination. This pistol grip style spotlight produces 800 lumens, casting a light beam approximately 800 feet long by 175 feet wide. It is engineered for durability in demanding environments and requires no special tools for servicing.

The unit operates on common 110 VAC current via an included inline transformer, converting it to 12 VDC for the light. Its lightweight design and ergonomic pistol grip ensure balanced and manageable handheld operation.

Obrázek 1: Přesview of the Larson Electronics 110V LED Spotlight components, including the pistol grip light head, power cable, and inline transformer.

2. Klíčové vlastnosti

• Vysoký výkon: Produces 800 lumens with a beam reaching approximately 800 feet long by 175 feet wide.
• Odolná konstrukce: Designed for heavy-duty use, resistant to intense vibration and corrosive environments.
• Všestranný výkon: Can be disconnected from the transformer and operated on any voltage ranging from 9 to 32 volts DC.
• LED s dlouhou životností: Features a single 10-watt LED rated for 120,000 hours of operational life. The entire LED lamp housing is replaceable.
• Možnost montáže: Equipped with a 3/8-16 inch brass nut fastener in the base of the handle for tripod or magnetic base mounting.

3. Pokyny k nastavení

1. Rozbalte komponenty: Carefully remove the spotlight, inline transformer, and power cable from the packaging.
2. Connect Spotlight to Transformer: Ensure the spotlight's cable is securely connected to the output port of the inline transformer. The connections are designed for easy, tool-free assembly.
3. Připojte napájecí kabel: Plug the 110V AC power cable into the input side of the inline transformer.
4. Zdroj napájení: Insert the 110V AC plug into a standard household electrical outlet.
5. Počáteční kontrola: Once connected, press the power button on the pistol grip handle to verify operation.

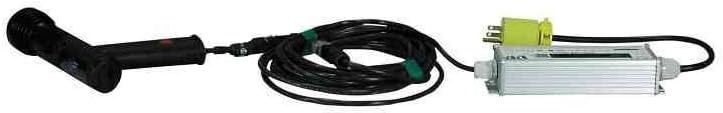

Figure 2: All components of the spotlight system, including the light head, power supply, and connecting cables, laid out before assembly.

4. Návod k obsluze

1. Zapnutí/vypnutí: Locate the power button on the pistol grip handle. Press once to turn the spotlight on, and press again to turn it off.
2. Aiming the Beam: Hold the pistol grip firmly and direct the light beam towards the desired target. The ergonomic design allows for comfortable and precise aiming.
3. Možnosti montáže: For extended use or fixed applications, utilize the 3/8-16 inch brass nut fastener at the base of the handle to attach the spotlight to a compatible tripod or magnetic base (sold separately).
4. Použití v oblasti životního prostředí: This spotlight is designed for outdoor and industrial use. Ensure all connections are secure and the unit is not submerged in water.

5. Údržba

• Čištění: Regularly clean the lens and exterior housing with a soft, damp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla, která by mohla poškodit povrchovou úpravu nebo čočku.
• Inspekce: Periodically inspect the power cable, transformer, and spotlight housing for any signs of wear, damage, or loose connections.
• Výměna LED: LED lamp assembly is designed to be field serviceable. If replacement is necessary, the internal connectors are accessed through a snap-in base at the bottom of the handle. No special tools are required for this procedure.
• Skladování: When not in use, store the spotlight in a dry, cool place away from direct sunlight and extreme temperatures.

Obrázek 3: Podrobný view of the LED spotlight head and the inline transformer, showing the robust construction and connection points.

6. Řešení problémů

• Světlo se nerozsvítí:
  • Ensure the 110V AC power cable is securely plugged into a live outlet.
  • Check that the cable connecting the spotlight to the inline transformer is fully seated.
  • Verify the power button on the pistol grip is pressed.
  • Inspect the power cable and transformer for any visible damage.
• Blikání světla:
  • Check all electrical connections for looseness.
  • Ensure the power source is stable and providing consistent 110V AC.
• Snížený světelný výkon:
  • Clean the lens of the spotlight to remove any dirt or debris.
  • If the issue persists, the LED lamp assembly may require replacement.

7. Specifikace

8. Záruka a podpora

For warranty information and technical support regarding your Larson Electronics 110V LED Spotlight, please refer to the documentation included with your purchase or visit the official Larson Electronics webwebu. Kontaktní údaje zákaznického servisu jsou obvykle uvedeny na obalu produktu nebo na stránkách podpory výrobce.
