1. Úvod
The KitchenAid 5KSM2FPA Food Processor Attachment is designed to conveniently attach to your KitchenAid Stand Mixer, transforming it into a versatile food processor. This attachment allows for a wide range of food preparation tasks, including slicing, dicing, shredding, and julienning, directly into any size bowl or cooking dish.
Obrázek 1: Přední view of the KitchenAid 5KSM2FPA Food Processor Attachment. This image displays the main body of the attachment, featuring the clear feed tube and the KitchenAid logo prominently on the silver-colored base.
It features the ExactSlice System with an adjustable slicing disc, a 2-in-1 wide mouth feed tube, a dicing kit, and reversible shredding and julienne discs. All parts are designed for easy cleaning, with many being dishwasher-safe, and a compact storage case is included for organization.
2. Součásti a montáž
Before first use, ensure all components are present and clean. The attachment includes:
- Food Processor Attachment Housing
- Nastavitelný krájecí kotouč
- Reversible Shredding Disc (Fine/Coarse)
- Julienne Disc
- Dicing Kit (with double blade)
- 2-in-1 Wide Mouth Feed Tube and Food Pusher
- Skladovací pouzdro

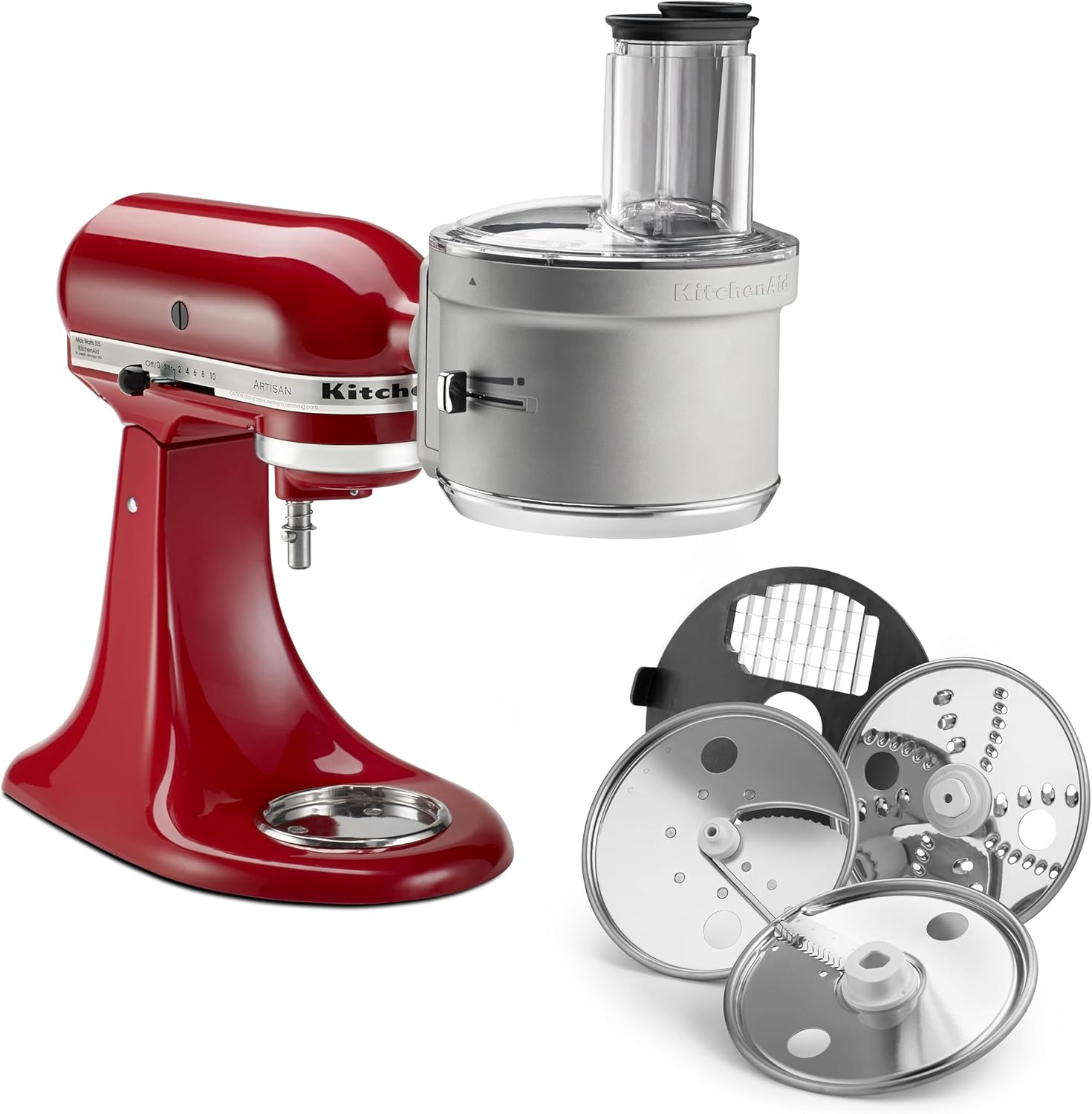

Obrázek 2: The KitchenAid Food Processor Attachment shown alongside a red KitchenAid Stand Mixer and its various interchangeable discs and the dicing kit. This illustrates the complete set of components.
2.1. Attaching to the Stand Mixer
- Ensure your KitchenAid Stand Mixer is unplugged and turned off.
- Loosen the attachment knob on the mixer's power hub by turning it counter-clockwise.
- Remove the hub cover.
- Insert the attachment shaft into the power hub, ensuring the shaft fits into the square socket.
- Rotate the attachment slightly back and forth if necessary until it seats fully into the power hub.
- Tighten the attachment knob clockwise until the attachment is securely fastened.
Obrázek 3: Strana view of the KitchenAid Food Processor Attachment, highlighting the shaft that connects to the stand mixer's power hub. This view is crucial for understanding the attachment mechanism.
2.2. Assembling Discs and Dicing Kit
Refer to the specific instructions for each disc or the dicing kit. Generally, discs are placed onto the drive shaft within the attachment housing before securing the lid and feed tube.
3. Návod k obsluze
Always ensure the attachment is securely fastened and the mixer is on a stable surface before operation. Place a bowl or container beneath the attachment's output chute to collect processed food.
3.1. Krájení
Use the adjustable slicing disc for varying slice thicknesses. The external lever allows for easy adjustment. Feed food through the wide mouth feed tube using the food pusher.
Obrázek 4: The KitchenAid Food Processor Attachment in action, slicing carrots into a clear bowl. This image demonstrates the slicing function and how food is processed and collected.
3.2. Dicing
Install the dicing kit with its double blade for precise dicing of fruits and vegetables. Ensure the dicing grid is properly aligned. Feed food through the feed tube.
Obrázek 5: The KitchenAid Food Processor Attachment actively dicing bell peppers into a bowl. This image highlights the dicing capability of the attachment, showing the output of uniformly diced vegetables.
3.3. Shredding and Julienne
Select the appropriate reversible shredding disc (fine or coarse) or the julienne disc. These discs come with a separate food wiper for optimal performance. Insert the disc and feed food through the tube.
For all operations, start the mixer at a low speed and gradually increase as needed. The uniquely-designed sharp blades and manual speed control (via the stand mixer) allow for precise processing of both soft and hard foods.
4. Údržba a čištění
Proper cleaning ensures the longevity and hygiene of your attachment. The attachment parts, including the removable liner, are dishwasher-safe for convenience.
- Před čištěním: Always unplug the stand mixer and detach the food processor attachment.
- Demontáž: Disassemble all components (feed tube, pusher, discs, dicing kit, liner) from the main housing.
- Mytí: Wash all removable parts in warm, soapy water or place them in the dishwasher. Ensure food particles are removed from blades and crevices.
- Bydlení: Wipe the main attachment housing with a damp tkanina. Neponořujte kryt do vody.
- Sušení: Dry all parts thoroughly before reassembly or storage.
- Skladování: Utilize the compact storage case to keep all interchangeable parts neatly together and protected when not in use.
5. Řešení problémů
This section provides general guidance for common issues. For more complex problems, please contact KitchenAid customer support.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Příslušenství nefunguje. | Mixer not plugged in or turned on; attachment not securely fastened. | Ensure mixer is plugged in and power is on. Verify attachment is fully seated and knob is tightened. |
| Potraviny se nezpracovávají rovnoměrně. | Incorrect disc/blade for food type; food not properly prepped; mixer speed too low/high. | Ensure correct disc is used. Cut food into appropriate sizes to fit feed tube. Adjust mixer speed as needed. |
| Attachment is difficult to clean. | Food dried onto parts; not disassembled before cleaning. | Clean immediately after use. Disassemble all parts and use a brush for stubborn areas. All removable parts are dishwasher safe. |
6. Specifikace
- Název modelu: 5KSM2FPA
- Značka: KitchenAid
- Barva: Stříbro
- Rozměry produktu: 6.89 x 10.2 x 9.69 palce
- Hmotnost položky: 7.06 libry
- Materiál čepele: Nerez
- Pokyny pro péči o produkt: Vhodné do myčky nádobí (pro odnímatelné části)
- Zahrnuté komponenty: Chopping Blade, Container, Lid (referring to the dicing kit and main housing/feed tube)
- První k dispozici: 19. listopadu 2014
7. Záruka a podpora
Informace o záruce a zákaznické podpoře naleznete na oficiálních stránkách KitchenAid. website or contact their customer service directly. You can also visit the official KitchenAid store on Amazon for more product information and support resources.
