X-PRO Throttle Lever Thumb Controller Assembly 50cc-200cc ATVs User Manual

Zavedení

This manual provides essential instructions for the installation, operation, and maintenance of your X-PRO Throttle Lever Thumb Controller Assembly. Designed for 50cc to 200cc ATVs, this component is crucial for controlling engine speed. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Nastavení a instalace

Proper installation is vital for the safe and effective operation of your ATV. Follow these steps carefully:

1. Příprava: Ensure the ATV is turned off and the ignition key is removed. Gather necessary tools, which typically include wrenches and screwdrivers.
2. Demontáž staré sestavy (pokud je to relevantní): Carefully disconnect the existing throttle cable from the carburetor and remove the old throttle assembly from the handlebars.
3. Mounting the New Assembly: Position the X-PRO throttle assembly on the right handlebar. Ensure it is securely clamped and does not interfere with other controls or movement. The clamp should be tightened firmly but not excessively to avoid damage.
4. Connecting the Throttle Cable: Route the new throttle cable from the carburetor to the throttle assembly. Insert the cable end into the thumb lever mechanism. Ensure the cable is seated correctly and moves freely without binding.
5. Úpravy: Adjust the throttle cable tension to ensure smooth operation of the thumb lever and proper return to the idle position when released. There should be a small amount of free play in the lever before the throttle begins to open.
6. Závěrečná kontrola: Before starting the ATV, manually operate the thumb lever several times to confirm smooth movement and full range of motion. Verify that the throttle closes completely when the lever is released.

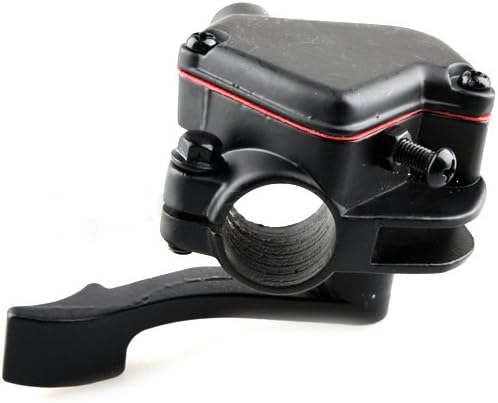

Image 1: The X-PRO Throttle Lever Thumb Controller Assembly. This image displays the black-colored throttle housing, the ergonomic thumb lever designed for ATV operation, and the integrated clamp mechanism for secure attachment to handlebars. The red gasket line is visible, indicating a sealed design.

Návod k obsluze

The throttle lever controls the engine's speed. Familiarize yourself with its operation before riding.

• Akcelerace: To increase engine speed, gently push the thumb lever forward. The further you push, the more the throttle opens, increasing engine RPM.
• Zpomalení: To decrease engine speed, release the thumb lever. The internal spring mechanism will return the lever to its idle position, closing the throttle.
• Plynulé ovládání: Practice smooth and gradual movements with the thumb lever to maintain precise control over your ATV's speed. Avoid abrupt movements, especially at high speeds.
• Bezpečnostní kontrola: Always ensure the throttle returns to the idle position freely and completely when released. If it sticks or does not return fully, do not operate the ATV until the issue is resolved.

Údržba

Regular maintenance ensures the longevity and safe operation of your throttle assembly.

• Inspekce: Periodically inspect the throttle assembly and cable for signs of wear, fraying, corrosion, or damage. Check for any loose connections or mounting hardware.
• Čištění: Keep the throttle assembly clean from dirt, mud, and debris. Use a damp cloth to wipe down the exterior. Avoid using harsh chemicals that could damage the plastic or metal components.
• Mazání: Apply a suitable cable lubricant to the throttle cable periodically to ensure smooth operation and prevent corrosion. Follow the ATV manufacturer's recommendations for cable lubrication.
• Napětí kabelu: Regularly check and adjust the throttle cable tension to maintain the recommended amount of free play.

Odstraňování problémů

If you encounter issues with your throttle assembly, refer to the following common problems and solutions:

If problems persist after attempting these solutions, it is recommended to consult a qualified ATV mechanic.

Specifikace

Značka:

X-PRO

Číslo modelu:

235-999006

Materiál:

Nerez

Barva:

Černý

Vnější úprava:

Nerez

Speciální funkce:

Snadná instalace

Orientace rukou:

Obouruký

Počet jednotek:

1.0 Počet

Hmotnost položky:

7.2 unce

Rozměry balení:

4 x 2.8 x 2 palce

Kompatibilita:

50cc-200cc ATVs

Záruka a podpora

For information regarding warranty coverage or technical support, please contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
