1. Úvod
This manual provides essential information for the proper installation, maintenance, and care of your Hitachi 6685378 Air Filter. This genuine Hitachi replacement part is designed for use with Hitachi/Tanaka branded outdoor power equipment products. Regular replacement of the air filter is crucial for maintaining engine performance and longevity.
2. Bezpečnostní informace
Always prioritize safety when working with power equipment. Before attempting to install or replace the air filter, ensure the equipment is turned off, cooled down, and any spark plug wires are disconnected to prevent accidental starting. Wear appropriate personal protective equipment, such as gloves and eye protection. Refer to your specific outdoor power equipment's owner's manual for detailed safety instructions and procedures.
3. Konec produktuview
The Hitachi 6685378 Air Filter is a rectangular replacement part designed to protect your outdoor power equipment's engine from dust, dirt, and debris. A clean air filter ensures optimal air-fuel mixture, leading to efficient combustion and reduced engine wear.
Obrázek 1: Přední view of the Hitachi 6685378 Air Filter. This image shows the primary side of the filter, which faces the air intake.

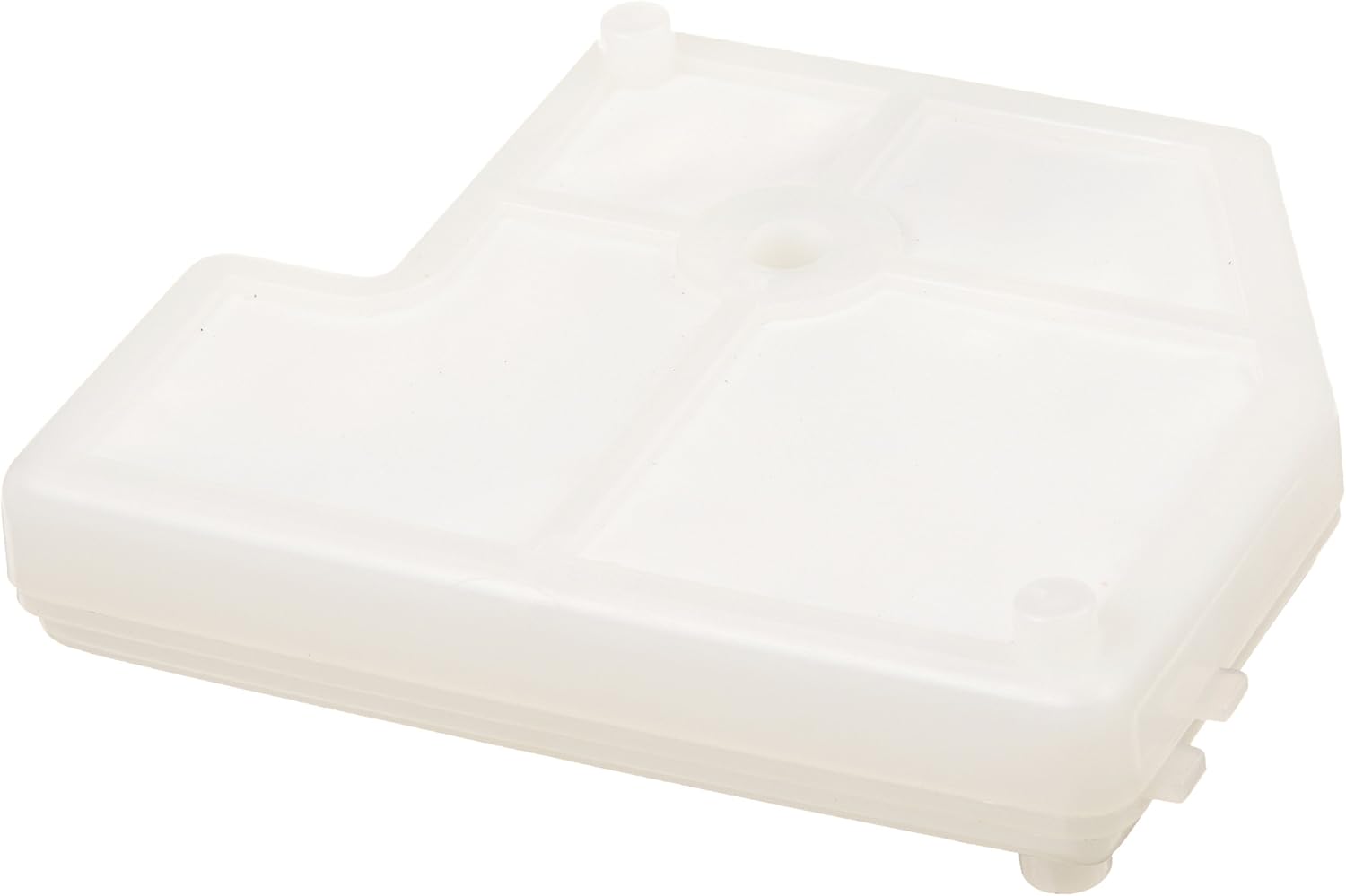

Obrázek 2: Zadní view of the Hitachi 6685378 Air Filter. This image displays the opposite side of the filter, typically facing the engine.

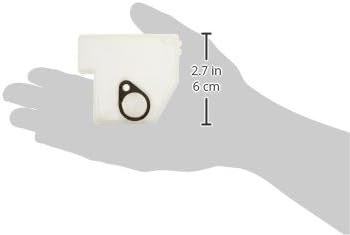

Obrázek 3: Hitachi 6685378 Air Filter held in hand, illustrating its compact size and approximate dimensions for scale. The filter measures approximately 2.7 inches (6 cm) in height.
4. Instalace (Nastavení)
The installation process for the air filter typically involves the following steps. Always refer to your specific outdoor power equipment's owner's manual for exact instructions and diagrams, as procedures may vary.
- Připravte si vybavení: Ujistěte se, že je motor vypnutý a chladný. Odpojte kabel zapalovací svíčky, abyste zabránili náhodnému nastartování.
- Vyhledejte kryt vzduchového filtru: The air filter is usually housed in a plastic or metal cover, often secured with clips, screws, or wing nuts.
- Odstraňte kryt: Carefully unfasten and remove the air filter housing cover.
- Odstraňte starý filtr: Vyjměte starý vzduchový filtr. Pro správnou instalaci nového filtru si všimněte jeho orientace.
- Vyčistěte skříň: Wipe away any dirt or debris from inside the air filter housing and cover using a clean cloth. Avoid letting debris fall into the carburetor intake.
- Instalace nového filtru: Insert the new Hitachi 6685378 Air Filter into the housing, ensuring it is seated correctly and oriented as the old filter was.
- Znovu nasaďte kryt: Bezpečně znovu nasaďte kryt pouzdra vzduchového filtru.
- Znovu připojte zapalovací svíčku: Znovu připojte kabel zapalovací svíčky.
5. Údržba
Regular inspection and replacement of the air filter are essential for optimal engine performance and longevity. A dirty or clogged air filter can restrict airflow, leading to reduced power, increased fuel consumption, and potential engine damage.
- Frekvence kontrol: Inspect the air filter regularly, typically every 25 hours of operation or at the beginning of each season, or more frequently in dusty conditions.
- Nahrazení: Replace the Hitachi 6685378 Air Filter when it appears dirty, clogged, or damaged. Do not attempt to clean paper-type air filters, as this can damage the filter media and reduce its effectiveness.
6. Řešení problémů
If your outdoor power equipment is experiencing performance issues, a clogged or improperly installed air filter could be a contributing factor. Consider the following:
- Snížený výkon motoru: A dirty air filter restricts airflow, causing the engine to run "rich" (too much fuel, not enough air), leading to a loss of power. Inspect and replace the filter.
- Zvýšená spotřeba paliva: An engine struggling for air due to a clogged filter will consume more fuel to maintain performance.
- Vynechávání zapalování nebo zastavení motoru: Severe air restriction can cause the engine to misfire, run roughly, or even stall.
- Obtížnost při startování: A very dirty filter can make the engine hard to start.
- Nesprávná instalace: Ensure the filter is seated correctly and the housing cover is securely fastened to prevent unfiltered air from entering the engine.
If these steps do not resolve the issue, consult your equipment's owner's manual or a qualified service technician.
7. Specifikace
| Atribut | Detail |
|---|---|
| Značka | Hitachi |
| Číslo modelu | 6685378 |
| Třída produktu | Náhradní část |
| Tvar | Obdélníkový |
| Rozměry produktu | Approximately 1 x 1 x 1 inches (actual filter dimensions may vary slightly from packaging) |
| Hmotnost položky | 0.353 unce |
| Fit Type | Vehicle Specific Fit (for Hitachi/Tanaka outdoor power equipment) |
| Výrobce | Hitachi - Outdoor Power |
8. Záruka a podpora
This Hitachi 6685378 Air Filter comes with a 90denní záruka from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact Hitachi Outdoor Power customer service. Ensure you have your purchase receipt and product model number available.
For further assistance, please refer to the official Hitachi webwebu nebo kontaktujte jejich zákaznickou podporu.
