Návod k obsluze řídicí desky relé LG EBR74164805

1. Úvod

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the LG EBR74164805 Relay Control Board. This genuine OEM part is designed to regulate oven elements in compatible LG Range/Stove/Ovens by receiving signals from the main oven control board. Proper installation and understanding of its function are crucial for the safe and efficient operation of your appliance.

2. Bezpečnostní informace

VAROVÁNÍ: Before attempting any installation, repair, or maintenance on your appliance, always disconnect all utilities, including electrical power and gas supply (if applicable), to prevent electric shock, fire, or personal injury. It is recommended that installation be performed by a qualified technician. Wear appropriate personal protective equipment, such as gloves and safety glasses.

Tento produkt obsahuje chemikálie, o kterých je ve státě Kalifornie známo, že způsobují rakovinu a vrozené vady nebo jiná poškození reprodukce. Pro více informací navštivte www.P65Warnings.ca.gov.

3. Obsah balení

• 1 x LG EBR74164805 Relay Control Board

4. Pokyny k instalaci

The following steps outline the general procedure for replacing the relay control board. Always refer to your specific appliance's service manual for detailed instructions and diagrams, as procedures may vary by model.

1. Odpojit napájení: Ujistěte se, že je spotřebič zcela odpojen od zdroje napájení.
2. Přístup k ovládacímu panelu: Depending on your oven model, you may need to remove the back panel or other access panels to reach the existing relay control board.
3. Propojení dokumentů: Before disconnecting any wires, take clear photographs of all wire connections to the existing board. This will serve as a reference for reconnecting the new board.
4. Odpojení vodičů: Carefully disconnect all wire harnesses and individual wires from the old relay control board.
5. Odstraňte starou desku: Unscrew or unclip the old relay control board from its mounting brackets.
6. Instalace nové desky: Position the new LG EBR74164805 Relay Control Board in place and secure it with screws or clips.
7. Znovu zapojte vodiče: Using your photographs as a guide, carefully reconnect all wire harnesses and individual wires to the corresponding terminals on the new board. Ensure all connections are secure.
8. Znovu sestavte spotřebič: Replace any access panels or components that were removed.
9. Obnovit napájení: Znovu připojte spotřebič ke zdroji napájení.
10. Test funkčnosti: Test the oven's heating functions to ensure proper operation.

Obrázek 1: Přední strana view of the LG EBR74164805 Relay Control Board, showing relays and connectors.

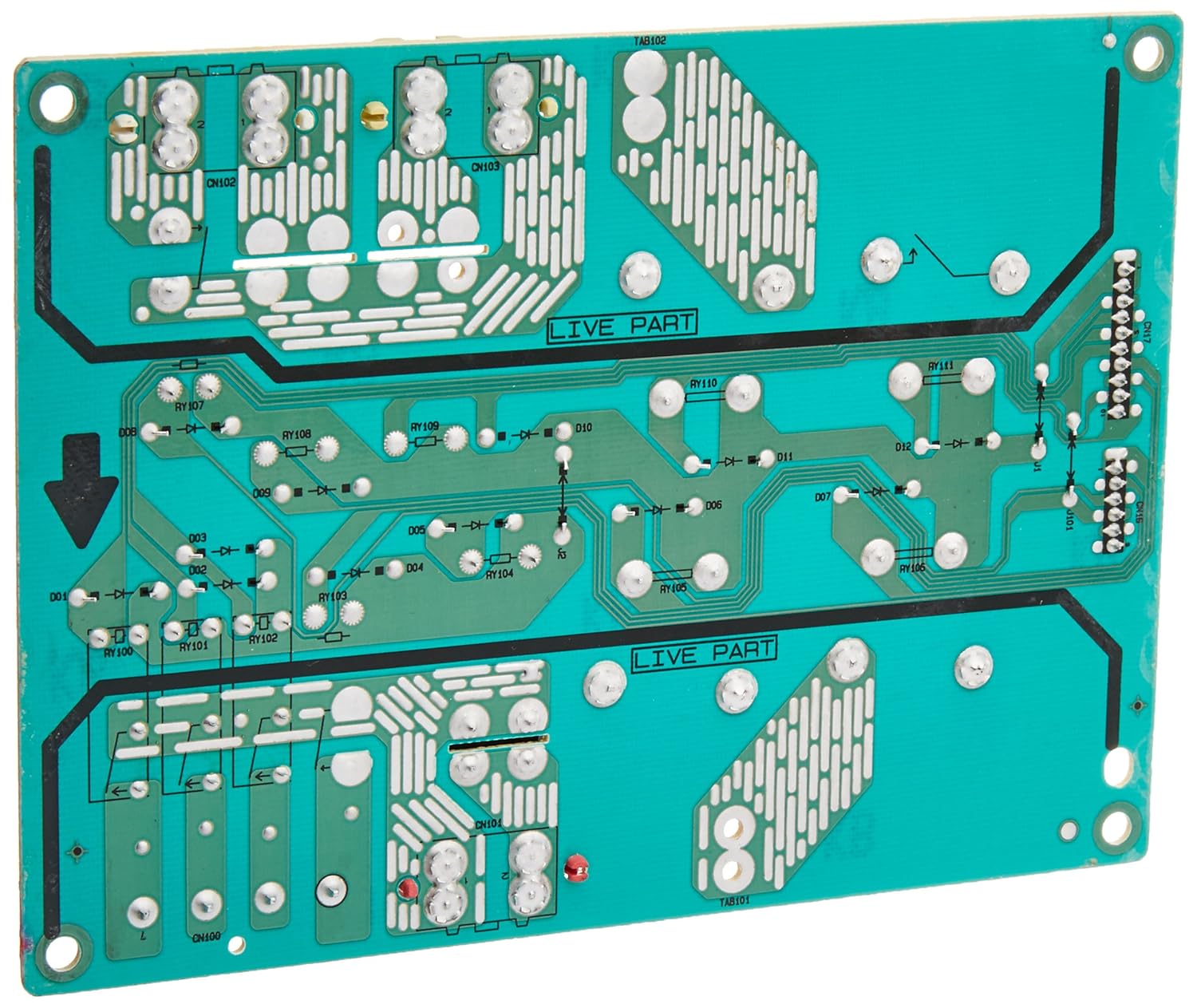

Obrázek 2: Zadní view of the LG EBR74164805 Relay Control Board, displaying circuit traces and solder points.

Figure 3: Image emphasizing the importance of confirming the part number with the appliance manufacturer before installation.

Figure 4: Dimensions of the LG EBR74164805 Relay Control Board: 6 inches length, 4.37 inches width, 1.25 inches height.

5. Principy fungování

The LG EBR74164805 Relay Control Board acts as an intermediary between the main oven control board and the heating elements (bake and broil). It receives electrical signals from the main control board, which dictate when and how much power should be supplied to the oven's heating elements. The relays on this board then open or close to regulate the flow of electricity, ensuring the oven reaches and maintains the desired temperature for cooking.

6. Údržba

The relay control board is a sealed electronic component and generally does not require routine maintenance. However, periodic inspection during other appliance servicing can help identify potential issues early. Ensure the area around the board is free from dust, debris, and moisture. If any signs of damage or overheating are observed, the board should be inspected by a qualified technician.

7. Řešení problémů

If your LG oven is experiencing heating issues, the relay control board may be a contributing factor. Below are common symptoms and potential solutions:

• Trouba se nehřeje: If the oven does not heat at all, or heats inconsistently, the relays on the board might be faulty.
• Oven Not Reaching Desired Temperature: This can indicate a relay failing to close properly, preventing full power to the heating elements.
• Přehřátí trouby: A relay stuck in the closed position could cause continuous heating.
• Kódy chyb: Specific error codes on your oven's display may point to a control board issue. Consult your oven's main user manual for error code definitions.

Before replacing the board:

• Verify that the heating elements themselves are not faulty.
• Check all wire connections to ensure they are secure and free from corrosion or damage.
• Ensure the oven's temperature sensor (thermistor) is functioning correctly.

If these checks do not resolve the issue, replacement of the relay control board may be necessary.

8. Specifikace

9. Záruka a podpora

For warranty information or technical support regarding your LG EBR74164805 Relay Control Board, please refer to the documentation provided with your original LG appliance or contact LG customer service directly. As an OEM part, its warranty is typically covered under the original appliance's warranty terms or a specific replacement part warranty. Always ensure you are purchasing genuine LG parts for optimal performance and safety.

You can visit the official LG webweb s podpůrnými zdroji: Podpora LG
