1. Úvod
This instruction manual provides essential information for the proper installation, operation, and maintenance of the TAKEX BP-50X Pole Cover. This product is designed to protect TAKEX PXB series infrared sensors when mounted on poles, ensuring their longevity and optimal performance in various environmental conditions.
Před instalací si prosím pečlivě přečtěte tento návod a uschovejte si jej pro budoucí použití.
2. Bezpečnostní opatření
To ensure safe operation and prevent damage to the product or injury to personnel, observe the following safety precautions:
- Kvalifikovaný personál: Installation and maintenance should only be performed by qualified personnel familiar with security system installations and electrical safety.
- Odpojení napájení: Always disconnect power to the infrared sensor and associated equipment before installing or servicing the pole cover.
- Správné nástroje: Pro instalaci používejte vhodné nástroje, abyste předešli poškození produktu nebo zranění.
- Podmínky prostředí: Ensure the installation environment is suitable for the product's specifications. Avoid installing in locations with extreme temperatures, excessive humidity, or corrosive substances unless the product is specifically rated for such conditions.
- Bezpečná montáž: Ensure the pole cover and sensor are securely mounted to prevent accidental dislodgement due to wind, vibration, or other external factors.
3. Konec produktuview
3.1 Komponenty
The TAKEX BP-50X Pole Cover consists of two main parts designed to encase an infrared sensor when mounted on a pole. It provides protection against environmental elements and offers a neat, integrated appearance.
Figure 3.1: Two TAKEX BP-50X Pole Covers. These covers are designed to protect infrared sensors when mounted on poles, providing a sleek and durable enclosure.

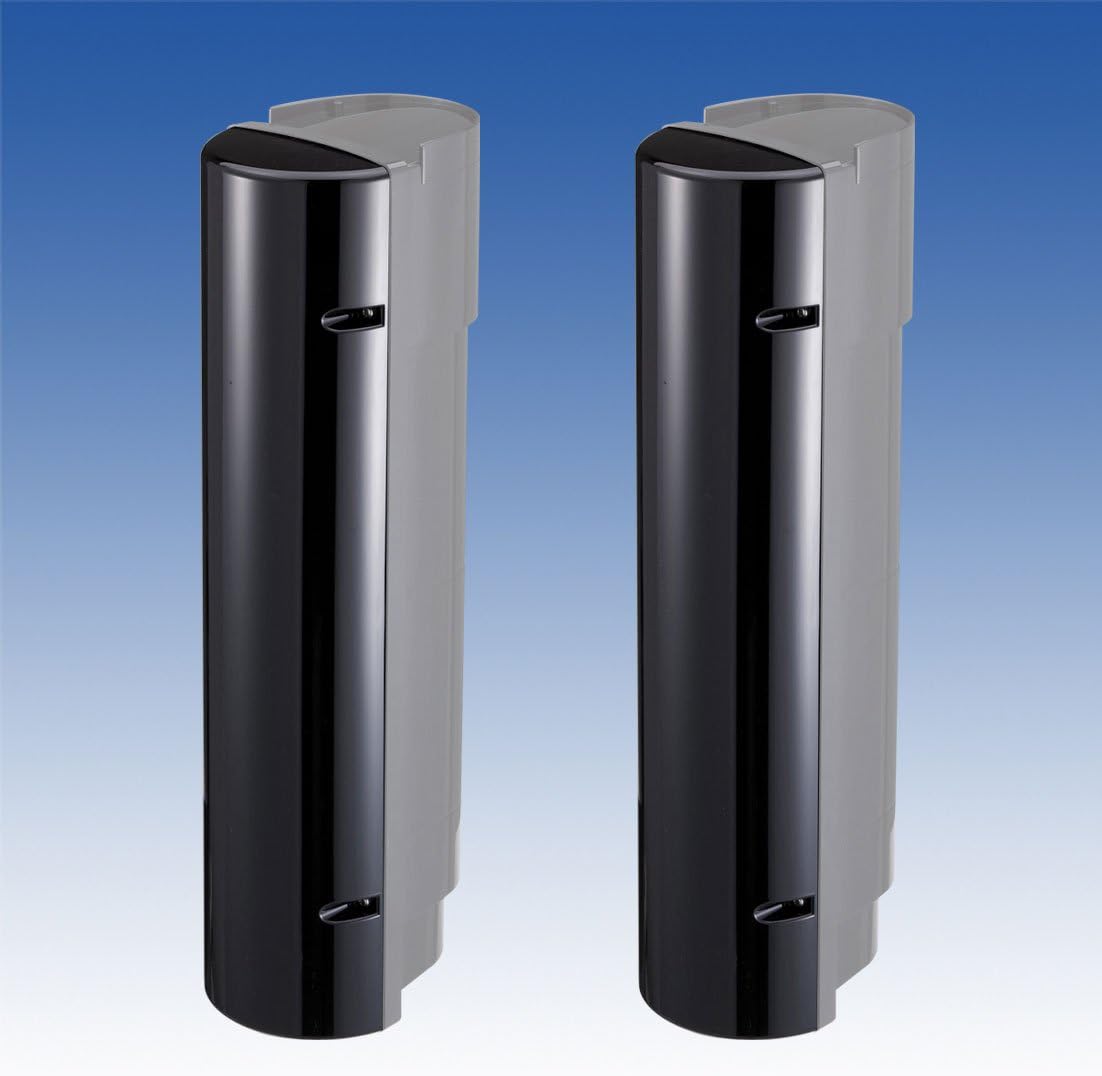

Figure 3.2: TAKEX BP-50X Pole Covers shown against a blue background, highlighting their design and form factor.
3.2 Vlastnosti
- Odolná konstrukce: Made from robust materials to withstand outdoor conditions.
- Estetická integrace: Designed to blend seamlessly with the PXB series sensors and pole installations.
- Kompatibilita: Specifically designed for TAKEX PXB series infrared sensors.
- Snadná instalace: Designed for straightforward attachment to existing pole-mounted sensors.
4. Nastavení a instalace
Follow these steps for proper installation of the BP-50X Pole Cover.
4.1 Kontrolní seznam před instalací
- Ensure you have all necessary components: BP-50X Pole Cover (2 pieces), PXB series infrared sensor (not included).
- Verify the pole diameter is compatible (refer to specifications).
- Gather required tools: screwdriver, measuring tape, level.
- Confirm power to the sensor is disconnected.
4.2 Rozměrový výkres
Refer to the dimensional drawing for precise measurements and pole compatibility details.

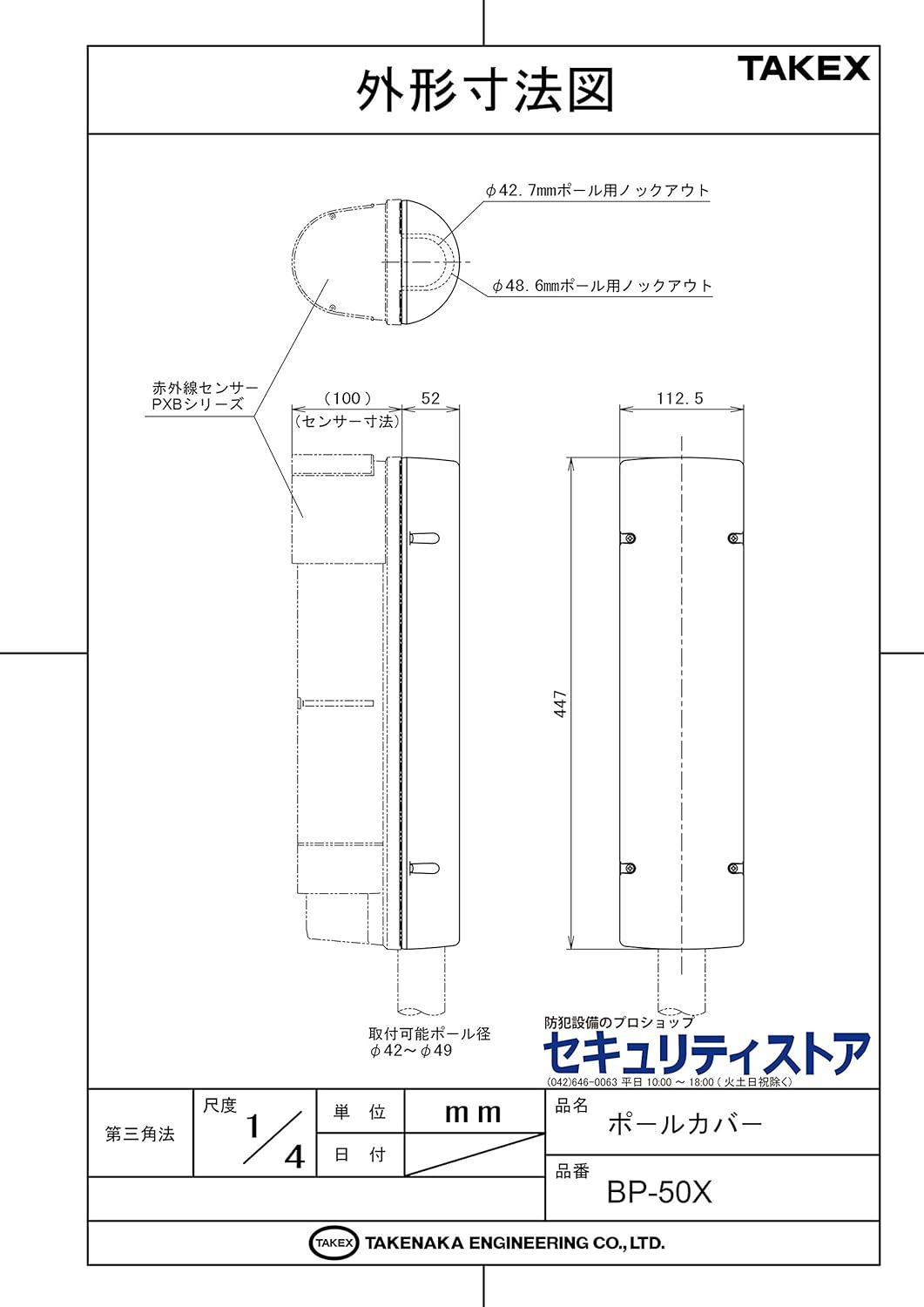

Figure 4.1: Dimensional drawing of the TAKEX BP-50X Pole Cover. This diagram shows the overall dimensions (height 447mm, width 112.5mm) and compatible pole diameters (φ42mm to φ49mm). It also indicates knockout points for φ42.7mm and φ48.6mm poles.
4.3 kroky instalace
- Příprava senzoru: Ensure the PXB series infrared sensor is already mounted on the pole according to its own instruction manual.
- Align the Covers: Take one half of the BP-50X pole cover. Align it with the back of the sensor, ensuring the sensor fits snugly within the cover's contours.
- Attach the First Half: Secure the first half of the pole cover to the sensor/pole using the provided mounting hardware (if any, typically the sensor's mounting screws might be used or specific screws for the cover).
- Attach the Second Half: Take the second half of the pole cover and align it with the remaining exposed side of the sensor and the first cover half.
- Secure Both Halves: Fasten both halves of the pole cover together, ensuring a secure and seamless fit around the sensor and pole. Verify all screws are tightened appropriately.
- Závěrečná kontrola: Inspect the installed pole cover for stability and proper alignment. Ensure it does not obstruct the sensor's detection area or any necessary adjustments.
5. Návod k obsluze
The BP-50X Pole Cover is a passive protective accessory and does not require specific operational steps. Its function is to provide physical protection and aesthetic integration for the infrared sensor. The operation of the infrared sensor itself is detailed in its respective product manual.
6. Údržba
Regular maintenance helps ensure the longevity and effectiveness of the BP-50X Pole Cover.
- Čištění: Periodically clean the exterior of the pole cover with a soft, damp cloth to remove dust, dirt, or debris. Avoid abrasive cleaners or solvents that may damage the material.
- Inspekce: Annually inspect the pole cover for any signs of damage, cracks, or loose fittings. Ensure all mounting screws are secure.
- Kontrola překážek: Verify that no vegetation or other objects are growing or accumulating around the pole cover that could obstruct the sensor's field of view.
7. Řešení problémů
As the BP-50X is a passive cover, direct troubleshooting is minimal. Most issues will relate to its physical integrity or impact on the sensor.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Pole cover is loose or rattling. | Upevňovací šrouby jsou uvolněné. | Tighten all mounting screws. Ensure the sensor is also securely mounted. |
| Visible damage to the pole cover (cracks, dents). | Physical impact or environmental stress. | Assess the extent of damage. If structural integrity is compromised, replace the pole cover to ensure continued protection for the sensor. |
| Sensor performance issues after cover installation. | Cover misaligned, obstructing sensor. | Re-align the pole cover. Ensure it does not block the sensor's lenses or detection path. Refer to the sensor's manual for troubleshooting sensor-specific issues. |
8. Specifikace
Key specifications for the TAKEX BP-50X Pole Cover:
Figure 8.1: Specifications sheet for TAKEX BP-50X Pole Cover. This table details the product name (Pole Cover), product number (BP-50X), applicable models (PXB series), compatible pole diameter (φ42mm to φ49mm), weight (approx. 2.0g per piece x 2), and exterior material (PC, Wine Red).
| Specifikace | Detail |
|---|---|
| Název produktu | Kryt na tyč |
| Číslo produktu | BP-50X |
| Použitelné modely | PXB Series (PXB-50HFA, PXB-100HFA, PXB-200HFA, PXB-100SW, PXB-50F, PXB-100F, PXB-200F, etc.) |
| Kompatibilní průměr pólu | φ42mm to φ49mm |
| Hmotnost | Approx. 2.0g (per piece) x 2 |
| Vnější materiál | PC (Polycarbonate), Wine Red color |
9. Záruka a podpora
For warranty information, technical support, or inquiries regarding the TAKEX BP-50X Pole Cover, please contact TAKEX customer service or your authorized dealer.
Contact information for TAKEX can typically be found on their official webmístě nebo na obalu produktu.
Note: This manual provides general guidance. Specific warranty terms and support procedures may vary by region and purchase agreement.
