TecTake Premium Wall Mounted Double Glass Shelf Unit

1. Konec produktuview

The TecTake Premium Wall Mounted Double Glass Shelf Unit is designed to provide a practical and elegant storage solution for home entertainment devices such as receivers, DVD players, gaming consoles, and more. Its space-saving design and integrated cable management system help maintain a tidy and organized living space.

Klíčové vlastnosti

• Elegant design with stable safety glass shelves.
• Integrated cable channel for neat cable management.
• Height-adjustable shelves for versatile placement of devices.
• Space-saving wall-mounted installation.
• Snadný proces montáže.
• Each shelf supports a maximum load of 14 kg.

Obrázek 1.1: Přední strana view of the TecTake Premium Wall Mounted Double Glass Shelf Unit.

2. Obsah balení

Před zahájením montáže se ujistěte, že jsou k dispozici všechny komponenty:

• 1 x Wall shelf unit (main frame)
• 3 x Safety glass shelves
• Extensive assembly material (screws, wall anchors, washers, etc.)
• 1 x Detailed installation instructions (this manual)

3. Specifikace

Image 3.1: Dimensional diagram of the wall shelf unit.

4. Nastavení a instalace

Careful installation is crucial for the stability and safety of your wall shelf unit. Please read all instructions before proceeding.

Požadované nástroje

• Drill with appropriate drill bits (for masonry, wood, or drywall)
• Vodováha
• Měřicí páska a tužka
• Screwdriver (compatible with provided screws)
• Hammer (if using expansion anchors)

Kroky instalace

1. Rozbalte a ověřte: Carefully unpack all components and verify against the package contents list.
2. Vyberte umístění: Select a suitable wall location. Ensure the wall can support the combined weight of the shelf unit and its intended contents (up to 14 kg per shelf). Avoid areas with hidden electrical wires or plumbing.
3. Označte vrtné body: Use the provided template (if applicable) or measure carefully to mark the drilling points on the wall. Use a spirit level to ensure marks are perfectly horizontal.
4. Vrtací otvory: Drill holes at the marked points using an appropriate drill bit for your wall type. The depth and diameter of the holes should match the provided wall anchors.
5. Vložte nástěnné kotvy: Insert the appropriate wall anchors into the drilled holes. For plasterboard or hollow walls, use suitable cavity anchors (may not be included).
6. Montážní nástěnný držák: Secure the main wall bracket to the wall using the provided screws. Ensure it is firmly attached and level. Do not overtighten.
7. Připevnění polic: Slide the glass shelves onto the support arms. Adjust their height as desired using the adjustment mechanism.
8. Bezpečné police: Secure the shelves in place using the provided fasteners or locking mechanisms. Ensure each shelf is stable and cannot easily be dislodged.
9. Správa kabelů: Route cables from your devices through the integrated cable channel for a neat and organized appearance.

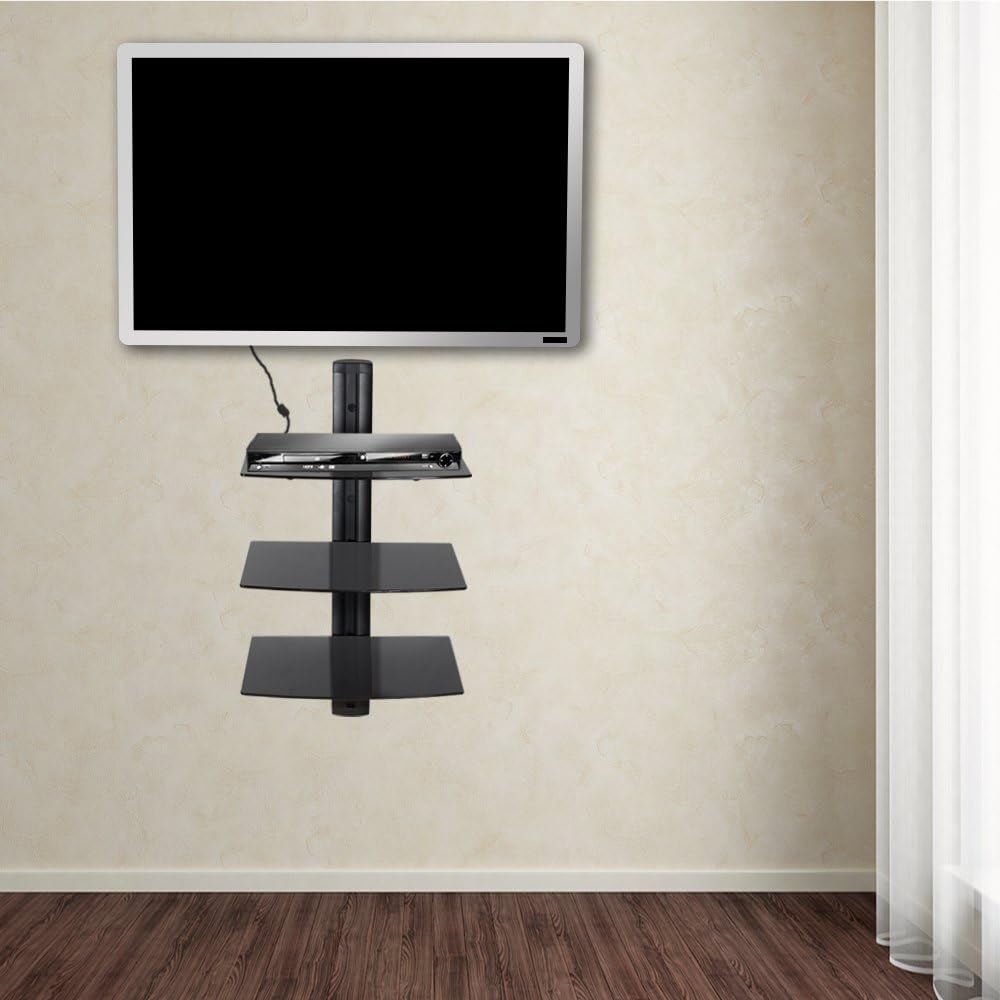

Obrázek 4.1: Příkladample of the wall shelf unit installed in a living space.

Obrázek 4.2: Boční strana view of the shelf unit, showing shelf placement.

5. Provoz a použití

Once installed, the TecTake wall shelf unit provides a functional and aesthetic platform for your media devices.

Placing Devices

Carefully place your electronic devices on the glass shelves. Ensure the weight of each device, along with any accessories, does not exceed the maximum load capacity of 14 kg per shelf. Distribute weight evenly across the shelf surface.

Nastavení výšky police

The shelves are designed to be height-adjustable. To adjust a shelf's position, locate the securing mechanism on the support arm, loosen it, slide the shelf to the desired height, and then firmly re-secure the mechanism. Always ensure the shelf is level after adjustment.

Image 5.1: Detail of the shelf adjustment mechanism and glass shelf support.

Správa kabelů

Utilize the integrated cable channel along the central column to conceal and organize power and AV cables from your devices. This feature helps prevent tangles, reduces clutter, and improves the overall aesthetic of your entertainment area.

6. Údržba

Regular cleaning and inspection will help maintain the appearance and functionality of your shelf unit.

Čištění

• Skleněné police: Clean glass surfaces with a soft, damp cloth and a mild glass cleaner. Avoid abrasive cleaners, scouring pads, or harsh chemicals that could scratch or damage the glass.
• Kovový rám: Wipe the steel frame with a soft, dry or slightly damp tkanina. Nepoužívejte abrazivní čisticí prostředky.

Pravidelné kontroly

Periodically check all screws and connections, especially those securing the unit to the wall, to ensure they remain tight and secure. This is particularly important after moving or adjusting the unit, or if you notice any instability.

7. Řešení problémů

If you encounter any issues with your TecTake wall shelf unit, refer to the following common problems and solutions:

• Police není v rovině:
  - Ensure the main wall bracket is mounted perfectly level. Re-adjust if necessary.
  - Verify that individual shelves are properly seated and secured on their support arms.
• Cables Not Tidy:
  - Ensure all cables are routed through the designated integrated cable channel.
  - Use additional cable ties (not included) to bundle excess cable length for a cleaner look.
• Jednotka se jeví nestabilně:
  - Double-check that the wall anchors and screws used are appropriate for your specific wall type and are securely fastened.
  - Ensure the total weight placed on the shelves does not exceed the maximum load capacity of 14 kg per shelf. Redistribute weight if necessary.

8. Záruka a podpora

This TecTake product is manufactured with high-quality materials and undergoes strict quality control to ensure durability and performance. For information regarding warranty coverage, claims, or technical support, please refer to your original purchase documentation or contact TecTake customer service directly. Please retain your proof of purchase for any warranty-related inquiries.

For further assistance, please visit the official TecTake webwebu nebo kontaktujte jejich zákaznickou linku podpory.
