1. Úvod
This instruction manual provides detailed guidance for the safe and effective use of your Lepro 12V LED Strip Light. This flexible, non-waterproof LED tape light features SMD 2835 LEDs and is 16.4 feet (5 meters) in length, emitting a daylight white light. Please read this manual thoroughly before installation and operation.
Image 1.1: Lepro 12V LED Strip Light, 16.4ft, shown with its packaging and coiled strip.
2. Bezpečnostní informace
- Napájecí adaptér: A 12V power adapter is required and not included. Ensure the power adapter used is rated for 12V DC output. Do not use a power adapter with an output voltage higher than 12V, as this can damage the LED strip and pose a safety risk.
- Wattage Kompatibilita: The LED strip has a wattage of 16W. Ensure the total wattagLED páskové osvětlení nepřekračuje maximální příkontage capacity of your power adapter.
- Tepelný výkon: Pracovní svtage is 12V, resulting in extremely low heat generation, making it safe to touch and suitable for environments accessible to children.
- Křehkost: The strip light is flexible but fragile. Exercise caution during installation and handling to avoid tearing or excessive bending, which can damage the internal circuitry.
- Pouze pro vnitřní použití: This product is designed for indoor use and is non-waterproof. Avoid exposure to moisture or outdoor elements.
3. Obsah balení
Upon opening the package, verify that all components are present and undamaged. The package includes:
- 1 x Lepro 12V LED Strip Light (16.4 ft / 5m)
- 1 x Uživatelská příručka
Poznámka: A 12V power adapter is není součástí dodávky a musí se zakoupit samostatně.
Image 3.1: Illustration of package contents, highlighting the LED strip light and user manual. The power adapter is not included.
4. Nastavení a instalace
Follow these steps for proper installation of your LED strip light:
- Připravte povrch: Ensure the installation surface is clean, dry, and smooth. Wipe the surface thoroughly to remove any dust, grease, or moisture.
- Změření a řezání (volitelné): The LED strip can be cut every 3 LEDs along the designated cutting marks. Use sharp scissors to ensure a clean cut. Do not cut in any other location, as this will damage the strip.
- Oloupejte a nalepte: Carefully peel off the protective backing from the self-adhesive tape on the back of the LED strip. Press the strip firmly onto the prepared surface, ensuring good contact along its entire length.
- Zabezpečení pomocí klipů (volitelné): For added security, especially on textured surfaces or corners, use fixing clips (not included) to further secure the strip.
- Připojte napájení: Connect the LED strip to a compatible 12V DC power adapter (not included). Ensure the polarity is correct.

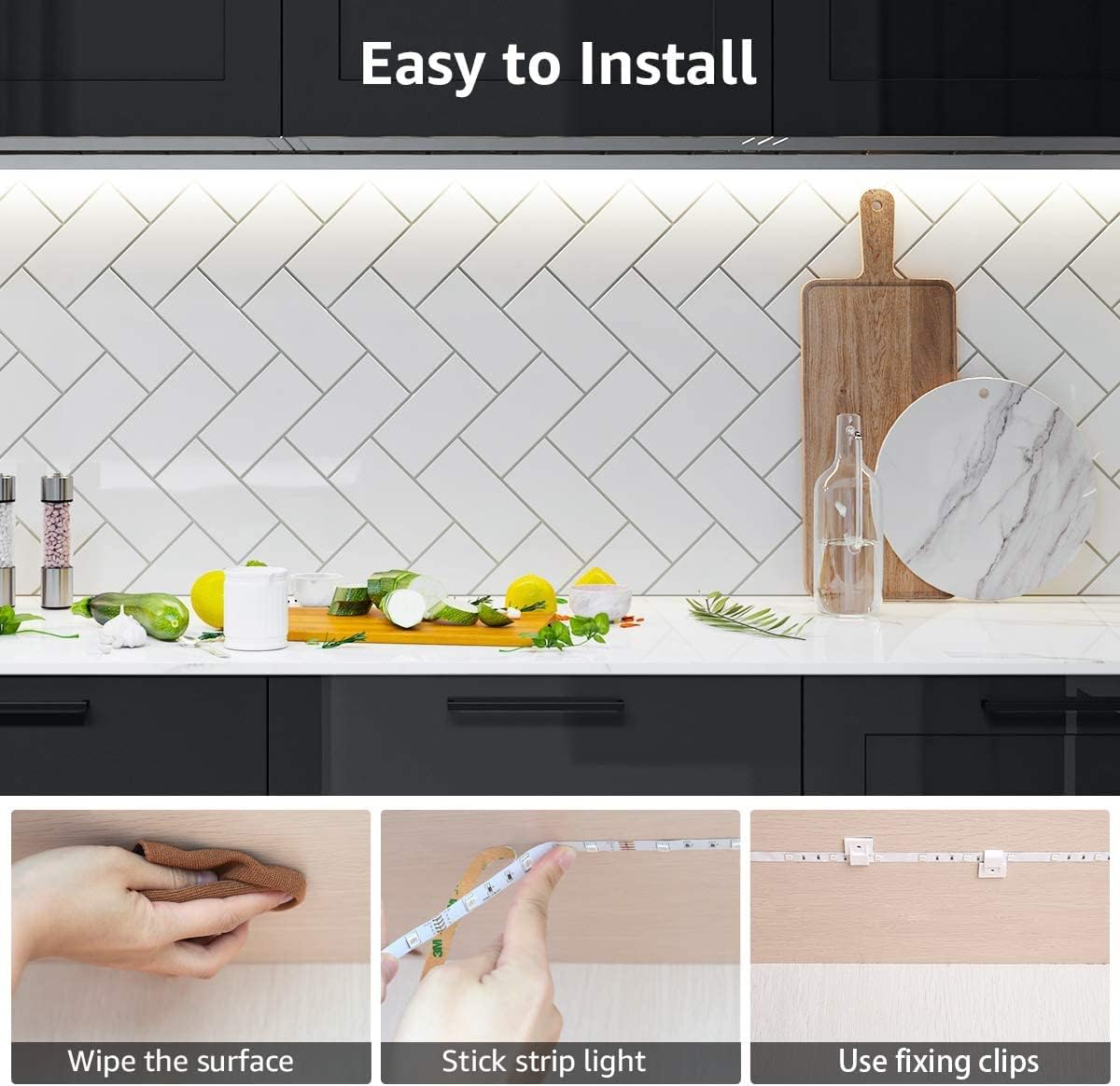

Image 4.1: Visual guide for easy installation, showing surface preparation, adhesive application, and optional use of fixing clips.
Image 4.2: The LED strip's flexibility allows for various shapes and DIY installations.
5. Návod k obsluze
Once the LED strip is securely installed and connected to a compatible 12V DC power adapter, simply plug the power adapter into a standard electrical outlet. The LED strip will illuminate. To turn off the lights, unplug the power adapter or use an inline switch if one is integrated into your power setup.
The LED strip provides a consistent daylight white light (6000K) suitable for various indoor applications.
Obrázek 5.1: Příkladample of the 6000K Daylight White illumination provided by the LED strip.
6. Údržba
- Čištění: Ensure the LED strip is unplugged before cleaning. Gently wipe the surface of the strip with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Inspekce: Periodically inspect the strip for any signs of damage, such as cuts, tears, or loose connections. If damage is found, discontinue use and replace the strip.
- Skladování: If storing the LED strip, ensure it is coiled loosely and kept in a dry, cool place away from direct sunlight.
7. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| LED pásek nesvítí. |
|
|
| Část LED pásku nesvítí. |
|
|
| Adhesive is not sticking well. |
|
|
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | Lepro |
| Číslo modelu | 4100057-DW |
| Typ světelného zdroje | LED (SMD 2835) |
| Světlá barva | Denní bílá |
| Teplota barev | 6000 Kelvinů |
| Světelný tok | 1200 XNUMX lumenů |
| svtage | 12 V DC |
| Wattage | 16 wattů |
| Délka | 16.4 stop (5 metrů) |
| Rozměry (D x Š x V) | 196.85 x 0.31 x 0.08 palce |
| Materiál | Měď, Plast |
| Vnitřní/venkovní použití | Pouze uvnitř |
| Úroveň odolnosti proti vodě | Non-Waterproof (IP20) |
| Speciální funkce | Slim, flexible, cuttable, self-adhesive |
9. Záruka a podpora
For warranty information or technical support, please refer to the official Lepro webwebu nebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi.
You can visit the Lepro store on Amazon for more products and support: Obchod Lepro na Amazonu
