BFT PHOBOS BT ARM Swing Gate Opener Kit

1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of the BFT PHOBOS BT ARM Swing Gate Opener Kit. This kit is designed for residential swing gates up to 10 feet in length and 550 lbs in weight. Please read this manual thoroughly before beginning installation or operation to ensure proper function and safety.

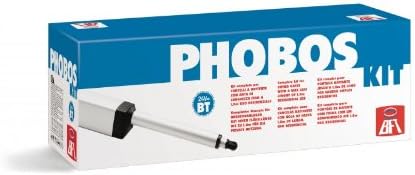

Figure 1: BFT PHOBOS BT ARM Swing Gate Opener Kit packaging. The image shows a blue and white box with "PHOBOS KIT" prominently displayed, alongside a linear actuator arm.

2. Bezpečnostní informace

Důležité bezpečnostní pokyny:

• Pečlivě si přečtěte a dodržujte všechny pokyny.
• Ujistěte se, že všechna elektrická připojení splňují místní předpisy a předpisy.
• Před prováděním jakékoli údržby nebo servisu odpojte napájení.
• Keep hands and clothing clear of the gate and moving parts.
• Nedovolte dětem hrát si v blízkosti brány nebo obsluhovat ovládací prvky.
• Nainstalujte bezpečnostní zařízení, jako jsou fotobuňky, aby se zabránilo náhodnému zavření.
• The gate opener is designed for swing gates only. Do not use for other purposes.
• In case of power failure, use the manual release mechanism.

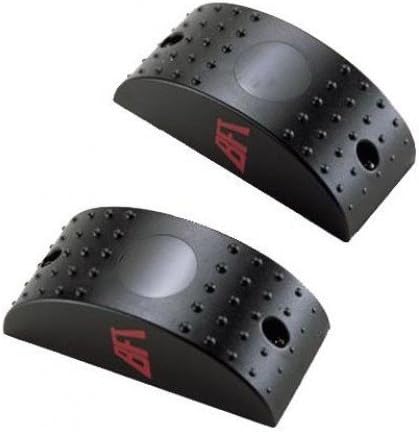

Figure 2: BFT safety photocells. These black, curved units are designed to detect obstructions in the gate's path, enhancing safety.

3. Obsah balení

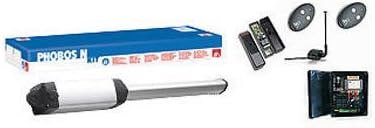

The BFT PHOBOS BT ARM Swing Gate Opener Kit typically includes the following components:

• 1x PHOBOS BT ARM Linear Actuator (Gate Motor)
• 1x Control Panel (Integrated or separate, depending on kit version)
• 2x Transmitters (Remote Controls)
• 1x Receiver (for remote control signals)
• 1x Pair of Polarized Safety Eyes (Photocells)
• Montážní konzoly a hardware
• Návod k použití

Figure 3: The BFT PHOBOS BT ARM linear actuator. This silver and black component is the primary motor for opening and closing the gate.

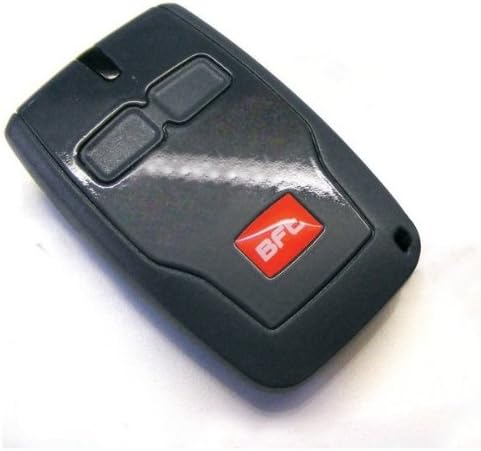

Figure 4: A BFT remote control. This black, rectangular remote features two buttons and the BFT logo, used for operating the gate.

4. Nastavení a instalace

Installation should be performed by qualified personnel. Ensure all safety precautions are followed.

1. Příprava brány: Ensure the gate operates smoothly manually and is properly hinged.
2. Montáž pohonu:
   • Attach the rear mounting bracket to a sturdy post or wall, ensuring it is level and at the correct height for optimal gate movement.
   • Připevněte přední montážní konzolu k rámu brány.
   • Connect the PHOBOS BT ARM actuator to both brackets. Ensure the actuator is level and has sufficient clearance throughout the gate's travel.
3. Instalace ovládacího panelu:
   • Mount the control panel in a secure, weather-protected location near the gate, but away from direct gate movement.
   • Connect the actuator motor cables to the control panel as per the wiring diagram provided with the control panel.
4. Safety Eye Installation:
   • Install the polarized safety eyes on opposite sides of the gate opening, at a height that detects obstructions effectively (e.g., 20-30 inches from the ground).
   • Wire the safety eyes to the control panel according to the provided diagram.
5. Připojení napájení:
   • Connect the main power supply (120V AC) to the control panel. Ensure a dedicated circuit with appropriate overcurrent protection is used.
   • The system operates at 24V DC internally.
6. Nastavení koncového spínače:
   • Adjust the magnetic limit switches on the actuator to define the open and closed positions of the gate. Refer to the control panel manual for specific programming steps.

5. Návod k obsluze

Once installed and configured, the BFT PHOBOS BT ARM gate opener can be operated using the provided remote controls.

1. Programování dálkového ovládání:
   • Refer to the control panel manual for specific instructions on how to program the remote transmitters. This typically involves pressing a programming button on the control panel and then a button on the remote.

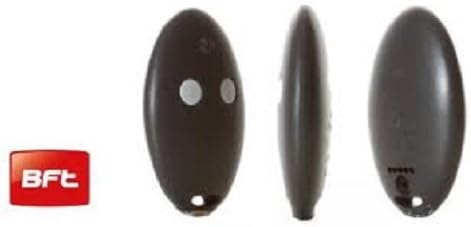

   Figure 5: An oval-shaped BFT remote control with two circular buttons. This type of remote is used to send commands to the gate opener.
2. Otevírání/zavírání brány:
   • Press the programmed button on your remote control. The gate will begin to open or close.
   • Opakované stisknutí tlačítka během provozu obvykle bránu zastaví. Třetí stisknutí obrátí směr pohybu.
3. Ruční uvolnění:
   • In case of power failure or malfunction, locate the manual release mechanism on the actuator.
   • Insert the provided CLS release key and turn it to disengage the motor, allowing the gate to be moved manually.
   • Remember to re-engage the motor after manual operation.

6. Údržba

Pravidelná údržba zajistí dlouhou životnost a spolehlivý provoz vašeho pohonu vrat.

• Měsíční:
  • Inspect the gate for smooth manual operation. Lubricate hinges if necessary.
  • Zkontrolujte těsnost veškerého montážního materiálu.
  • Clean safety photocells to ensure clear line of sight.
• Každoročně:
  • Inspect electrical wiring for any signs of wear or damage.
  • Verify the proper function of safety features, including obstruction detection and photocells.
  • Check the actuator for any unusual noises or resistance.
• Profesionální servis: It is recommended to have the system inspected by a qualified technician every 1-2 years.

7. Řešení problémů

Tato část se zabývá běžnými problémy, se kterými se můžete setkat.

8. Specifikace

9. Záruka a podpora

For specific warranty information, please refer to the documentation included with your purchase or contact BFT customer support directly. Keep your proof of purchase for warranty claims.

For technical assistance or replacement parts, please contact your authorized BFT dealer or visit the official BFT webmísto.
